3M
™
Shielded Controlled Impedance (SCI)
.100″

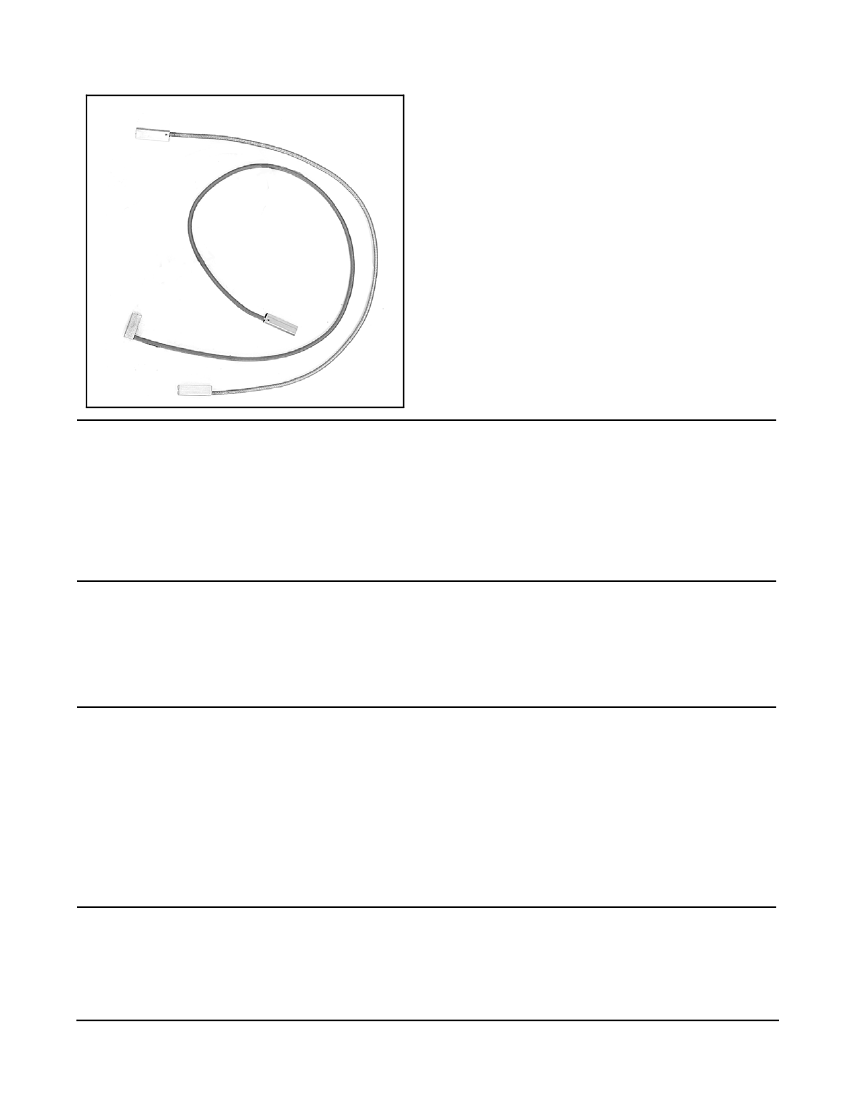

Cable Assemblies
• .100 inch (2.54 mm) center spacing
• Mates with standard 3M two-pin headers
• Supplied as a completed assembly
Stand-Alone version
• Available in right angle and straight
configurations with optional polarization
feature
• Right angle connector has optional two-pin
header latch
Carrier version
• Available only in straight configuration
designed for use with the 3M SCI carrier
system
Date Modified: September 23, 2005
TS-0803-05
Sheet 1 of 3
Physical
(Connector Insulation)
Material: Thermoplastic
Flammability: UL 94V-0
(Connector Contact)
Material: Beryllium Copper
Plating:
50/50
µ″
Au/Ni (1.27/1.27
µm
Au/Ni)
(Connector Shieldbox)
Material: Copper Zinc Alloy
Plating: Solderable Nickel
Electrical
Current Rating:
1 A
Insulation Resistance:
>5 x 10
9
Ω
Withstanding Voltage:
500 V AC
Characteristic Impedance:
See cable types
Mechanical
Center Spacing:
.100″ (2.54 mm)
Mating Pin Dimensions:
.024″ min/.026″ max (0.61 mm/0.665 mm)
Mating Pin Length 20, 21, 22, 23:
.23″ nom (5.80 mm); 24: .21″ nom (5.02 mm)
Contact Mating Point 20, 21, 22, 23:
.13″ (3.40 mm); 24: .10″ (2.60 mm)
Connector Insertion Force:
2.3 N max [Pin:0.025″ (0.63 mm)]
1.5 N min [Pin:0.025″ (0.63 mm)]
Cable Retention Force:
50 N min
Durability (Insertion/Withdrawal):
500 cycles
Connector Withdrawel Force:
Environmental
Temperature Rating:
22, 23: -55 to +105
°
C; 24: -55 to +125
°
C
UL File No.: E86982 (Optional)
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Shielded Controlled Impedance (SCI)
.100″
Connector Types
Carrier Version
Type 24
Stand Alone Version
Type 23
Cable Assemblies
.604
[ 15.35 ]
.604
[ 15.35 ]
.082
[ 2.08 ]
.088 [ 2.25 ]
.174 [ 4.43 ]
.11 [ 2.80 ]
.174 [ 4.43 ]
Ground
.012 [ 0.30 ]
Ground
.039 [ 1.0 ]
Signal
.100 [ 2.54 ]
Signal
.100 [ 2.54 ]
.073
[ 1.85 ]
[mm]
Tolerance Unless Noted
.0
Right Angle Version
Type 22
.063 [ 1.60 ]
Inch
±.1
.00
±.01
.000
±.005
Inch
[ ] Dimensions for
Reference only
.472
[ 12.00 ]
Example Assembly
.174 [ 4.43 ]
.088
[ 2.25 ]
Ground
.012 [ 0.30 ]
Length
Assembly Tolerances:
<10″:±1/4″
10″ to 36″:
±1/2″
36″ to 120″:
±1″
>120″:±2″
Minimum Length:
4.3″
.039 [ 1.0 ]
Signal
.100 [ 2.54 ]
Ordering Information
98XXXX-XXX-XXX.X-X X X
Left Connector Type/Right Connector Type
22 = Right angle, nonpolarized
23 = Straight, nonpolarized
24 = Carrier version, straight
Cable Type
017 = 50
Ω
027 = 50
Ω
Low capacitance
041 = 75
Ω
XXX = For other cable options
contact 3M (if non standard)
USA and Canadian
Certification
Y = Yes
N = No
Ground Pattern
S = Signals as indicated on connector dwg
Z = Customer special ground pattern
(Consult Factory)
Harness Required
A = Multiple Assy's Harnessed
0 = Single Assembly Only
Length
(inches)
TS-0803-05
Sheet 2 of 3
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Shielded Controlled Impedance (SCI)
.100″
Cable Specification
B
C
Cable Assemblies
A
A
C
D
B
D
Physical Properties (TYP)
Cable Type
A
Center Conductor
B
Dielectric Material
C
Shield
D
Jacket
017
50
Ω
±
5
Ω
30 AWG SCCCS Stranded (7/38)
.012″ O.D.
(0.30 mm O.D.)
26 AWG SPC Stranded (7/34)
.019″ O.D.
(0.48 mm O.D.)
30 AWG SPC Stranded (7/38)
.012″ O.D.
(0.30 mm O.D.)
PTFE
.033″ O.D.
(0.84 mm O.D.)
AIR/FEP Tube
.044″ O.D.
(1.1 mm O.D.)
FEP (Porous)
.045″ O.D.
(1.14 mm O.D.)
38 AWG Braid (SPC)
95% nominal coverage
.059″ O.D.
(1.50 mm O.D.)
38 AWG (SPC)
Double Serve
FEP
Natural Color
.071″ O.D.
(1.80 mm O.D.)
FEP
Blue Color
.074″ O.D.
(1.88 mm O.D.)
FEP
Gray Color
.074″ O.D.
(1.88 mm O.D.)
027
50
Ω
±
2
Ω
041
75
Ω
±
3
Ω
40 AWG Braid (TPC)
90% min coverage
.059″ O.D.
(1.50 mm O.D.)
SCCCS = Silver Coated Copper Covered Steel
SPC = Silver Plated Copper
TPC = Tin Plated Copper
Electrical Properties (TYP)
Cable Type
Capacitance
Propagation Delay
Attenuation
Conductor Resistance
017
027
041
50
Ω
±
5
Ω
50
Ω
±
2
Ω
75
Ω
±
3
Ω
32 pf/ft max
(105 pf/m)
23 pf/ft nom
(75 pf/m)
16 pf/ft max
(52 pf/m)
1.46 ns/ft nominal
(4.8 ns/m )
1.15 ns/ft nominal
(3.77 ns/m )
1.22 ns/ft nominal
(4.0 ns/m )
33 dB Max/100 ft @ 400 MHz
(108 dB/ 100 m)
20 dB /100ft @ 400 MHz Nom
(65 dB/100 m)
10 dB Max/100 ft @ 100 MHz
(33 dB/100 m)
.24
Ω/ft
at 68°F
(0.8
Ω/m
at 20°C)
.041
Ω/ft
at 68°F
(.15
Ω/m
at 20°C)
.09
Ω/ft
at 68°F
(0.3
Ω/m
at 20°C)
TS-0803-05
Sheet 3 of 3
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Important Notice
All statements, technical information, and recommendations
related to 3M’s products are based on information believed to be
reliable, but the accuracy or completeness is not guaranteed.
Before using this product, you must evaluate it and determine if it
is suitable for your intended application. You assume all risks and
liability associated with such use. Any statements related to the
product which are not contained in 3M’s current publications, or
any contrary statements contained on your purchase order shall
have no force or effect unless expressly agreed upon, in writing,
by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and
manufacture for a period of one (1) year from the time of
purchase.
3M MAKES NO OTHER WARRANTIES INCLUDING,
BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE.
If this product is defective within the warranty period
stated above, your exclusive remedy shall be, at 3M’s option, to
replace or repair the 3M product or refund the purchase price of
the 3M product.
Except where prohibited by law, 3M will not
be liable for any indirect, special, incidental or consequential
loss or damage arising from this 3M product, regardless of
the legal theory asserted.
Electronics
6801 River Place Blvd.
Austin, TX 78726-9000
800/328-1368
www.3M.com/electronics
3
Minimum 10%
Post-Consumer Fiber
Printed in USA.
© 3M 2005
