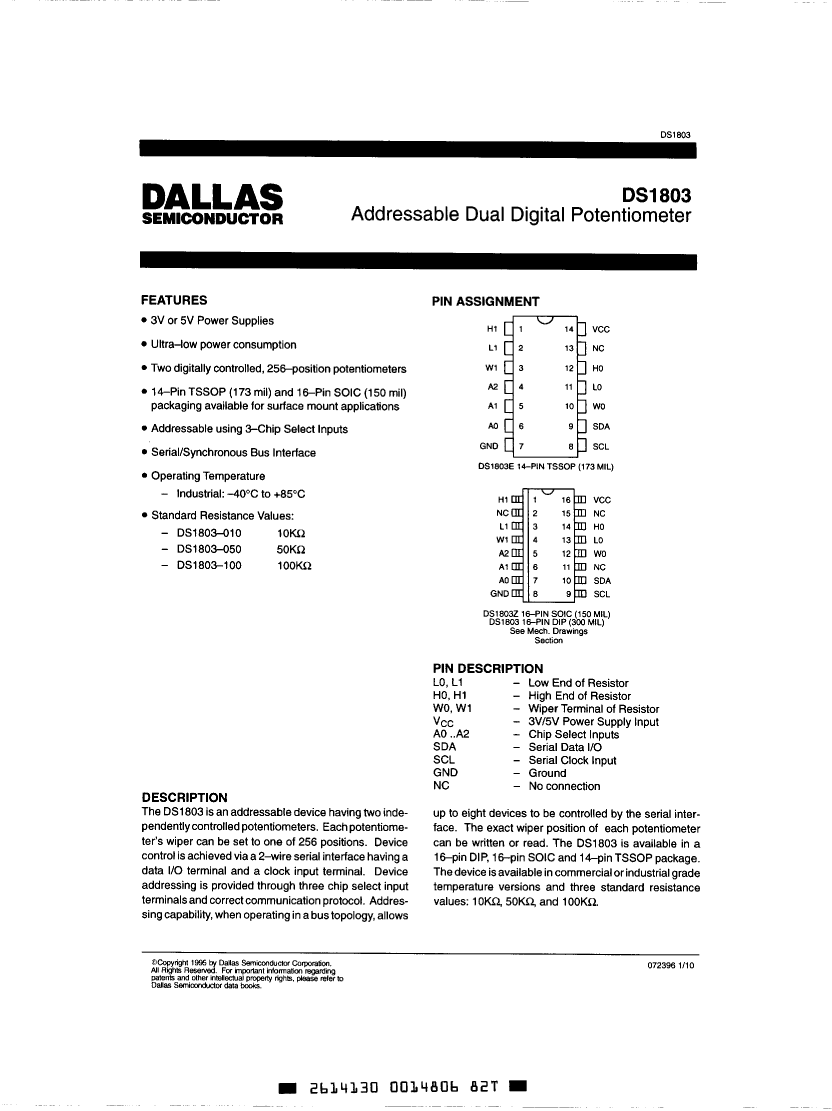

DS1803EN-010: DescriptionDigital Potentiometer, 10000ohm, 2-wire Serial Control Interface, 256 Positions, CMOS, PDSO14, PLASTIC, SOIC-14; CategoryAnalog mixed-signal IC converter; File Size584KB，10 Pages; ManufacturerDALLAS; Websitehttp://www.dalsemi.com

Download Datasheet Parametric Compare View All

DS1803EN-010 Overview

Digital Potentiometer, 10000ohm, 2-wire Serial Control Interface, 256 Positions, CMOS, PDSO14, PLASTIC, SOIC-14

DS1803EN-010 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	PLASTIC, SOIC-14
Reach Compliance Code	unknown
control interface	2-WIRE SERIAL
Converter type	DIGITAL POTENTIOMETER
JESD-30 code	R-PDSO-G14
JESD-609 code	e0
Number of positions	256
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP14,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	3/5 V
Certification status	Not Qualified
resistance law	LINEAR
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
Nominal total resistance	10000 Ω
Base Number Matches	1

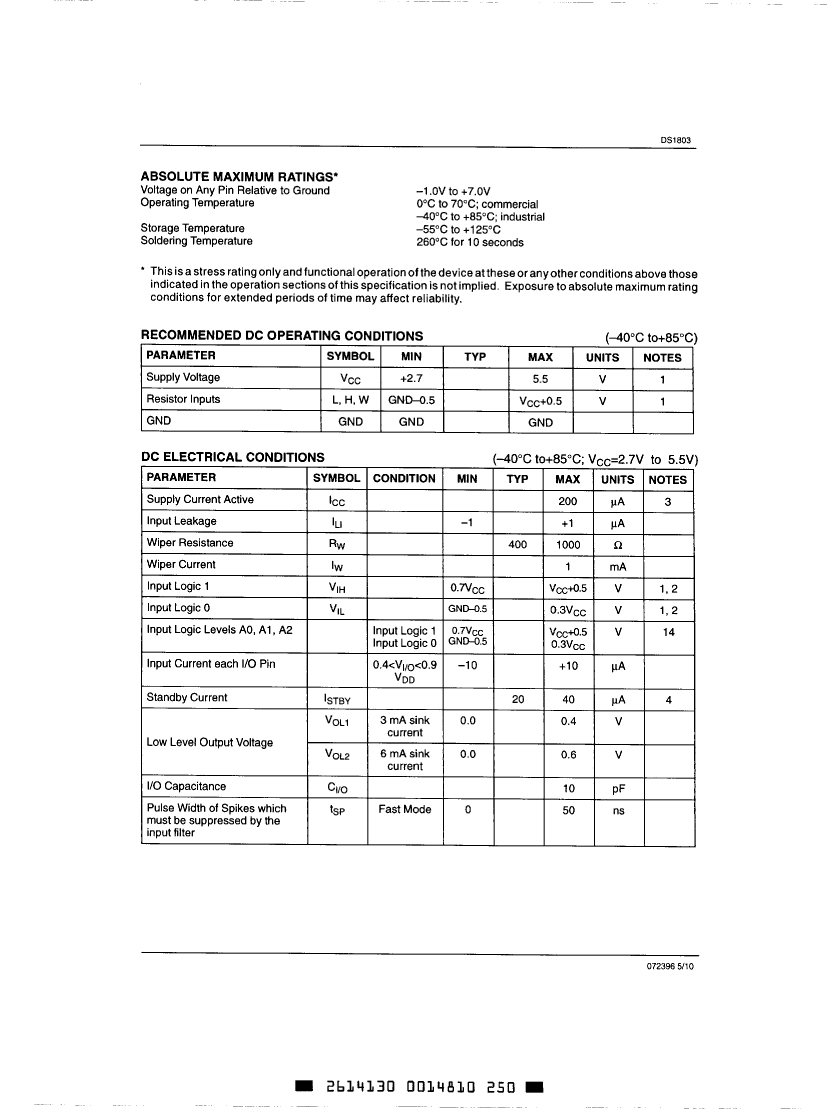

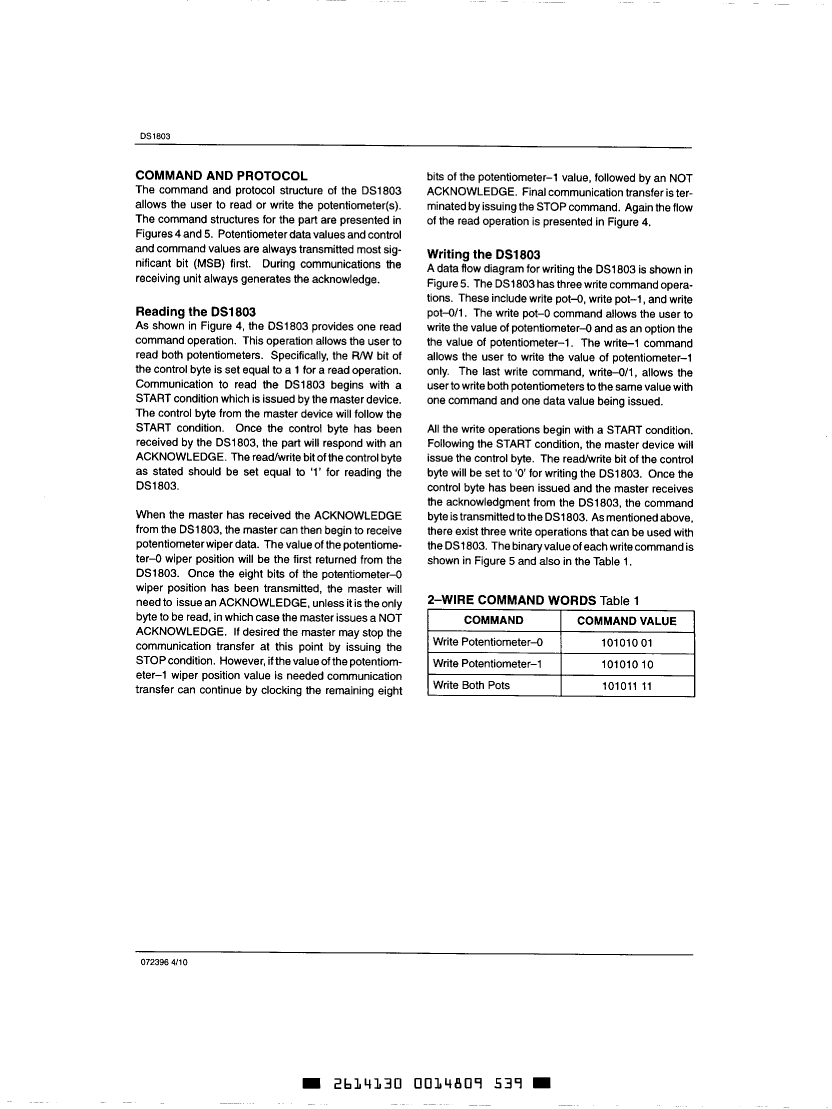

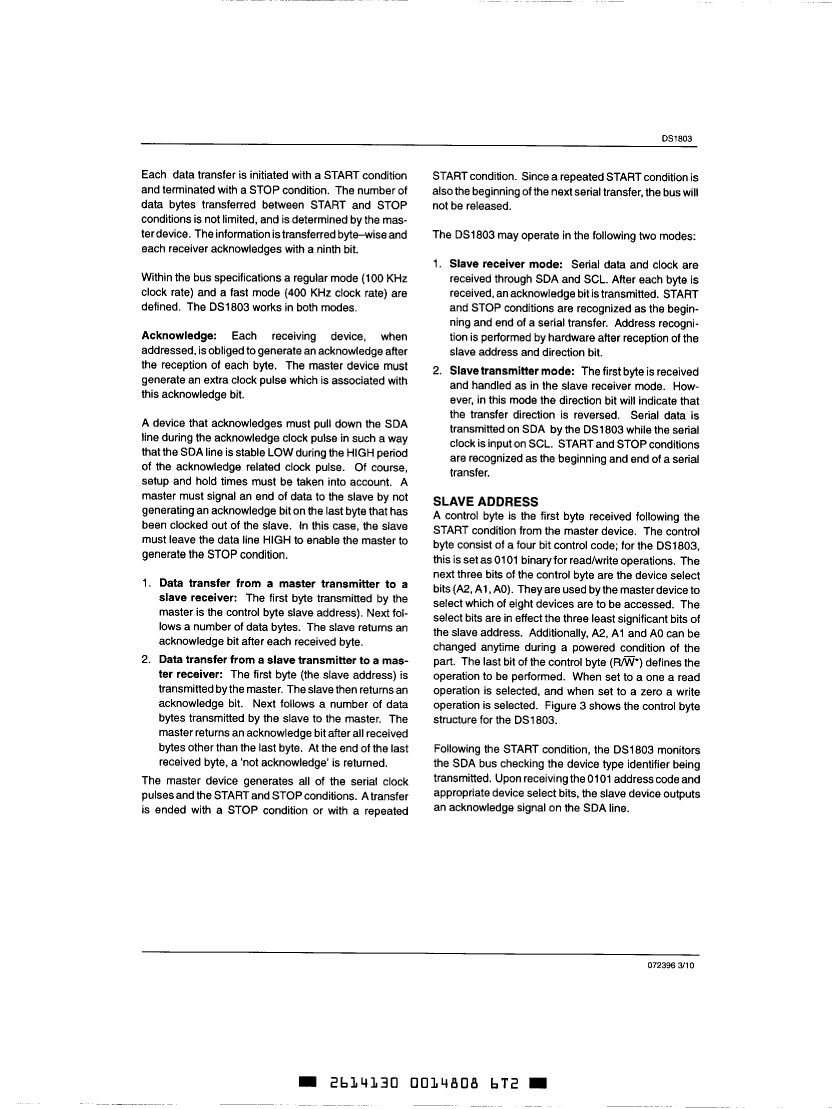

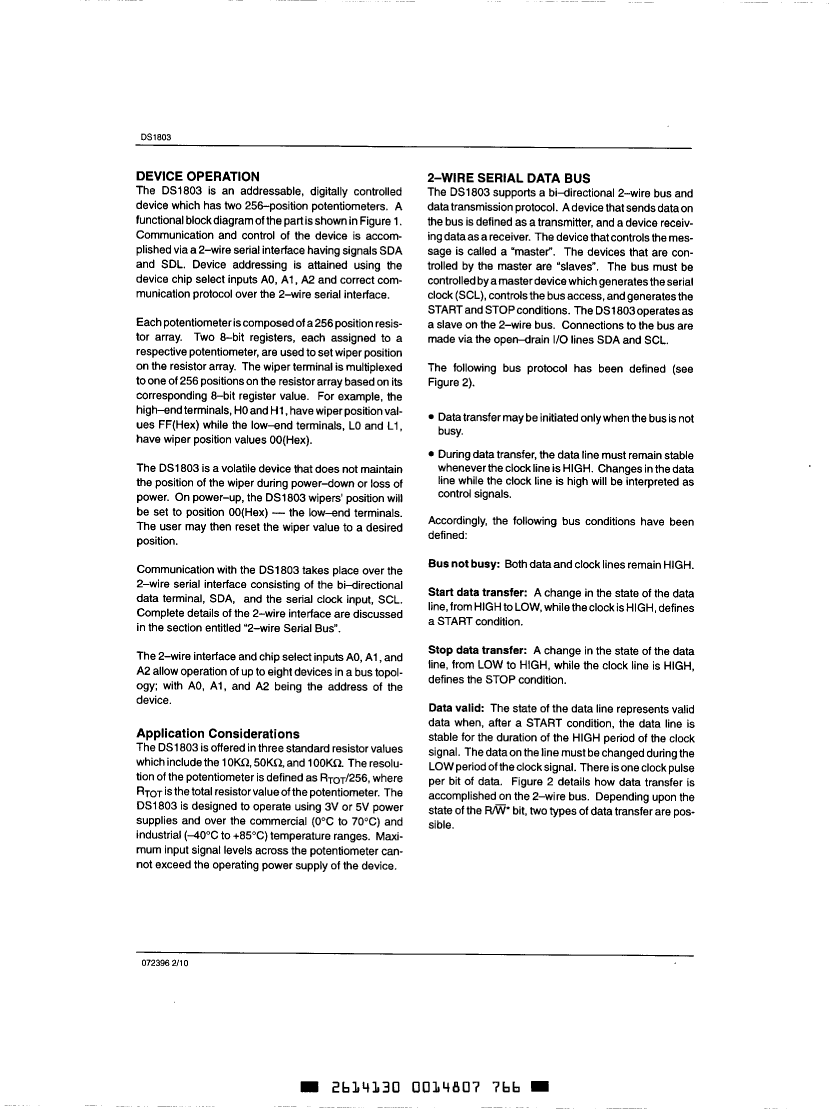

Preview

Download Datasheet

View All

DS1803EN-010 Related Products

	DS1803EN-010	DS1803N-050	DS1803EN-100	DS1803N-010	DS1803N-100	DS1803EN-050
Description	Digital Potentiometer, 10000ohm, 2-wire Serial Control Interface, 256 Positions, CMOS, PDSO14, PLASTIC, SOIC-14	Digital Potentiometer, 50000ohm, 2-wire Serial Control Interface, 256 Positions, CMOS, PDIP16, PLASTIC, DIP-16	Digital Potentiometer, 100000ohm, 2-wire Serial Control Interface, 256 Positions, CMOS, PDSO14, PLASTIC, SOIC-14	Digital Potentiometer, 10000ohm, 2-wire Serial Control Interface, 256 Positions, CMOS, PDIP16, PLASTIC, DIP-16	Digital Potentiometer, 100000ohm, 2-wire Serial Control Interface, 256 Positions, CMOS, PDIP16, PLASTIC, DIP-16	Digital Potentiometer, 50000ohm, 2-wire Serial Control Interface, 256 Positions, CMOS, PDSO14, PLASTIC, SOIC-14
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	PLASTIC, SOIC-14	PLASTIC, DIP-16	PLASTIC, SOIC-14	PLASTIC, DIP-16	PLASTIC, DIP-16	PLASTIC, SOIC-14
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow
control interface	2-WIRE SERIAL	2-WIRE SERIAL	2-WIRE SERIAL	2-WIRE SERIAL	2-WIRE SERIAL	2-WIRE SERIAL
Converter type	DIGITAL POTENTIOMETER	DIGITAL POTENTIOMETER	DIGITAL POTENTIOMETER	DIGITAL POTENTIOMETER	DIGITAL POTENTIOMETER	DIGITAL POTENTIOMETER
JESD-30 code	R-PDSO-G14	R-PDIP-T16	R-PDSO-G14	R-PDIP-T16	R-PDIP-T16	R-PDSO-G14
JESD-609 code	e0	e0	e0	e0	e0	e0
Number of positions	256	256	256	256	256	256
Number of terminals	14	16	14	16	16	14
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	DIP	TSSOP	DIP	DIP	TSSOP
Encapsulate equivalent code	TSSOP14,.25	DIP16,.3	TSSOP14,.25	DIP16,.3	DIP16,.3	TSSOP14,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE
power supply	3/5 V	3/5 V	3/5 V	3/5 V	3/5 V	3/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
resistance law	LINEAR	LINEAR	LINEAR	LINEAR	LINEAR	LINEAR
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING
Terminal pitch	0.635 mm	2.54 mm	0.635 mm	2.54 mm	2.54 mm	0.635 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Nominal total resistance	10000 Ω	50000 Ω	100000 Ω	10000 Ω	100000 Ω	50000 Ω
