UPD75CG216AE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> UPD75CG216AE

UPD75CG216AE: DescriptionMicrocontroller, 4-Bit, MROM, 4.19MHz, CMOS, CDIP64, CERAMIC, PIGGY BACK, SDIP-64; CategoryThe embedded processor and controller Microcontrollers and processors; File Size640KB，23 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

UPD75CG216AE Overview

Microcontroller, 4-Bit, MROM, 4.19MHz, CMOS, CDIP64, CERAMIC, PIGGY BACK, SDIP-64

UPD75CG216AE Parametric

Parameter Name	Attribute value
package instruction	CERAMIC, PIGGY BACK, SDIP-64
Reach Compliance Code	unknown
Has ADC	NO
Address bus width
bit size	4
maximum clock frequency	4.19 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-CDIP-T64
Number of I/O lines	28
Number of terminals	64
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
PWM channel	YES
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	ADIP
Package shape	RECTANGULAR
Package form	IN-LINE, PIGGYBACK
Certification status	Not Qualified
ROM programmability	MROM
speed	4.19 MHz
Maximum slew rate	9 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

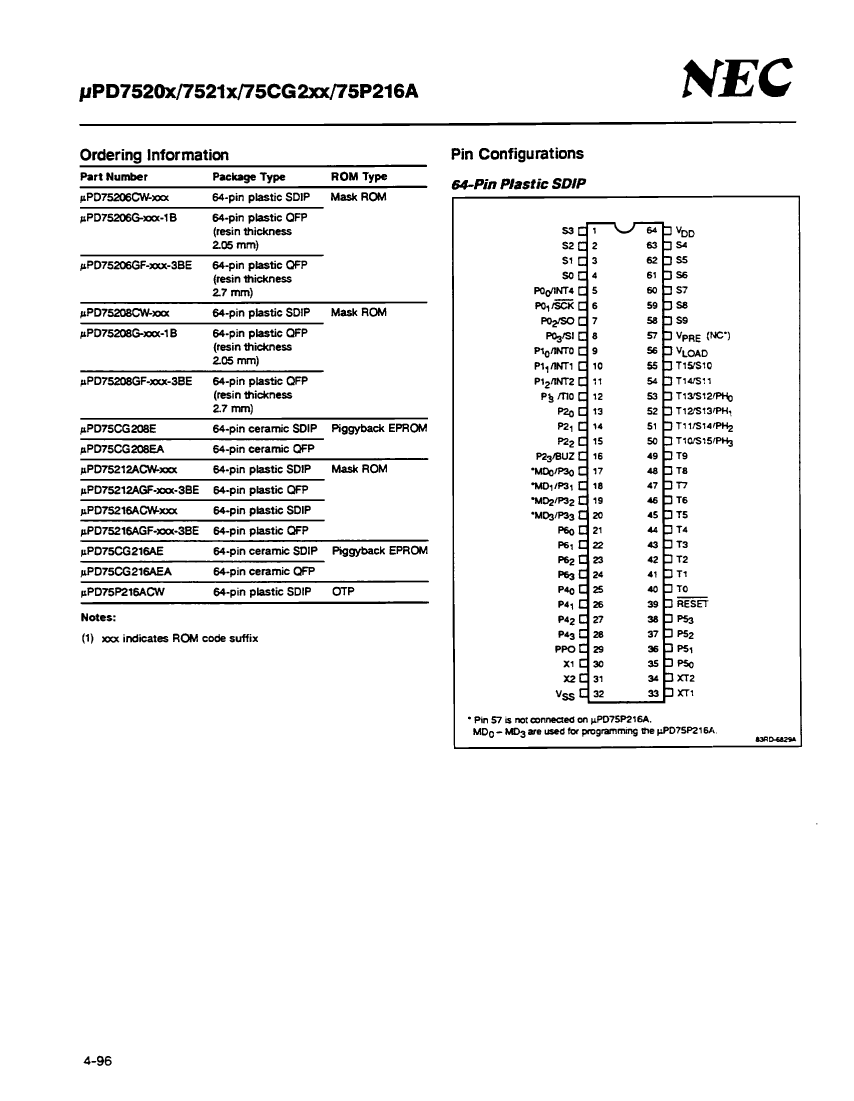

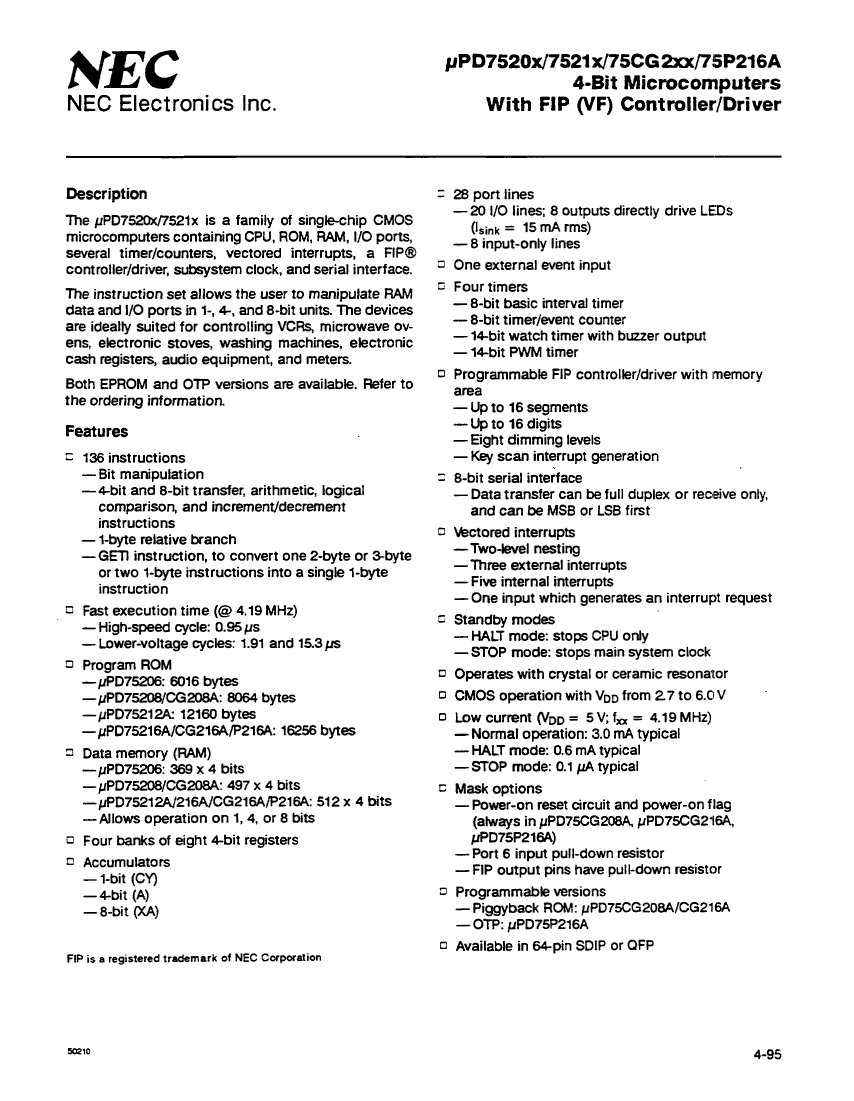

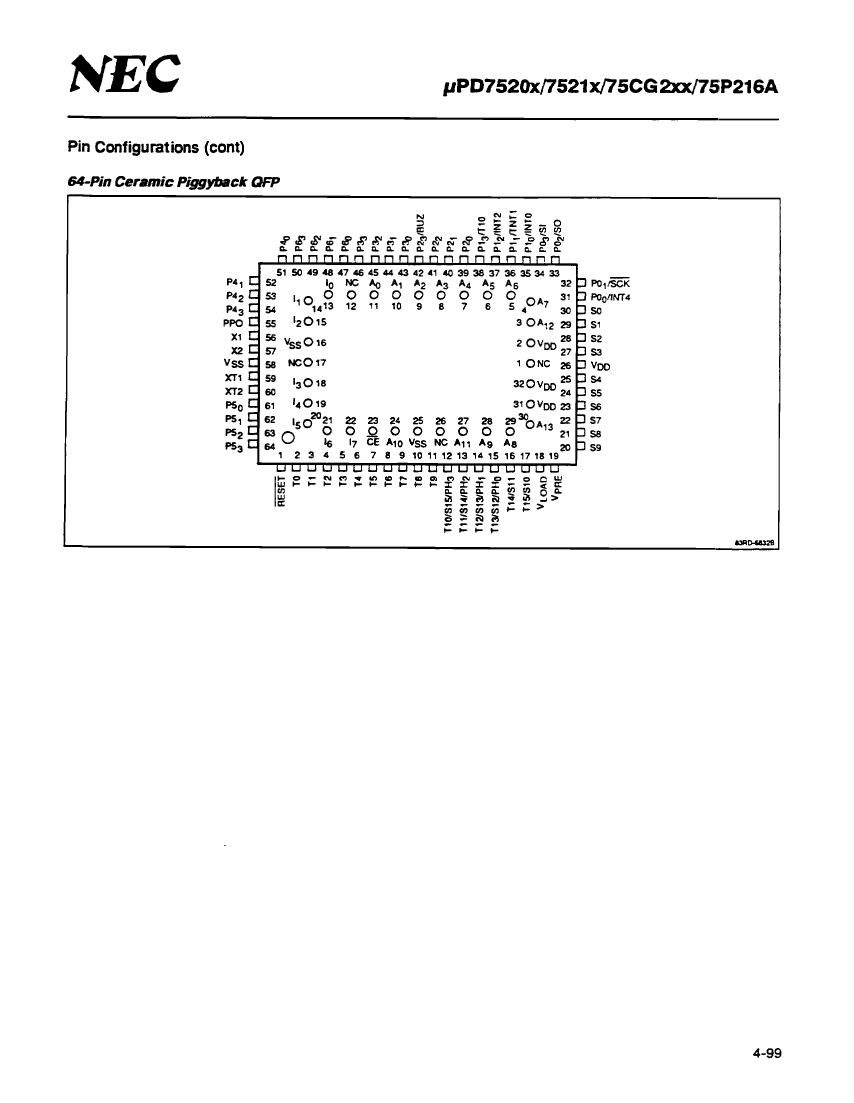

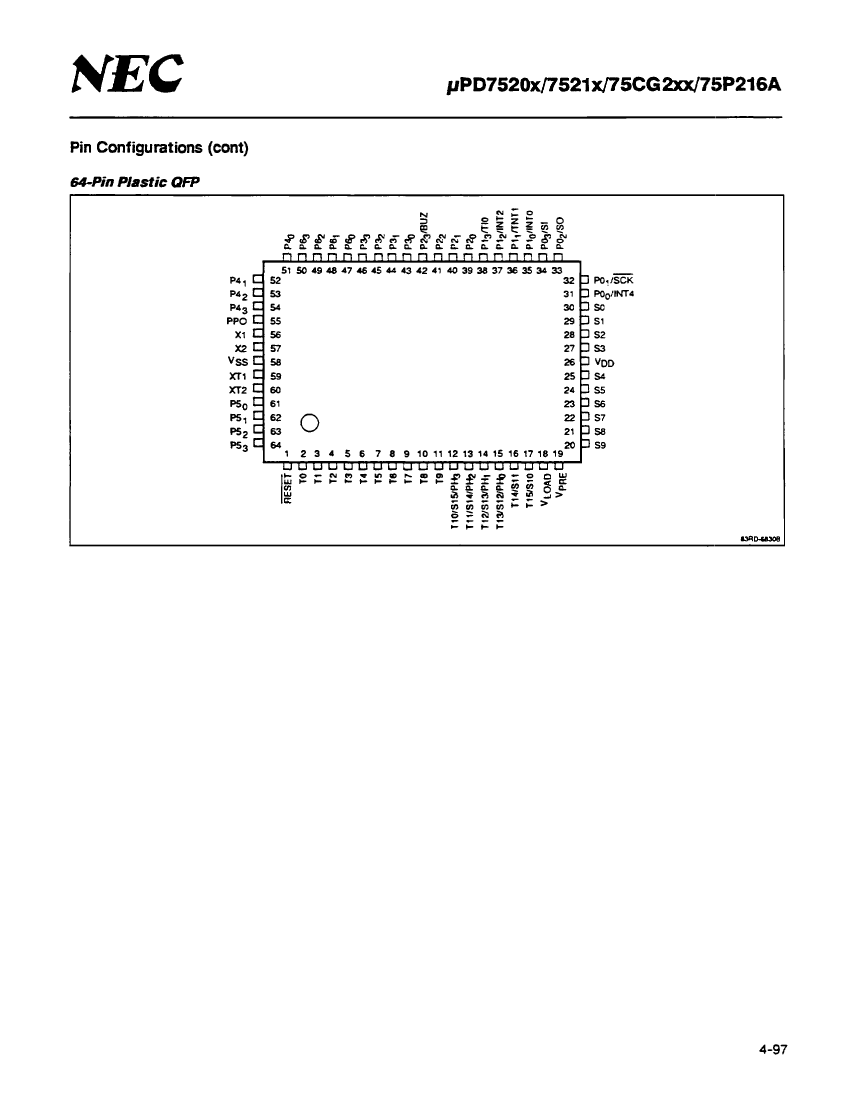

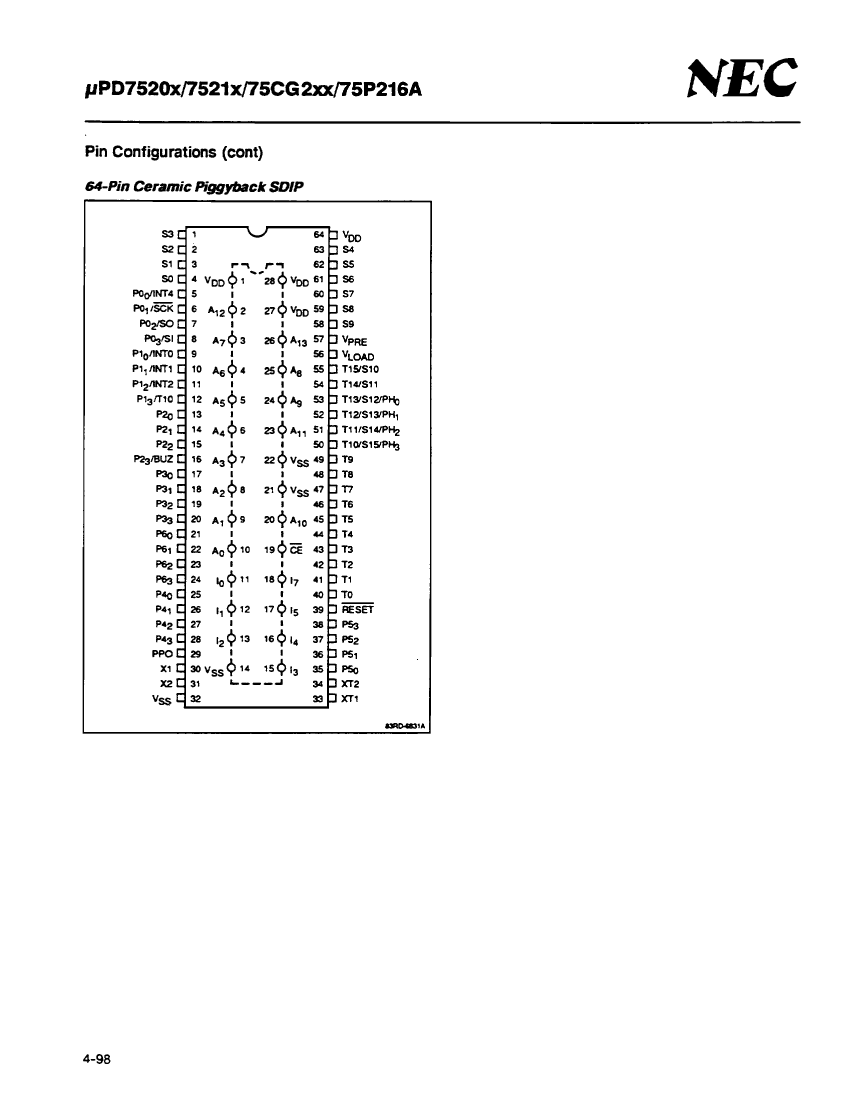

Preview

Download Datasheet

View All

UPD75CG216AE Related Products

	UPD75CG216AE	UPD75P216ACW	UPD75CG216AEA	UPD75CG208E	UPD75CG208EA	UPD75208GF-XXX-3BE	UPD75212ACW-XXX	UPD75206G-XXX-1B	UPD75208CW-XXX	UPD75208G-XXX-1B
Description	Microcontroller, 4-Bit, MROM, 4.19MHz, CMOS, CDIP64, CERAMIC, PIGGY BACK, SDIP-64	Microcontroller, 4-Bit, OTPROM, 4.19MHz, CMOS, PDIP64, PLASTIC, SDIP-64	Microcontroller, 4-Bit, MROM, 4.19MHz, CMOS, CQFP64, CERAMIC, PIGGY BACK, QFP-64	Microcontroller, 4-Bit, MROM, 4.19MHz, CMOS, CDIP64, CERAMIC, PIGGY BACK, SDIP-64	Microcontroller, 4-Bit, MROM, 4.19MHz, CMOS, CQFP64, CERAMIC, PIGGY BACK, QFP-64	Microcontroller, 4-Bit, MROM, 4.19MHz, CMOS, PQFP64, 2.70 MM HEIGHT, PLASTIC, QFP-64	Microcontroller, 4-Bit, MROM, 4.19MHz, CMOS, PDIP64, PLASTIC, SDIP-64	Microcontroller, 4-Bit, MROM, 4.19MHz, CMOS, PQFP64, 2.05 MM HEIGHT, PLASTIC, QFP-64	Microcontroller, 4-Bit, MROM, 4.19MHz, CMOS, PDIP64, PLASTIC, SDIP-64	Microcontroller, 4-Bit, MROM, 4.19MHz, CMOS, PQFP64, 2.05 MM HEIGHT, PLASTIC, QFP-64
package instruction	CERAMIC, PIGGY BACK, SDIP-64	PLASTIC, SDIP-64	CERAMIC, PIGGY BACK, QFP-64	CERAMIC, PIGGY BACK, SDIP-64	CERAMIC, PIGGY BACK, QFP-64	2.70 MM HEIGHT, PLASTIC, QFP-64	PLASTIC, SDIP-64	2.05 MM HEIGHT, PLASTIC, QFP-64	PLASTIC, SDIP-64	2.05 MM HEIGHT, PLASTIC, QFP-64
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Has ADC	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
bit size	4	4	4	4	4	4	4	4	4	4
maximum clock frequency	4.19 MHz	4.19 MHz	4.19 MHz	4.19 MHz	4.19 MHz	4.19 MHz	4.19 MHz	4.19 MHz	4.19 MHz	4.19 MHz
DAC channel	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-30 code	R-CDIP-T64	R-PDIP-T64	S-CQFP-G64	R-CDIP-T64	S-CQFP-G64	R-PQFP-G64	R-PDIP-T64	R-PQFP-G64	R-PDIP-T64	R-PQFP-G64
Number of I/O lines	28	28	28	28	28	28	28	28	28	28
Number of terminals	64	64	64	64	64	64	64	64	64	64
PWM channel	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Package body material	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	ADIP	SDIP	AQFP	ADIP	AQFP	QFP	SDIP	QFP	SDIP	QFP
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE, PIGGYBACK	IN-LINE, SHRINK PITCH	FLATPACK, PIGGYBACK	IN-LINE, PIGGYBACK	FLATPACK, PIGGYBACK	FLATPACK	IN-LINE, SHRINK PITCH	FLATPACK	IN-LINE, SHRINK PITCH	FLATPACK
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
ROM programmability	MROM	OTPROM	MROM	MROM	MROM	MROM	MROM	MROM	MROM	MROM
speed	4.19 MHz	4.19 MHz	4.19 MHz	4.19 MHz	4.19 MHz	4.19 MHz	4.19 MHz	4.19 MHz	4.19 MHz	4.19 MHz
Maximum slew rate	9 mA	30 mA	9 mA	9 mA	9 mA	9 mA	9 mA	9 mA	9 mA	9 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	6 V	6 V	6 V	6 V	6 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V
surface mount	NO	NO	YES	NO	YES	YES	NO	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING
Terminal location	DUAL	DUAL	QUAD	DUAL	QUAD	QUAD	DUAL	QUAD	DUAL	QUAD
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Maximum operating temperature	70 °C	-	70 °C	70 °C	70 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-10 °C	-	-10 °C	-10 °C	-10 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Temperature level	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
