UPD75P056GC-AB8 datasheet, PDF

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> UPD75P056GC-AB8

UPD75P056GC-AB8: DescriptionMicrocontroller, 4-Bit, OTPROM, 4.19MHz, CMOS, PQFP64, 14 X 14 MM, PLASTIC, QFP-64; CategoryThe embedded processor and controller Microcontrollers and processors; File Size243KB，7 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

UPD75P056GC-AB8 Overview

Microcontroller, 4-Bit, OTPROM, 4.19MHz, CMOS, PQFP64, 14 X 14 MM, PLASTIC, QFP-64

UPD75P056GC-AB8 Parametric

Parameter Name	Attribute value
package instruction	14 X 14 MM, PLASTIC, QFP-64
Reach Compliance Code	unknown
Has ADC	YES
Address bus width
bit size	4
maximum clock frequency	4.19 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	S-PQFP-G64
length	14 mm
Number of I/O lines	48
Number of terminals	64
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	SQUARE
Package form	FLATPACK
Certification status	Not Qualified
ROM programmability	OTPROM
Maximum seat height	2.85 mm
speed	4.19 MHz
Maximum supply voltage	6 V
Minimum supply voltage	2.7 V
surface mount	YES
technology	CMOS
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

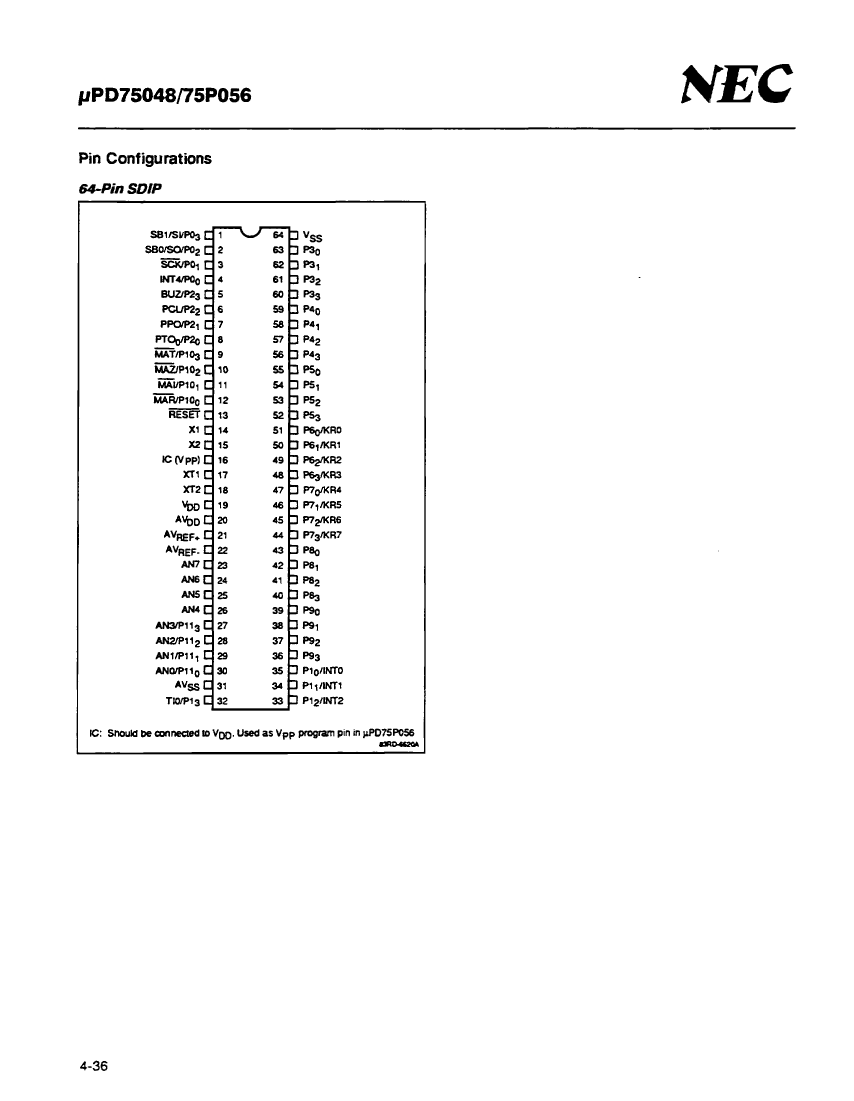

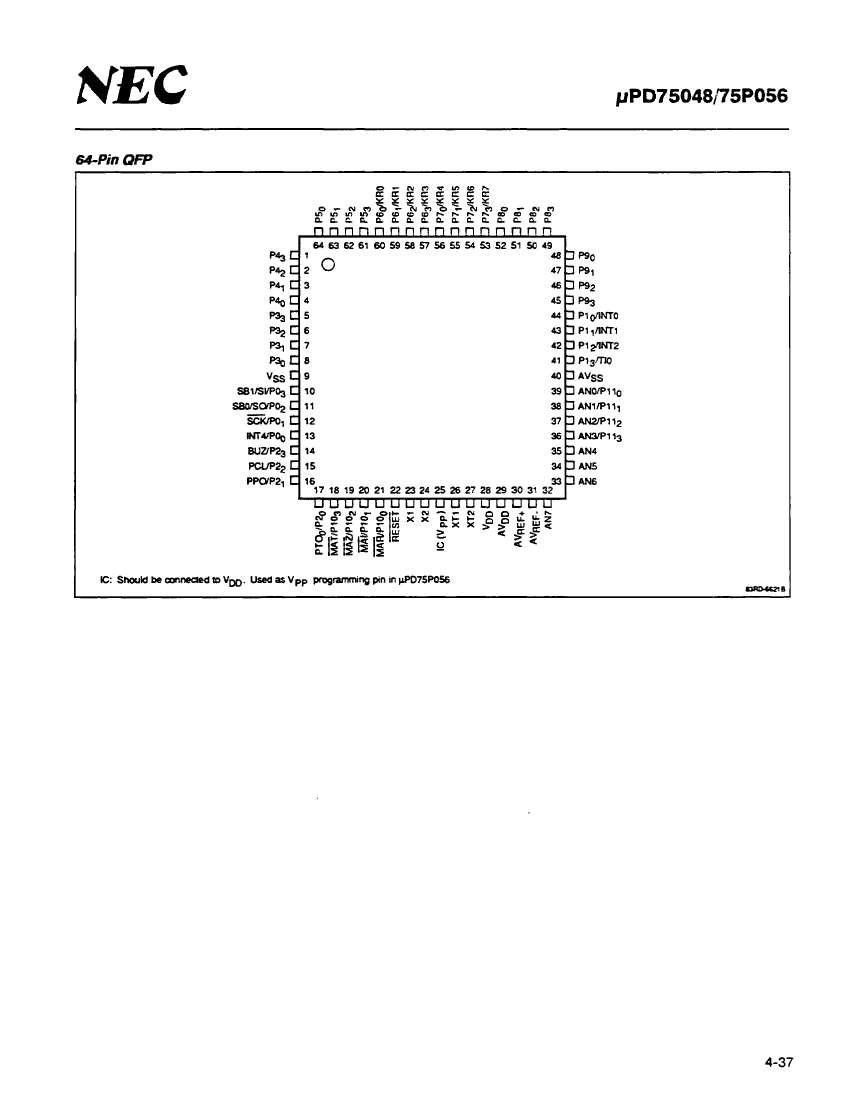

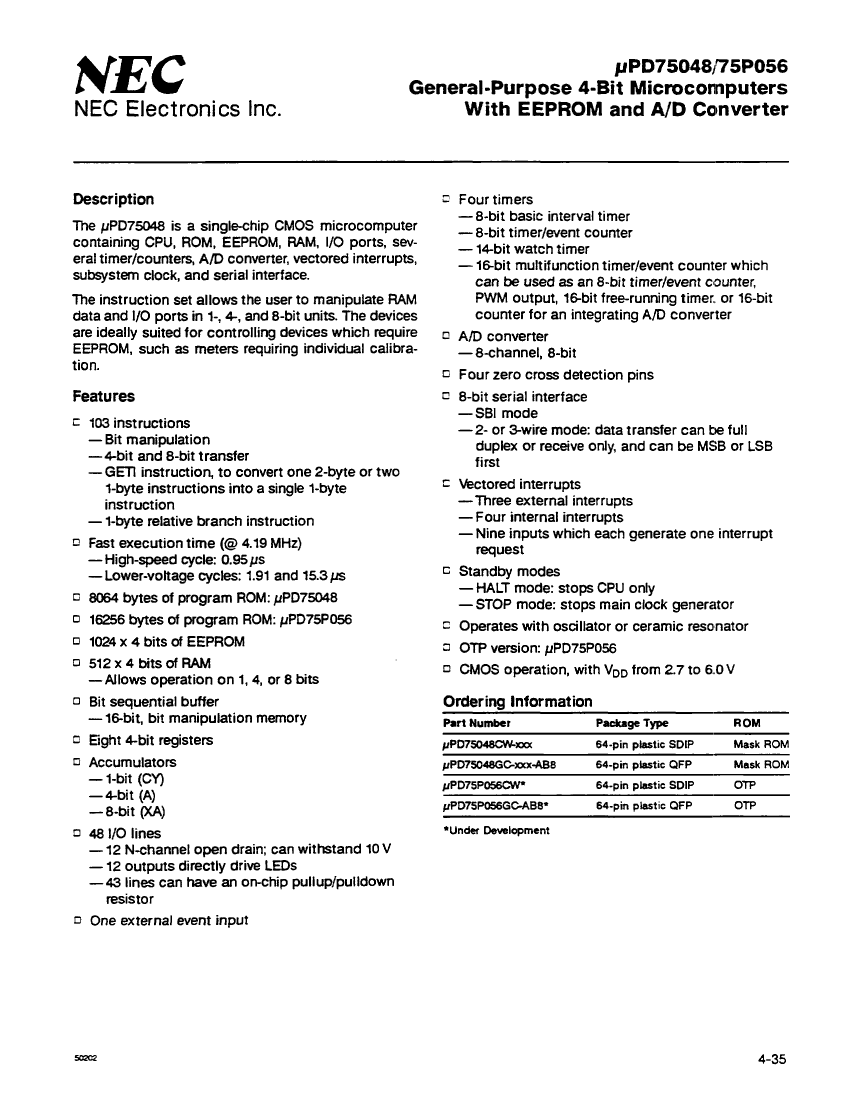

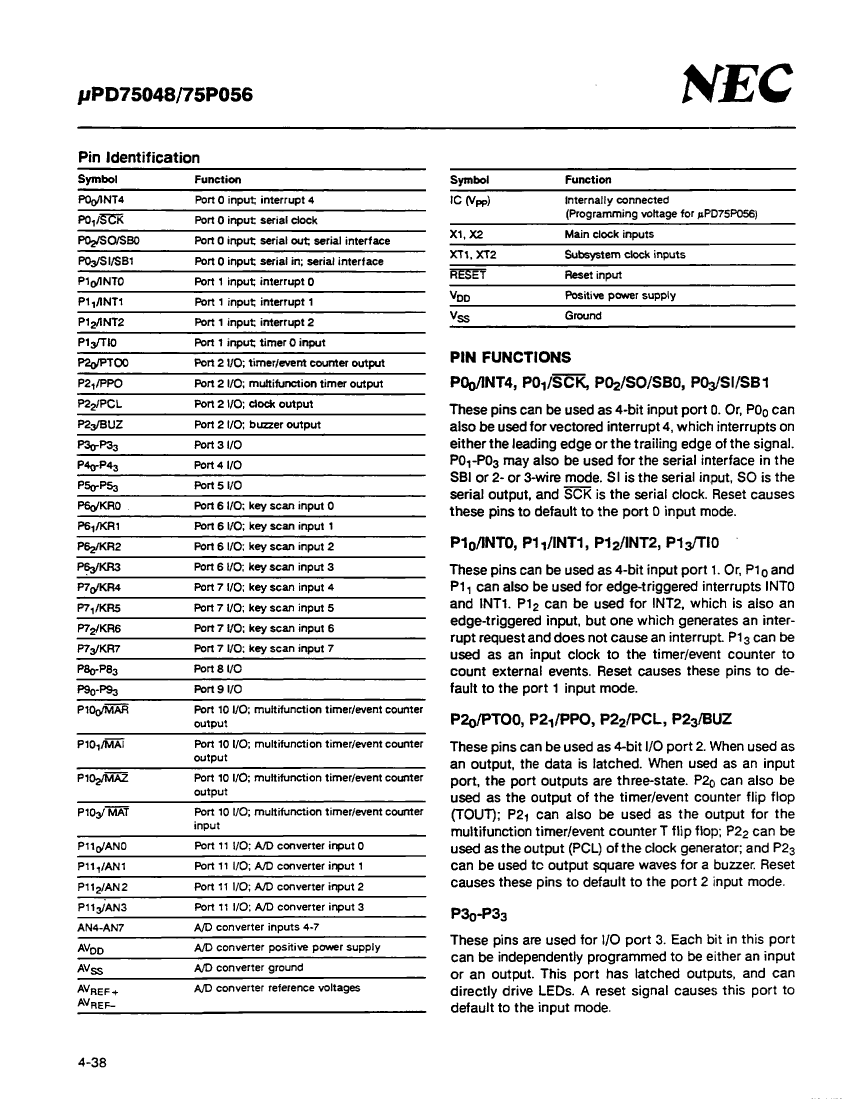

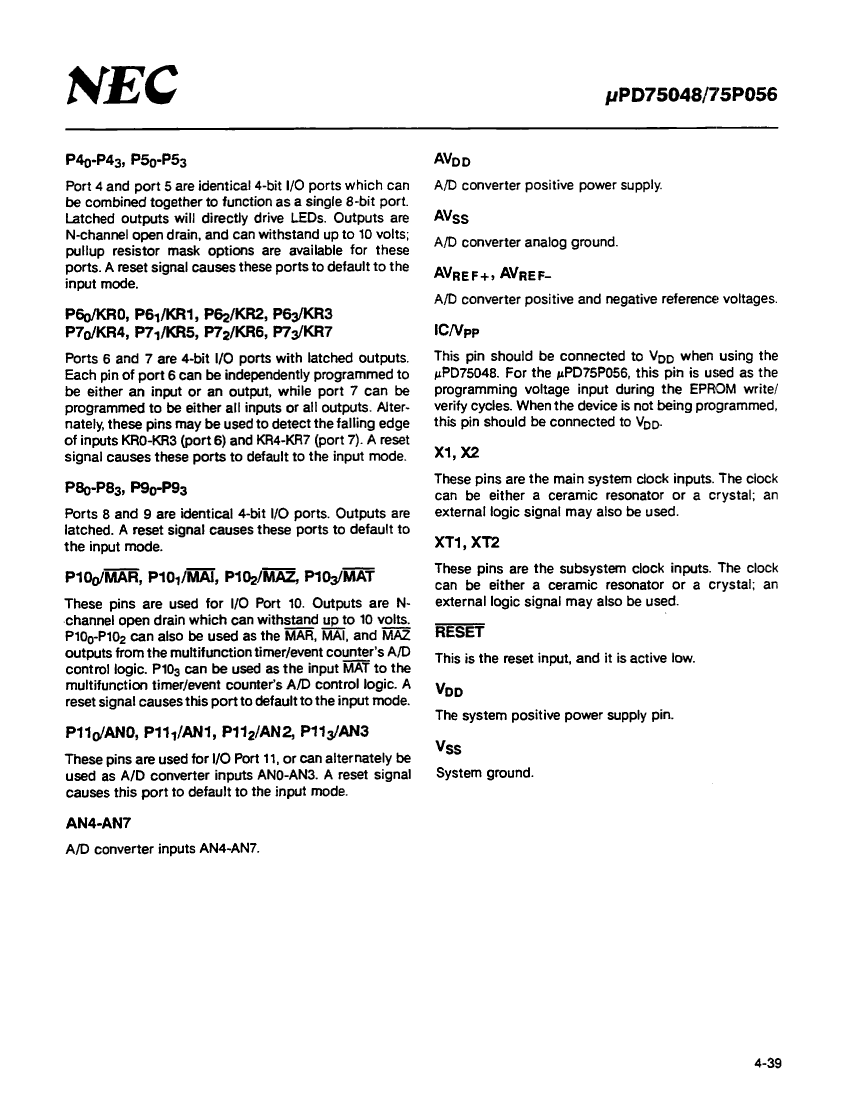

Preview

Download Datasheet

View All

UPD75P056GC-AB8 Related Products

	UPD75P056GC-AB8	UPD75048GC-XXX-AB8	UPD75P056CW	UPD75048CW-XXX
Description	Microcontroller, 4-Bit, OTPROM, 4.19MHz, CMOS, PQFP64, 14 X 14 MM, PLASTIC, QFP-64	Microcontroller, 4-Bit, MROM, 4.19MHz, CMOS, PQFP64, 14 X 14 MM, PLASTIC, QFP-64	Microcontroller, 4-Bit, OTPROM, 4.19MHz, CMOS, PDIP64, 0.750 INCH, PLASTIC, SDIP-64	Microcontroller, 4-Bit, MROM, 4.19MHz, CMOS, PDIP64, 0.750 INCH, PLASTIC, SDIP-64
package instruction	14 X 14 MM, PLASTIC, QFP-64	14 X 14 MM, PLASTIC, QFP-64	0.750 INCH, PLASTIC, SDIP-64	0.750 INCH, PLASTIC, SDIP-64
Reach Compliance Code	unknown	unknown	unknown	unknown
Has ADC	YES	YES	YES	YES
bit size	4	4	4	4
maximum clock frequency	4.19 MHz	4.19 MHz	4.19 MHz	4.19 MHz
DAC channel	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO
JESD-30 code	S-PQFP-G64	S-PQFP-G64	R-PDIP-T64	R-PDIP-T64
length	14 mm	14 mm	57.655 mm	57.655 mm
Number of I/O lines	48	48	48	48
Number of terminals	64	64	64	64
PWM channel	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QFP	SDIP	SDIP
Package shape	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	IN-LINE, SHRINK PITCH	IN-LINE, SHRINK PITCH
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
ROM programmability	OTPROM	MROM	OTPROM	MROM
Maximum seat height	2.85 mm	2.85 mm	5.08 mm	5.08 mm
speed	4.19 MHz	4.19 MHz	4.19 MHz	4.19 MHz
Maximum supply voltage	6 V	6 V	6 V	6 V
Minimum supply voltage	2.7 V	2.7 V	2.7 V	2.7 V
surface mount	YES	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Terminal form	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	0.8 mm	0.8 mm	1.778 mm	1.778 mm
Terminal location	QUAD	QUAD	DUAL	DUAL
width	14 mm	14 mm	19.05 mm	19.05 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Base Number Matches	1	1	1	-
