UPD75P316AGF-3B9 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> UPD75P316AGF-3B9

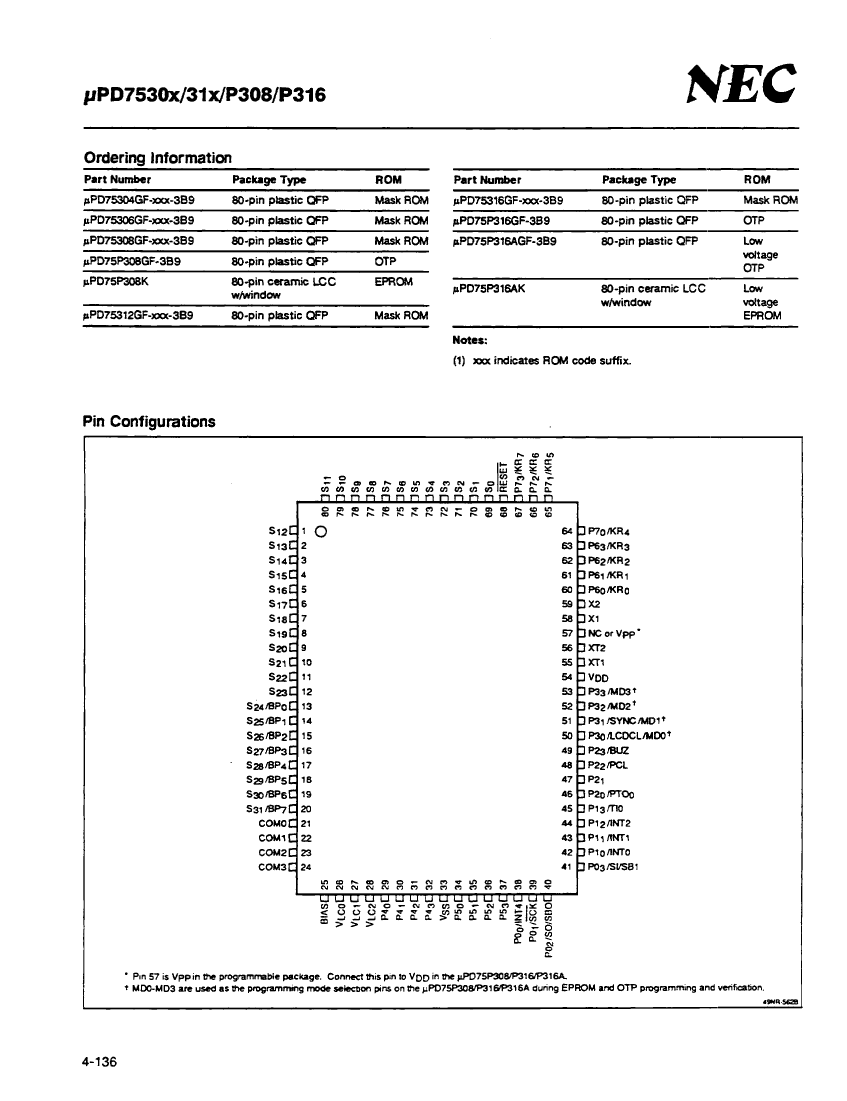

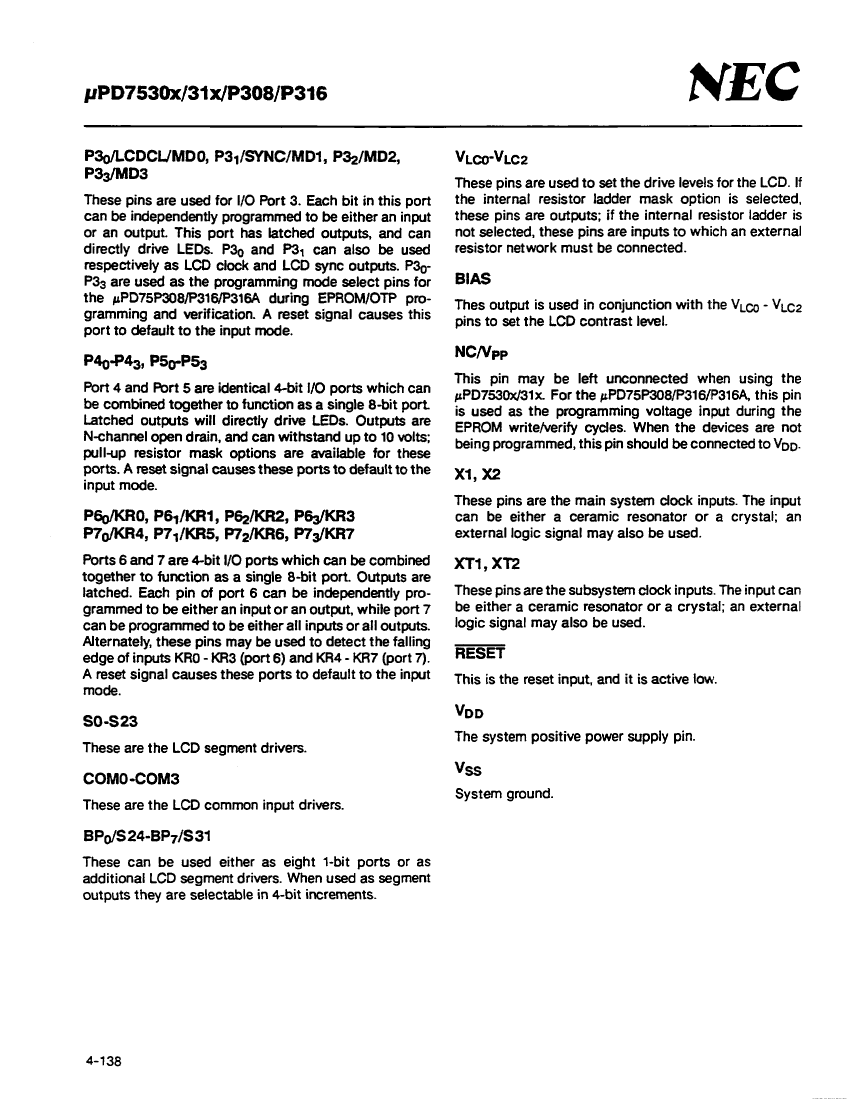

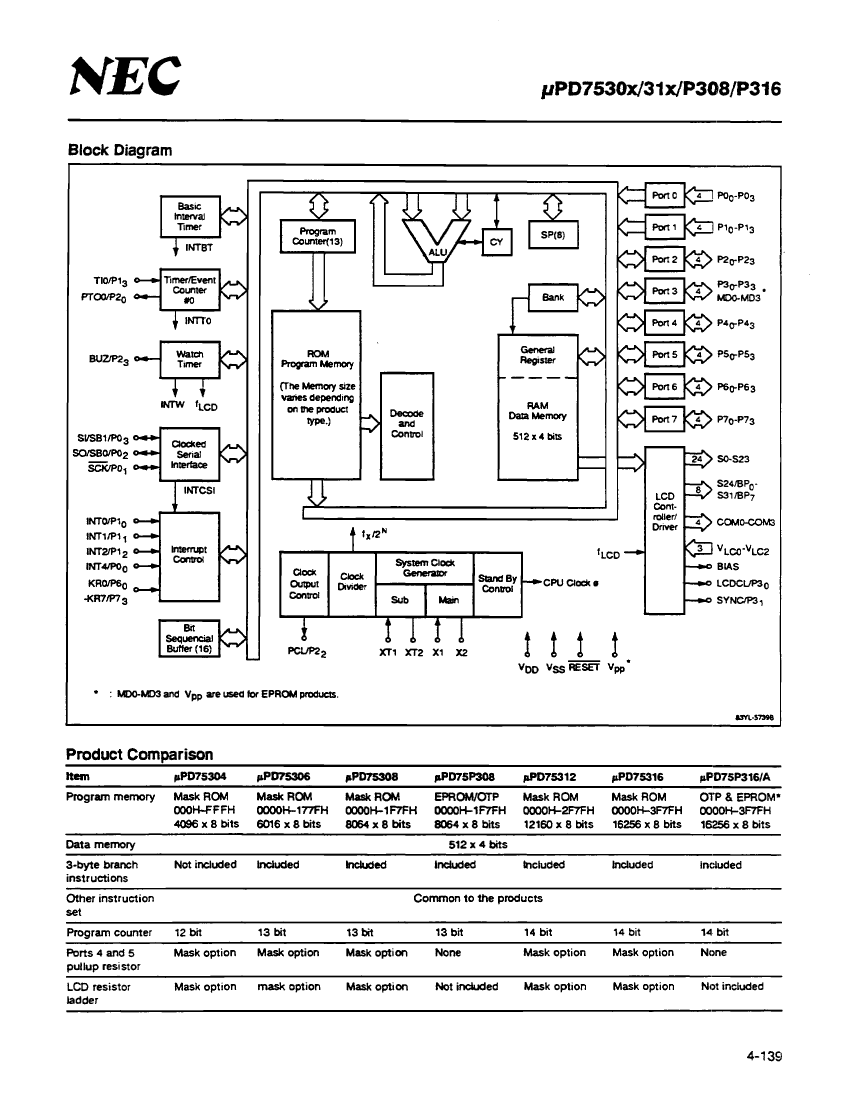

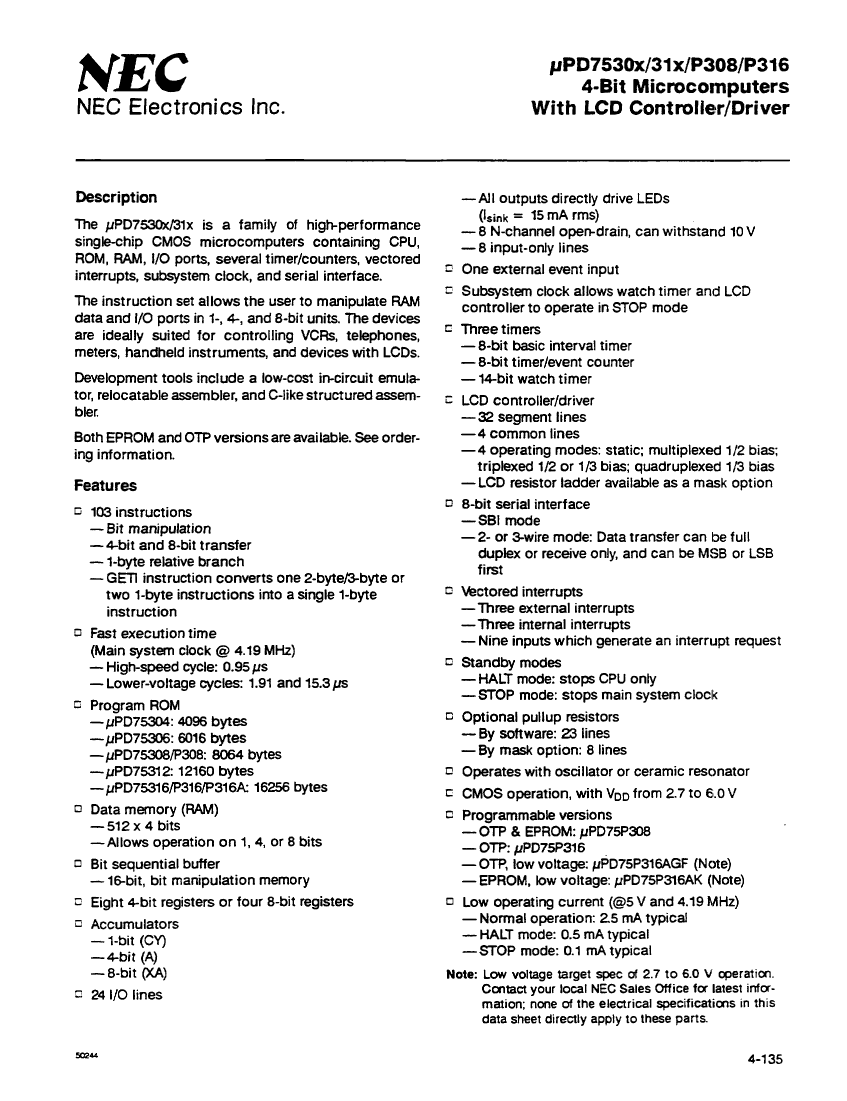

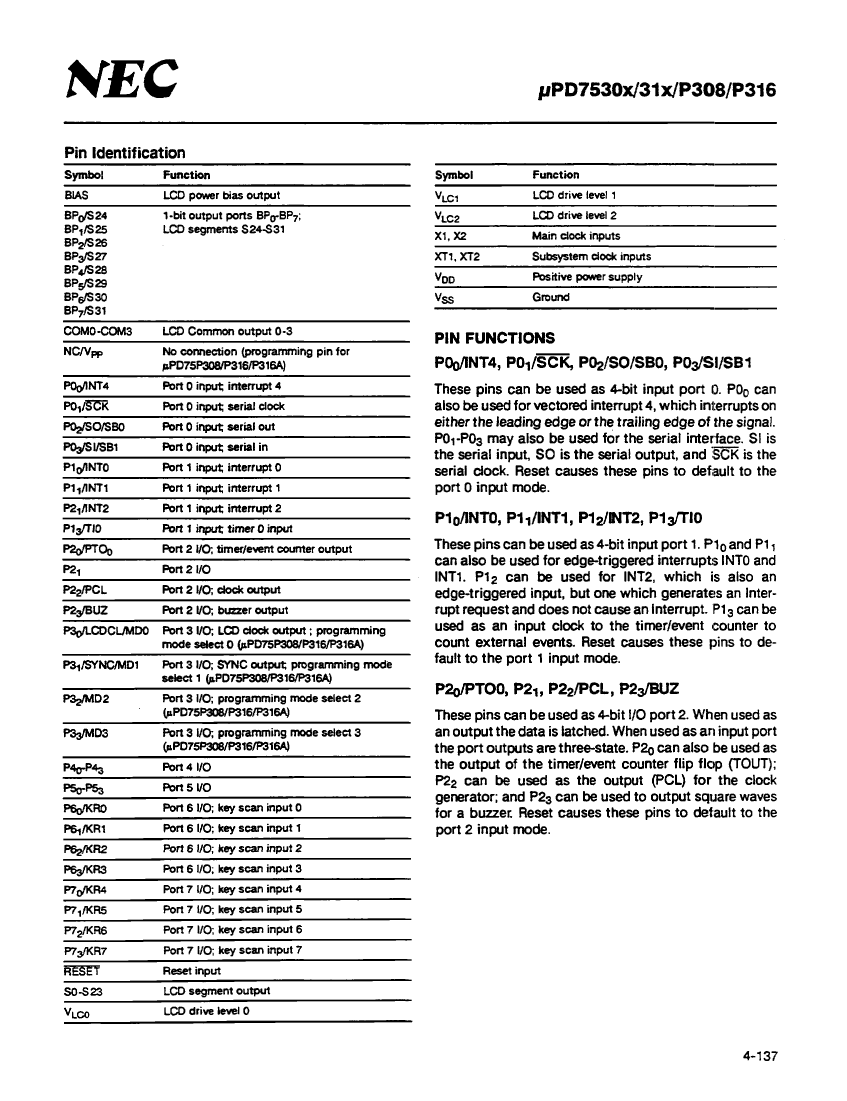

Preview

UPD75P316AGF-3B9: DescriptionMicrocontroller, 4-Bit, OTPROM, 4.19MHz, CMOS, PQFP80, PLASTIC, QFP-80; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，55 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

UPD75P316AGF-3B9 Overview

Microcontroller, 4-Bit, OTPROM, 4.19MHz, CMOS, PQFP80, PLASTIC, QFP-80

UPD75P316AGF-3B9 Parametric

Parameter Name	Attribute value
package instruction	PLASTIC, QFP-80
Reach Compliance Code	unknown
Has ADC	NO
Address bus width
bit size	4
maximum clock frequency	5 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PQFP-G80
length	20 mm
Number of I/O lines	40
Number of terminals	80
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	RECTANGULAR
Package form	FLATPACK
Certification status	Not Qualified
ROM programmability	OTPROM
Maximum seat height	3 mm
speed	4.19 MHz
Maximum slew rate	15 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

Preview

Download Datasheet

View All

UPD75P316AGF-3B9 Related Products

	UPD75P316AGF-3B9	UPD75P308K	UPD75306GF-XXX-3B9	UPD75304GF-XXX-3B9	UPD75312GF-XXX-3B9	UPD75308GF-XXX-3B9	UPD75P308GF-3B9	UPD75316GF-XXX-3B9	UPD75P316GF-3B9
Description	Microcontroller, 4-Bit, OTPROM, 4.19MHz, CMOS, PQFP80, PLASTIC, QFP-80	Microcontroller, 4-Bit, UVPROM, 4.19MHz, CMOS, CQCC80, WINDOWED, CERAMIC, LCC-80	Microcontroller, 4-Bit, MROM, 4.19MHz, CMOS, PQFP80, PLASTIC, QFP-80	Microcontroller, 4-Bit, MROM, 4.19MHz, CMOS, PQFP80, PLASTIC, QFP-80	Microcontroller, 4-Bit, MROM, 4.19MHz, CMOS, PQFP80, PLASTIC, QFP-80	Microcontroller, 4-Bit, MROM, 4.19MHz, CMOS, PQFP80, PLASTIC, QFP-80	Microcontroller, 4-Bit, OTPROM, 4.19MHz, CMOS, PQFP80, PLASTIC, QFP-80	Microcontroller, 4-Bit, MROM, 4.19MHz, CMOS, PQFP80, PLASTIC, QFP-80	Microcontroller, 4-Bit, OTPROM, 4.19MHz, CMOS, PQFP80, PLASTIC, QFP-80
package instruction	PLASTIC, QFP-80	WINDOWED, CERAMIC, LCC-80	PLASTIC, QFP-80	PLASTIC, QFP-80	PLASTIC, QFP-80	PLASTIC, QFP-80	PLASTIC, QFP-80	PLASTIC, QFP-80	PLASTIC, QFP-80
Reach Compliance Code	unknown	unknown	compliant	compliant	compliant	compliant	unknown	compliant	unknown
Has ADC	NO	NO	NO	NO	NO	NO	NO	NO	NO
bit size	4	4	4	4	4	4	4	4	4
maximum clock frequency	5 MHz	5 MHz	5 MHz	5 MHz	5 MHz	5 MHz	5 MHz	5 MHz	5 MHz
DAC channel	NO	NO	NO	NO	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-30 code	R-PQFP-G80	S-CQCC-N80	R-PQFP-G80	R-PQFP-G80	R-PQFP-G80	R-PQFP-G80	R-PQFP-G80	R-PQFP-G80	R-PQFP-G80
length	20 mm	14 mm	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm
Number of I/O lines	40	40	40	40	40	40	40	40	40
Number of terminals	80	80	80	80	80	80	80	80	80
Maximum operating temperature	70 °C	70 °C	85 °C	85 °C	85 °C	85 °C	70 °C	85 °C	70 °C
Minimum operating temperature	-10 °C	-10 °C	-40 °C	-40 °C	-40 °C	-40 °C	-10 °C	-40 °C	-10 °C
PWM channel	NO	NO	NO	NO	NO	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	WQCCN	QFP	QFP	QFP	QFP	QFP	QFP	QFP
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	CHIP CARRIER, WINDOW	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
ROM programmability	OTPROM	UVPROM	MROM	MROM	MROM	MROM	OTPROM	MROM	OTPROM
Maximum seat height	3 mm	3.6 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm
speed	4.19 MHz	4.19 MHz	4.19 MHz	4.19 MHz	4.19 MHz	4.19 MHz	4.19 MHz	4.19 MHz	4.19 MHz
Maximum slew rate	15 mA	15 mA	8 mA	8 mA	8 mA	8 mA	15 mA	8 mA	15 mA
Maximum supply voltage	5.25 V	5.25 V	6 V	6 V	6 V	6 V	5.25 V	6 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	2.7 V	2.7 V	2.7 V	2.7 V	4.75 V	2.7 V	4.75 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL
Terminal form	GULL WING	NO LEAD	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.65 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
width	14 mm	14 mm	14 mm	14 mm	14 mm	14 mm	14 mm	14 mm	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Is it Rohs certified?	-	-	incompatible	incompatible	incompatible	incompatible	-	incompatible	-
JESD-609 code	-	-	e0	e0	e0	e0	-	e0	-
Peak Reflow Temperature (Celsius)	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	-
Terminal surface	-	-	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	-	TIN LEAD	-
Maximum time at peak reflow temperature	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	-
Maker	-	-	-	-	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics
