DAC337-6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> DAC337-6

DAC337-6: DescriptionD/A Converter, 1 Func, Parallel, 8 Bits Input Loading, 40us Settling Time, CDIP14, HERMETIC SEALED, DIP-14; CategoryAnalog mixed-signal IC converter; File Size74KB，2 Pages; ManufacturerSIPEX; Websitehttp://www.sipex.com/

Download Datasheet Parametric Compare View All

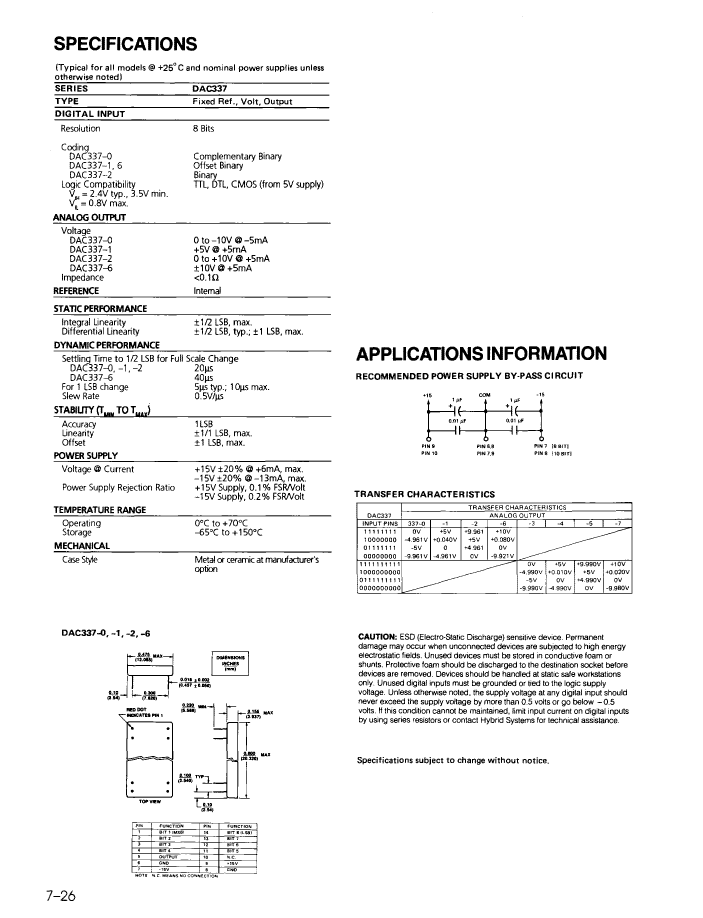

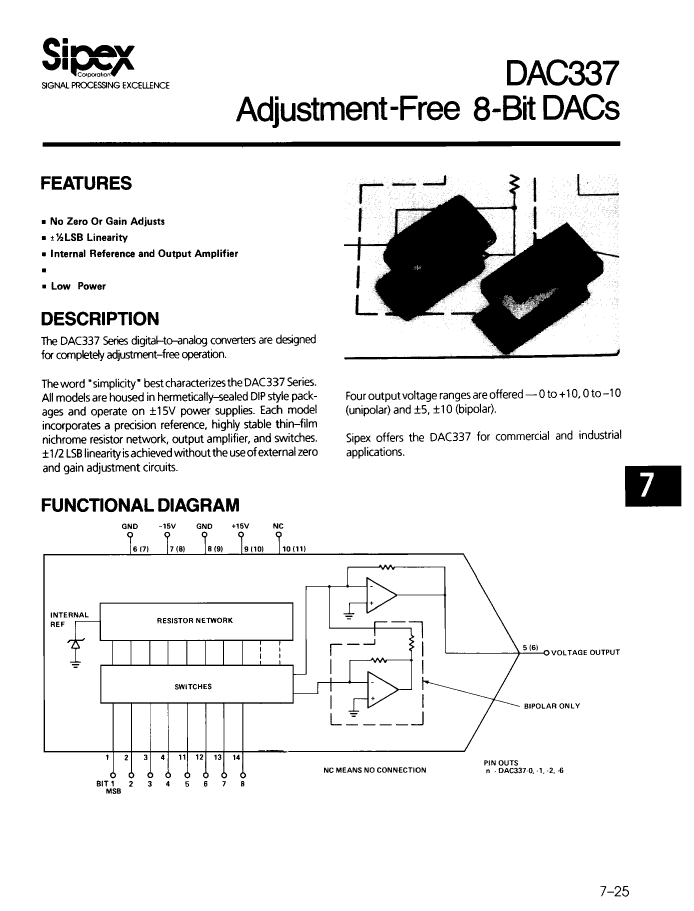

DAC337-6 Overview

D/A Converter, 1 Func, Parallel, 8 Bits Input Loading, 40us Settling Time, CDIP14, HERMETIC SEALED, DIP-14

DAC337-6 Parametric

Parameter Name	Attribute value
package instruction	HERMETIC SEALED, DIP-14
Reach Compliance Code	unknown
Maximum analog output voltage	10 V
Minimum analog output voltage	-10 V
Converter type	D/A CONVERTER
Enter bit code	BINARY, OFFSET BINARY, COMPLEMENTARY BINARY
Input format	PARALLEL, 8 BITS
JESD-30 code	R-CDIP-T14
Maximum linear error (EL)	0.2%
Nominal negative supply voltage	-15 V
Number of digits	8
Number of functions	1
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	3.937 mm
Nominal settling time (tstl)	40 µs
Maximum slew rate	13 mA
Nominal supply voltage	15 V
surface mount	NO
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

DAC337-6 Related Products

	DAC337-6	DAC337-0	DAC337-1	DAC337-2
Description	D/A Converter, 1 Func, Parallel, 8 Bits Input Loading, 40us Settling Time, CDIP14, HERMETIC SEALED, DIP-14	D/A Converter, 1 Func, Parallel, 8 Bits Input Loading, 20us Settling Time, CDIP14, HERMETIC SEALED, DIP-14	D/A Converter, 1 Func, Parallel, 8 Bits Input Loading, 20us Settling Time, CDIP14, HERMETIC SEALED, DIP-14	D/A Converter, 1 Func, Parallel, 8 Bits Input Loading, 20us Settling Time, CDIP14, HERMETIC SEALED, DIP-14
package instruction	HERMETIC SEALED, DIP-14	HERMETIC SEALED, DIP-14	HERMETIC SEALED, DIP-14	HERMETIC SEALED, DIP-14
Reach Compliance Code	unknown	unknown	unknown	unknown
Maximum analog output voltage	10 V	-	5 V	10 V
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY, OFFSET BINARY, COMPLEMENTARY BINARY	BINARY, OFFSET BINARY, COMPLEMENTARY BINARY	BINARY, OFFSET BINARY, COMPLEMENTARY BINARY	BINARY, OFFSET BINARY, COMPLEMENTARY BINARY
Input format	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS
JESD-30 code	R-CDIP-T14	R-CDIP-T14	R-CDIP-T14	R-CDIP-T14
Maximum linear error (EL)	0.2%	0.2%	0.2%	0.2%
Nominal negative supply voltage	-15 V	-15 V	-15 V	-15 V
Number of digits	8	8	8	8
Number of functions	1	1	1	1
Number of terminals	14	14	14	14
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3.937 mm	3.937 mm	3.937 mm	3.937 mm
Nominal settling time (tstl)	40 µs	20 µs	20 µs	20 µs
Maximum slew rate	13 mA	13 mA	13 mA	13 mA
Nominal supply voltage	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm
