DAC7545D datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> DAC7545D

PDF

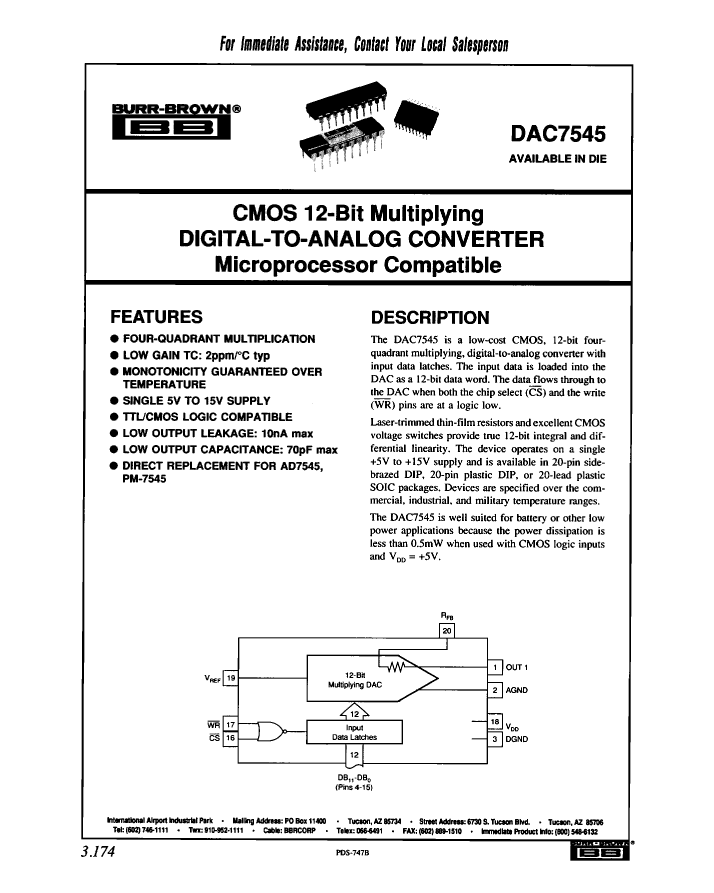

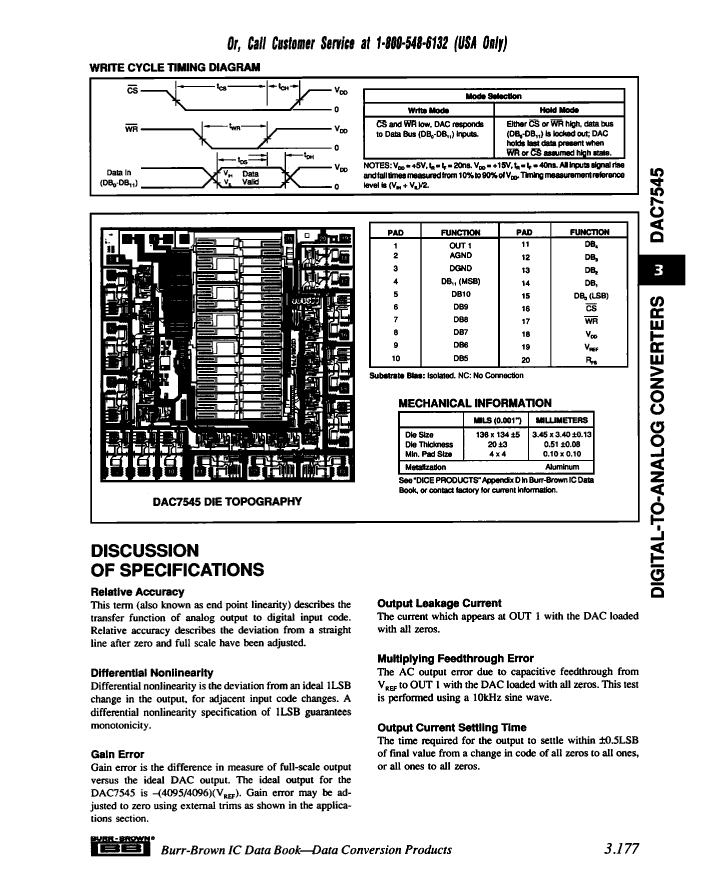

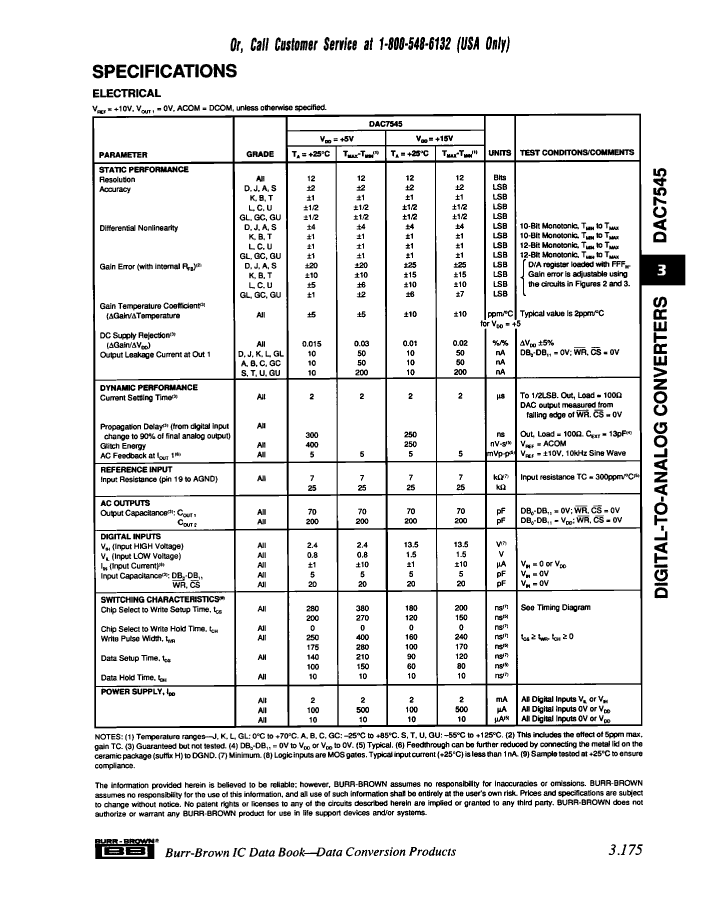

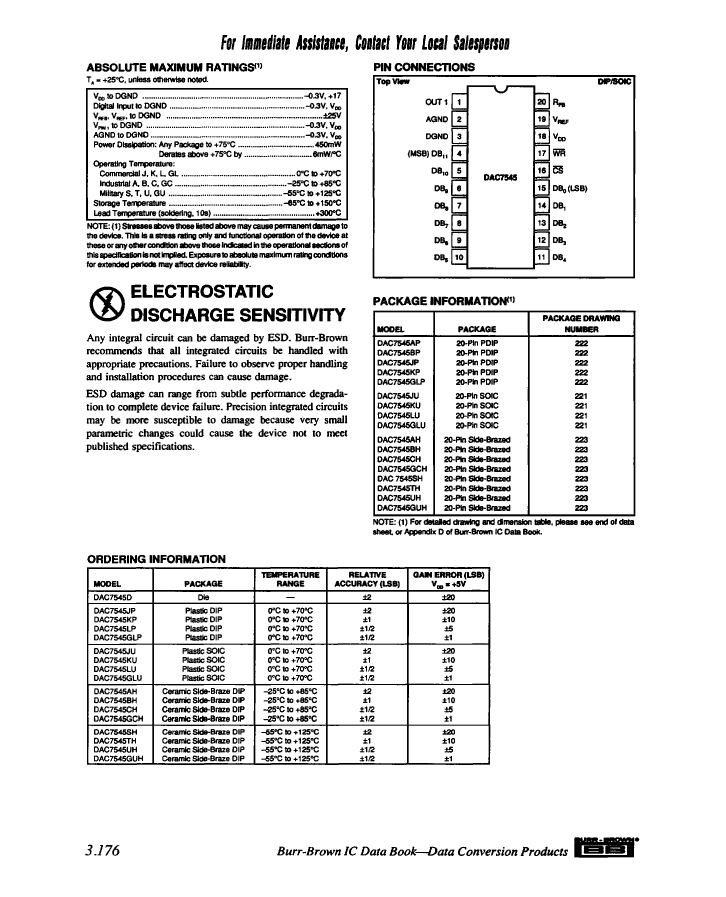

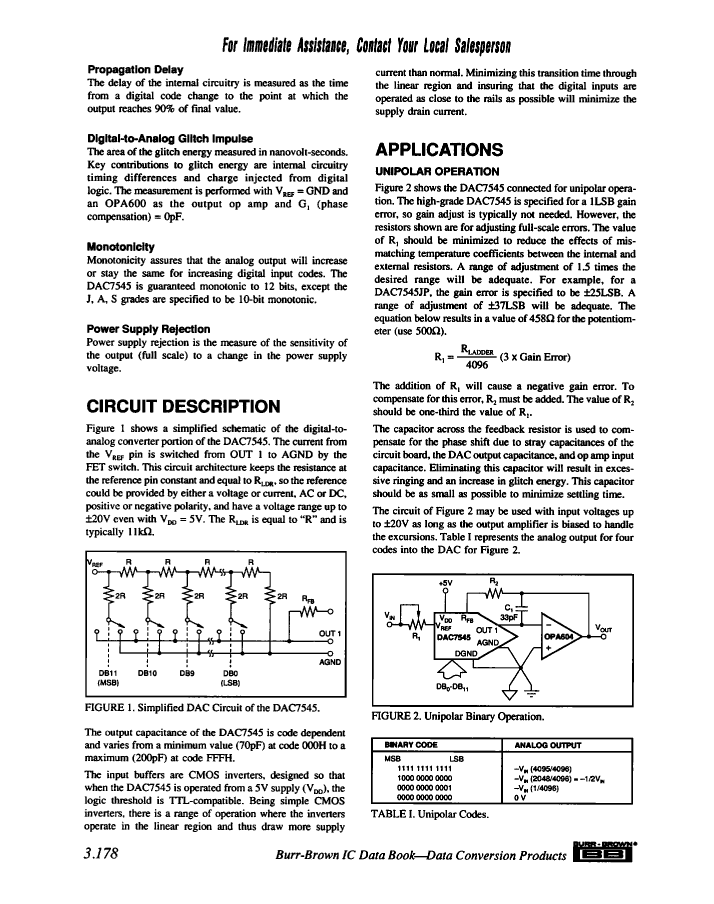

DAC7545D: DescriptionD/A Converter, 1 Func, Parallel, Word Input Loading, 2us Settling Time,; CategoryAnalog mixed-signal IC converter; File Size303KB，7 Pages; ManufacturerBurr-Brown; Websitehttp://www.burr-brown.com/

Download Datasheet Parametric View All

DAC7545D Overview

D/A Converter, 1 Func, Parallel, Word Input Loading, 2us Settling Time,

DAC7545D Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Converter type	D/A CONVERTER
Enter bit code	BINARY, 2'S COMPLEMENT BINARY
Input format	PARALLEL, WORD
JESD-30 code	X-XUUC-N20
Number of digits	12
Number of functions	1
Number of terminals	20
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	UNSPECIFIED
Package form	UNCASED CHIP
Certification status	Not Qualified
Nominal settling time (tstl)	2 µs
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Terminal form	NO LEAD
Terminal location	UPPER
Base Number Matches	1
