DACHKH datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> DACHKH

DACHKH: DescriptionD/A Converter, 1 Func, Parallel, Word Input Loading, 4us Settling Time, CDIP24, HERMETIC SEALED, CERAMIC, DIP-24; CategoryAnalog mixed-signal IC converter; File Size2MB，4 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

DACHKH Overview

D/A Converter, 1 Func, Parallel, Word Input Loading, 4us Settling Time, CDIP24, HERMETIC SEALED, CERAMIC, DIP-24

DACHKH Parametric

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP, DIP24,.6
Contacts	24
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Maximum analog output voltage	10 V
Minimum analog output voltage	-10 V
Converter type	D/A CONVERTER
Enter bit code	BINARY, OFFSET BINARY
Input format	PARALLEL, WORD
JESD-30 code	R-CDIP-T24
length	31.75 mm
Maximum linear error (EL)	0.0122%
Nominal negative supply voltage	-15 V
Number of digits	12
Number of functions	1
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5,+-15 V
Certification status	Not Qualified
Maximum seat height	4.65 mm
Nominal settling time (tstl)	4 µs
Nominal supply voltage	15 V
surface mount	NO
technology	HYBRID
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
Base Number Matches	1

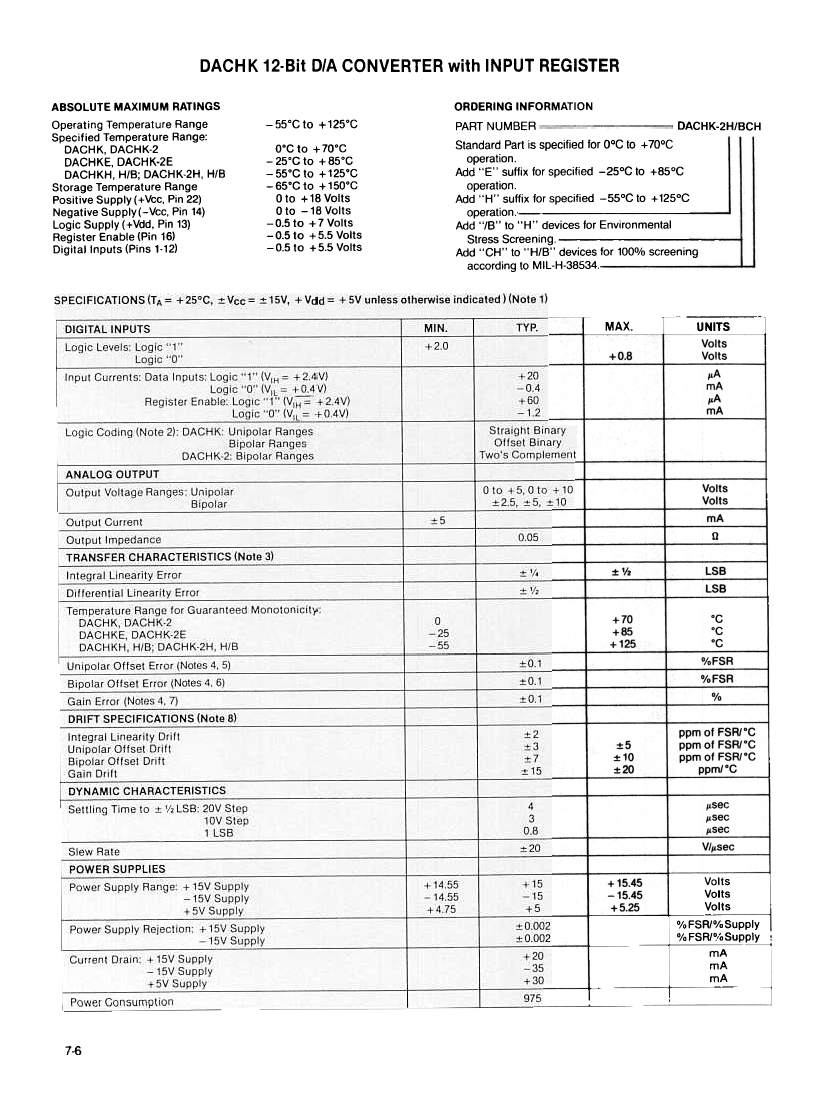

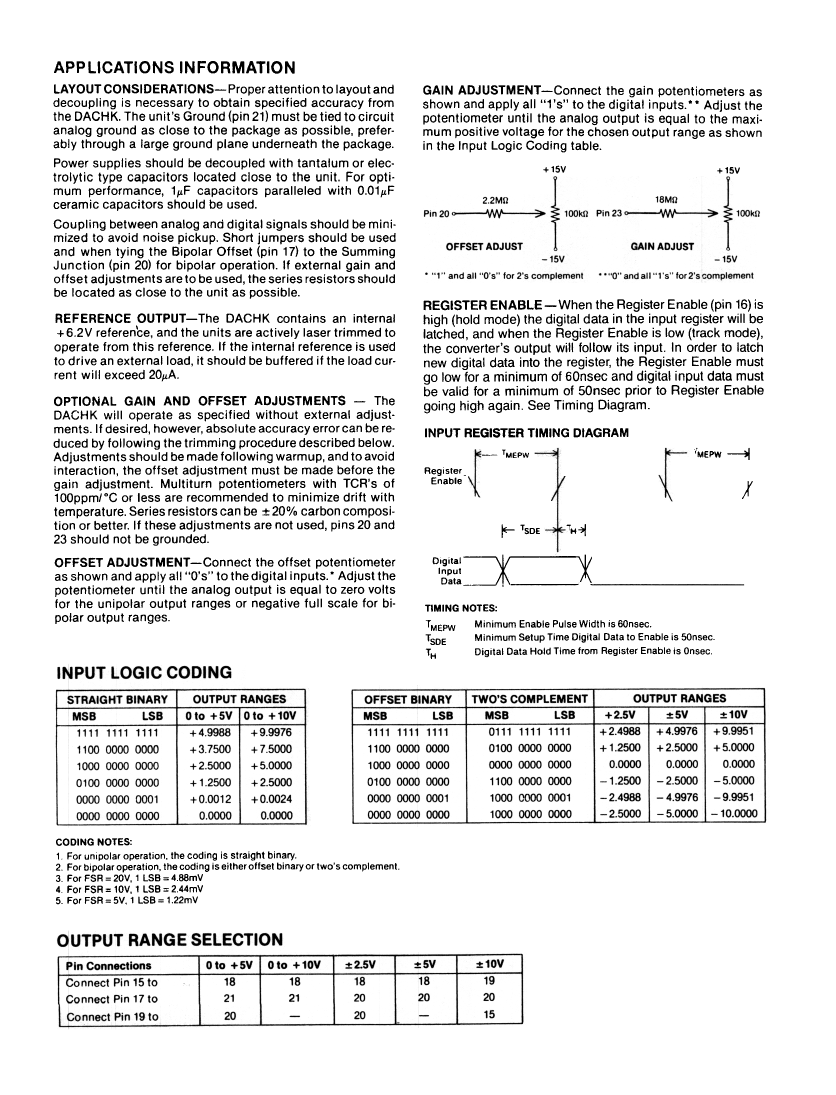

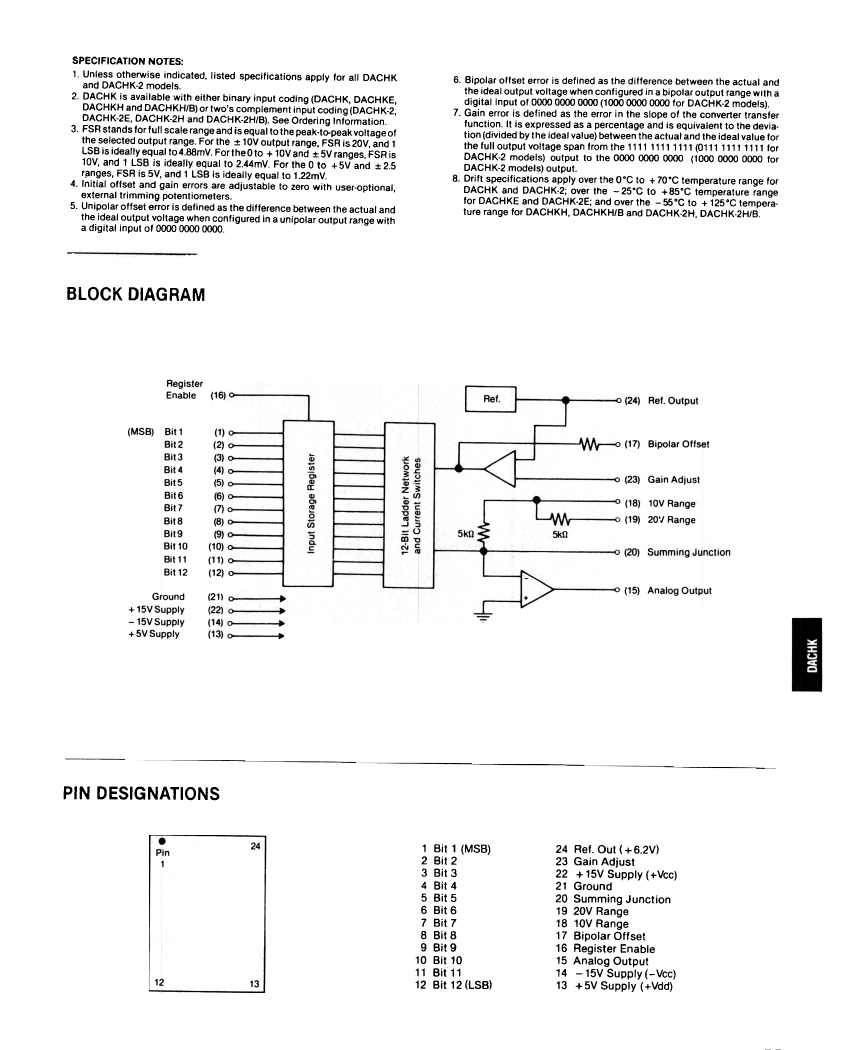

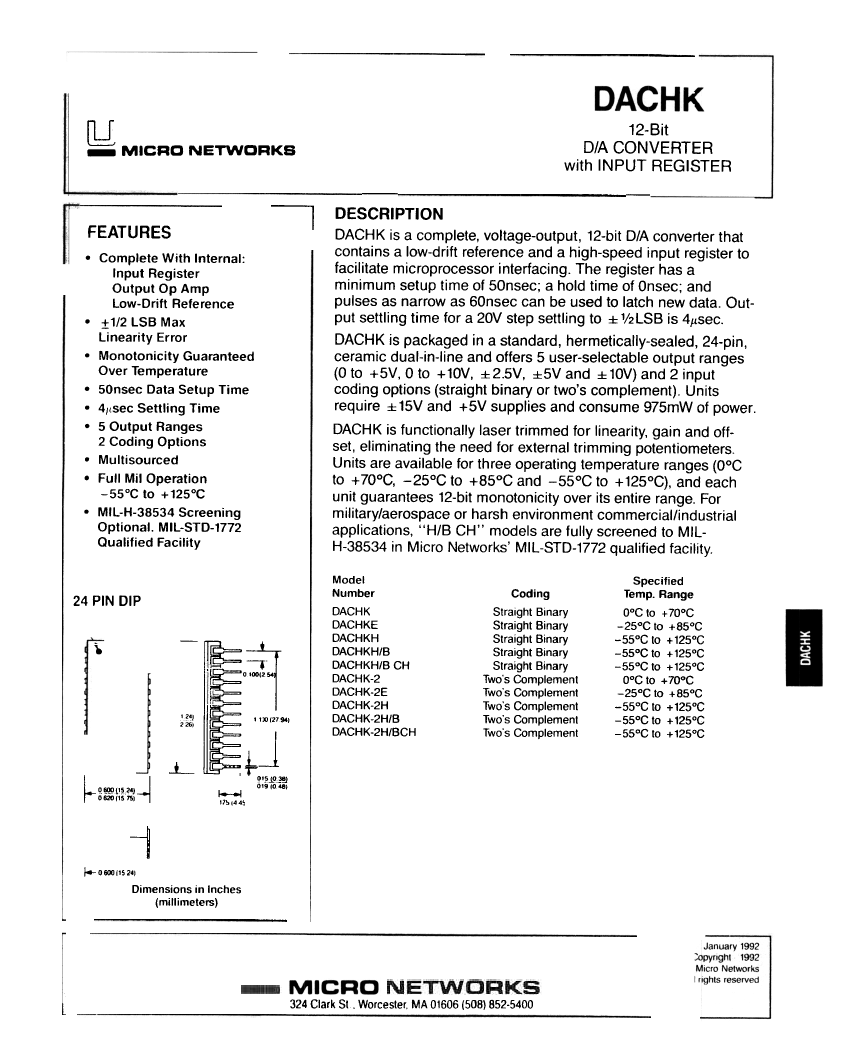

Preview

Download Datasheet

View All

DACHKH Related Products

	DACHKH	DACHKH/B	DACHKH/BCH	DACHK-2E	DACHK-2H/B	DACHK-2H/BCH	DACHKE	DACHK-2H	DACHK-2
Description	D/A Converter, 1 Func, Parallel, Word Input Loading, 4us Settling Time, CDIP24, HERMETIC SEALED, CERAMIC, DIP-24	D/A Converter, 1 Func, Parallel, Word Input Loading, 4us Settling Time, CDIP24, HERMETIC SEALED, CERAMIC, DIP-24	D/A Converter, 1 Func, Parallel, Word Input Loading, 4us Settling Time, CDIP24, HERMETIC SEALED, CERAMIC, DIP-24	D/A Converter, 1 Func, Parallel, Word Input Loading, 4us Settling Time, HERMETIC SEALED, CERAMIC, DIP-24	D/A Converter, 1 Func, Parallel, Word Input Loading, 4us Settling Time, CDIP24, HERMETIC SEALED, CERAMIC, DIP-24	D/A Converter, 1 Func, Parallel, Word Input Loading, 4us Settling Time, CDIP24, HERMETIC SEALED, CERAMIC, DIP-24	D/A Converter, 1 Func, Parallel, Word Input Loading, 4us Settling Time, HERMETIC SEALED, CERAMIC, DIP-24	D/A Converter, 1 Func, Parallel, Word Input Loading, 4us Settling Time, CDIP24, HERMETIC SEALED, CERAMIC, DIP-24	D/A Converter, 1 Func, Parallel, Word Input Loading, 4us Settling Time, CDIP24, HERMETIC SEALED, CERAMIC, DIP-24
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
package instruction	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6
Contacts	24	24	24	24	24	24	24	24	24
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum analog output voltage	10 V	10 V	10 V	10 V	10 V	10 V	10 V	10 V	10 V
Minimum analog output voltage	-10 V	-10 V	-10 V	-10 V	-10 V	-10 V	-10 V	-10 V	-10 V
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY	2'S COMPLEMENT BINARY	2'S COMPLEMENT BINARY	2'S COMPLEMENT BINARY	BINARY, OFFSET BINARY	2'S COMPLEMENT BINARY	2\'S COMPLEMENT BINARY
Input format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
JESD-30 code	R-CDIP-T24	R-CDIP-T24	R-CDIP-T24	R-XDIP-T24	R-CDIP-T24	R-CDIP-T24	R-XDIP-T24	R-CDIP-T24	R-CDIP-T24
length	31.75 mm	31.75 mm	31.75 mm	31.75 mm	31.75 mm	31.75 mm	31.75 mm	31.75 mm	31.75 mm
Maximum linear error (EL)	0.0122%	0.0122%	0.0122%	0.012%	0.0122%	0.0122%	0.012%	0.0122%	0.0122%
Nominal negative supply voltage	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of digits	12	12	12	12	12	12	12	12	12
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	24	24	24	24	24	24	24	24	24
Maximum operating temperature	125 °C	125 °C	125 °C	85 °C	125 °C	125 °C	85 °C	125 °C	70 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-25 °C	-55 °C	-55 °C	-25 °C	-55 °C	-
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP24,.6	DIP24,.6	DIP24,.6	DIP24,.6	DIP24,.6	DIP24,.6	DIP24,.6	DIP24,.6	DIP24,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.65 mm	4.65 mm	4.65 mm	4.65 mm	4.65 mm	4.65 mm	4.65 mm	4.65 mm	4.65 mm
Nominal settling time (tstl)	4 µs	4 µs	4 µs	4 µs	4 µs	4 µs	4 µs	4 µs	4 µs
Nominal supply voltage	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	MILITARY	MILITARY	MILITARY	OTHER	MILITARY	MILITARY	OTHER	MILITARY	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	-	3A001.A.2.C	3A001.A.2.C	-	3A001.A.2.C	-
Base Number Matches	1	1	1	1	1	1	1	1	-
Is it Rohs certified?	-	incompatible	incompatible	incompatible	-	-	incompatible	incompatible	incompatible
Maker	-	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave	-	Spectrum Microwave
JESD-609 code	-	e0	e0	e0	-	-	e0	e0	-
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
