LHC25-20 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> LHC25-20

LHC25-20: DescriptionRectifier Diode, 1 Element, 0.025A, 20000V V(RRM), Silicon, PLASTIC PACKAGE-2; CategoryDiscrete semiconductor diode; File Size92KB，2 Pages; ManufacturerEDI [Electronic devices inc.]

Download Datasheet Parametric Compare View All

LHC25-20 Overview

Rectifier Diode, 1 Element, 0.025A, 20000V V(RRM), Silicon, PLASTIC PACKAGE-2

LHC25-20 Parametric

Parameter Name	Attribute value
package instruction	O-PALF-W2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	60 V
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak forward current	3 A
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	0.025 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	20000 V
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

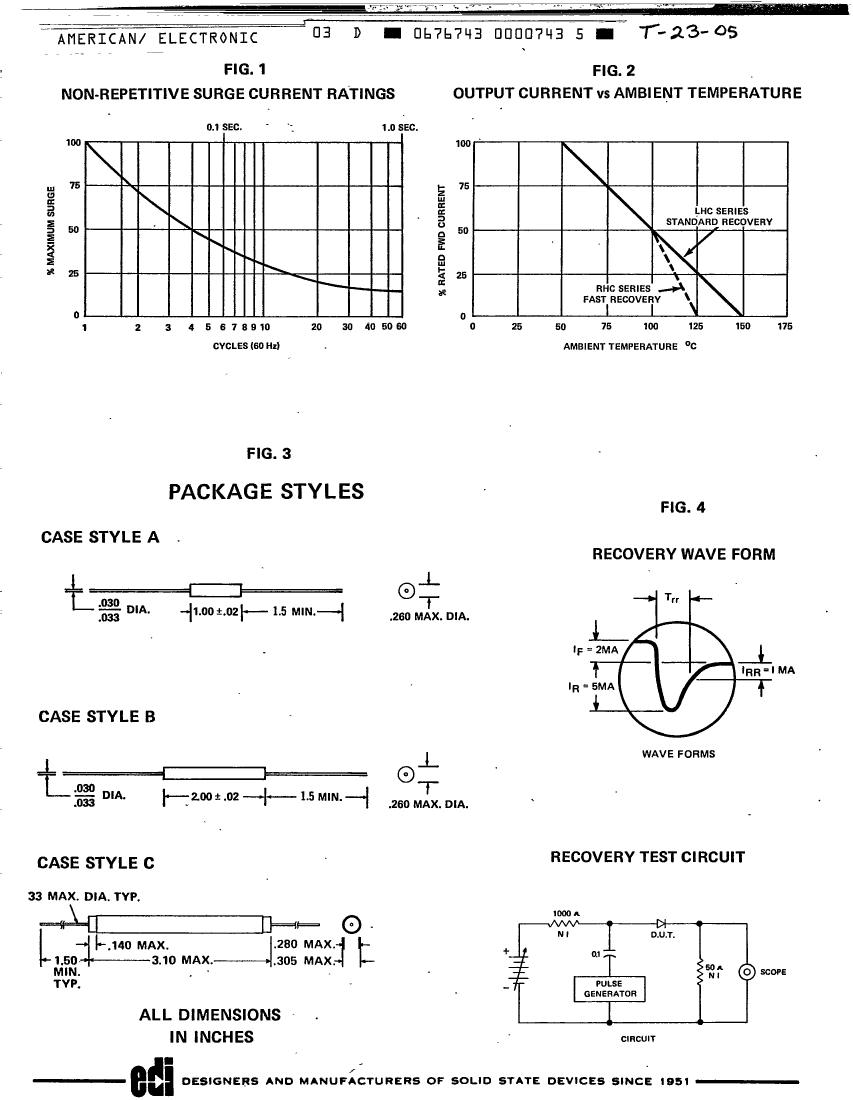

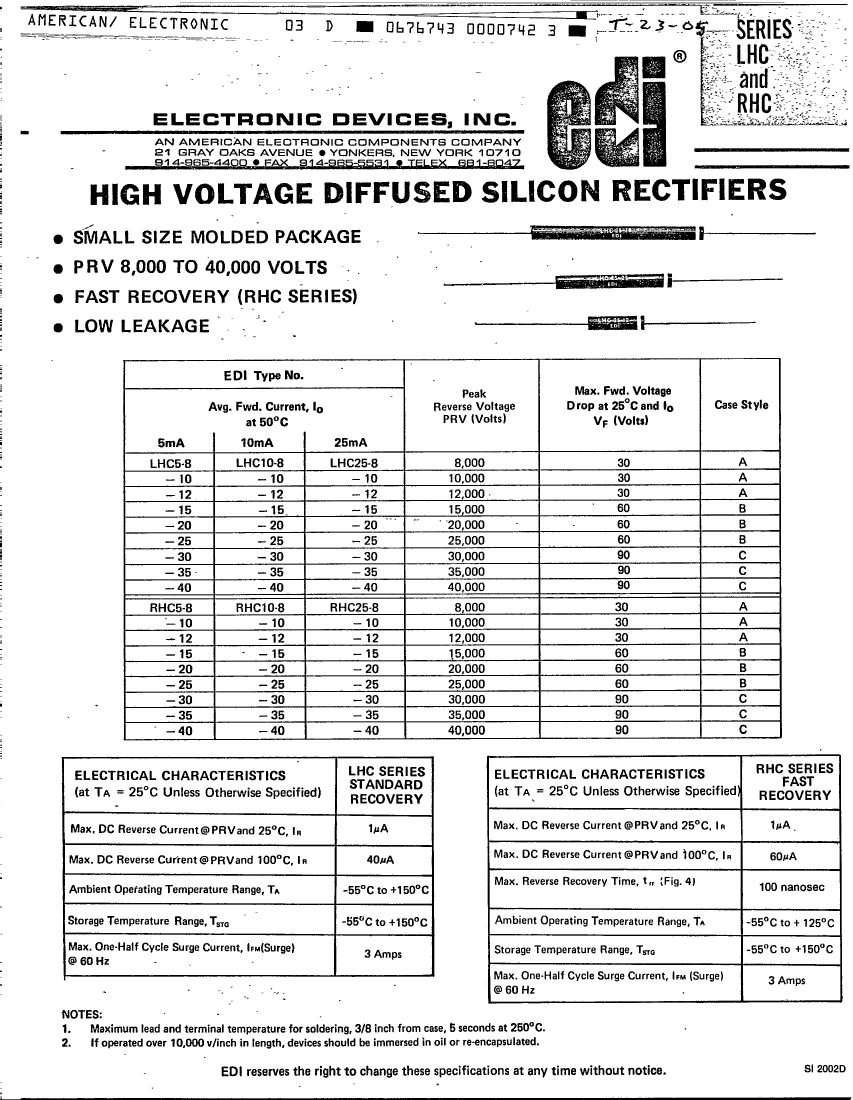

Preview

Download Datasheet

View All

LHC25-20 Related Products

	LHC25-20	LHC25-10	RHC25-30	LHC25-35	LHC25-30
Description	Rectifier Diode, 1 Element, 0.025A, 20000V V(RRM), Silicon, PLASTIC PACKAGE-2	Rectifier Diode, 1 Element, 0.025A, 10000V V(RRM), Silicon, PLASTIC PACKAGE-2	Rectifier Diode, 1 Element, 0.025A, 30000V V(RRM), Silicon, PLASTIC PACKAGE-2	Rectifier Diode, 1 Element, 0.025A, 35000V V(RRM), Silicon, PLASTIC PACKAGE-2	Rectifier Diode, 1 Element, 0.025A, 30000V V(RRM), Silicon, PLASTIC PACKAGE-2
package instruction	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Contacts	2	2	2	2	2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	60 V	30 V	90 V	90 V	90 V
JESD-30 code	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Maximum non-repetitive peak forward current	3 A	3 A	3 A	3 A	3 A
Number of components	1	1	1	1	1
Number of terminals	2	2	2	2	2
Maximum operating temperature	150 °C	150 °C	125 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	20000 V	10000 V	30000 V	35000 V	30000 V
surface mount	NO	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Base Number Matches	1	1	1	1	1
