REVISIONS
REV
B1
ECO
-
DESCRIPTION
RELEASED DRAWING
DATE
JULY-08-2014
BY
BEN
APPR
TOMMY
1" 1/8-18 UNEF THREAD
MASTER KEYWAY
TITLE:
Ø25.3
38.1

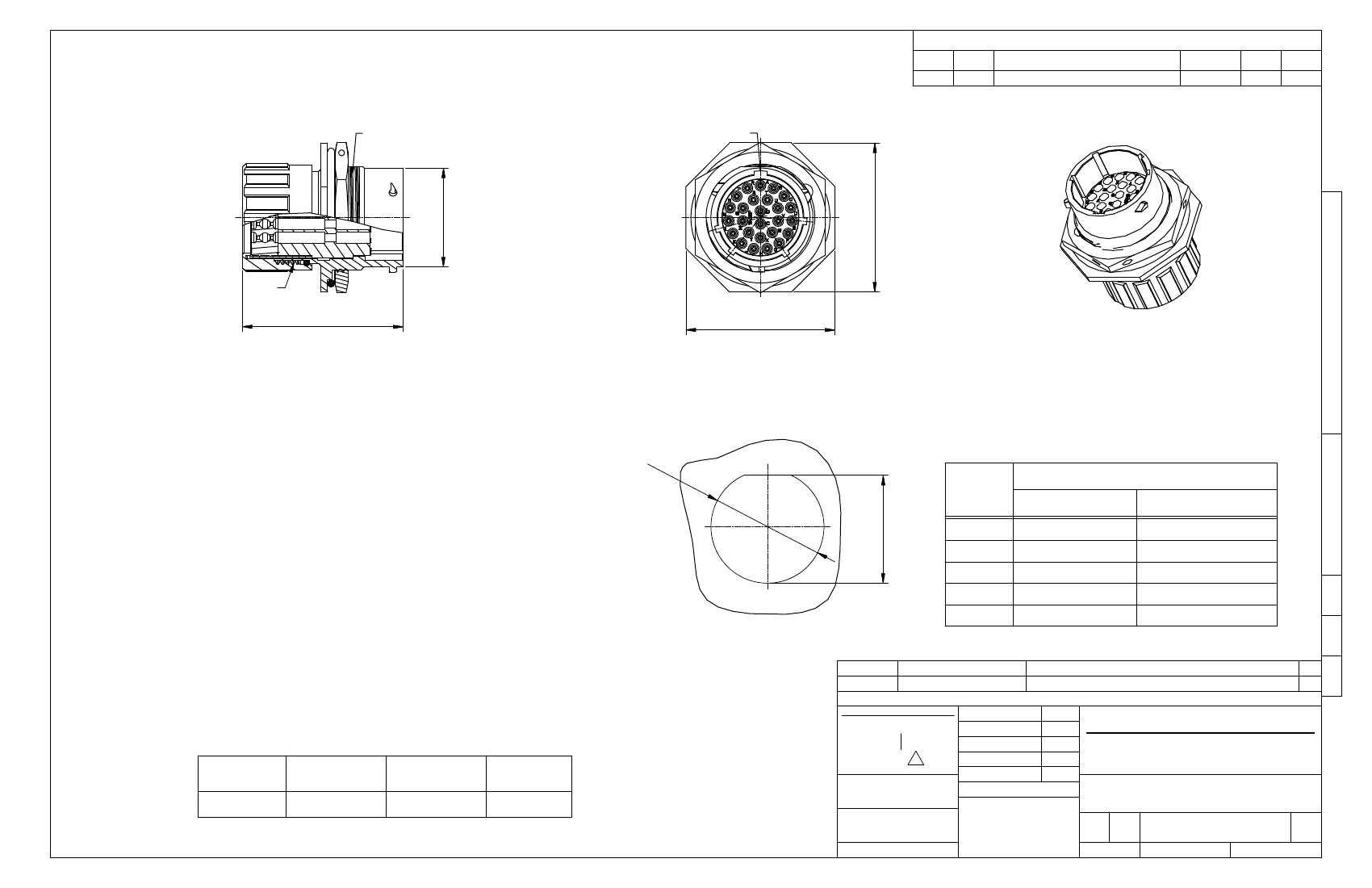

ECO-MATE,RECEPTACLE, SIZE 16,26POS,PIN,END CAP.
15/16-20 UNEF THREAD
41.1 Ref
38.1
NOTES：(UNLESS OTHERWISE SPECIFIED)
1. MATERIAL：
SHELL：ZINC ALLOY，NICKEL PLATED.
INSERT：THERMOPLASTIC，UL94 V-0.
END CAP：THERMOPLASTIC，UL94 V-0.
JAM NUT : Al ALLOY，NICKEL PLATED.
O-RING：NBR/SILICONE RUBBER.
SEAL GASKET：NBR/SILICONE RUBBER.
WIRE SEAL：SILICONE RUBBER.
PLASTIC BUSHING：THERMOPLASTIC，UL94 V-0.
2. SPECIFICATIONS：
2.1 RATED CURRENT：
2.1.1 STAMPED CONTACT 5A (MAX).
2.1.2 MACHINED CONTACT 7.5A(MAX).
2.2 RATED VOLTAGE：150V（AC/DC）.
2.3 OPERATING TEMPERATURE：SEE CHART.
2.4 DIELECTRIC WITHSTANDING VOLTAGE：LESS THAN
2 MILLIAMPS CURRENT LEAKAGE@1500 VOLTS AC.
2.5 INSULATION RESISTANCE：5000 MEGOHMS MIN.
2.6 IP--CLASS：IP67.
2.7 MATING CYCLES DURABILITY：500 CYCLES(MIN).
2.8 ROHS COMPLIANT.
3. SUITABLE CONTACTS ：20# CONTACTS.
4. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY.
5. CONTACT SIZE AND REAR SEAL WIRE RANGE：
DWG NO:
ø2
8
.9
+0.2
0
PART NUMBER
KEY POS
RT0W71626P*HEC*
27.5
+0.2
0
-40°C ~ 105°C
-40°C ~ 125°C
N
W
X
Y
Z
RT0W71626PNHEC
RT0W71626PNHEC03
RT0W71626PWHEC RT0W71626PWHEC03
RT0W71626PXHEC
RT0W71626PYHEC
RT0W71626PZHEC
RT0W71626PXHEC03
RT0W71626PYHEC03
RT0W71626PZHEC03
REV:
B1
SH:
PANEL CUT OUT REFERENCE
SEE PART NUMBER
CHART
DESCRIPTION
PART NUMBER
MATERIALS LIST
SIGNATURES
DRAWN:
CHECKED:
ENGINEER:
APPROVAL:
MATERIAL SPECIFICATIONS:
CUSTOMER:
1
OF:
QUANTITY
ITEM
1
UNLESS OTHERWISE SPECIFIED
1)
2)
1
2
3
All dimensions are in metric(mm).
Tolerances are as follows:
PL DEC ±0.30
Fractions ±1/64
PL DEC ±0.15
Angles ±1°
PL DEC ±0.08
X
DATE
BEN
JULY-08-2014
Amphenol
Sine Systems - www.amphenol-sine.com
44724 Morley Drive
Clinton Township, MI 48036
3) Note reference =
CONTACT SIZE MIN. INSUL O.D. MAX. INSUL O.D. WIRE RANGE
20#
Ø1.6mm
Ø2.6mm
20 - 30AWG
PROCESS SPECIFICATIONS:
NEXT ASS'Y:
THIS DRAWING IS SUPPLIED FOR
INFORMATION ONLY. DESIGN FEATURES,
SPECIFICATIONS AND PERFORMANCE DATA SIZE
SHOWN HEREON ARE THE PROPERTY OF
THE AMPHENOL CORPORATION. NO RIGHTS
OF REPRODUCTION ARE IMPLIED. ALL
DIMENSIONS ARE SUBJECT TO NORMAL
SCALE:
MANUFACTURING VARIATIONS.
ECO-MATE,RECEPTACLE,
SIZE 16,26POS,PIN,END CAP.
TYPE
DWG NO:
REVISION
B
C-
RT0W71626P*HEC* B1
SHEET
NONE
1
OF
1
