MDR842H datasheet, PDF - EEWORLD Datasheet

MDR842H: DescriptionBand Pass Filter, 2450MHz; CategoryAnalog mixed-signal IC filter; File Size2MB，1 Pages; ManufacturerSoshin Electric Co., Ltd.; Environmental Compliance

Download Datasheet Parametric Compare View All

MDR842H Overview

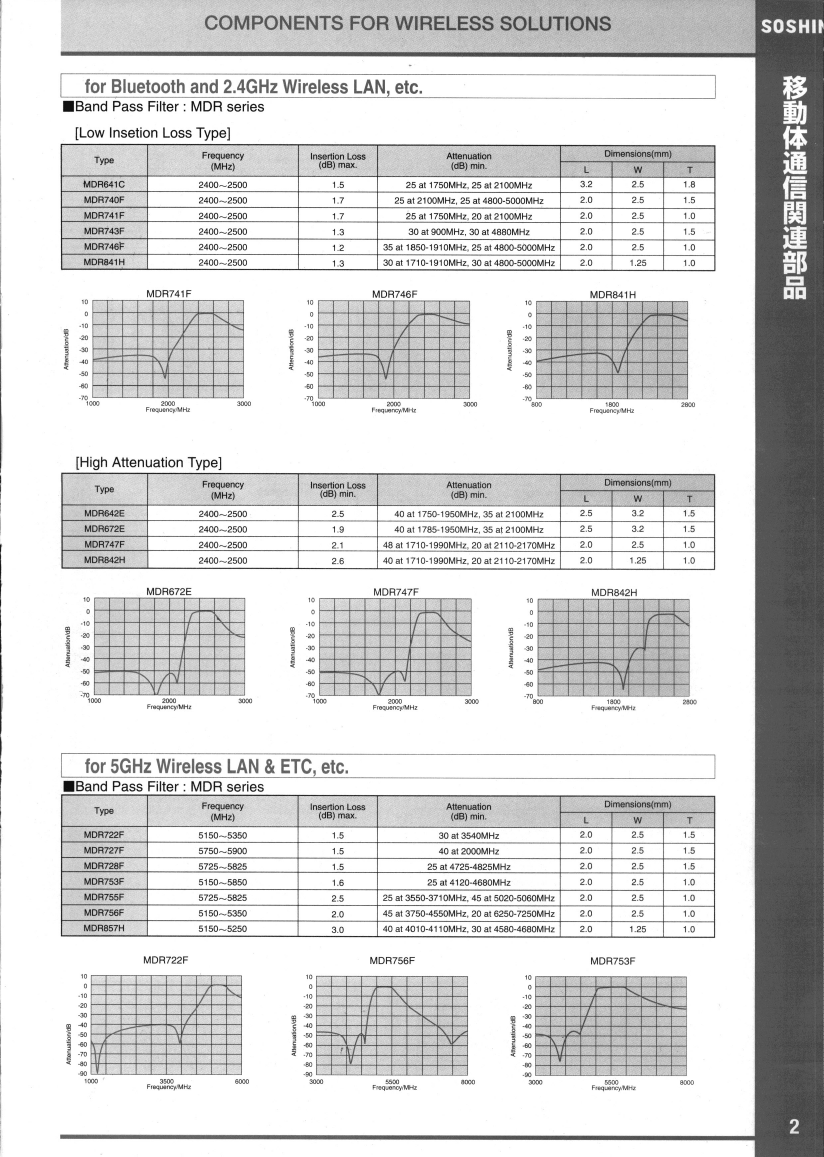

Band Pass Filter, 2450MHz

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Center frequency or cutoff frequency (fo/fc)	2450 MHz
filter type	BAND PASS FILTER
high	1 mm
Maximum insertion loss	2.6 dB
length	2 mm
physical size	L2XB1.25XH1 (mm)
width	1.25 mm
Base Number Matches	1

	MDR842H	MDR841H	MDR857F	MDR756F
Description	Band Pass Filter, 2450MHz	Band Pass Filter, 2450MHz	Band Pass Filter, 5200MHz	Band Pass Filter, 5250MHz
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown
Center frequency or cutoff frequency (fo/fc)	2450 MHz	2450 MHz	5200 MHz	5250 MHz
filter type	BAND PASS FILTER	BAND PASS FILTER	BAND PASS FILTER	BAND PASS FILTER
high	1 mm	1 mm	1 mm	1 mm
Maximum insertion loss	2.6 dB	1.3 dB	3 dB	2 dB
length	2 mm	2 mm	2 mm	2.5 mm
physical size	L2XB1.25XH1 (mm)	L2XB1.25XH1 (mm)	L2XB1.25XH1 (mm)	L2.5XB2XH1 (mm)
width	1.25 mm	1.25 mm	1.25 mm	2 mm
Base Number Matches	1	1	1	-
Maximum attenuation frequency	-	540 MHz	520 MHz	2000 MHz
Attenuation at maximum frequency	-	30 dB	30 dB	20 dB
