Z8620AB1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> Z8620AB1

Z8620AB1: Description8-BIT, MROM, 12MHz, MICROCONTROLLER, PDIP28, PLASTIC, DIP-28; CategoryThe embedded processor and controller Microcontrollers and processors; File Size340KB，11 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

Z8620AB1 Overview

8-BIT, MROM, 12MHz, MICROCONTROLLER, PDIP28, PLASTIC, DIP-28

Z8620AB1 Parametric

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	PLASTIC, DIP-28
Contacts	28
Reach Compliance Code	compliant
Has ADC	NO
Address bus width
bit size	8
maximum clock frequency	12 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDIP-T28
Number of I/O lines	22
Number of terminals	28
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
ROM programmability	MROM
speed	12 MHz
Maximum supply voltage	5 V
Minimum supply voltage	5 V
surface mount	NO
technology	CMOS
Terminal form	THROUGH-HOLE
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

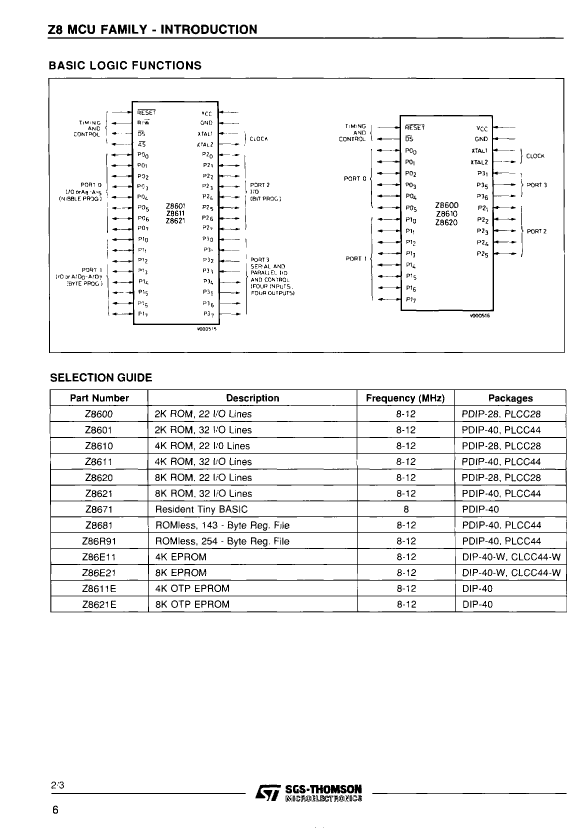

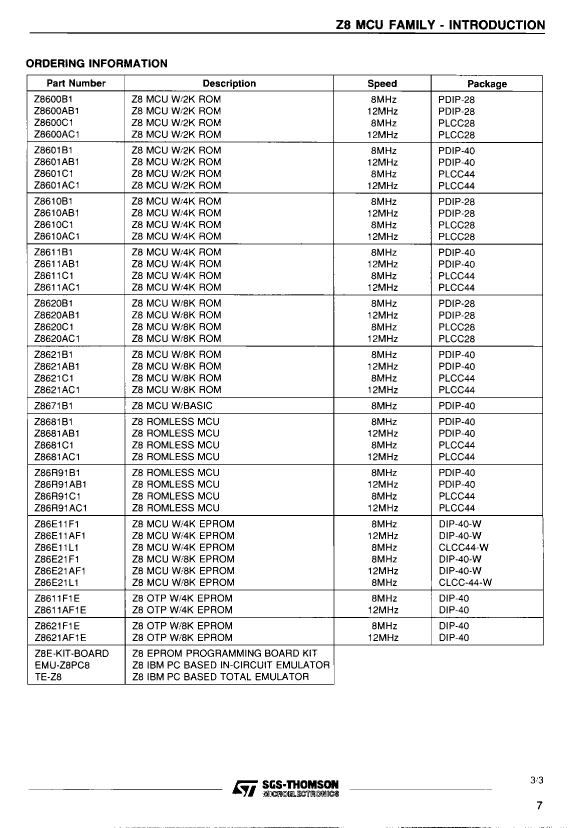

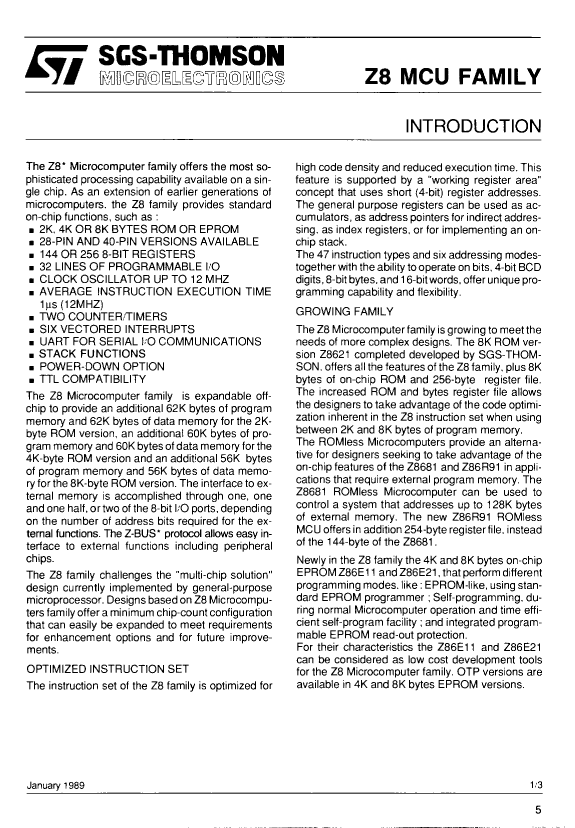

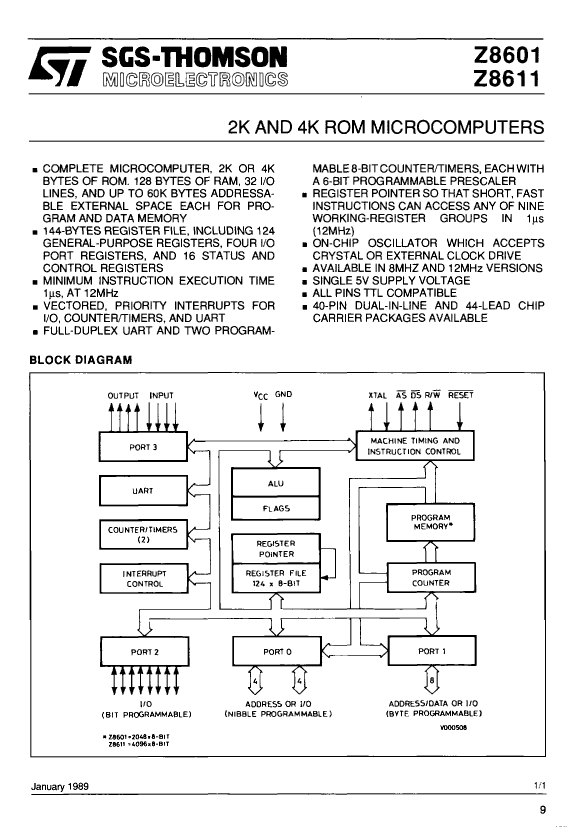

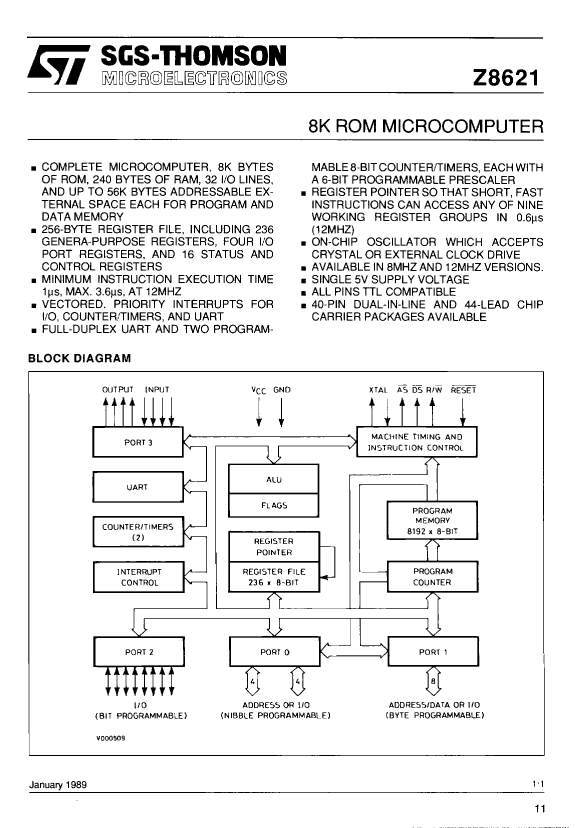

Preview

Download Datasheet

View All

Z8620AB1 Related Products

	Z8620AB1	Z8611AB1	Z8621C1	Z8610AB1	Z86E21F1	Z8611F1E	Z86R91AB1	Z8611AF1E
Description	8-BIT, MROM, 12MHz, MICROCONTROLLER, PDIP28, PLASTIC, DIP-28	8-BIT, MROM, 12MHz, MICROCONTROLLER, PDIP40, PLASTIC, DIP-40	8-BIT, MROM, 8MHz, MICROCONTROLLER, PQCC44, PLASTIC, LCC-44	8-BIT, MROM, 12MHz, MICROCONTROLLER, PDIP28, PLASTIC, DIP-28	8-BIT, UVPROM, 8MHz, MICROCONTROLLER, CDIP40, WINDOWED, DIP-40	8-BIT, OTPROM, 8MHz, MICROCONTROLLER, CDIP40, DIP-40	8-BIT, 12MHz, MICROCONTROLLER, PDIP40, PLASTIC, DIP-40	8-BIT, OTPROM, 12MHz, MICROCONTROLLER, CDIP40, DIP-40
Parts packaging code	DIP	DIP	LCC	DIP	DIP	DIP	DIP	DIP
package instruction	PLASTIC, DIP-28	DIP,	PLASTIC, LCC-44	DIP,	WINDOWED, DIP-40	DIP-40	DIP,	DIP-40
Contacts	28	40	44	28	40	40	40	40
Reach Compliance Code	compliant	unknown	compliant	unknown	not_compliant	not_compliant	compliant	not_compliant
Has ADC	NO	NO	NO	NO	NO	NO	NO	NO
Address bus width	-	16	16	-	16	16	16	16
bit size	8	8	8	8	8	8	8	8
maximum clock frequency	12 MHz	12 MHz	8 MHz	12 MHz	8 MHz	8 MHz	12 MHz	12 MHz
DAC channel	NO	NO	NO	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO	NO	NO	NO
External data bus width	-	8	8	-	8	8	8	8
JESD-30 code	R-PDIP-T28	R-PDIP-T40	S-PQCC-J44	R-PDIP-T28	R-CDIP-T40	R-CDIP-T40	R-PDIP-T40	R-CDIP-T40
Number of I/O lines	22	32	32	22	32	32	24	32
Number of terminals	28	40	44	28	40	40	40	40
PWM channel	NO	NO	NO	NO	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	QCCJ	DIP	WDIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	CHIP CARRIER	IN-LINE	IN-LINE, WINDOW	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
speed	12 MHz	12 MHz	8 MHz	12 MHz	8 MHz	8 MHz	12 MHz	12 MHz
Maximum supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Minimum supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal form	THROUGH-HOLE	THROUGH-HOLE	J BEND	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	QUAD	DUAL	DUAL	DUAL	DUAL	DUAL
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
ROM programmability	MROM	MROM	MROM	MROM	UVPROM	OTPROM	-	OTPROM
RAM (bytes)	-	-	240	-	236	124	236	124
Maker	-	-	-	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
