MH4S64BKG-8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> MH4S64BKG-8

MH4S64BKG-8: DescriptionSynchronous DRAM Module, 4MX64, 6ns, CMOS, DIMM-144; Categorystorage storage; File Size4MB，53 Pages; ManufacturerMitsubishi; Websitehttp://www.mitsubishielectric.com/semiconductors/

Download Datasheet Parametric Compare View All

MH4S64BKG-8 Overview

Synchronous DRAM Module, 4MX64, 6ns, CMOS, DIMM-144

MH4S64BKG-8 Parametric

Parameter Name	Attribute value
Parts packaging code	DIMM
package instruction	DIMM, DIMM144,32
Contacts	144
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	DUAL BANK PAGE BURST
Maximum access time	6 ns
Other features	AUTO/SELF REFRESH
Maximum clock frequency (fCLK)	100 MHz
I/O type	COMMON
JESD-30 code	R-XDMA-N144
memory density	268435456 bit
Memory IC Type	SYNCHRONOUS DRAM MODULE
memory width	64
Number of functions	1
Number of ports	1
Number of terminals	144
word count	4194304 words
character code	4000000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	4MX64
Output characteristics	3-STATE
Package body material	UNSPECIFIED
encapsulated code	DIMM
Encapsulate equivalent code	DIMM144,32
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
power supply	3.3 V
Certification status	Not Qualified
refresh cycle	4096
Maximum seat height	25.4 mm
self refresh	YES
Maximum standby current	0.004 A
Maximum slew rate	0.6 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	0.8 mm
Terminal location	DUAL
Base Number Matches	1

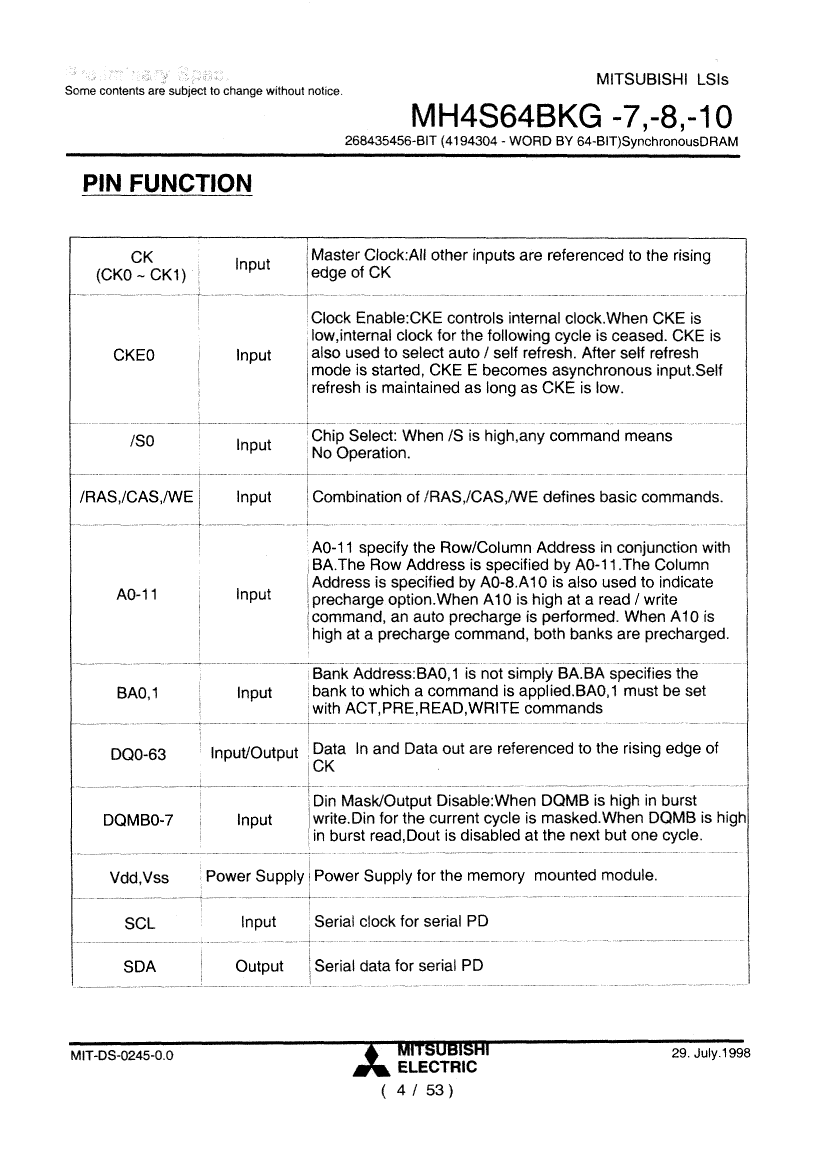

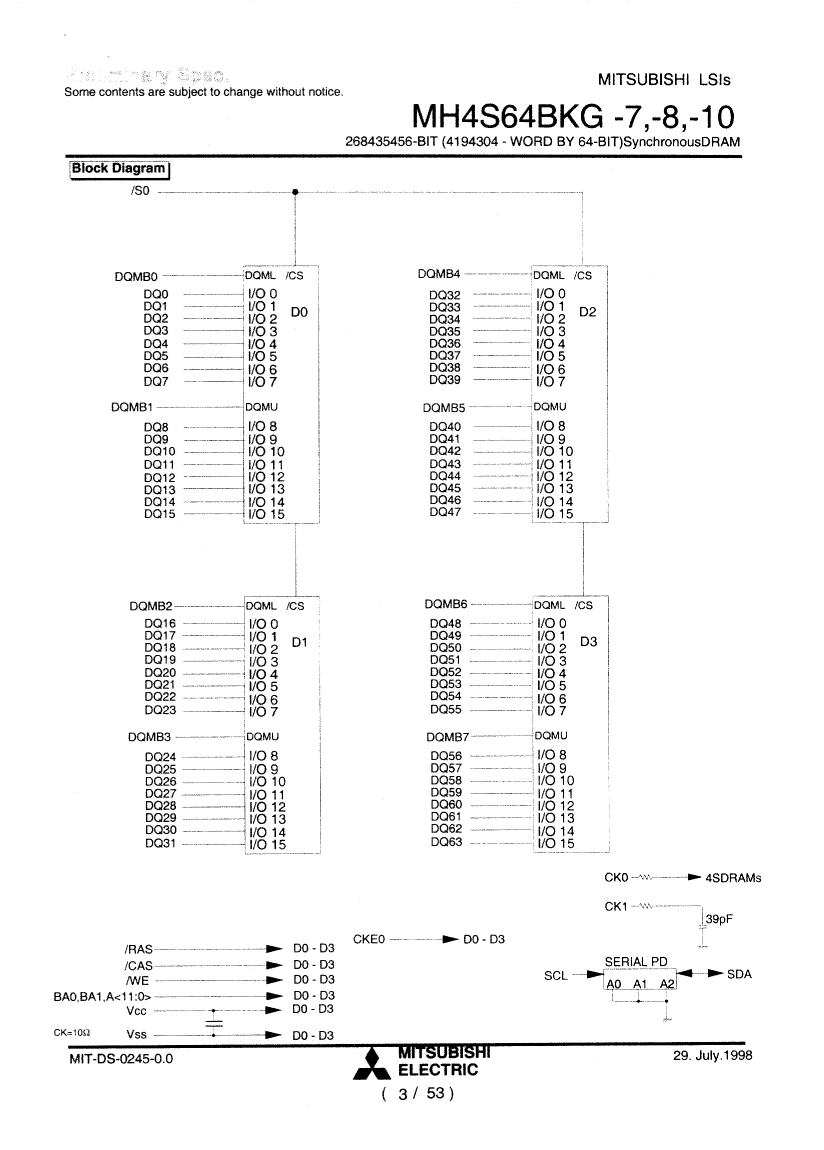

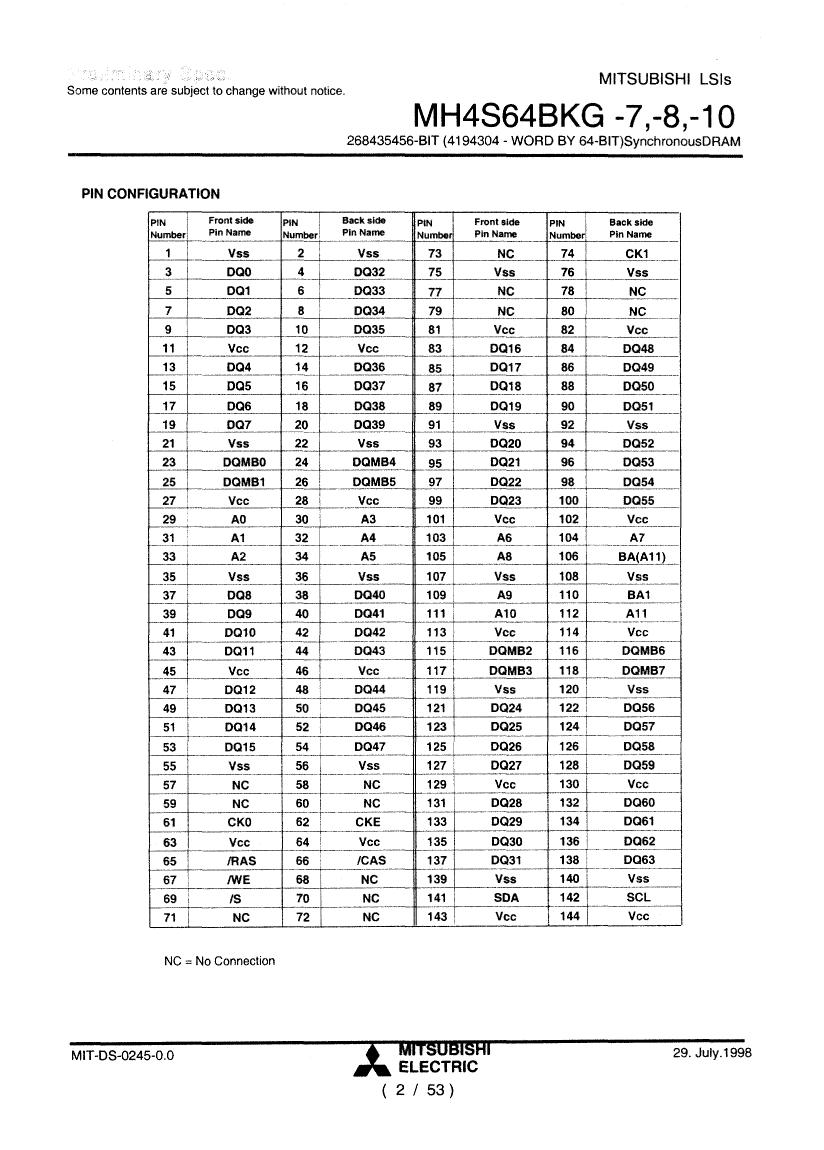

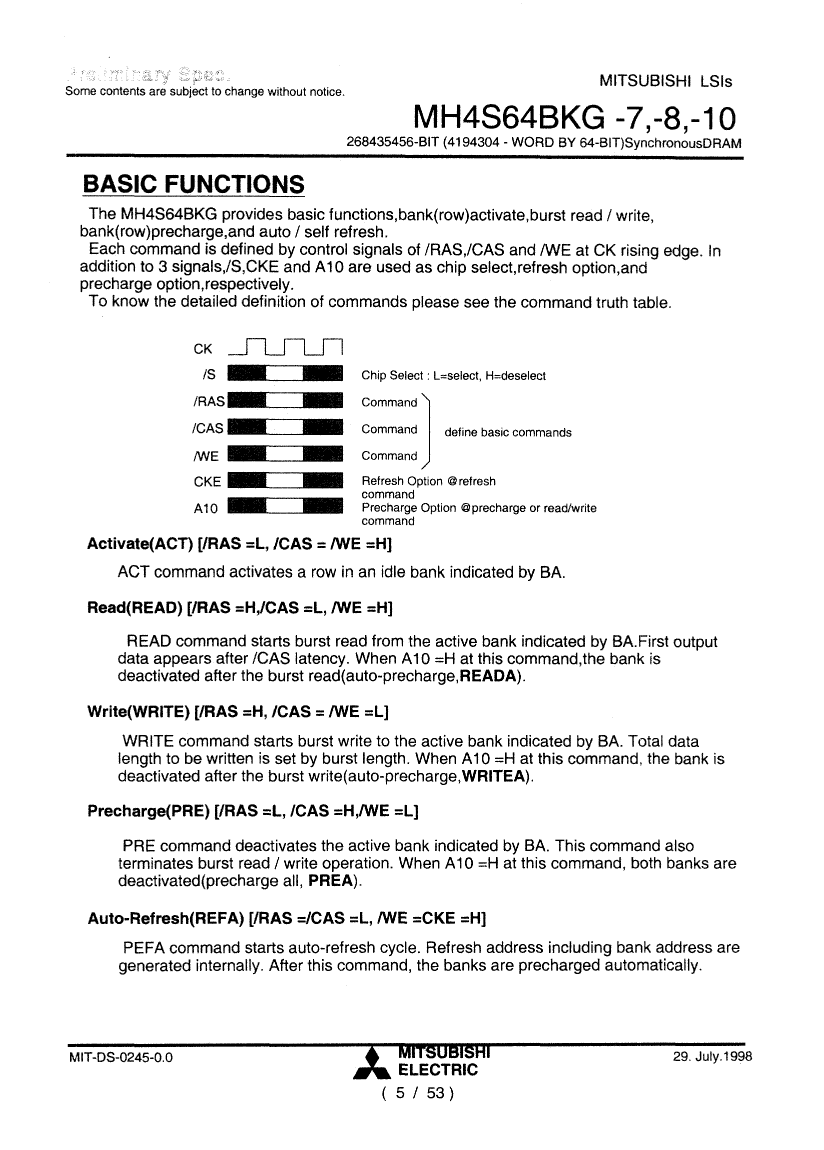

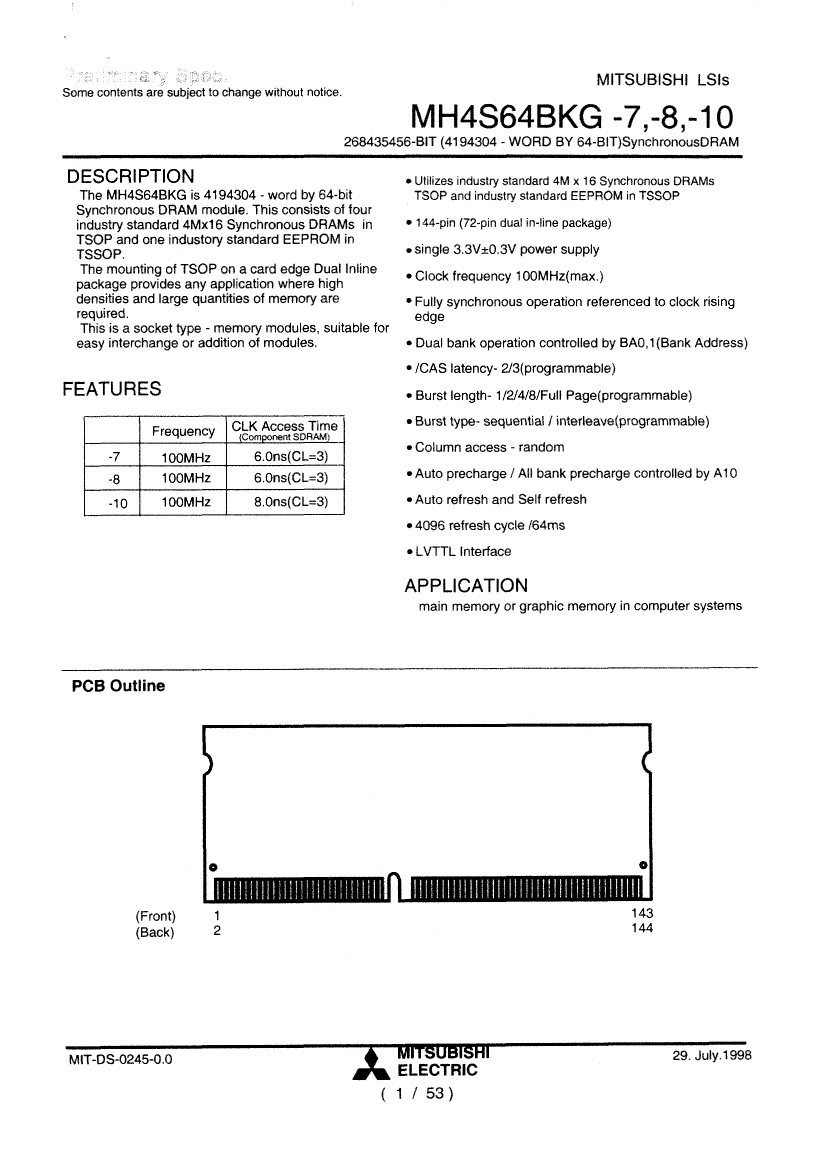

Preview

Download Datasheet

View All

MH4S64BKG-8 Related Products

	MH4S64BKG-8	MH4S64BKG-7
Description	Synchronous DRAM Module, 4MX64, 6ns, CMOS, DIMM-144	Synchronous DRAM Module, 4MX64, 6ns, CMOS, DIMM-144
Parts packaging code	DIMM	DIMM
package instruction	DIMM, DIMM144,32	DIMM, DIMM144,32
Contacts	144	144
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
access mode	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST
Maximum access time	6 ns	6 ns
Other features	AUTO/SELF REFRESH	AUTO/SELF REFRESH
Maximum clock frequency (fCLK)	100 MHz	100 MHz
I/O type	COMMON	COMMON
JESD-30 code	R-XDMA-N144	R-XDMA-N144
memory density	268435456 bit	268435456 bit
Memory IC Type	SYNCHRONOUS DRAM MODULE	SYNCHRONOUS DRAM MODULE
memory width	64	64
Number of functions	1	1
Number of ports	1	1
Number of terminals	144	144
word count	4194304 words	4194304 words
character code	4000000	4000000
Operating mode	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	70 °C
organize	4MX64	4MX64
Output characteristics	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIMM	DIMM
Encapsulate equivalent code	DIMM144,32	DIMM144,32
Package shape	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
power supply	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified
refresh cycle	4096	4096
Maximum seat height	25.4 mm	25.4 mm
self refresh	YES	YES
Maximum standby current	0.004 A	0.004 A
Maximum slew rate	0.6 mA	0.6 mA
Maximum supply voltage (Vsup)	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD
Terminal pitch	0.8 mm	0.8 mm
Terminal location	DUAL	DUAL
