Part Number

Search

2-645144-3

Description
CONNECTOR, 224 CONTACT(S), FEMALE, VERTICAL SINGLE PART CARD EDGE CONN, SOLDER
CategoryThe connector    The connector
File Size760KB,20 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric Compare View All

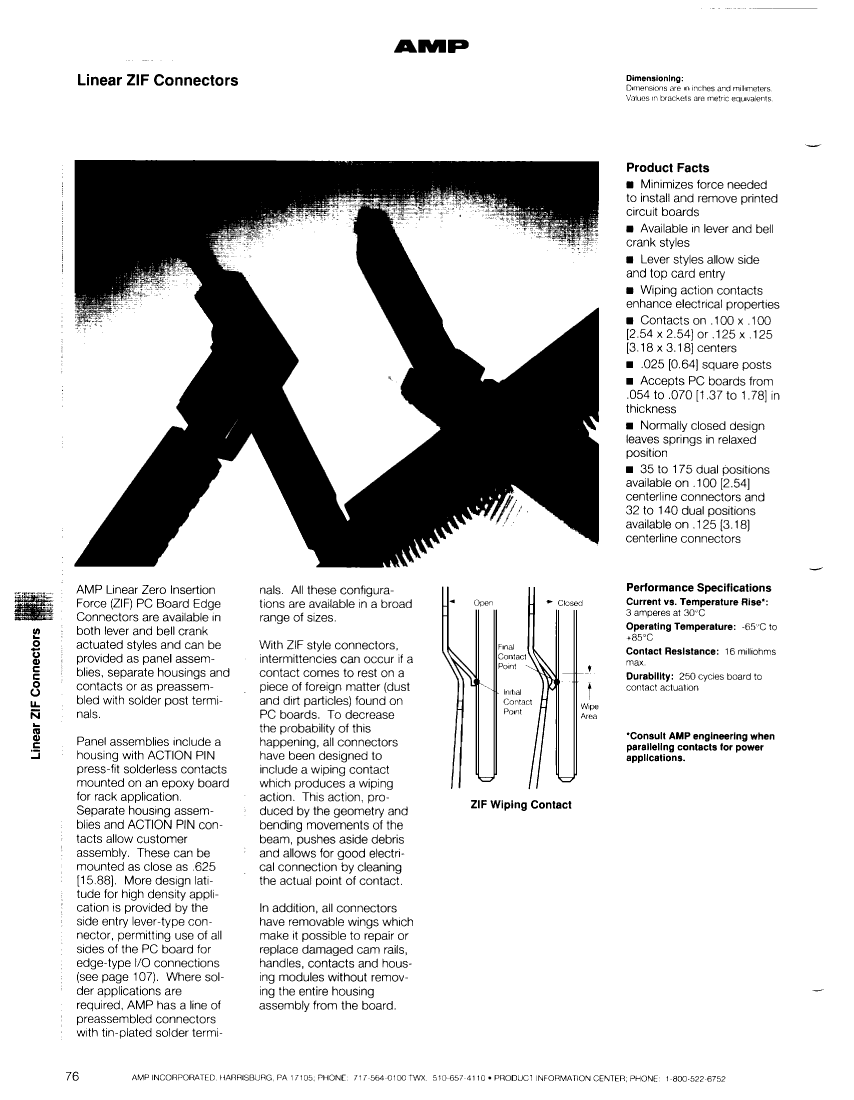

2-645144-3 Overview

CONNECTOR, 224 CONTACT(S), FEMALE, VERTICAL SINGLE PART CARD EDGE CONN, SOLDER

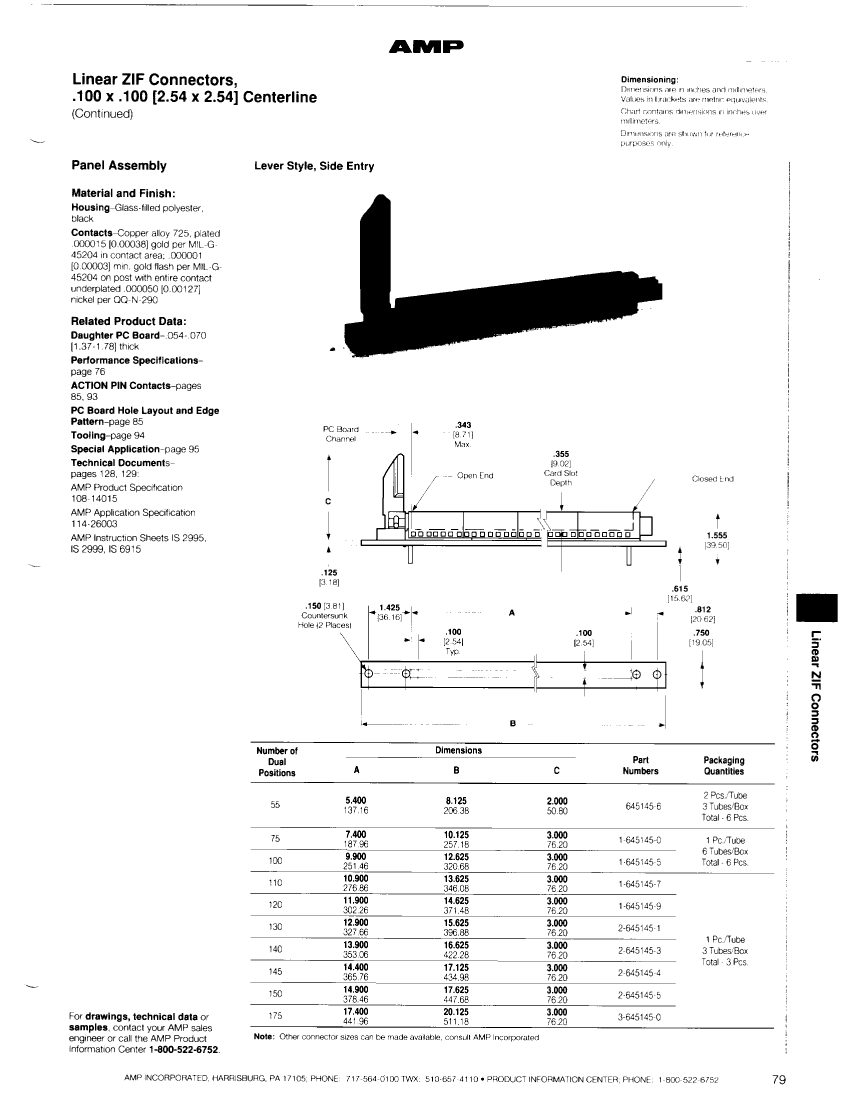

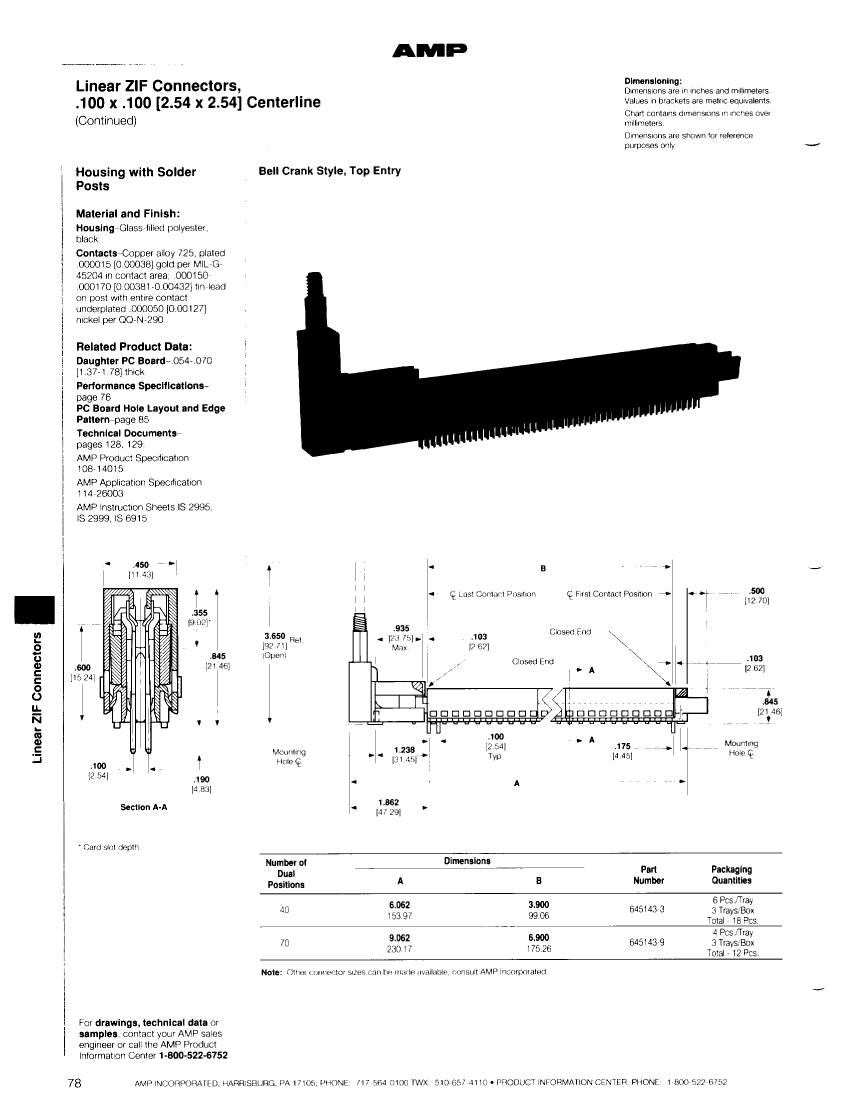

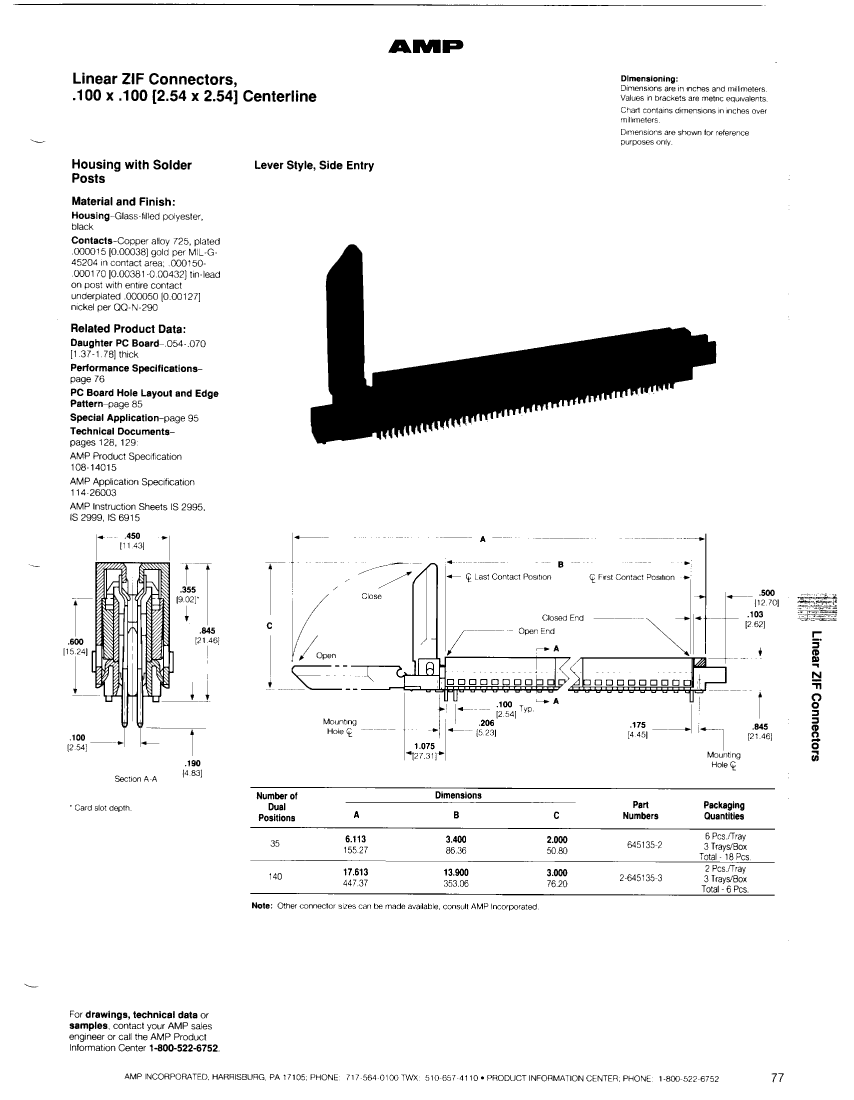

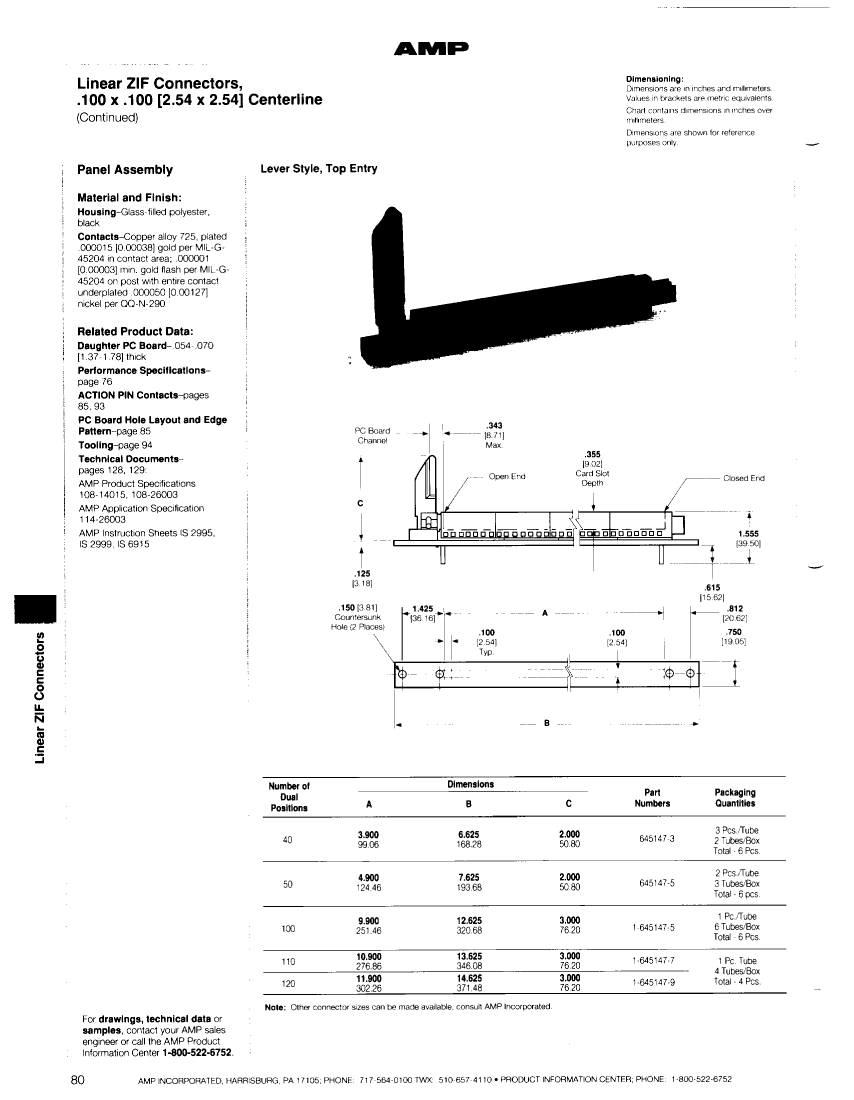

2-645144-3 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
Other featuresTOP ENTRY, ZIF
Connector typeCARD EDGE CONNECTOR
Contact point genderFEMALE
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial number645144
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded2
Terminal pitch3.17 mm
Termination typeSOLDER
Total number of contacts224
Base Number Matches1

2-645144-3 Related Products

2-645144-3 2-645137-7 2-645141-1
Description CONNECTOR, 224 CONTACT(S), FEMALE, VERTICAL SINGLE PART CARD EDGE CONN, SOLDER CONNECTOR, 320 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN CONNECTOR, 260 CONTACT(S), FEMALE, VERTICAL SINGLE PART CARD EDGE CONN, PRESS FIT
Reach Compliance Code unknown unknown unknown
Other features TOP ENTRY, ZIF ACTION PIN, COMPATIBLE CONTACTS: 119311-1; 119311-6; 1-119311-1; 1-119311-6; 119196-2 ACTION PIN, TOP ENTRY, ZIF
Connector type CARD EDGE CONNECTOR CARD EDGE CONNECTOR CARD EDGE CONNECTOR
Contact point gender FEMALE FEMALE FEMALE
DIN compliance NO NO NO
Filter function NO NO NO
IEC compliance NO NO NO
MIL compliance NO NO NO
Manufacturer's serial number 645144 645137 645141
Mixed contacts NO NO NO
Installation method STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD
Number of rows loaded 2 2 2
Terminal pitch 3.17 mm 2.54 mm 2.54 mm
Total number of contacts 224 320 260
Base Number Matches 1 1 1
Termination type SOLDER - PRESS FIT
