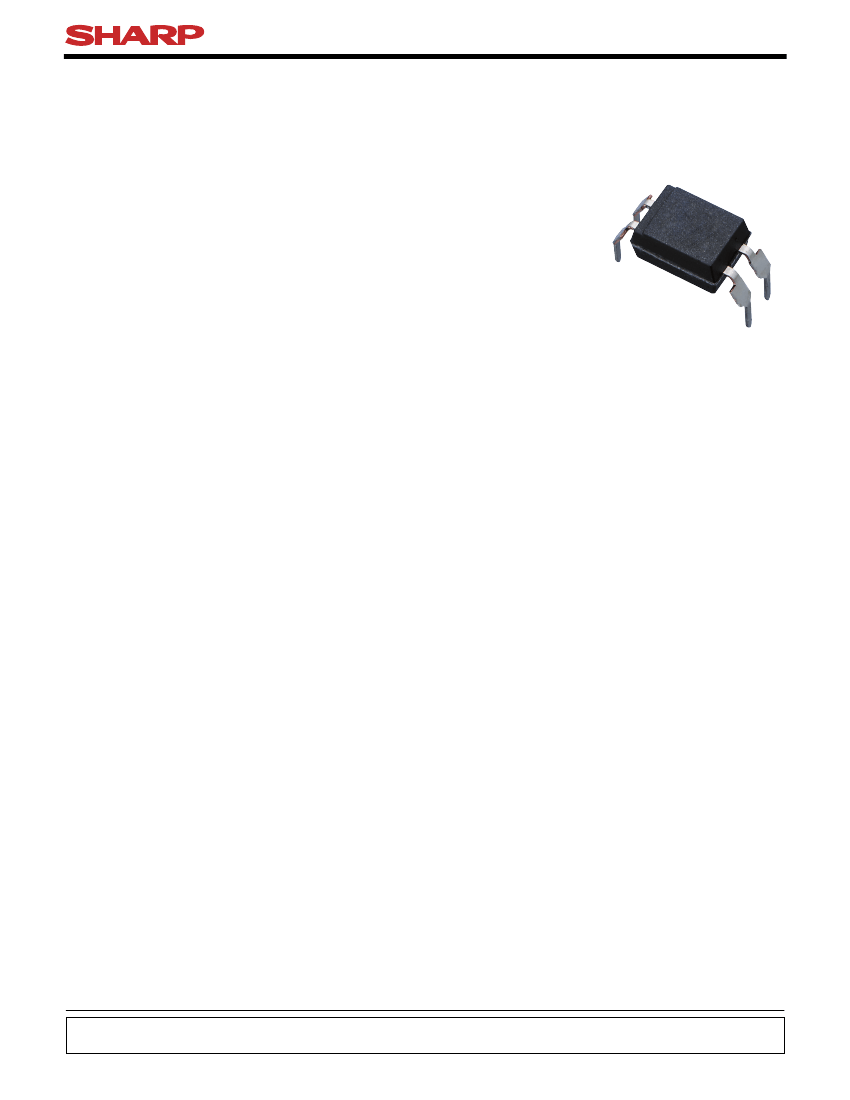

PC3SH11YFZ Series
PC3SH11YFZ
Series
∗
V
DRM
: 600V, Reinforced insulation type
Non-zero cross type
DIP 4 pin
Phototriac Coupler for triggering
Zero cross type is also available.
(PC3SH21YFZ
Series)
■
Description
PC3SH11YFZ Series
reinforced insulation type
Phototriac Coupler include an infrared emitting diode
(IRED) optically coupled to an output Phototriac.
These devices feature full wave control and are
ideal isolated drivers for medium to high current Triacs.
DIP package provides 5.0kV isolation from input to
output with superior commutative noise immunity.
■
Agency approvals/Compliance
1. Recognized by UL1577 (Double protection isolation),
file No. E64380 (as model No.
3SH11)
2. Approved by CSA, file No. CA95323 (as model No.
3SH11)
3. Approved by BSI : BS-EN60065, file No. 6690/BS-
EN60950, file No. 7421, (as model No.
3SH11)
4. Approved by SEMKO, EN60065/EN60950, file No.
0226022 (as model No.
3SH11)
5. Approved by DEMKO, EN60065/EN60950, file No.
311791 (as model No.
3SH11)
6. Approved by FIMKO, EN60065/EN60950, file No.
18937 (as model No.
3SH11)
7. Approved by VDE
(∗)
(DIN EN 60747-5-2), file No.
40008087 (as model No.
3SH11)
8. Package resin : UL flammability grade (94V-0)
(∗)
■
Features
1. High repetitive peak off-state voltage (V
DRM
: 600V)
2. Non-zero crossing functionality
3. I
FT
ranks available (see Model Line-up section in this
datasheet)
4. 4 pin DIP package
5. Reinforced insulation type (MIN. 0.4mm internal
separation)
6. Superior noise immunity (dV/dt : MIN. 1 000V/µs)
7.
Double transfer mold construction (Ideal for Flow
Soldering)
8.
High isolation voltage between input and output
(V
iso
(rms) : 5.0kV)
DIN EN60747-5-2 : successor standard of DIN VDE0884.
Up to Date code "RD" (December 2003), approval of DIN
VDE0884.
From Date code "S1" (January 2004), approval of DIN
EN60747-5-2.
■
Applications
1. Triggering for Triacs used to switch on and off
devices which require AC Loads.
For example heaters, fans, motors, solenoids, and
valves.
2. Triggering for Triacs used for implementing phase
control in applications such as lighting control and
temperature control (HVAC).
3. AC line control in power supply applications.
Notice The content of data sheet is subject to change without prior notice.
In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP
devices shown in catalogs, data books, etc. Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device.
1
Sheet No.: D2-A07201FEN
Date Mar. 31. 2004
© SHARP Corporation
PC3SH11YFZ Series
■
Internal Connection Diagram
1
4
1
2
3
4
2
3
Anode
Cathode
Anode/Cathode
Cathode/Anode
■

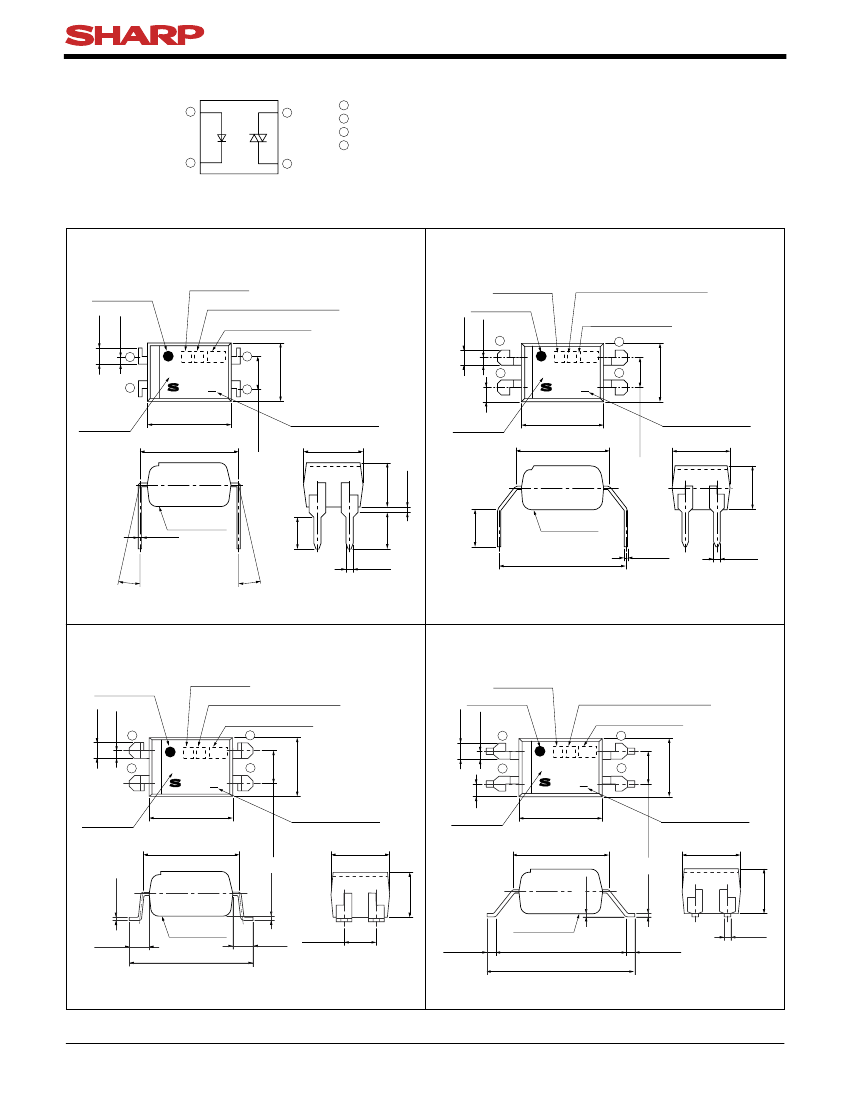

Outline Dimensions
1. Through-Hole [ex.
PC3SH11YSZ]
Anode mark
1.2
±0.3
0.6
±0.2
Rank mark
Factory identification mark
(Unit : mm)
2. Wide Through-Hole Lead-Form [ex.
PC3SH11YFZ]
Rank mark
Factory identification mark
Date code (2 digit)
1
4
Anode mark
1.2
±0.3
0.6
±0.2
Date code (2 digit)
4.58
±0.5
1
4
2
3
1.0
±0.1
3S H11
4
6.5
±0.5
7.62
±0.3
2
3 SH 11
4
6.5
±0.5
7.62
±0.3
3
4.58
±0.5
2.54
±0.25
VDE identification
mark
4.58
±0.5
3.5
±0.5
0.26
±0.1
Model No.
2.54
±0.25
VDE identification
mark
4.58
±0.5
Model No.
0.5
TYP.
3.5
±0.5
0.26
±0.1
θ
θ
2.7
Epoxy resin
2.7
±0.5
3.0
±0.5
MIN.
Epoxy resin
10.16
±0.5
0.5
±0.1
0.5
θ
: 0 to 13˚
±0.1
Product mass : approx. 0.23g
3. SMT Gullwing Lead-Form [ex.
PC3SH11YIP]
Anode mark
1.2
±0.3
0.6
±0.2
Rank mark
Factory identification mark
Product mass : approx. 0.23g
4. Wide SMT Gullwing Lead-Form [ex.
PC3SH11YUP]
Rank mark
Anode mark
1.2
±0.3
0.6
±0.2
Factory identification mark
Date code (2 digit)
Date code (2 digit)
1
4
1
4
4.58
±0.5
2
1.0
3SH11
4
6.5
±0.5
3
2
±0.1
3 SH 11
4
6.5
±0.5
7.62
±0.3
0.25
±0.25
3
2.54
±0.25
7.62
±0.3
0.26
±0.1
4.58
±0.5
3.5
±0.5
2.54
±0.25
Model No.
VDE identification
mark
Model No.
4.58
VDE identification
mark
4.58
±0.5
±0.5
±0.25
0.26
±0.1
±0.5
0.35
1.0
+0.4
−0
Epoxy resin
10.0
+0
−0.5
1.0
+0.4
−0
2.54
±0.25
Epoxy resin
0.75
±0.25
10.16
±0.5
12.0
MAX
0.75
±0.25
0.5
±0.1
Product mass : approx. 0.21g
Product mass : approx. 0.22g
Sheet No.: D2-A07201FEN
2
3.5
PC3SH11YFZ Series
■
Absolute Maximum Ratings
(T
a
=25˚C)
Parameter
Symbol
Rating
Unit
I
F
50
mA
Forward current
Input
V
R
6
V
Reverse voltage
I
T
(rms)
0.1
A
RMS ON-state current
*3
Output
Peak one cycle surge current
I
surge
1.2
A
V
DRM
600
V
Repetitive peak OFF-state voltage
*1
V
iso
(rms)
5.0
kV
Isolation voltage
T
opr
−30
to
+100
˚C
Operating temperature
T
stg
−55
to
+125
˚C
Storage temperature
*2
T
sol
270
*4
˚C
Soldering temperature
*1 40 to 60%RH, AC for 1minute, f=60Hz
*2 For 10s
*3 f=50Hz sine wave
*4 Lead solder plating models: 260˚C
Soldering area
■
Electro-optical Characteristics
Parameter
Forward voltage
Input
Reverse current
Repentitive peak OFF-state current
ON-state voltage
Output
Holding current
Critical rate of rise of OFF-state voltage
Rank A
Transfer Minimum trigger current
Rank B
charac-
teristics Isolation resistance
Turn-on time
Symbol
V
F
I
R
I
DRM
V
T
I
H
dV/dt
I
FT
R
ISO
t
on
Conditions
I
F
=20mA
V
R
=3V
V
D
=V
DRM
I
T
=0.1A
V
D
=6V
−
V
D
=1/√
2
·V
DRM
V
D
=6V,
R
L
=100Ω
DC500V,40 to 60%RH
V
D
=6V,
R
L
=100Ω,
I
F
=20mA
MIN. TYP.
1.2
−
−
−
−
−
−
−
−
0.1
1 000 2 000
−
−
−
−
10
10
11
5×10
−
−
1mm
(T
a
=25˚C)
MAX.
1.4
10
1
3.0
3.5
−
10
7
−
100
Unit
V
µA
µA
V
mA
V/µs
mA
Ω
µs
