L-34PCT130TWRG4

Description
Dual Color LED Array, High Efficiency Red/high Efficiency Green, Diffused White,
CategoryLED optoelectronic/LED    photoelectric
File Size142KB,1 Pages
ManufacturerLEDtronics
Websitehttp://ledtronics.com.my
Download Datasheet Parametric Compare View All

L-34PCT130TWRG4 Overview

Dual Color LED Array, High Efficiency Red/high Efficiency Green, Diffused White,

L-34PCT130TWRG4 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
colorHIGH EFFICIENCY RED/HIGH EFFICIENCY GREEN
Configuration12 BANKS, COMMON BIPOLAR TERMINAL, 2 ELEMENTS
Maximum forward current0.03 A
Lens typeDIFFUSED WHITE
Nominal luminous intensity10.0/20.0 mcd
Installation featuresRADIAL MOUNT
Number of functions12
Number of terminals24
Maximum operating temperature80 °C
Minimum operating temperature-40 °C
Optoelectronic device typesDUAL COLOR LED ARRAY
total height14.6 mm
method of packingBULK
peak wavelength640/565 nm
shapeROUND
surface mountNO
Terminal pitch2.54 mm
perspective65 deg
Base Number Matches1

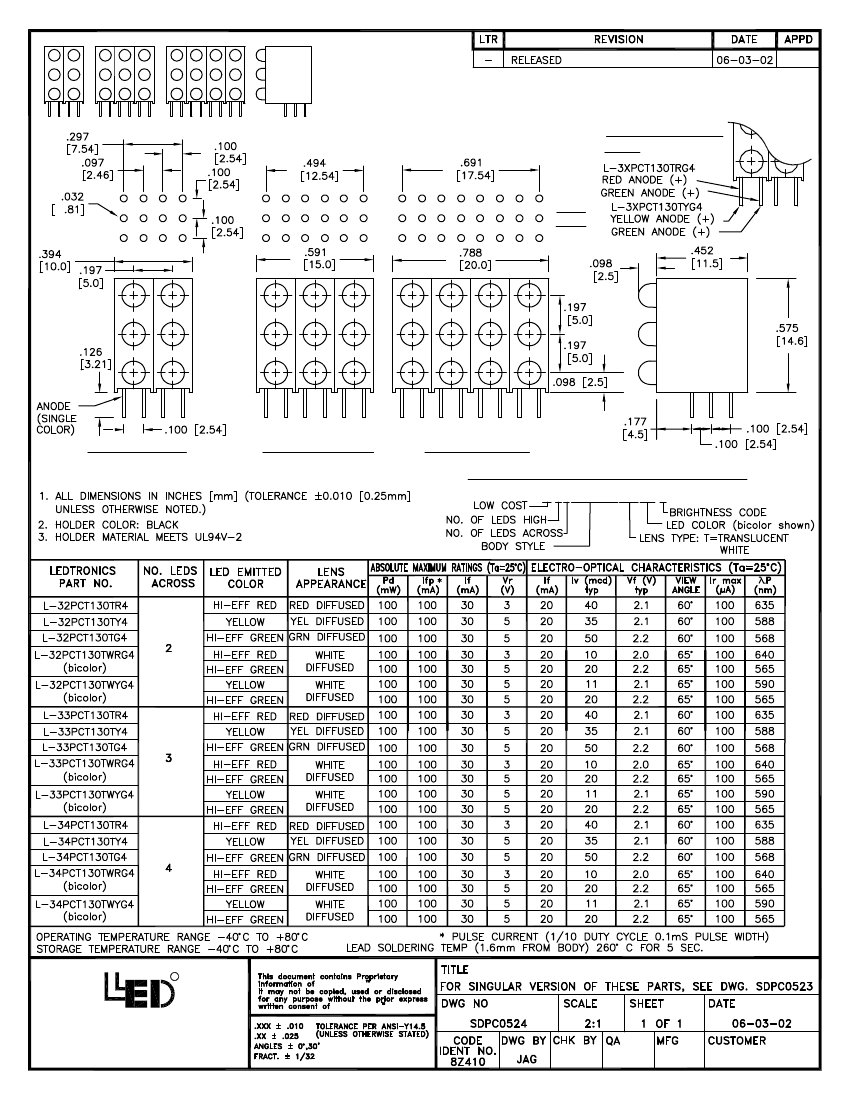

Actual Size
BICOLOR POLARITY
(TYP.)
FOOT
PRINT
TWO LED ARRAY
THREE LED ARRAY
FOUR LED ARRAY
ALL LEDS ON THE PART ARE THE SAME COLOR
L-32PCT130TWYG4
R
-PROPRIETARY-
LEDTRONICS, INC.
LEDTRONICS, INC.
L-3XPCT130TXX -- MULTIPLE ARRAYS
LEDTRONICS, INC.
23105 KASHIWA COURT
TORRANCE, CA 90505
TM

L-34PCT130TWRG4 Related Products

L-34PCT130TWRG4 L-33PCT130TR4 L-32PCT130TG4 L-33PCT130TWYG4
Description Dual Color LED Array, High Efficiency Red/high Efficiency Green, Diffused White, Single Color LED Array, High Efficiency Red, Diffused Red, Single Color LED Array, High Efficiency Green, Diffused Green, Dual Color LED Array, Yellow/high Efficiency Green, Diffused White,
Reach Compliance Code unknown unknown unknown unknown
color HIGH EFFICIENCY RED/HIGH EFFICIENCY GREEN HIGH EFFICIENCY RED HIGH EFFICIENCY GREEN YELLOW/HIGH EFFICIENCY GREEN
Configuration 12 BANKS, COMMON BIPOLAR TERMINAL, 2 ELEMENTS SEPARATE, 9 ELEMENTS SEPARATE, 6 ELEMENTS 9 BANKS, COMMON BIPOLAR TERMINAL, 2 ELEMENTS
Maximum forward current 0.03 A 0.03 A 0.03 A 0.03 A
Lens type DIFFUSED WHITE DIFFUSED RED DIFFUSED GREEN DIFFUSED WHITE
Nominal luminous intensity 10.0/20.0 mcd 40.0 mcd 50.0 mcd 11.0/20.0 mcd
Installation features RADIAL MOUNT RADIAL MOUNT RADIAL MOUNT RADIAL MOUNT
Number of functions 12 9 6 9
Number of terminals 24 18 12 18
Maximum operating temperature 80 °C 80 °C 80 °C 80 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C
Optoelectronic device types DUAL COLOR LED ARRAY SINGLE COLOR LED ARRAY SINGLE COLOR LED ARRAY DUAL COLOR LED ARRAY
total height 14.6 mm 14.6 mm 14.6 mm 14.6 mm
method of packing BULK BULK BULK BULK
peak wavelength 640/565 nm 635 nm 568 nm 590/565 nm
shape ROUND ROUND ROUND ROUND
surface mount NO NO NO NO
Terminal pitch 2.54 mm 2.54 mm 2.54 mm 2.54 mm
perspective 65 deg 60 deg 60 deg 65 deg
Maker - LEDtronics LEDtronics LEDtronics
