SKCD9C060I3

Description
Rectifier Diode, 1 Phase, 1 Element, 15A, 600V V(RRM), Silicon, 2.95 X 2.95 MM, WAFER-1
CategoryDiscrete semiconductor    diode
File Size213KB,2 Pages
ManufacturerSEMIKRON
Websitehttp://www.semikron.com
Environmental Compliance
Download Datasheet Parametric View All

SKCD9C060I3 Overview

Rectifier Diode, 1 Phase, 1 Element, 15A, 600V V(RRM), Silicon, 2.95 X 2.95 MM, WAFER-1

SKCD9C060I3 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Parts packaging codeWAFER
package instruction2.95 X 2.95 MM, WAFER-1
Contacts1
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresFREE WHEELING DIODE
applicationSOFT RECOVERY
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
JESD-30 codeS-XUUC-N1
JESD-609 codee3/e4
Maximum non-repetitive peak forward current100 A
Number of components1
Phase1
Number of terminals1
Maximum operating temperature150 °C
Minimum operating temperature-40 °C
Maximum output current15 A
Package body materialUNSPECIFIED
Package shapeSQUARE
Package formUNCASED CHIP
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum repetitive peak reverse voltage600 V
surface mountYES
Terminal surfaceTIN/SILVER
Terminal formNO LEAD
Terminal locationUPPER
Maximum time at peak reflow temperatureNOT SPECIFIED
Base Number Matches1
SKCD 09 C 060 I3
SEMIKRON, leading manufacturer of diode thyristor power semicondictor modules
Absolute Maximum Ratings
Symbol Conditions
Values
Units

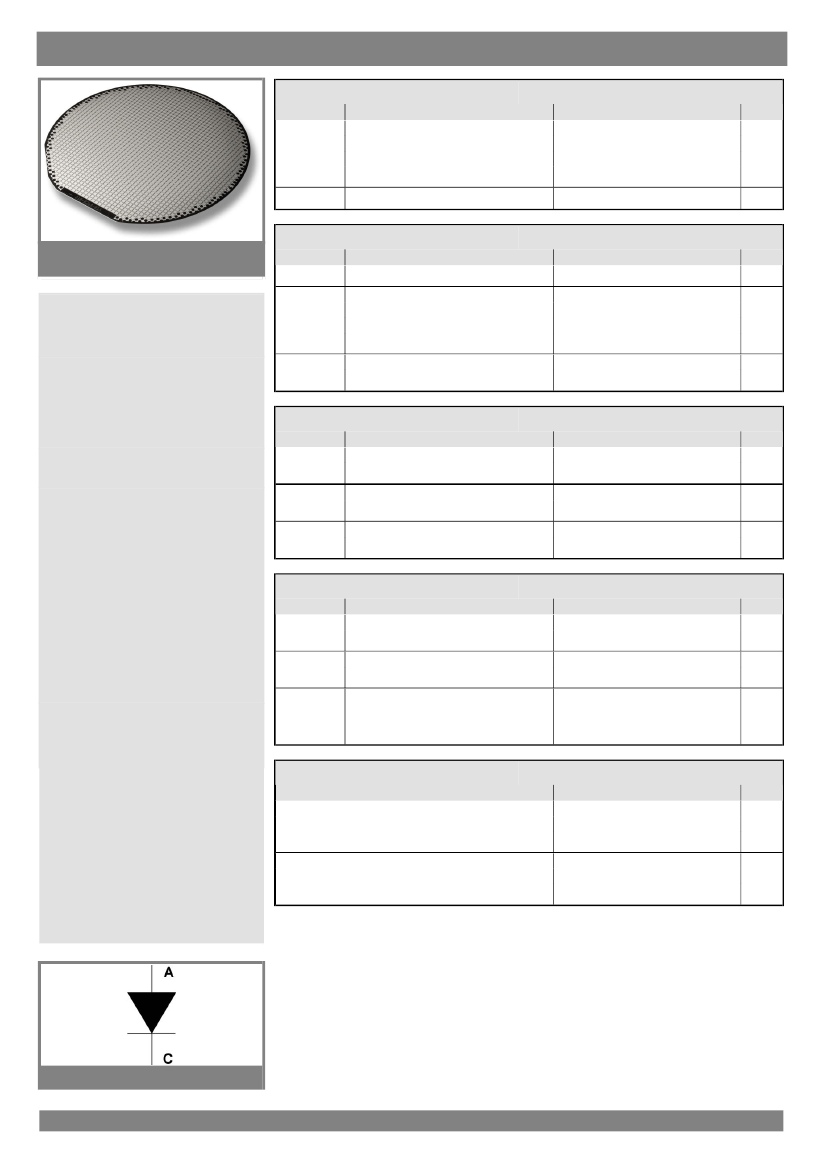

SEMICELL CAL-DIODE
SKCD 09 C 060 I3
Electrical Characteristics
Symbol Conditions
min.
typ.
max.
Units
I
F
= 20 A
V
RRM
= 600 V

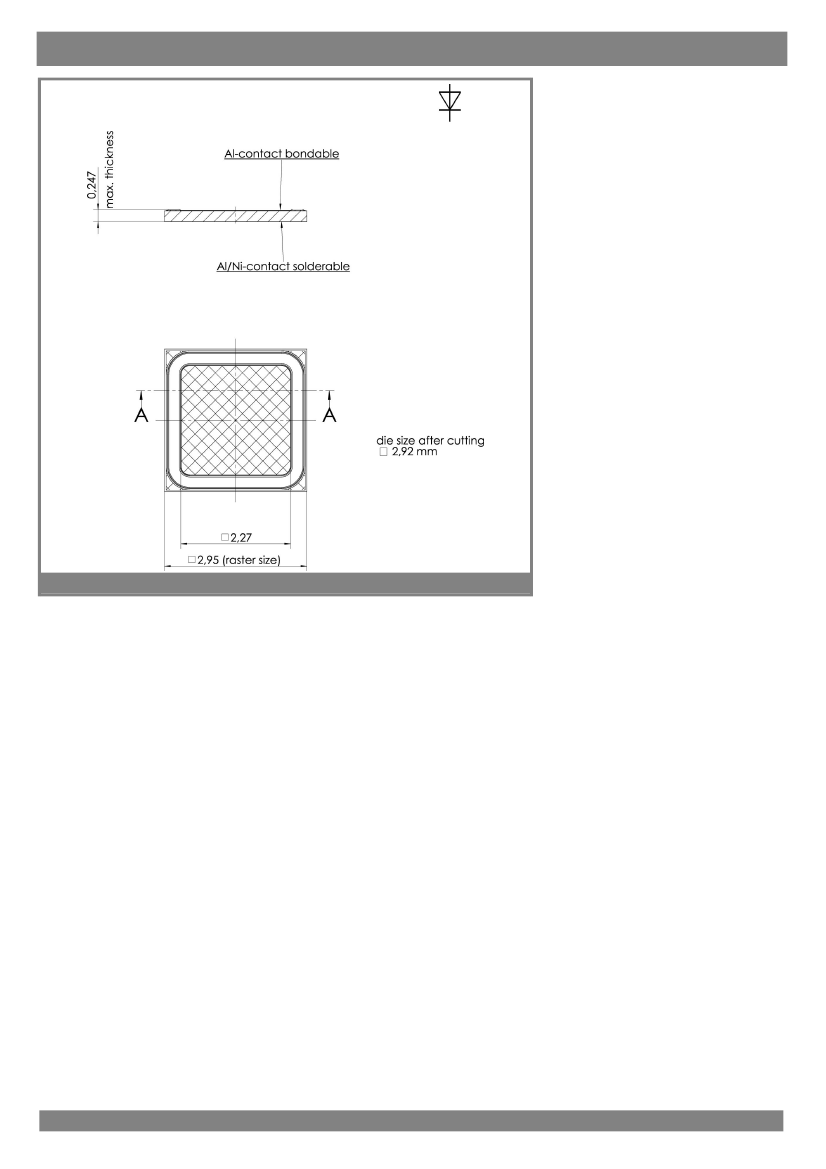

Size: 2,95 mm X 2,95 mm
Package: wafer frame
Dynamic Characteristics
Symbol Conditions
min.
typ.
max.
Units
Features
Thermal Characteristics
Symbol Conditions
min.
typ.
max.
Units
Typical Applications
Mechanical Characteristics
Parameter
Units
SKCD
1
08-12-2004 SCT
© by SEMIKRON
