M6 SERIES

P10TG-XXXXE2:1 1.5 KV ISOLATED 2 W REGULATED SINGLE OUTPUT DIP24

Available Inputs:

12, 24 and 48 VDC Wide Input 2:1

Available Outputs:

3.3, 5, 12, 15 and 18 VDC

Other specifications please enquire.

Electrical Specifications

(Typical at + 25° C, nominal input voltage, rated output current unless otherwise specified)

Input Specifications

Voltage range

Filter

Isolation Specifications

Rated voltage

Leakage current

Resistance

Capacitance

Output Specifications

Voltage accuracy

Ripple and noise (at 20 MHz BW)

Short circuit protection

Line voltage regulation

Load voltage regulation

Temperature coefficient

General Specifications

Efficiency

Switching frequency

Environmental Specifications

Operating temperature (ambient)

Storage temperature

Derating

Humidity

Cooling

Physical Characteristics

Dimensions

Weight

Case material

9 - 18 VDC (12 VDC), 18 - 36 VDC (24 VDC)

36 - 72 VDC (48 VDC)

Pi Network

1500 Vdc

1 mA

Ohm

80 pF typ.

+/- 1 % typ. +/-2% max.

60 mV p-p, max.

Continuous , restart automatic

+/- 0,5 % max.

+/- 0,02 % / °C

70 % to 85 %

250 KHz, typ.

-40°C to +85°C

- 55 °C to + 125 °C

See graph

Up to 90 %, non condensing

Free air convection

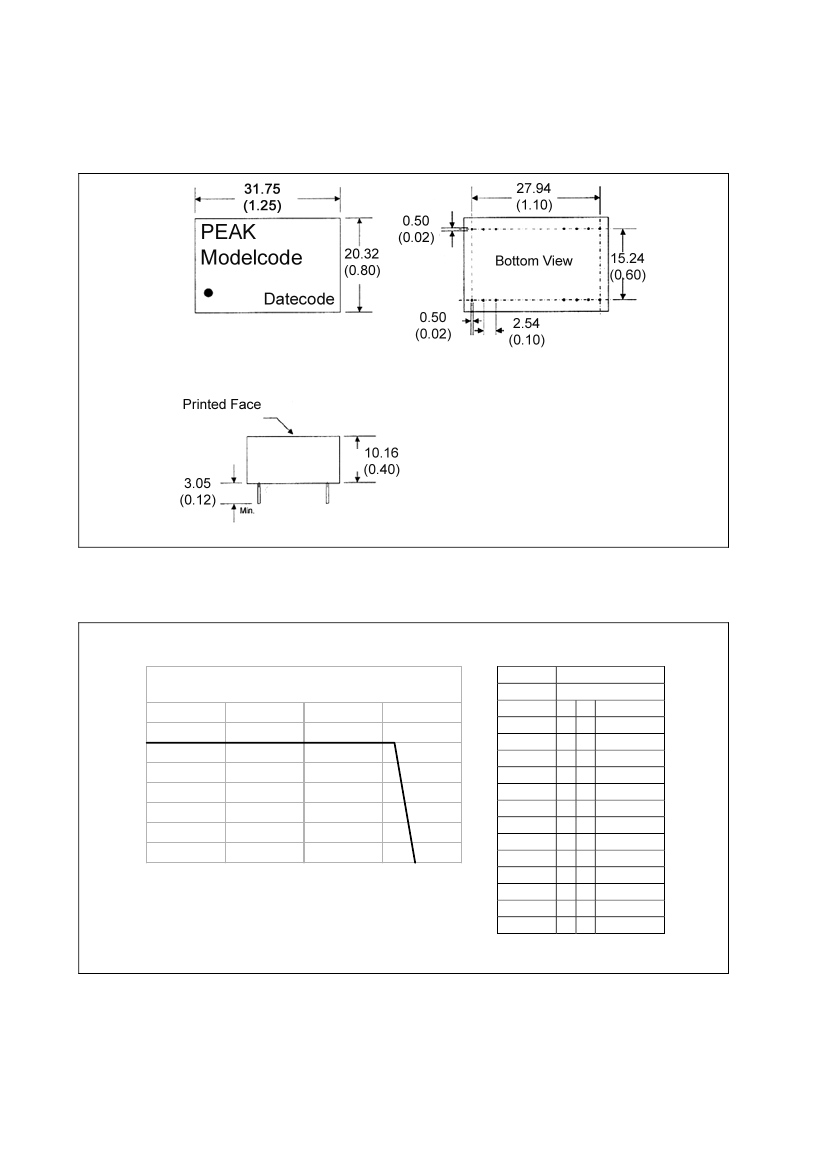

31,75 x 20,32 x 10,16 mm

1,25 x 0,80 x 0,40 inches

14,5 g

Non conductive black plastic

Examples of Partnumbers/Modelcode

PART

NO.

INPUT

VOLTAGE

(VDC)

Nominal

INPUT

CURRENT

NO LOAD

INPUT

CURRENT

FULL

LOAD

OUTPUT

VOLTAGE

(VDC)

OUTPUT

CURRENT

(max. mA)

EFFICIENCY FULL LOAD

(% TYP.)

P10TG-1205E2:1

P10TG-1215E2:1

P10TG-2405E2:1

P10TG-2412E2:1

P10TG-2415E2:1

P10TG-4805E2:1

P10TG-4812E2:1

9-18

18-36

36-72

225

208

113

105

104

400

134

400

167

134

400

167
