Telefon: +49 (0) 6135 931069

Telefax: +49 (0) 6135 931070

www.peak-electronics.de

info@peak-electronics.de

MP SERIES

P10TG-XXXXZ4:1M 1.5 KV ISOLATED 2 W REGULATED DUAL OUTPUT DIP24

Available Inputs:

24 and 48 VDC Wide Input 4:1

Available Outputs:

(+/-) 3.3, 5, 12, 15 and 18 VDC

Other specifications please enquire.

Electrical Specifications

(Typical at + 25° C, nominal input voltage, rated output current unless otherwise specified)

Input Specifications

Voltage range

Filter

Isolation Specifications

Rated voltage

Resistance

Capacitance

Output Specifications

Voltage accuracy

Ripple and noise (at 20 MHz BW)

Short circuit protection

Line voltage regulation

Load voltage regulation

Temperature coefficient

General Specifications

Efficiency

Switching frequency

Environmental Specifications

Operating temperature (ambient)

Storage temperature

Derating

Humidity

Cooling

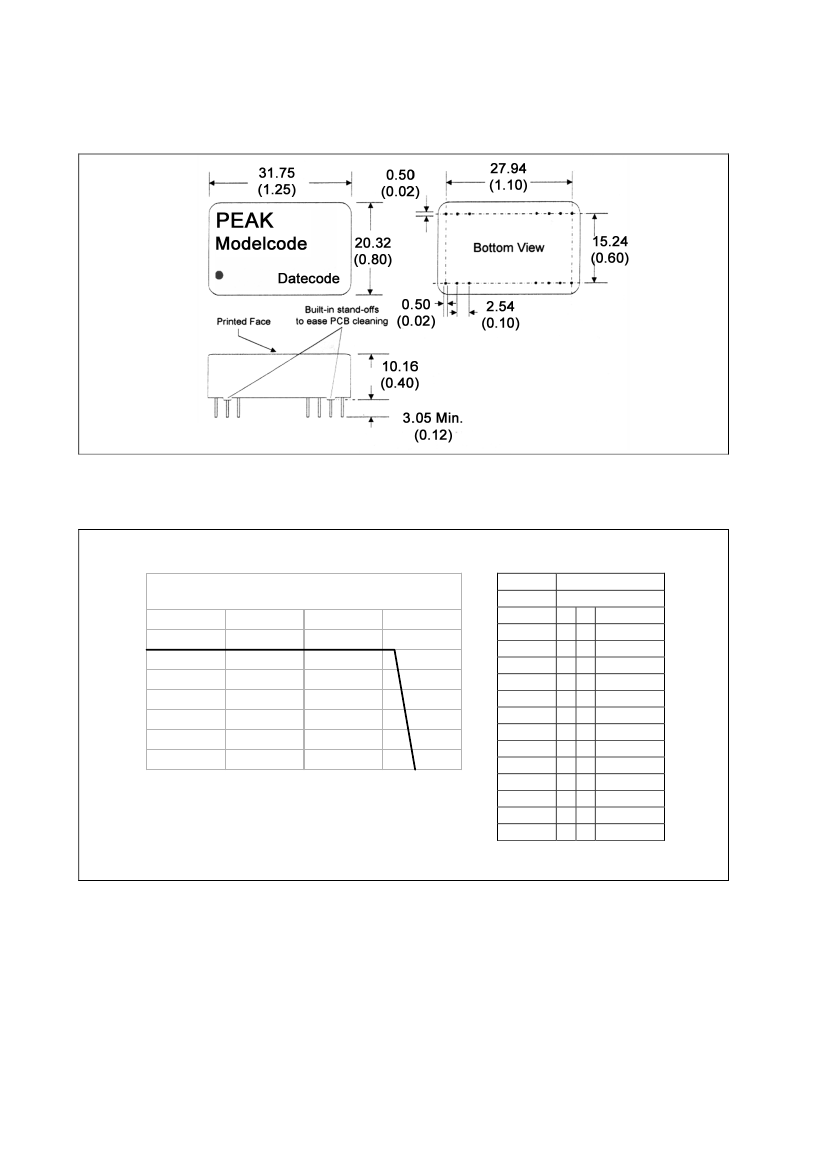

Physical Characteristics

Dimensions

Weight

Case material

9 - 36 VDC (24 VDC), 18 - 72 VDC (48 VDC)

Pi Network

1500 Vdc

Ohm

80 pF typ.

+/- 1 % typ. +/-2% max.

60 mV p-p, max.

Continuous , restart automatic

+/- 0,5 % max.

+/- 0,02 % / °C

70 % to 85 %

250 KHz, typ.

-40°C to +85°C

- 55 °C to + 125 °C

See graph

Up to 90 %, non condensing

Free air convection

31,75 x 20,32 x 10,16 mm

1,25 x 0,80 x 0,40 inches

21 g

Non conductive black plastic

Examples of Partnumbers/Modelcode

PART

NO.

INPUT

VOLTAGE

(VDC)

Nominal

INPUT

CURRENT

NO LOAD

INPUT

CURRENT

FULL

LOAD

OUTPUT

VOLTAGE

(VDC)

OUTPUT

CURRENT

(max. mA)

EFFICIENCY FULL LOAD

(% TYP.)

P10TG-2405Z4:1M

P10TG-2412Z4:1M

P10TG-4805Z4:1M

P10TG-4812Z4:1M

P10TG-4815Z4:1M

9-36

18-72

6.7

6.4

113

119

+/- 5

+/- 12

+/- 5

+/- 12

+/- 15

+/- 200

+/- 83

+/- 200

+/- 83

+/- 67
