with Backshell, Cable Clamp and Bushing
IPT G 06 A 18-11 S Z C SR XX
MIL-C-26482
Series l Type
Grounding Finger
(Omit for Standard)
06 - Straight Plug
Connector Class
A - Non-Environmental
Shell Size and
Insert Arrangements
Mod Code Options
See Table II
Cable Clamp and
Bushing
Contact Type
C - Crimp
(Omit for Solder Cup)
Alternate Insert Rotation (W, X, Y, Z)
Omit for Normal
Contact Gender
P - Pin
S - Socket
IPT 06 A...SR
Straight Plug Connector
IPT Series
Bayonet Lock
Connectors
1. Straight plug with cable clamp and bushing.
6. Standard insert is high insulation synthetic rubber.
© 2008 Glenair, Inc.
B
G
APPLICATION NOTES
2. Connector Class “A” (non-environmental)––no grommet supplied.
3. Standard materials configuration consists of aluminum alloy with stainless steel coupling pins.
4. Standard contact material consists of copper alloy with gold plating over nickel.
5. A broad range of other front and rear connector accessories are available. See our website and/or contact factory for complete information.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
B-80

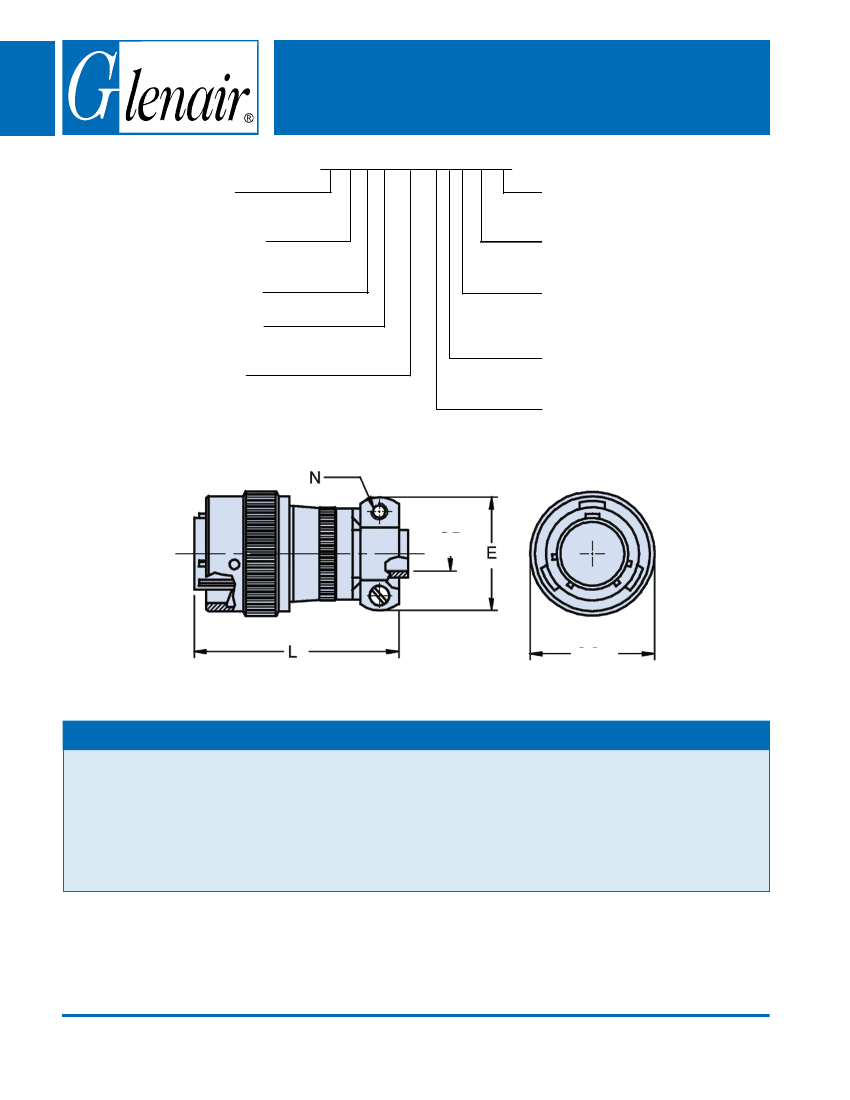

with Backshell, Cable Clamp and Bushing
TABLE I: DIMENSIONS
Shell size
8
10
12
14
16
18
20
22
24
B
±0.25
3.2
4.8
7.9
9.5
12.7
15.9
15.9
19.0
20.3
C
min.
6.10
7.70
10.90
14.00
15.60
18.80
18.80
23.60
25.15
E
Max.
20.60
22.20
25.40
28.60
30.20
36.50
36.50
43.65
43.65
G
±0.4
19.05
21.80
26.20
29.40
32.55
35.35
38.90
42.10
45.10
L
Max.
44.70
44.70
44.70
44.70
48.10
48.10
52.85
52.85
54.40
N
Thread
6 - 32
6 - 32
6 - 32
6 - 32
6 - 32
8 - 32
8 - 32
8 - 32
8 - 32
TABLE II: MODIFICATION CODES
Shell Finish
(Omit for Standard Cad/Olive Drab Finish)
F2
- Bright Nickel Plating (RoHs)
F6
- Black Electrodeposited Paint (RoHs)
F7
- Black Zn-Co Plating (RoHs)
F8
- Olive Drab Zn-Co Plating
Assembly with Accessories
(Omit for Standard Version)
Key Polarization (Omit for
N
version)
W, X, Y, Z
= Alternates
N0
- Connector Less Backshell
NXXX
- Custom Designed Connector
STANDARD FINISHES (For QQ-A-591 Aluminum Shells)
Requirements
IAW RoHS
F2 Electrolytic Nickel F6 Black Non Conductive F7 Black Conductive
Thermal Shock
Salt Spray After
Thermal Shock
Electical Conductivity
Abrasion Resistance
-40°C + 100°C
24 hour
Very Good
Very Good
-55°C + 125°C
500 hour
NO
Very Good
-55°C + 125°C
500 hour
Very Good
Good
Not IAW RoHS
G3 Cadmium with Olive F8 Zinc Cobalt with
Drab Passivation
Olive Drab Passivation
-55°C + 125°C
500 hour
Very Good
Very Good
-40°C + 100°C
200 hour
Good
Good
© 2008 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
B-81
IPT Series
Bayonet Lock
Connectors
IPT 06 A...SR
Straight Plug Connector
