IPTG06A18-11PXN0F7 datasheet, PDF

Datasheet> All Categories > The connector> The connector> IPTG06A18-11PXN0F7

IPTG06A18-11PXN0F7: DescriptionMIL Series Connector, 11 Contact(s), Aluminum Alloy, Male, Solder Terminal, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size287KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/; Environmental Compliance

Download Datasheet Parametric View All

IPTG06A18-11PXN0F7 Overview

MIL Series Connector, 11 Contact(s), Aluminum Alloy, Male, Solder Terminal, Plug, ROHS COMPLIANT

IPTG06A18-11PXN0F7 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: MIL-C-26482, POLARIZED
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	IPT
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Shell surface	ZINK COBALT PLATED
Shell material	ALUMINUM ALLOY
Housing size	18
Termination type	SOLDER
Total number of contacts	11
Base Number Matches	1

Preview

Download Datasheet

View All

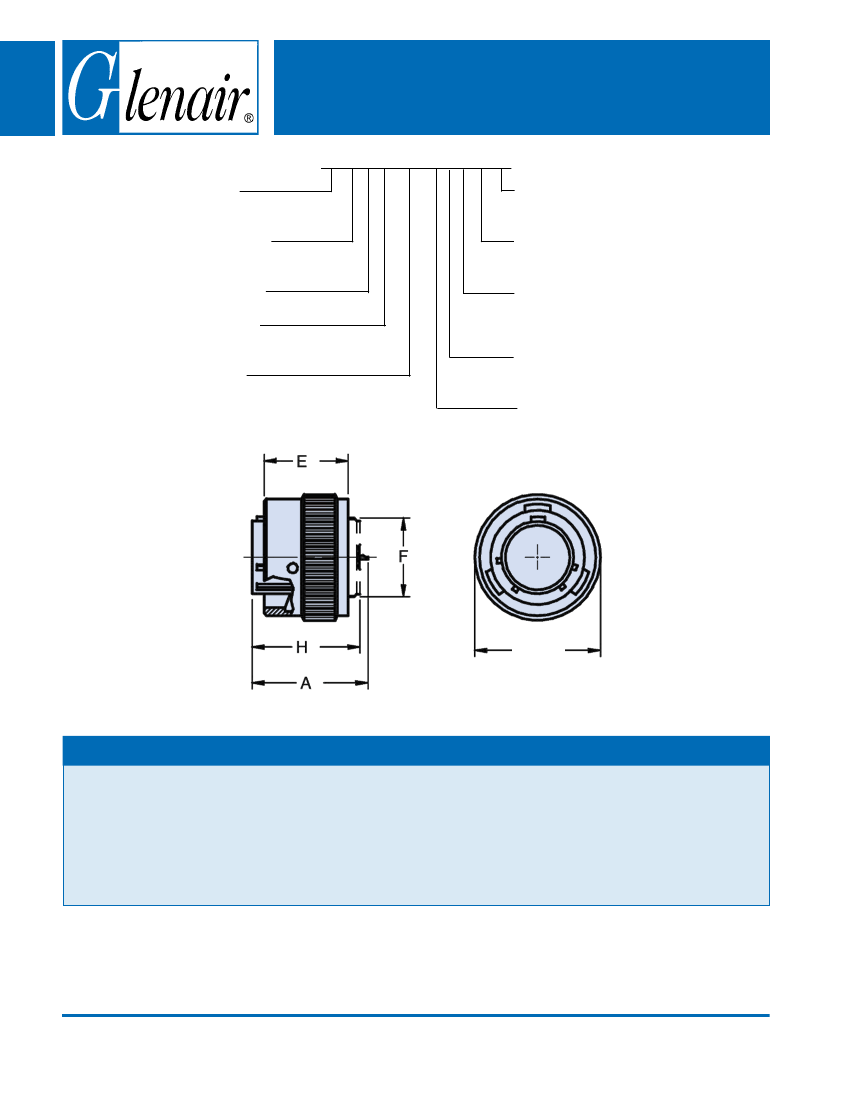

IPT 06 A...N0

Straight Plug Connector

with Accessory Threads

IPT Series

Bayonet Lock

Connectors

IPT G 06 A 18-11 S Z C N0 XX

MIL-C-26482

Series l Type

Grounding Fingers

(Omit for Standard)

06 - Straight Plug

Connector Class

A - Non-Environmental

Shell Size and

Insert Arrangements

Mod Code Options

See Table II

No Backshell of Any

Kind Supplied

Contact Type

C - Crimp

(Omit for Solder Cup)

Alternate Insert Rotation (W, X, Y, Z)

Omit for Normal

Contact Gender

P - Pin

S - Socket

APPLICATION NOTES

1. Straight plug without backshell.

2. Connector Class “A” (non-environmental)––no grommet supplied.

3. Standard materials configuration consists of aluminum alloy with stainless steel coupling pins.

4. Standard contact material consists of copper alloy with gold plating over nickel.

5. A broad range of other front and rear connector accessories are available. See our website and/or contact factory for complete information.

6. Standard insert is high insulation synthetic rubber.

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

B-66
