STV-F48-M-ZBD datasheet, PDF - EEWORLD Datasheet

STV-F48-M-ZBD: DescriptionBoard Euro Connector, 96 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal,; CategoryThe connector The connector; File Size101KB，3 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet Parametric View All

STV-F48-M-ZBD Overview

Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal,

Parameter Name	Attribute value
Reach Compliance Code	compliant
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	GOLD
Contact point gender	MALE
DIN compliance	YES
Filter function	NO
IEC compliance	YES
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	96
UL Flammability Code	94V-1
Base Number Matches	1

Size F

as per DIN 41612/IEC 60603-2

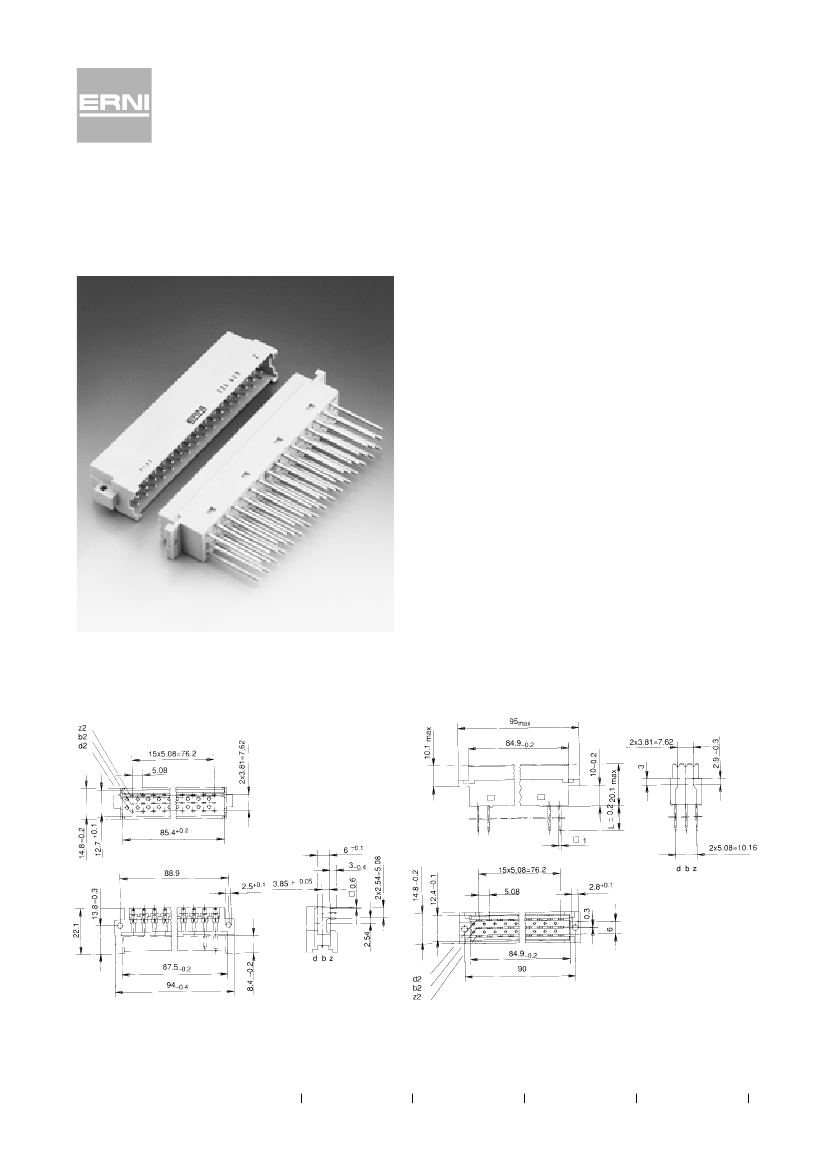

Dimensional drawings

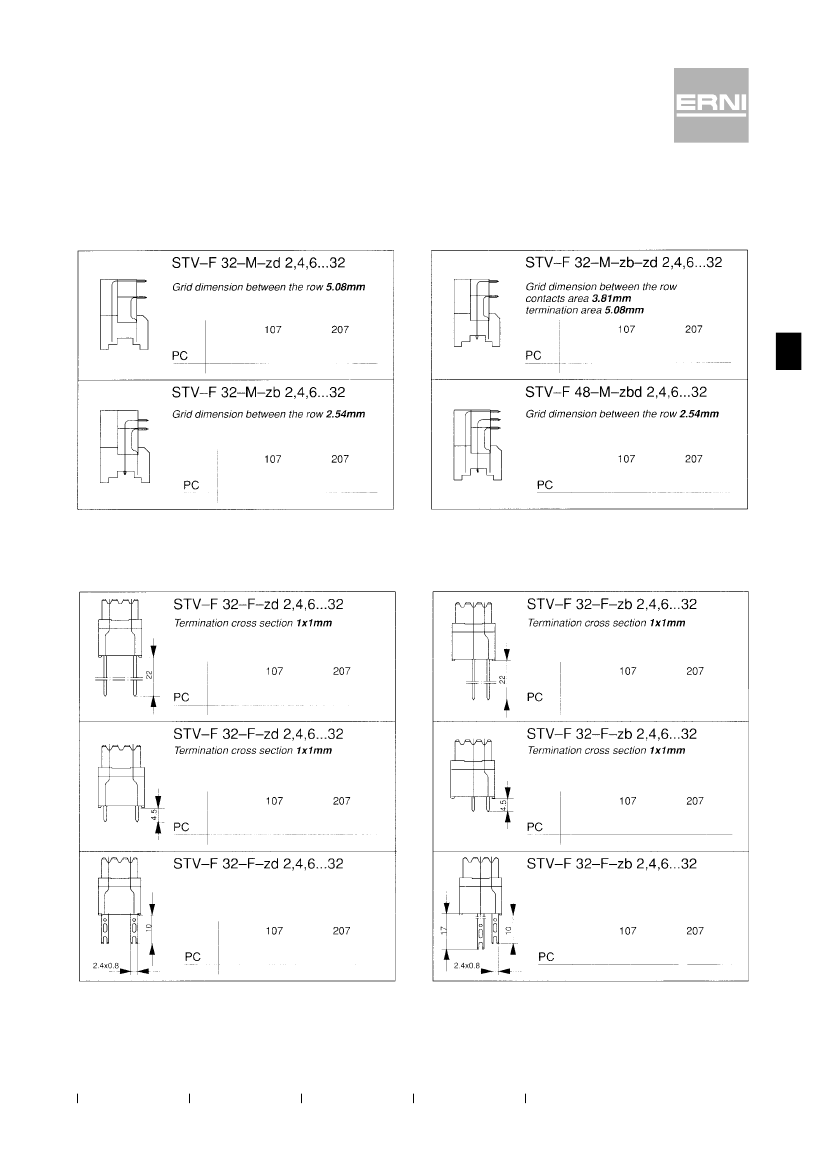

Male connector

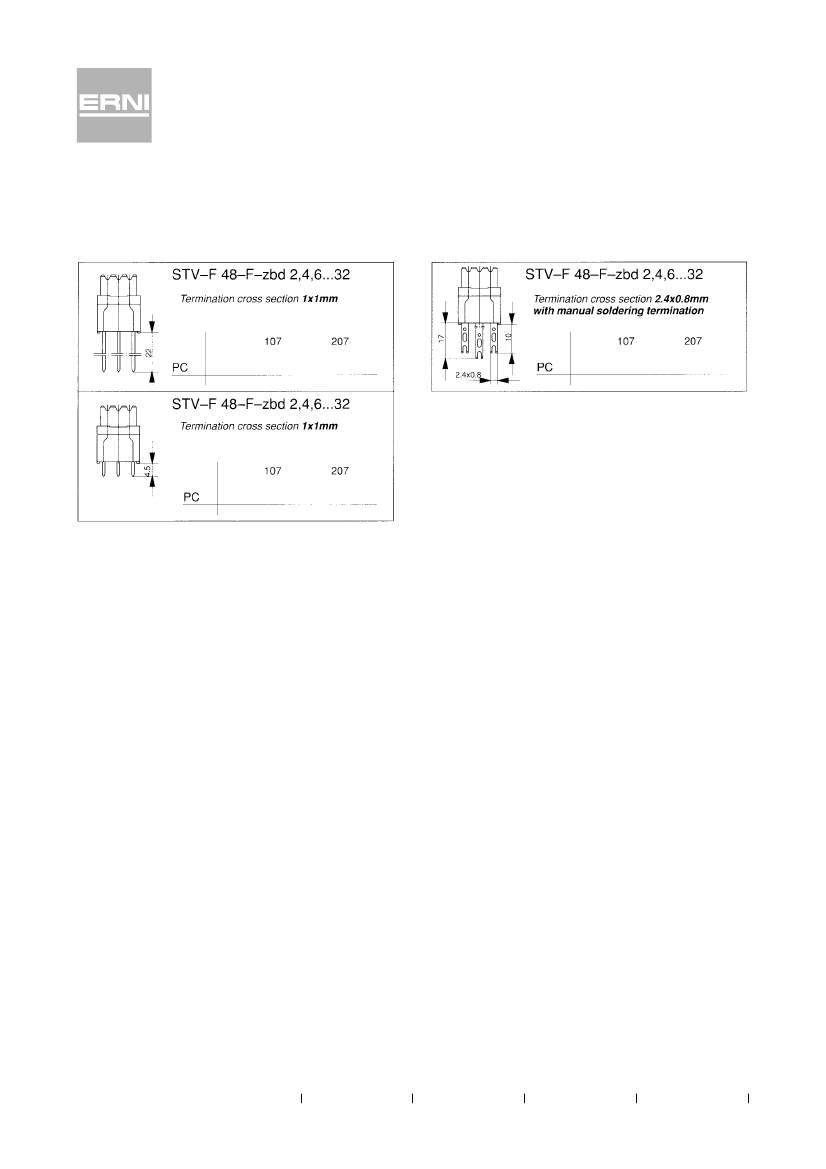

Female connector

136

Catalog E 074484

04/04

Edition 6

www.erni.com
