BA14EZ6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> BA14EZ6

BA14EZ6: DescriptionFork Terminal; CategoryThe connector terminals; File Size549KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

BA14EZ6 Overview

Fork Terminal

BA14EZ6 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	BA
terminal gender	FEMALE
Terminal and terminal strip types	FORK TERMINAL
Wire gauge	14 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

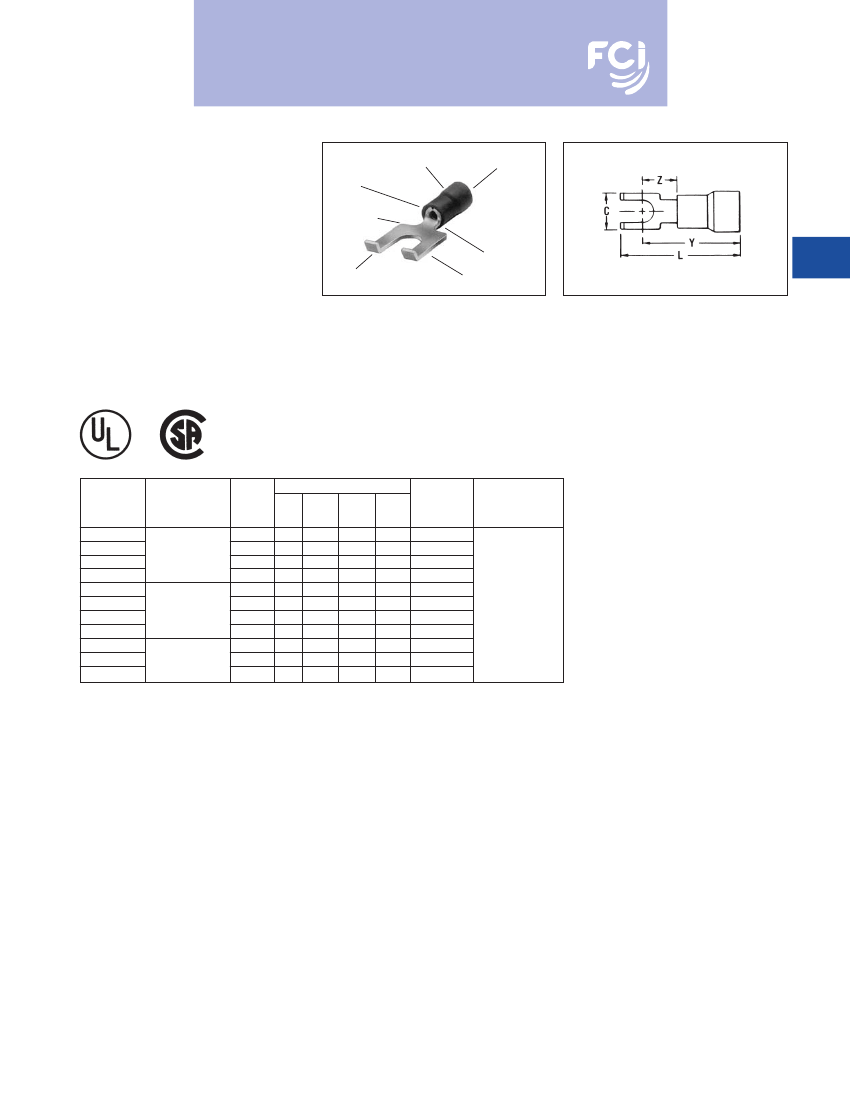

BURNDY

Compression

TYPES TP-Z

AND BA-EZ

VINYLUG™

TERMINAL -

POLYVINYLCHLORIDE

INSULATED, FLANGED

FORK TONGUE

600 VOLTS MAX. 105° C MAX

VINYLUG™ Type TP-Z is a variation of the

Type TP and employs a flanged fork tongue

for fast installation and security.

WIRE

CRIMP

WIRE SIZE

RANGE

Products

FUNNEL

ENTRY

EXPANDED SHROUD

INSULATION

CRIMP

DEEP “V”

SERRATIONS

FLANKED

FORK

TIN PLATED

B-33

Features and Benefits

• Flange fork tongue design.

Allows fast installation—screw only has

to be loosened for termination.

• The flanges on the end of the fork terminal

aid in preventing a slightly loose terminal

from becoming fully disconnected from

the screw.

Flanges make re-securing a loose

terminal easier.

CATALOG

NUMBER

TP16-2Z

TP16-6Z

TP16-8Z

TP16-10Z

TP14-2Z

TP14-6Z

TP14-8Z

TP14-10Z

TP10-6Z

TP10-8Z

TP10-10Z

* 1000/Reel.

WIRE

RANGE

22-16

Max. Insul.

Dia. Accom.: .145

Color Code: Red

16-14

Max. Insul.

Dia. Accom.: .180

Color Code: Blue

12-10 Max. Insul.

Dia. Accom.: .260

Color Code:Yellow

STUD

SIZE

1-2

4-6

6-8

8-10

1-2

4-6

6-8

8-10

4-6

6-8

8-10

.17

.28

.31

.41

.17

.28

.31

.41

.28

.31

.41

DIMENSIONS

BULK

CATALOG

MAX. MAX. MIN. NUMBER

.78

.83

.88

.96

.78

.83

.88

.96

.99

1.01

1.09

.66

.69

.75

.66

.69

.75

.81

.23

.26

.31

.23

.26

.31

.26

.31

BA16EZ2

BA16EZ6

BA16EZ8

BA16EZ10

BA14EZ2

BA14EZ6

BA14EZ8

BA14EZ10

BA10EZ6

BA10EZ8

BA10EZ10

INSTALLATION

TOOLING

Plier Type:

Y10-22

Ratchet Tool:

MR8-89-1,

MR15

BA14EZ6 Related Products

	BA14EZ6	BA14EZ2	BA14EZ10	BA14EZ8
Description	Fork Terminal	Fork Terminal	Fork Terminal	Fork Terminal
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Manufacturer's serial number	BA	BA	BA	BA
terminal gender	FEMALE	FEMALE	FEMALE	FEMALE
Terminal and terminal strip types	FORK TERMINAL	FORK TERMINAL	FORK TERMINAL	FORK TERMINAL
Wire gauge	14 AWG	14 AWG	14 AWG	14 AWG
Maker	-	Amphenol	Amphenol	Amphenol
