6.0 x 3.5mm Ceramic SMD Crystal
•
•
•
Tolerances down to 10 PPM
Stabilities down to 5 PPM
Temperature Ranges as wide as
-40ºC
to +85ºC
C6BS
(former FMB)
DATASHEET

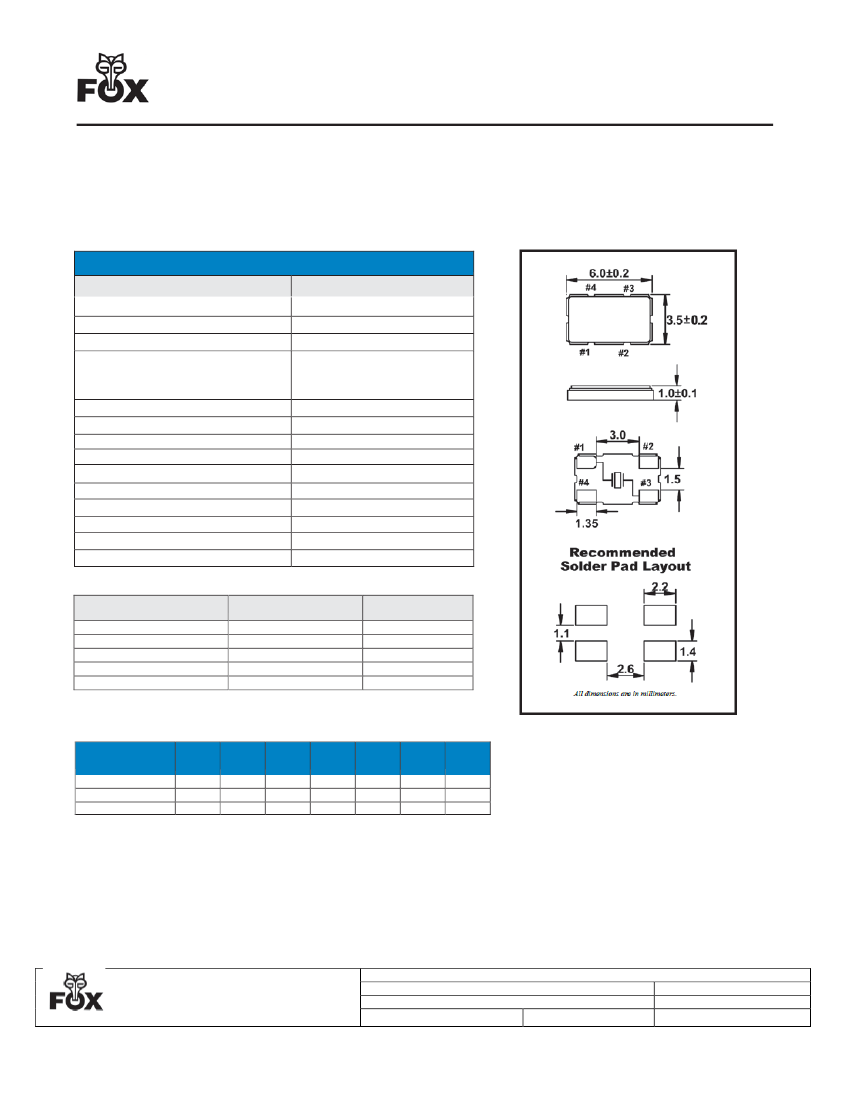

• SPECIFICATIONS
PARAMETERS
Frequency Range
Frequency Tolerance @ 25ºC
Frequency Stability, ref @ 25ºC
Temperature Range
Operating (T
OPR
)
Storage
(T
STG
)
Shunt Capacitance (C
O
)
Load Capacitance (C
l
)
Drive Level
Aging per year
Maximum Soldering Temp / Time
Moisture Sensitivity Level (MSL)
Termination Finish
Seal Method
Lead (Pb) Free
RoHS/REACH Compliant
Frequency Range
(MHz)
8.0 ~ 9.999999
10.0 ~ 16.0
>16.0 ~ 50.0
>40.0 ~ 91.0
>91.0 ~ 98.304
.
MAX
(unless otherwise noted)
8.0 ~ 98.304 MHz
(See options on page 2)
(See options below)
(See options below)
-40ºC ~ +85ºC
5 pF
(See options on page 2)
0.1 mW
±5 PPM
260ºC / 10 Seconds
1
Au
Seam Seal
Yes
Yes
Max ESR
Ω
80
60
40
70
80
Operating Mode
Fundamental
Fundamental
Fundamental
3
rd
Overtone
3
rd
Overtone
•Available Operating Temperatures and Stabilities*
±5
±10
±15
±20
±25
±30
PPM
PPM
PPM
PPM
PPM
PPM
O
O
O
O
O
O
-10 ~+60ºC
O
-20 ~+70ºC
∆
O
O
O
O
O
X
X
O
O
O
-40 ~+85ºC**
Key: O=Available, X=Not Available, ∆=Consult Fox Technical Support
*Does not imply a stocked part.
Operating
Temperature
±50
PPM
O
O
O
Note: Dimensional drawing is for reference to critical specifications
defined by size measurements. Certain non-critical visual attributes,
such as side castellations, etc. may vary.
© Copyright 2019 Fox Electronics, All rights reserved
Title / Description:
C6BS SERIES STANDARD SPECIFICATIONS
Drawing Number:
101280
Size: A
Part Number:
Cage:
61429
Draftsperson:
CMR
Approved:
BEC
Revision Date:
01/08/2019
Page
1
of
2
6.0 x 3.5mm Ceramic SMD Crystal

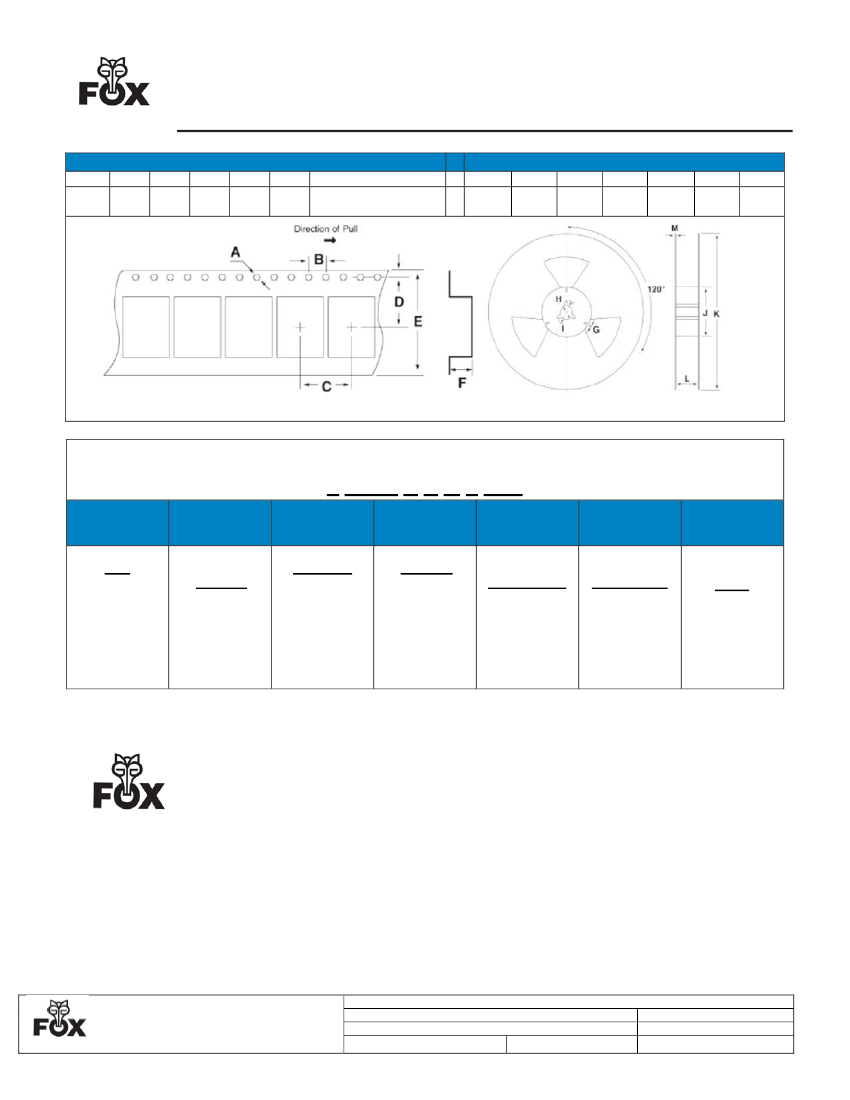

Tape Specifications (millimeters)
A
Ф1.5
B
4.0
C
8.0
D
7.5
E
16.0
F
1.8
Reel Qty Options
-T2 = 2,000 (default)
-T1 = 1,000
G
2.0
C6BS
(former FMB)
DATASHEET
Reel Specifications (millimeters)
H
Ф13
I
Ф21
J
Ф60
K
Ф180
L
9.0
M
1.2
Available Options & Part Identification for SMD Crystal C6BS
1
F C6BS C B M F 25.0
F
FOX
C6BS
Model
Number
C
Tolerance
B = 50 PPM
C = 30 PPM
D = 25 PPM
E = 20 PPM
F = 15 PPM
H = 10 PPM
B
Stability
B = 50 PPM
C = 30 PPM
D = 25 PPM
E = 20 PPM
F = 15 PPM
H = 10 PPM
L = 5 PPM
M
Load
2
Capacitance
V = 7 pF
E = 10 pF
G = 12 pF
K = 16 pF
L = 18 pF
M = 20 pF
F
Operating
Temperature
D = -10 ~ +60 °C
F = -20 ~ +70 °C
M = -40 ~ +85 °C
25.0
Frequency
(MHz)
1
2
Not all frequency, tolerance, stability, load, and operating temperature combinations may be available.
Listed load capacitances represent the most commonly used. Other load capacitances are available.
Contact Fox Technical Support for assistance
