UMR
Operating Temperature Range
Capacitance Tolerance
WVDC
Voltage Range
VAC
Dissipation Factor
Insulation Resistance
Epoxy-Dipped Radial
Lead Inductive Film/Foil
Capacitors
•
Blocking
•
Bypass
-55°C to 85°C
±10% at 1kHz, 25°C
100
63
•
Coupling
•
Ceramic Disk Alternative
1.0% at 1 kHz, 25°C
30,000 MΩ
2,000 hours, +85°C with 125% rated DC voltage
Capacitance Change
≤8%
maximum
<110% maximum
specification
≥
4,500 MΩ
Load Life
Dissipation Factor
Change
Insulation
Resistance
250 hours, 95% RH, 25°C and no applied voltage
Capacitance Change
Humidity Test
Dissipation Factor
Change
Insulation Resistance
<10% of initial readings
@ +25°C, 1kHz
≤
10% of initial
+25°C 1kHz
≥
Minimum 2700MΩ
≤1
nH/mm along the capacitor pitch
(after 2 years)
≤
3.0% up to 40°C
+500 ppm/°C, ± 200ppm/°C
Inductive film/foil
Polyester film
Aluminum foil
Tinned copper wire
Flame retardant epoxy sealed resin
(UL 94V-O)
Self-inductance
Capacitance Drift Factor
Capacitance Temperature
Coefficient
Type
Dielectric
Electrodes
Leads
Coating
®
3757 W. Touhy Ave., Lincolnwood, IL 60712 • (847) 675-1760 • Fax (847) 673-2850 • www.illcap.com
UMR
Epoxy-Dipped Radial
Lead Inductive
Film/Foil Capacitors
STANDARD PART LISTING
Capacitance
(µF)
WVDC
PART
NUMBER
dv/dt
(v/µ s)
L Max.
H Max.
T Max.
S
Lead
Spacing
d
Lead
Wire
Diameter
.001
.0015
.0022
.0033
.0039
.0047
.0056
.0068
.01
.015
.022
.033
.047
.056
.068
.1
.15
.22
.33
.47
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
102UMR100K
152UMR100K
222UMR100K
332UMR100K
392UMR100K
472UMR100K
562UMR100K
682UMR100K
103UMR100K
153UMR100K
223UMR100K
333UMR100K
473UMR100K
563UMR100K
683UMR100K
104UMR100K
154UMR100K
224UMR100K
334UMR100K
474UMR100K
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
6.5
6.5
6.5
7.5
7.5
9.0
9.0
10.0
12.5
12.5
15.0
18.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
11.5
11.5
11.5
12.5
12.5
12.5
12.5
18.5
18.5
19.5
19.5
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.5
3.5
4.5
4.5
4.5
5.5
6.0
6.0
8.0
11.5
3.5
4.0
4.0
4.0
4.0
4.0
4.0
4.0
5.0
5.0
5.0
6.5
6.5
7.0
7.0
7.5
8.5
8.5
9.5
10.0
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.6
0.6
0.6
Convert to inches, divide by 25.4
L max.
T
max.
H max.
1.5 max.
15.0 min.
S±1.0
d±.05
®
3757 W. Touhy Ave., Lincolnwood, IL 60712 • (847) 675-1760 • Fax (847) 673-2850 • www.illcap.com
UMR
Epoxy-Dipped Radial
Lead Inductive
Film/Foil Capacitors

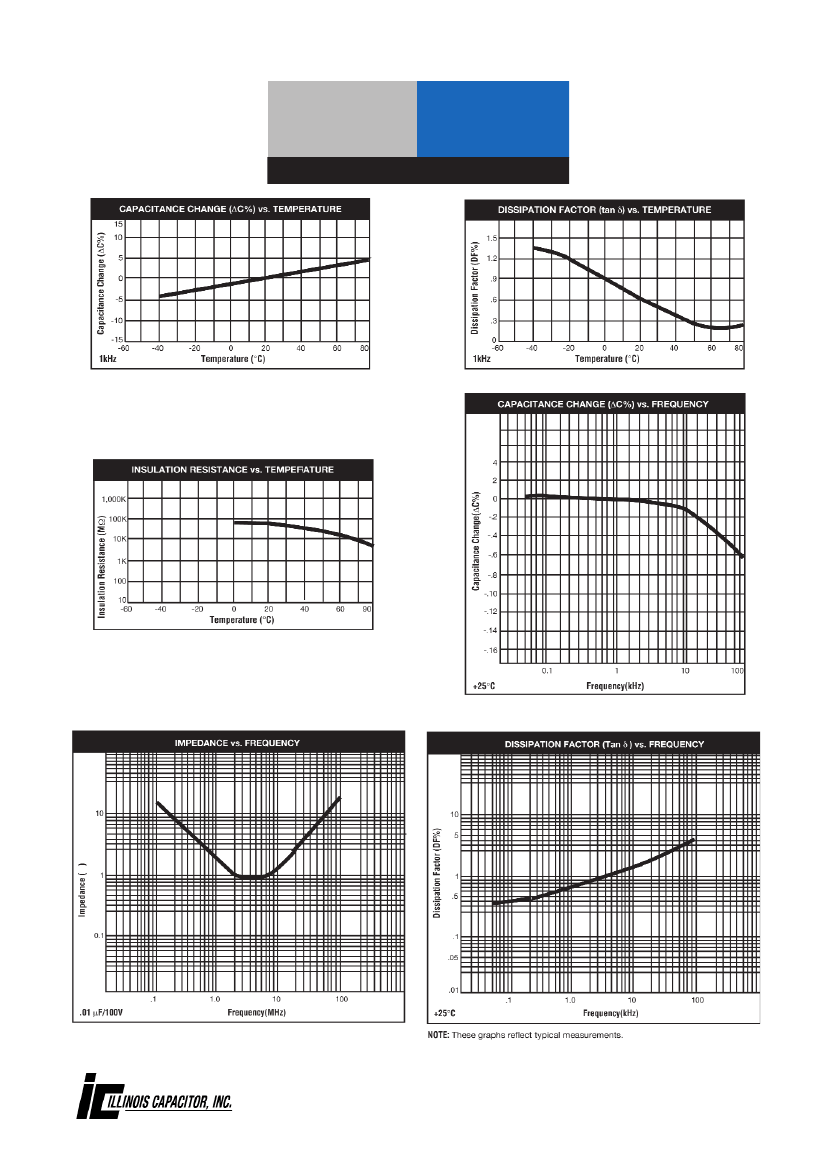

ENVIRONMENTAL/ENDURANCE DATA
Ω
®
3757 W. Touhy Ave., Lincolnwood, IL 60712 • (847) 675-1760 • Fax (847) 673-2850 • www.illcap.com
UMR
Epoxy-Dipped Radial
Lead Inductive Film/Foil
Capacitors
RADIAL LEAD TAPING SPECIFICATIONS
GENERAL SPECIFICATIONS
FILM CAPACITORS BODY SIZE:
Maximum Body Length (L): 10.5 mm
Minimum Body Height (Hc): 12.5 mm
Maximum Body Thickness (T): 6.5 mm
INTERRUPTION OF SEQUENCE:
No consecutive capacitors
may be absent. Empty spaces < 0.1% of package quantity.
SPLICES:
Spliced tape strength is equal to non-spliced tape
Splice thickness is
≤
4 single tape layers
Splice offset ± .3mm
REFERENCE STANDARD:
EIA RS 468A
TAPE REFERENCE DIMENSIONS
Carrier Width (W)
Capacitor Bottom to Feed Hole (H)
Height of Seating Plane (Formed Lead) H
0
Lead Spacing: (Formed) (F)
Capacitor Pitch (P)
Sprocket Hole Pitch (P
0
)
Sprocket Hole Dia. (F)
Front Back Alignment (∆)
Case Top to Feed Hole (H1)
Sprocket Hole to First Lead (P
1
)
Lead Extension (I)
Component Tape Width (C)
Cut Out Length (L
1
)
Sprocket Hole Position (W
1
)
18.0
20.0
16.0
5.0
12.7
12.7
4.0
0
32.0
3.85
2.2
43.2
11.0
9.0
±0.5
±.75
±0.5
±0.5
±1.00
±0.30
±0.30
±1.00
Max.
±.70
Max.
Max.
Max.
±0.5
H
L
1
FORMED LEAD TAPING FILM CAPACITORS
T
P
2
L
P
∆
Hc
H
P
1
F
Ho
W
2
W
1
W
0
W
C
F
Po
Do
d
Ø
AMMO PACKAGING
QUANTITIES PER BOX
Capacitance
(µF)
.001- .0082
.010 - .012
.015 - .027
.032 - .047
.056 - .068
.082 - .1
Ammo
3,500
3,000
3,000
2,000
1,500
1,000
340
T
L
BOX DIMENSIONS
mm
L
(max)
H
(max)
360
T
(max)
65
®
3757 W. Touhy Ave., Lincolnwood, IL 60712 • (847) 675-1760 • Fax (847) 673-2850 • www.illcap.com
