TL6110DF160RPCSS datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> TL6110DF160RPCSS

Preview

TL6110DF160RPCSS: DescriptionKeypad Switch, 1 Switches, SPST, Momentary-tactile, 0.0004A, 50VDC, 1.57N, Solder Terminal, Through Hole-right Angle, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size140KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com; Environmental Compliance

Download Datasheet Parametric View All

TL6110DF160RPCSS Overview

Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.0004A, 50VDC, 1.57N, Solder Terminal, Through Hole-right Angle, ROHS COMPLIANT

TL6110DF160RPCSS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator type	STAINLESS STEEL DOME TYPE
body width	8 mm
body height	6 mm
Body length or diameter	8 mm
Circuit configuration	1X1
Maximum contact bounce time	5 ms
Maximum contact current (DC)	0.0004 A
Contact (DC) maximum rated R load	.0004A@50VDC
Maximum contact voltage (DC)	50 V
Electrical life	300000 Cycle(s)
JESD-609 code	e4
Installation features	THROUGH HOLE-RIGHT ANGLE
Number of switches	1
Maximum operating force	1.57 N
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
surface mount	NO
Switch action	MOMENTARY-TACTILE
switch function	SPST
Switch type	KEYPAD SWITCH
Terminal surface	Gold (Au)
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

7153 Northland Dr., Brooklyn Park, MN 55428 Phone: (763)-504-3525 Fax: (763-531-8235)

www.e-switch.com

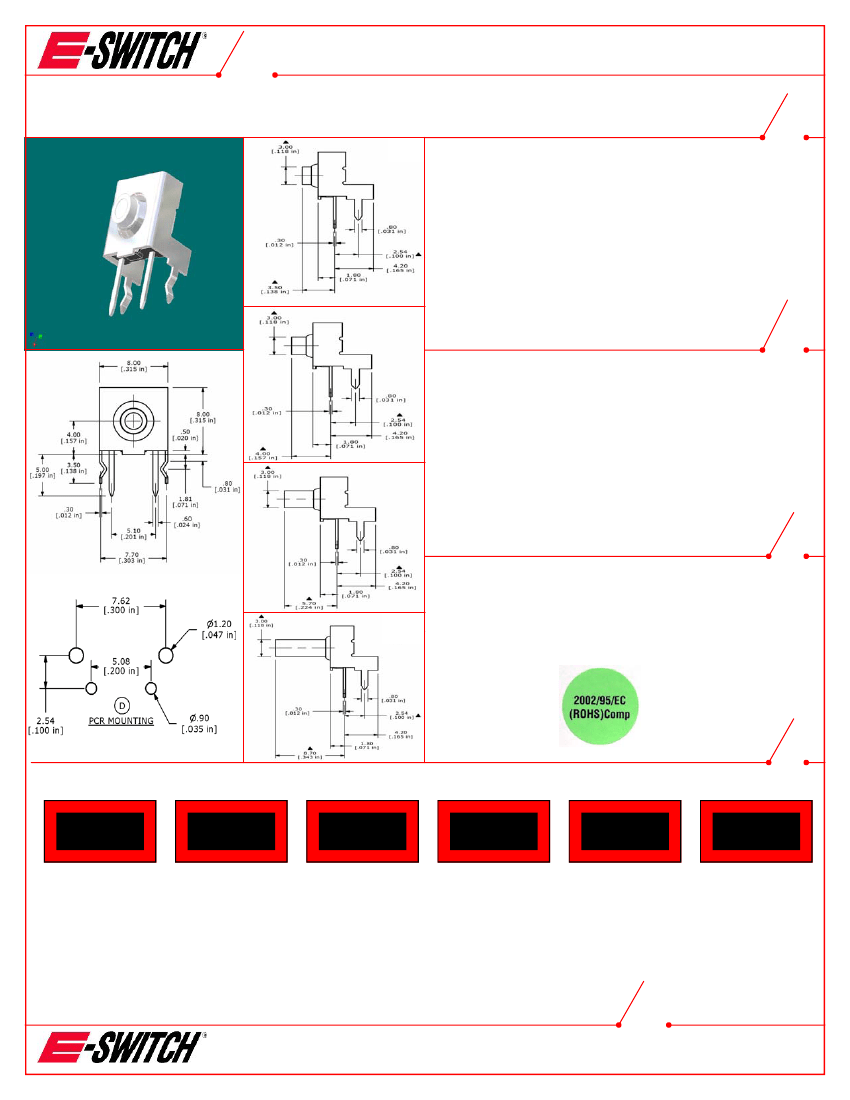

TL6110 SEALED RIGHT ANGLE TACTILE SWITCH

A

MECHANICAL SPECIFICATIONS

Mechanical Life/

Electrical Life (min):

130 gram force:

160 gram force:

300 gram force:

500 gram force:

Termination:

Travel:

Sealing:

Standard Dome

SS-Dome

100,000

400,000

80,000

300,000

50,000

150,000

30,000

N/A

Right Angle Thru-Hole

0.5 =0.1mm

Sealed per “Bubble Detection

System” (85°C for 30 sec.)

B

ELECTRICAL SPECIFICATIONS

Switching Voltage:

Switching Power:

Contact Resistance

(Initial Max.):

Insulation Resistance

(min. @100V):

Dielectric Strength

(50Hz.,1 Min.):

Bounce:

50VDC

1.0VA Silver/.02VA Gold

50 mΩ @ 5VDC, 10mA

10000mΩ

300VAC

<5m Sec.

C

ENVIRONMENTAL SPECIFICATIONS

Operating Temp:

D

Storage Temp:

-40°C to +85°C Silver

-40°C to +125°C Gold

-55°C to +85°C

How To Order

SERIES

MODEL

ACTUATOR

LENGTH

A=3.50MM

B=4.00MM

C=5.70MM

D=8.70MM

OPERATING

FORCE

F130

F160

F300

F500

(GRAM FORCE)

Stainless steel dome available– Add

SS to the end of the part number.

Minimums may apply.

CONTACT

MATERIAL

Q=Silver

R=Gold

TERMINATION

TL

6110

P=PC Pin

7153 Northland Dr., Brooklyn Park, MN 55428

Phone: 763-504-3525 fax: 763-531-8235

www.e-switch.com

info@e-switch.com
