FFR
Operating Temperature Range
Capacitance Tolerance
WVDC
Voltage Range
VAC
Dissipation Factor
+125° Non-inductive
Polyester Film/Foil
Epoxy Dipped Radial
Lead Capacitors
•
Capacitance range: 0.001 µf to .22 µf
-55°C to 125°C
±10% at 1kHz, 25°C
100
63
•
Noninductive construction
Capacitance
Insulation Resistance
≤
0.1 µf
> 0.1 µf
Capacitance Change
.75% at 1 kHz, 25°C
Insulation Resistance
20,000 MΩ
2,000 MΩ x µf
2,000 hours, +85°C with 125% rated DC voltage
≤5%
of initial measured value
<0.5% at 1kHz
50% of minimum specified value
Load Life
Dissipation Factor
Change
Insulation Resistance
1000 hours, 95% RH, 40°C and no applied voltage
Capacitance Change
Humidity Test
<5% of initial readings
@ +25°C, 1kHz
<0.5% at 1kHz
>50% of minimum specified value
≤1
nH/mm along the capacitor pitch
250% of rated voltage for 2 seconds applied between terminals
(after 2 years)
≤
2.0% up to 40°C
+400 ppm/°C, ± 200ppm/°C
Film/Foil Non-inductive
Polyester film
Aluminum foils
Tinned copper wire
Flame retardant epoxy sealed resin
(UL 94V-O)
Dissipation Factor
Change
Insulation Resistance
Self-inductance
Dielectric Strength
Capacitance Drift Factor
Capacitance Temperature
Coefficient
Type
Dielectric
Electrodes
Leads
Coating
®
3757 W. Touhy Ave., Lincolnwood, IL 60712 • (847) 675-1760 • Fax (847) 673-2850 • www.illcap.com
FFR
+125°C Non-inductive
Polyester Film/Foil
Epoxy-Dipped Radial
Lead Capacitors
STANDARD PART LISTING
Capacitance
(µF)
WVDC
PART
NUMBER
dv/dt
L Max.
(v/µ sec.)
H Max.
T Max.
S
Lead
Spacing
d
Lead
Wire
Diameter
.001
.0015
.0022
.0033
.0047
.0056
.0068
.0082
.01
.015
.022
.033
.047
.056
.068
.082
.1
.15
.22
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
102FFR100K
152FFR100K
222FFR100K
332FFR100K
472FFR100K
562FFR100K
682FFR100K
822FFR100K
103FFR100K
153FFR100K
223FFR100K
333FFR100K
473FFR100K
563FFR100K
683FFR100K
823FFR100K
104FFR100K
154FFR100K
224FFR100K
7000
7000
7000
7000
7000
7000
7000
7000
7000
7000
7000
3800
3800
3800
3800
3800
3800
1900
1900
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
13.5
13.5
13.5
13.5
13.0
14.0
19.0
20.0
9.5
9.5
9.5
9.5
9.5
9.5
9.5
9.5
9.5
9.5
9.5
10.0
10.5
11.0
12.5
13.0
13.0
13.5
15.0
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
6.0
6.0
6.0
6.0
7.5
7.0
7.0
8.0
8.0
7.5
8.5
7.0
7.0
7.0
7.0
7.0
7.0
7.0
7.0
7.0
7.0
7.0
10.0
10.0
10.0
10.0
10.0
10.0
15.0
15.0
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.8
0.8
NOTE:
WVDC IS RATED DC WORKING VOLTAGE AT +85°C.
L max
T
max
H max
3.0 max
15
min.
S
d
Lead Space
Tolerance
Wire Dia.
S
S
d
<15.0
≥15.0
±1.5
0.6
±1.5
0.8
®
3757 W. Touhy Ave., Lincolnwood, IL 60712 • (847) 675-1760 • Fax (847) 673-2850 • www.illcap.com
FFR
+125°C Non-inductive
Polyester Film/Foil
Epoxy-Dipped Radial
Lead Capacitors

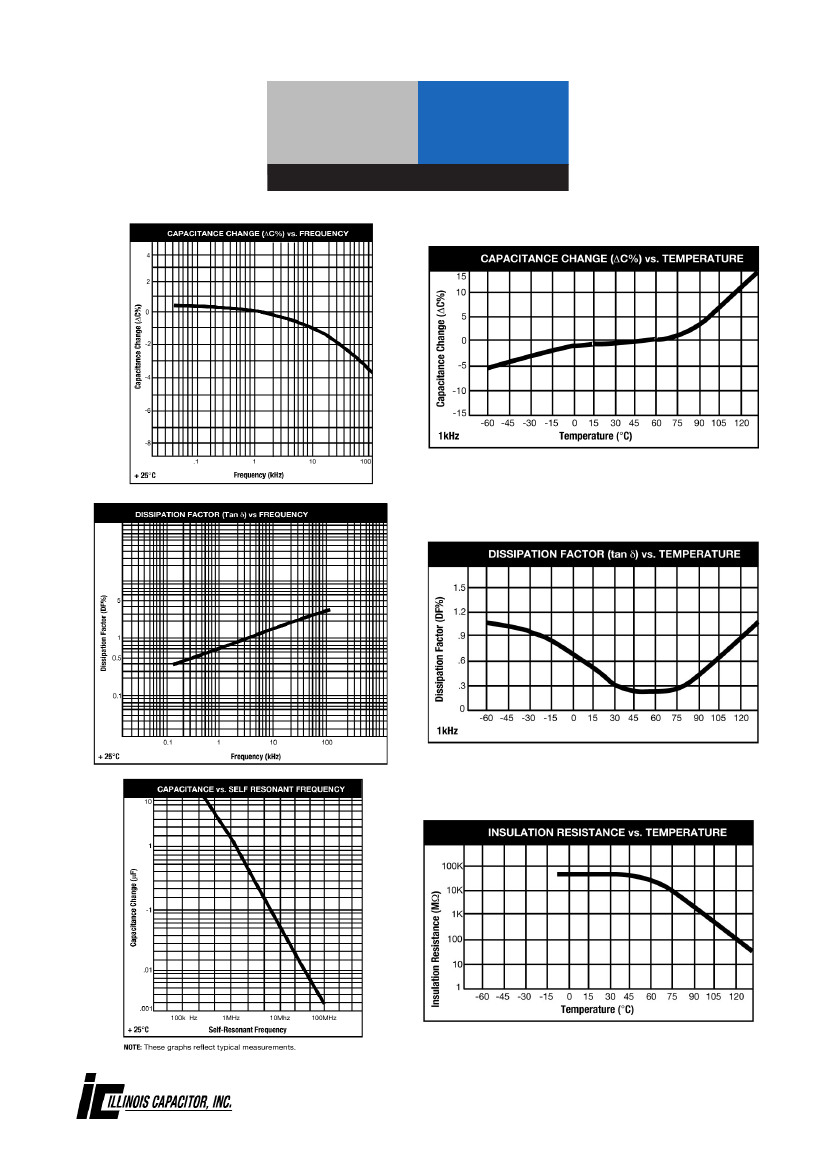

ENVIROMENTAL/ENDURANCE DATA
®
3757 W. Touhy Ave., Lincolnwood, IL 60712 • (847) 675-1760 • Fax (847) 673-2850 • www.illcap.com
