OP490FY: DescriptionOperational Amplifier, 4 Func, 1350uV Offset-Max, BIPolar, CDIP14, HERMETIC SEALED, DIP-14; CategoryAnalog mixed-signal IC Amplifier circuit; File Size629KB，12 Pages; ManufacturerPrecision Monolithics Inc

Download Datasheet Parametric Compare View All

OP490FY Overview

Operational Amplifier, 4 Func, 1350uV Offset-Max, BIPolar, CDIP14, HERMETIC SEALED, DIP-14

OP490FY Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	HERMETIC SEALED, DIP-14
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.02 µA
Maximum bias current (IIB) at 25C	0.02 µA
Nominal Common Mode Rejection Ratio	110 dB
frequency compensation	YES
Maximum input offset voltage	1350 µV
JESD-30 code	R-GDIP-T14
JESD-609 code	e0
low-dissonance	NO
micropower	YES
Negative supply voltage upper limit	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	4
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3/30/+-1.5/+-15 V
Certification status	Not Qualified
minimum slew rate	0.005 V/us
Nominal slew rate	0.012 V/us
Maximum slew rate	0.12 mA
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	20 kHz
Minimum voltage gain	50000
Base Number Matches	1

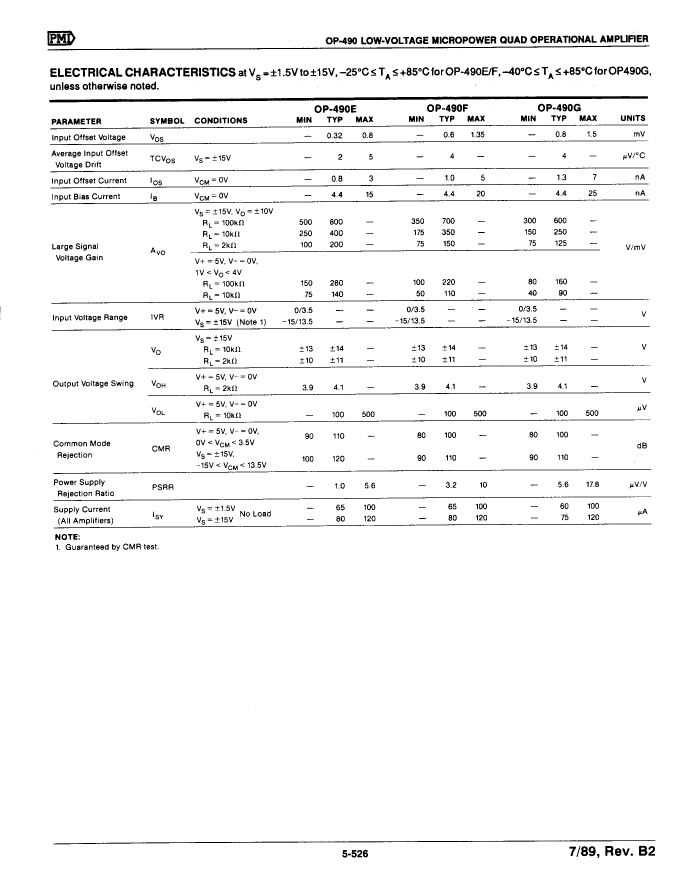

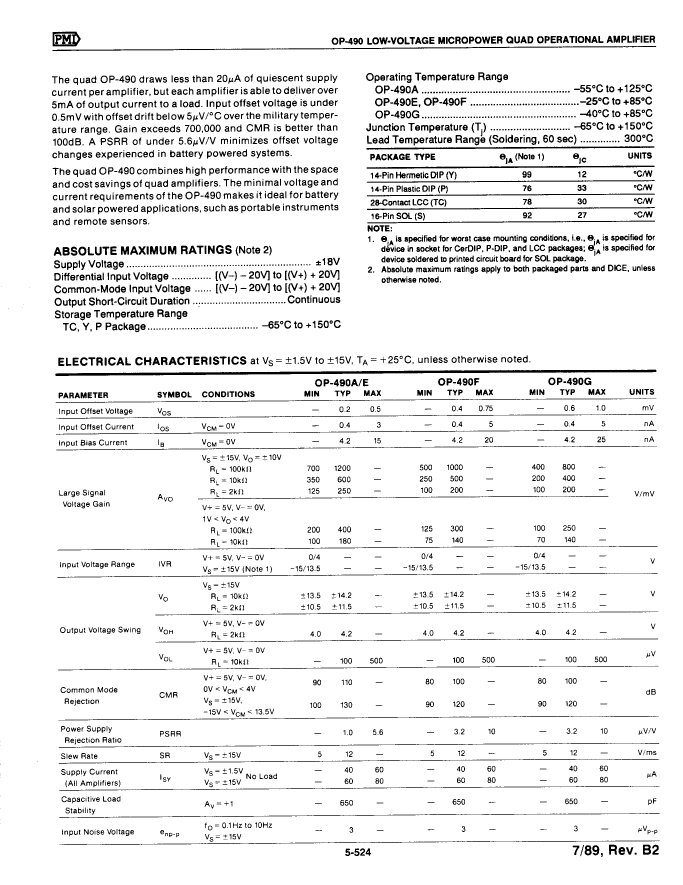

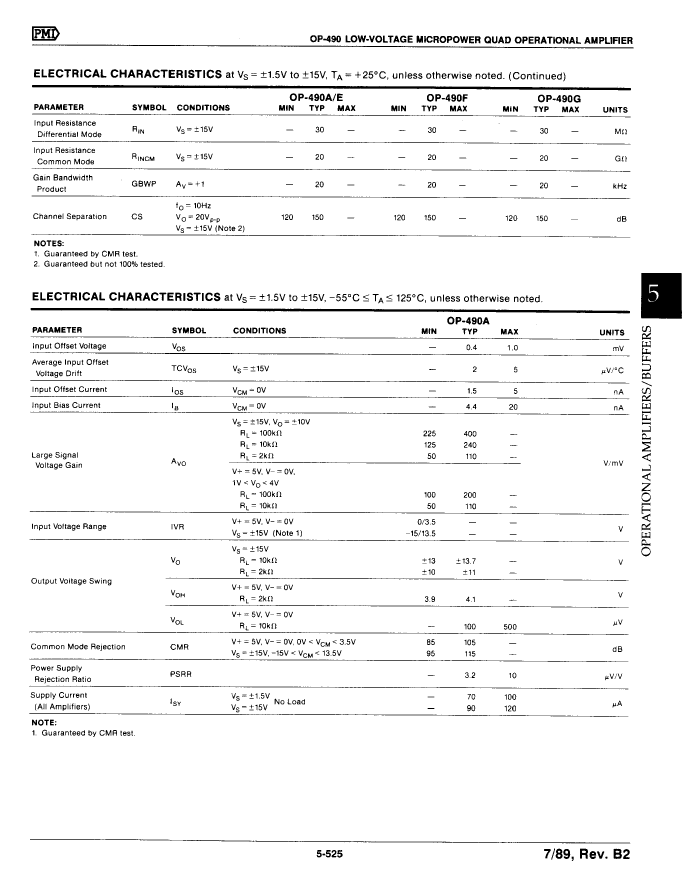

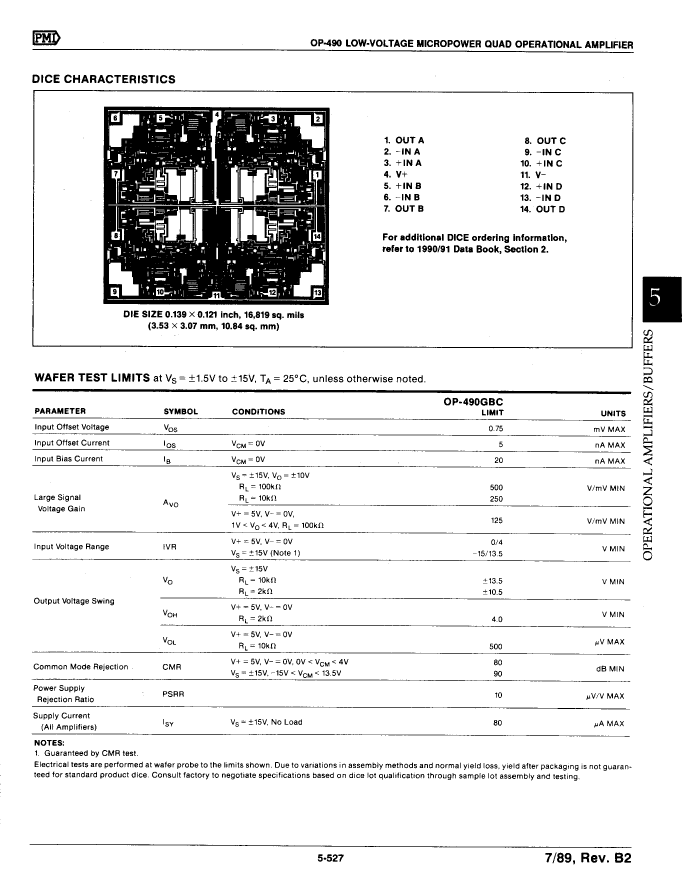

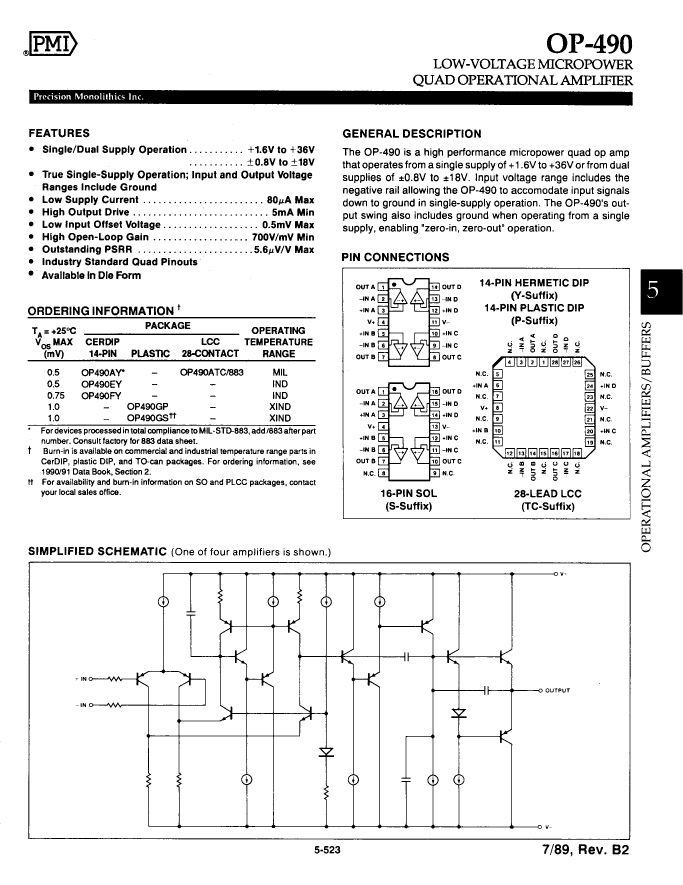

Preview

Download Datasheet

View All

OP490FY Related Products

	OP490FY	OP490AY/883	OP490GS	OP490GP	OP490AY	OP490EY	OP490ATC/883
Description	Operational Amplifier, 4 Func, 1350uV Offset-Max, BIPolar, CDIP14, HERMETIC SEALED, DIP-14	Operational Amplifier, 4 Func, 1000uV Offset-Max, BIPolar, CDIP14, HERMETIC SEALED, DIP-14	Operational Amplifier, 4 Func, 1500uV Offset-Max, BIPolar, PDSO16,	Operational Amplifier, 4 Func, 1500uV Offset-Max, BIPolar, PDIP14, PLASTIC, DIP-14	Operational Amplifier, 4 Func, 1000uV Offset-Max, BIPolar, CDIP14, HERMETIC SEALED, DIP-14	Operational Amplifier, 4 Func, 800uV Offset-Max, BIPolar, CDIP14, HERMETIC SEALED, DIP-14	Operational Amplifier, 4 Func, 1000uV Offset-Max, BIPolar, PQCC28, LCC-28
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.02 µA	0.02 µA	0.025 µA	0.025 µA	0.02 µA	0.015 µA	0.02 µA
Maximum bias current (IIB) at 25C	0.02 µA	0.015 µA	0.025 µA	0.025 µA	0.015 µA	0.015 µA	0.015 µA
Nominal Common Mode Rejection Ratio	110 dB	115 dB	110 dB	110 dB	115 dB	120 dB	115 dB
frequency compensation	YES	YES	YES	YES	YES	YES	YES
Maximum input offset voltage	1350 µV	1000 µV	1500 µV	1500 µV	1000 µV	800 µV	1000 µV
JESD-30 code	R-GDIP-T14	R-GDIP-T14	R-PDSO-G16	R-PDIP-T14	R-GDIP-T14	R-GDIP-T14	S-PQCC-N28
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
low-dissonance	NO	NO	NO	NO	NO	YES	NO
micropower	YES	YES	YES	YES	YES	YES	YES
Negative supply voltage upper limit	-18 V	-18 V	-18 V	-18 V	-18 V	-18 V	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of functions	4	4	4	4	4	4	4
Number of terminals	14	14	16	14	14	14	28
Maximum operating temperature	85 °C	125 °C	85 °C	85 °C	125 °C	85 °C	125 °C
Minimum operating temperature	-25 °C	-55 °C	-40 °C	-40 °C	-55 °C	-25 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY
encapsulated code	DIP	DIP	SOP	DIP	DIP	DIP	QCCN
Encapsulate equivalent code	DIP14,.3	DIP14,.3	SOP16,.4	DIP14,.3	DIP14,.3	DIP14,.3	LCC28,.45SQ
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE
Package form	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	3/30/+-1.5/+-15 V	3/30/+-1.5/+-15 V	3/30/+-1.5/+-15 V	3/30/+-1.5/+-15 V	3/30/+-1.5/+-15 V	3/30/+-1.5/+-15 V	3/30/+-1.5/+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
minimum slew rate	0.005 V/us	0.005 V/us	0.005 V/us	0.005 V/us	0.005 V/us	0.005 V/us	0.005 V/us
Nominal slew rate	0.012 V/us	0.012 V/us	12000 V/us	0.012 V/us	0.012 V/us	0.012 V/us	0.012 V/us
Maximum slew rate	0.12 mA	0.12 mA	0.12 mA	0.12 mA	0.12 mA	0.12 mA	0.12 mA
Supply voltage upper limit	18 V	18 V	18 V	18 V	18 V	18 V	18 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	YES	NO	NO	NO	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	OTHER	MILITARY	INDUSTRIAL	INDUSTRIAL	MILITARY	OTHER	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	NO LEAD
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	20 kHz	20 kHz	20000 kHz	20 kHz	20 kHz	20 kHz	20 kHz
Minimum voltage gain	50000	50000	40000	40000	50000	75000	50000
package instruction	HERMETIC SEALED, DIP-14	HERMETIC SEALED, DIP-14	-	PLASTIC, DIP-14	HERMETIC SEALED, DIP-14	HERMETIC SEALED, DIP-14	LCC-28
Maker	-	Precision Monolithics Inc	Precision Monolithics Inc	Precision Monolithics Inc	Precision Monolithics Inc	Precision Monolithics Inc	Precision Monolithics Inc
