BA6842BFS-E2: DescriptionMotion Control Electronic, BIPolar, PDSO32; CategoryOther integrated circuit (IC) The signal circuit; File Size127KB，9 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BA6842BFS-E2 Overview

Motion Control Electronic, BIPolar, PDSO32

BA6842BFS-E2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	SSOP, SOP32,.3,32
Reach Compliance Code	compliant
JESD-30 code	R-PDSO-G32
Number of terminals	32
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SOP32,.3,32
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
power supply	5,12 V
Certification status	Not Qualified
Maximum supply current (Isup)	6 mA
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

Motor driver ICs

3-phase motor driver

BA6840BFS / BA6840BFP-Y / BA6840BFP /

BA6842BFS

The BA6840BFS, BA6840BFP-Y, BA6840BFP, and BA6842BFS are one-chip ICs designed for driving CD-ROM motors.

They are high performance-ICs with a 3-phase, full-wave, pseudo-linear drive system.

FApplications

CD-ROM / RW, DVD-ROM / PLAYER

FFeatures

1) 3-phase, full-wave, pseudo-linear drive system.

2) Start / stop pin; power saving during stop mode.

3) Internal current limit circuit.

FBlock

diagram

4) Internal thermal shutdown circuit.

5) Internal hall bias circuit.

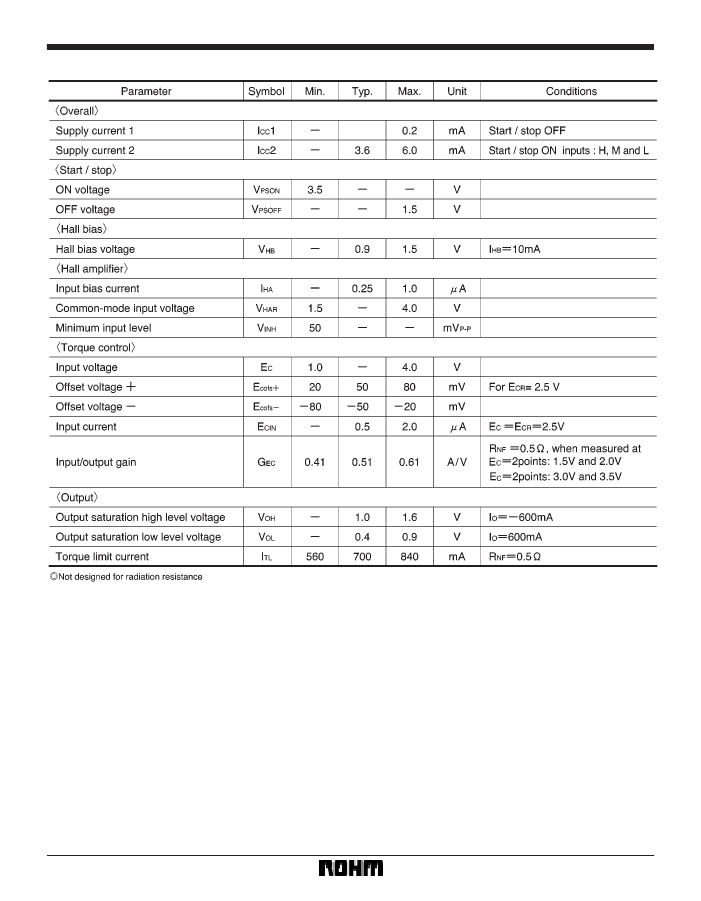

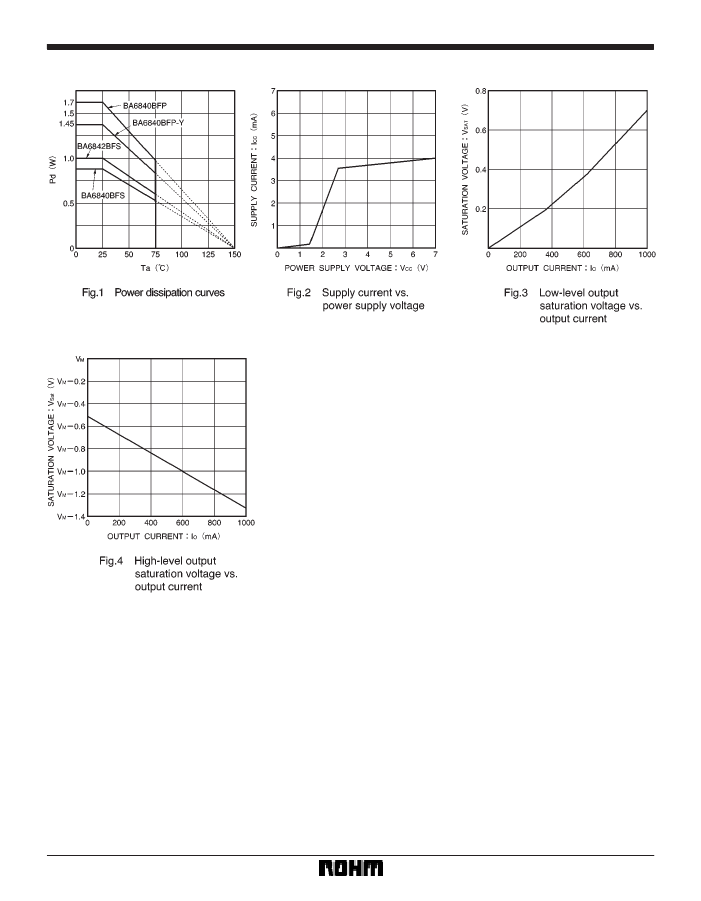

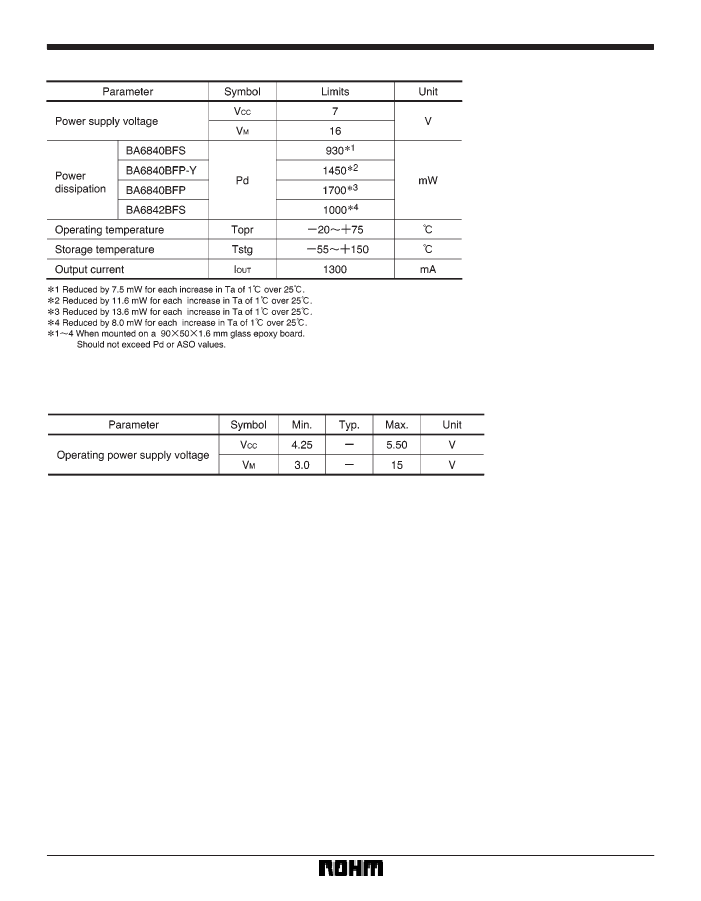

523

BA6842BFS-E2 Related Products

	BA6842BFS-E2	BA6840BFS-E1	BA6842BFS-E1	BA6840BFP-YE1	BA6840BFP-E1
Description	Motion Control Electronic, BIPolar, PDSO32	Motion Control Electronic, BIPolar, PDSO20	Motion Control Electronic, BIPolar, PDSO32	Motion Control Electronic, BIPolar, PDSO32	Motion Control Electronic, BIPolar, PDSO28
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
package instruction	SSOP, SOP32,.3,32	SSOP, SOP20,.3,32	SSOP, SOP32,.3,32	SSOP, SOP32,.3,32	SSOP, SOP28/42,.4,32
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
JESD-30 code	R-PDSO-G32	R-PDSO-G20	R-PDSO-G32	R-PDSO-G32	R-PDSO-G28
Number of terminals	32	20	32	32	28
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SSOP	SSOP	SSOP	SSOP
Encapsulate equivalent code	SOP32,.3,32	SOP20,.3,32	SOP32,.3,32	SOP32,.3,32	SOP28/42,.4,32
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
power supply	5,12 V	5,12 V	5,12 V	5,12 V	5,12 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply current (Isup)	6 mA	6 mA	6 mA	6 mA	6 mA
surface mount	YES	YES	YES	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	-	-
