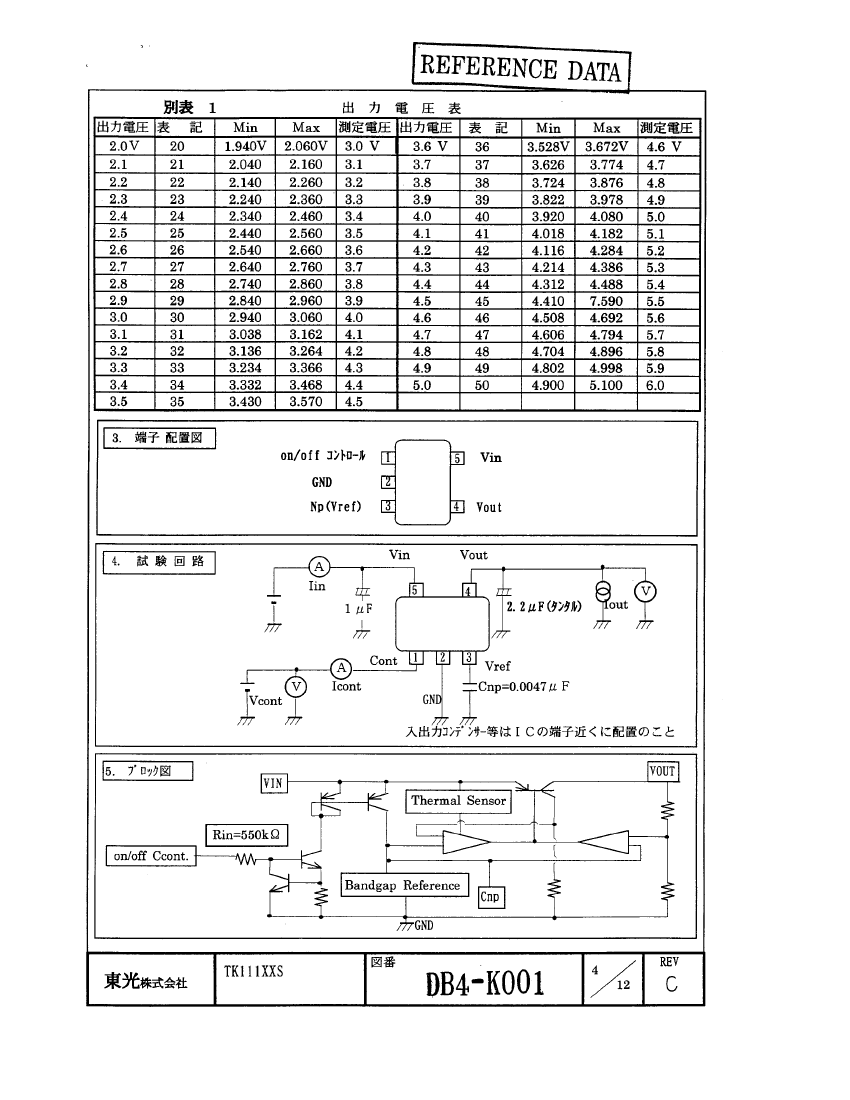

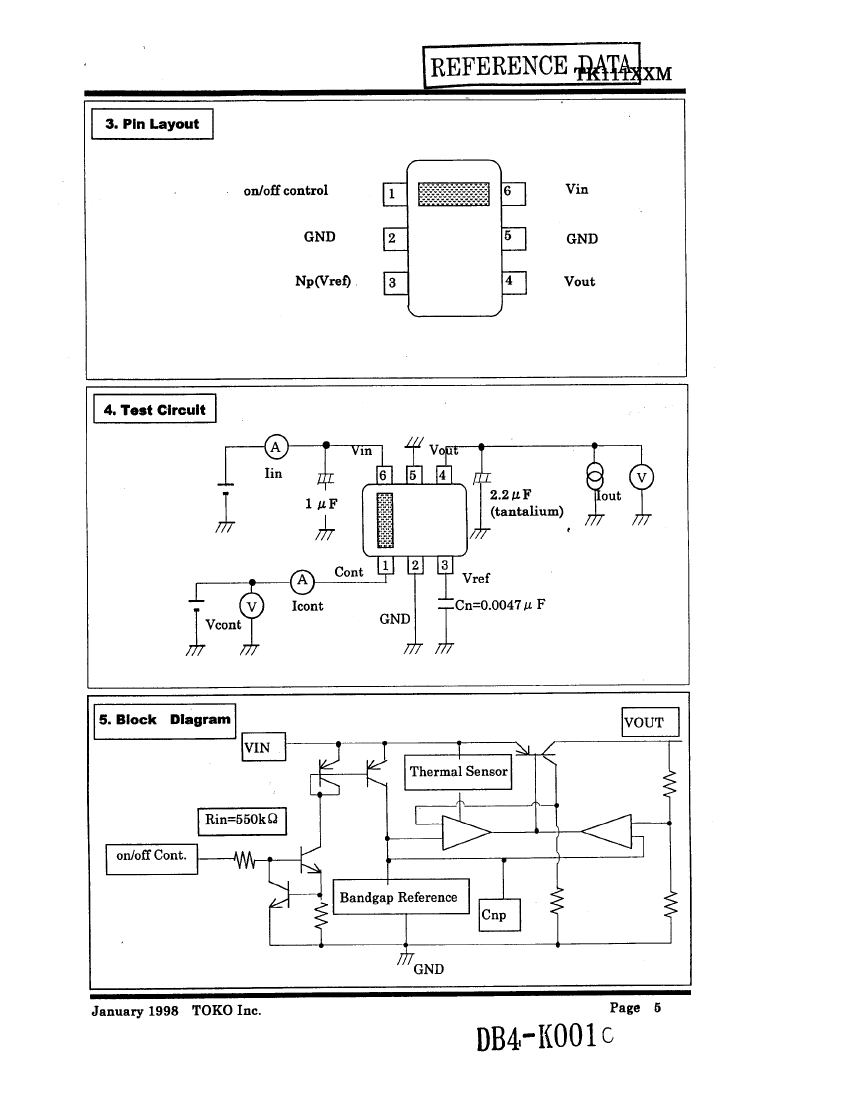

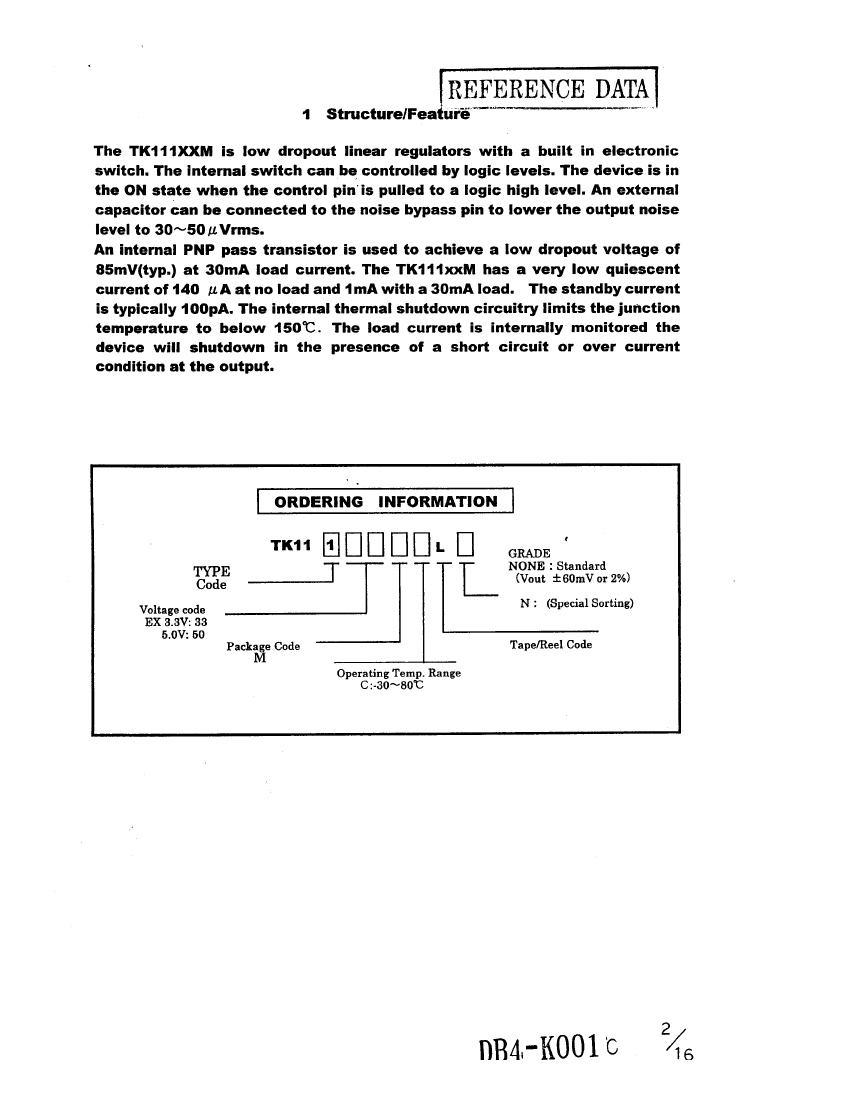

TK11142MCLN Overview

Fixed Positive LDO Regulator, 4.2V, 0.2V Dropout, PDSO6, SOT-23, 6 PIN

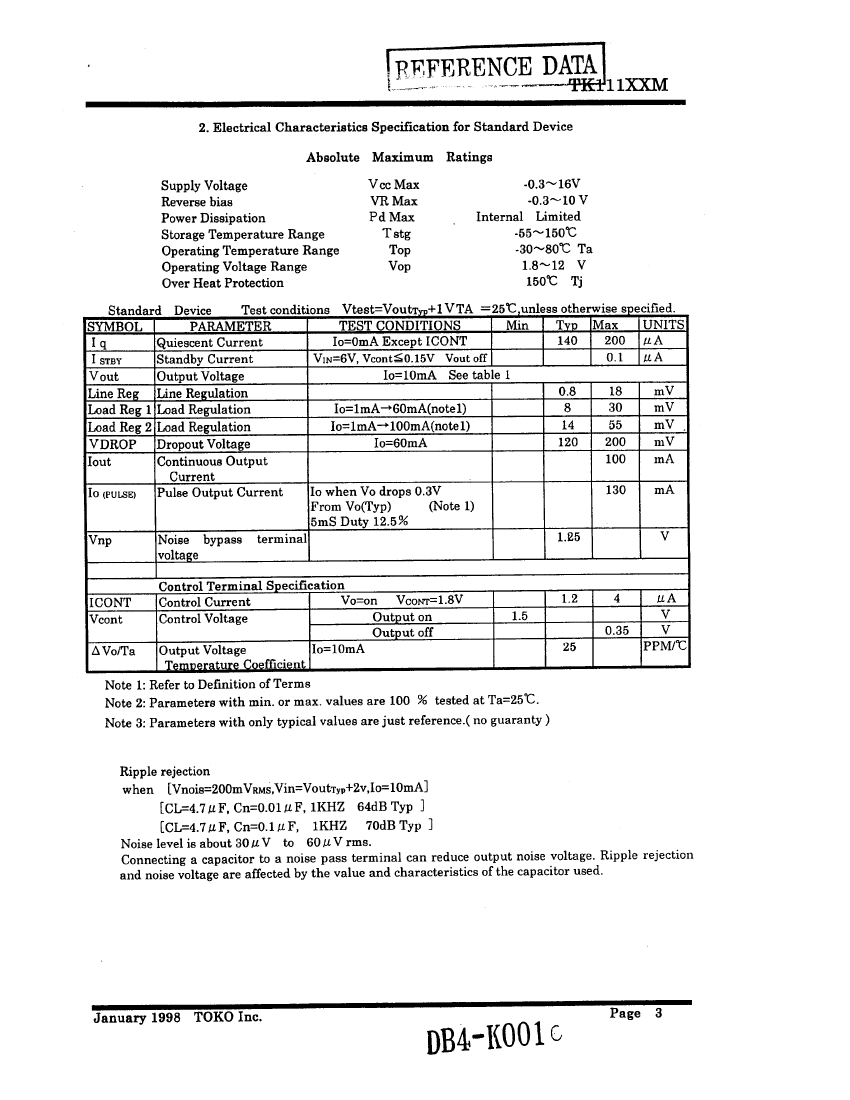

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	LSSOP,
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum drop-back voltage 1	0.2 V
Maximum input voltage	10.2 V
Minimum input voltage	5.2 V
JESD-30 code	R-PDSO-G6
length	3.4 mm
Number of functions	1
Number of terminals	6
Maximum output current 1	0.1 A
Maximum output voltage 1	4.284 V
Minimum output voltage 1	4.116 V
Nominal output voltage 1	4.2 V
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	240
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	1.4 mm
surface mount	YES
Terminal form	GULL WING
Terminal pitch	0.95 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	2.2 mm
Base Number Matches	1
