SQZ700JBI30R

Description
Fixed Resistor, Wire Wound, 7W, 30ohm, 500V, 5% +/-Tol, 300ppm/Cel, Through Hole Mount, RADIAL LEADED
CategoryPassive components    The resistor
File Size52KB,2 Pages
ManufacturerYAGEO
Websitehttp://www.yageo.com/
Environmental Compliance
Download Datasheet Parametric View All

SQZ700JBI30R Overview

Fixed Resistor, Wire Wound, 7W, 30ohm, 500V, 5% +/-Tol, 300ppm/Cel, Through Hole Mount, RADIAL LEADED

SQZ700JBI30R Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionRadial,
Reach Compliance Codecompliant
ECCN codeEAR99
structureRectangular
lead spacing22.5 mm
Manufacturer's serial numberSQZ
Installation featuresTHROUGH HOLE MOUNT
Number of terminals2
Maximum operating temperature275 °C
Minimum operating temperature-55 °C
Package height10 mm
Package length35 mm
Package shapeRECTANGULAR PACKAGE
Package formRadial
Package width10 mm
method of packingBULK
Rated power dissipation(P)7 W
Rated temperature40 °C
resistance30 Ω
Resistor typeFIXED RESISTOR
seriesSQZ
surface mountNO
technologyWIRE WOUND
Temperature Coefficient300 ppm/°C
Terminal shapeFLAT
Tolerance5%
Operating Voltage500 V
Base Number Matches1

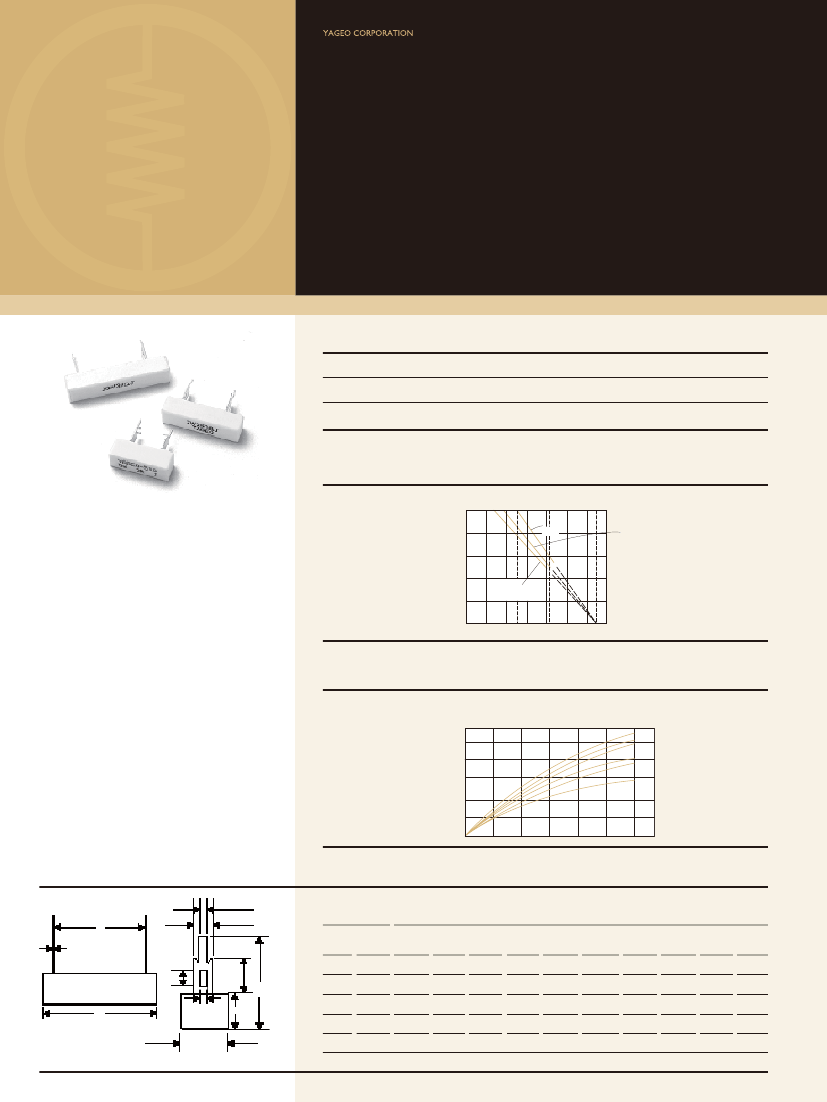

LEADED RESISTORS
Cement Resistors
Type
Standard Style[ SQZ Series ]
FEATURES
Resistance Tolerance: ±5%
100
40 70
155
275
-
80
60
40
20
0
-50
0
50
100 150
200 250 300
choice of power resistors
TEMPERATURE RISE
250
200
150
100
50
00
20
40
60
80
100
120
Unit : mm
P
4
S
0.5
P
1
2
P
3
1
2
P
1
P
2
P
3
P
4
Ind.
L
P
2
1
SQZ20A
63.5±2.0
12.5±1
12.5±1
42.5±1
34.5±1
15.0±1.5
7.0±0.2
6.0±0.2
10.0±0.2 2.7±0.1
