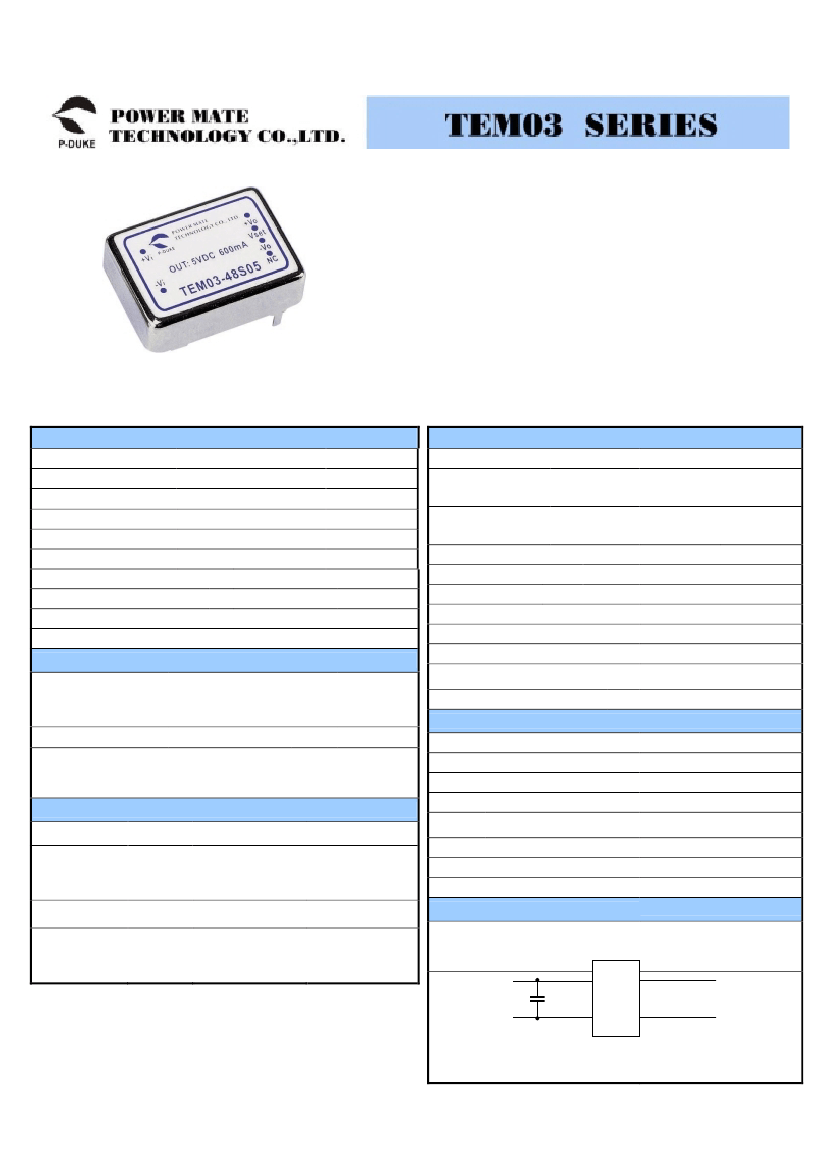

PACKAGE, 1.12 x 0.81 x 0.33 INCH
•
NO EXTERNAL INPUT AND OUTPUT CAPACITOR NEEDED
•
2:1 WIDE INPUT VOLTAGE RANGE
•
LOW RIPPLE & NOISE
•
FIVE-SIDED SHIELD
•
OVER CURRENT PROTECTION
•
SHORT CIRCUIT PROTECTION
•
LONG LIFE WITHOUT ELECTROLYTIC CAPACITOR
The TEM03 series offer 3 watts of output power from a 1.12 x 0.81 x 0.33 inch package
without derating to 50
ºC
and without external input/output capacitor. The TEM03 series with
2:1 wide input voltage of 4.5-9, 9-18, 18-36 and 36-75VDC and features 500VAC of
solation, short-circuit protection. The safety meets to EN60950 and UL1950. All models are
particularly suited to telecommunications, industrial, mobile telecom and test equipment
applications.

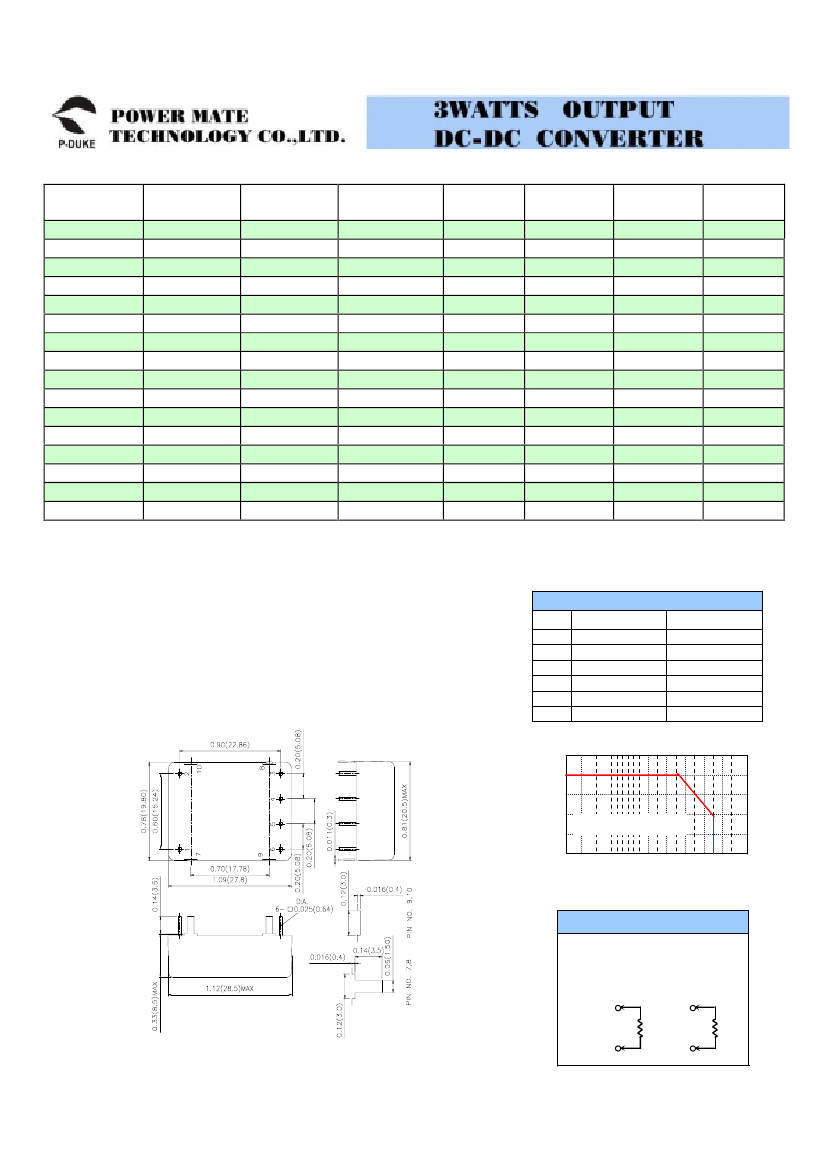

T E C H N I C A L S P E C I F I C AT I O N
OUTPUT SPECIFICATIONS
Maximum output power
Voltage accuracy
Minimum load
Line regulation
Load regulation
Ripple and noise
Maximum temperature drift
Transient response recovery time
Short circuit protection
Over current protection
25% load step change
LL to HL at Full Load
10% to 100% FL
50MHz bandwidth
Full load and nominal Vin
All specifications are typical at nominal input, full load and 25ºC otherwise noted
GENERAL SPECIFICATIONS
3 Watts
± 2%
0%
0.2%
0.5%
120mVp-p, max
I0.02%
/ ºC
500uS, typ
Isolation capacitance
Safety standard pending
Switching frequency
Case material
Base material
Weight
4.5 – 9VDC
9 – 18VDC
18 – 36VDC
36 – 75VDC
L-C filter
15VDC
36VDC
50VDC
100VDC
(Note1)
Dimension
MTBF (Note 4)
Isolation resistance
Efficiency
Isolation voltage
Input to Output
Input to Case
Output to Case
Input to Output
Input to Case
Output to Case
See table
500 Vac
DC500V
50M ohms
300 pF,max
IEC60950, J60950, UL60950, EN60950
100 to 1500 KHz
Metal case
None
11.5g (0.41oz)
1.12 x 0.81 x 0.33 Inch
(28.5 x 20.5 x 8.5 mm)
650Fit (1500000hrs, 100% Load)
Full load to No load
Continuous, automatics recovery
170%, typ.
INPUT SPECIFICATIONS
Input voltage range
5V nominal input
12V nominal input
24V nominal input
48V nominal input
5V nominal input
12V nominal input
24V nominal input
48V nominal input
ENVIRONMENTAL SPECIFICATIONS
Operating temperature range (with derating)
Storage temperature range
Cooling
Thermal shock
Vibration
Shock
Operating humidity range
Storage humidity range
-20ºC to +70ºC
-40ºC to +85ºC
Nature convection
MIL-STD-810D
At no operation, 10~55~10Hz (sweep for 15min.) amplitude 1.
5mm constant (maximum 9G X, Y, Z 2hrs each)
100G
20% to 95% RH
20% to 95% RH
Input filter
Input surge voltage
100mS max
OUTPUT VOLTAGE ADJUSTMENT TERMINAL(Vset )
Model number
XXS33
XXS05
XXS12
XXD12
Model number
XXS33
XXS05
XXS12
XXD12
Open
3.3V
5V
12V
I12V
Open
3.3V
5V
12V
I12V
-Vout shorted
3.67V
6V
15V
I15V
-Vout connected
with resistance (2)
3.3 to 3.67V (3-1)
5 to 6V (3-3)
12 to 15V (3-5)
I12
to
I15V
(3-6)
+Vout shorted
2.84V
4.3V
-
-
+Vout connected
with resistance (2)
3.3 to 2.84V (3-2)
5 to 4.3V (3-4)
-
-
EMC CHARACTERISTICS
Meet EN55022 classes A recommend
circuit with external capacitor filter at input
( Note 5 )
EMC external circuit
+
Input
DC-DC
Converter
5V
12V
24V
48V
input
220uF/16V
input 220uF/25V
input 100uF/50V
input 100uF/100V
+
Output
-
-
Model
Number
TEM03-05S33
TEM03-05S05
TEM03-05S12
TEM03-05D12
TEM03-12S33
TEM03-12S05
TEM03-12S12
TEM03-12D12
TEM03-24S33
TEM03-24S05
TEM03-24S12
TEM03-24D12
TEM03-48S33
TEM03-48S05
TEM03-48S12
TEM03-48D12
Input
Range
4.5 – 9 VDC
4.5 – 9 VDC
4.5 – 9 VDC
4.5 – 9 VDC
9 – 18 VDC
9 – 18 VDC
9 – 18 VDC
9 – 18 VDC
18 – 36 VDC
18 – 36 VDC
18 – 36 VDC
18 – 36 VDC
36 – 75 VDC
36 – 75 VDC
36 – 75 VDC
36 – 75 VDC
Output
Voltage
3.3 VDC
5 VDC
12 VDC
I12
VDC
3.3 VDC
5 VDC
12 VDC
I12
VDC
3.3 VDC
5 VDC
12 VDC
I12
VDC
3.3 VDC
5 VDC
12 VDC
I12
VDC
Output
Voltage Range
2.84 – 3.67 VDC
4.3 – 6 VDC
12 – 15 VDC
I12
–
I15
VDC
2.84 – 3.67 VDC
4.3 – 6 VDC
12 – 15 VDC
I12
–
I15
VDC
2.84 – 3.67 VDC
4.3 – 6 VDC
12 – 15 VDC
I12
–
I15
VDC
2.84 – 3.67 VDC
4.3 – 6 VDC
12 – 15 VDC
I12
–
I15
VDC
Output
Current
600 mA
600 mA
250 mA
I125
mA
600 mA
600 mA
250 mA
I125
mA
600 mA
600 mA
250 mA
I125
mA
600 mA
600 mA
250 mA
I125
mA
Input
Current
(6)
656 mA
909 mA
883 mA
883 mA
253 mA
352 mA
343 mA
343 mA
126 mA
176 mA
169 mA
169 mA
63 mA
88 mA
85 mA
85 mA
Eff
(%)
65
70
72
72
70
75
77
77
70
75
78
78
70
75
78
78
(7)
Capacitor
(8)
Load max
3300 uF
1500 uF
700 uF
I250
uF
3300 uF
1500 uF
700 uF
I250
uF
3300 uF
1500 uF
700 uF
I250
uF
3300 uF
1500 uF
700 uF
I250
uF
Note
1.
2.
3.
The follow output voltage can be outputted by connecting this terminal to an output + or – terminal. Unless the output voltage is adjusted, this terminal
should be open.
In addition, the voltage can be adjusted not by shorting these terminals, but by connecting them to resistances as shown below.
Arithmetic expression connected resistance: R ( K )
3-1 Vo=(3.3*R+36.7)/(R+10)
3-2 Vo=(3.3*R+36.7)/(R+12.92)
PIN CONNECTION
3-3 Vo=2.5*[2+2.7/(R+6.8)]
3-4 Vo=2.5*[2-2.7/(R+9.5)]
3-5 Vo=2.5+9.5(R+10.9)/(R+8.2)
3-6 Vo=2.5+22*(R+12.7)/(R+10)(Between two outputs)
PIN
SINGLE
DUAL
Bellcore TR-NWT-000332. Case1:50% Stress, temperature at 40ºC.
(Ground fixed and controlled environment)
The filter capacitor recommended use “ CHEMICON “ KMF series
or equivalent impedance at 0.16 ~ 0.33 ( 100KHz 20
)
Maximum value at nominal input voltage and full load.
Typical value at nominal input voltage and full load.
Test by minimum Vin and constant resistor load.
1
2
3
4
5
6
+ Vi
- Vi
NC
- Vo
Vset
+ Vo
Derating Curve
OUTPUT POWER (%)
100
75
50
25
0
-20
4.
5.
6.
7.
8.
+ Vi
- Vi
- Vo
COM
Vset
+ Vo
BOTTOM
VIEW
Nature convection
-10 0
30 40 50 60 70 80
AMBIENT TEMPERATURE (ºC)
EXTERNAL OUTPUT TRIMMING
Output can be externally trimmed by
using the method shown below.
( ) for dual output trim
TRIM UP
TRIM DOWN
4(3)
5(5)
R
U
ALL DIMENSIONS IN INCHES (mm)
PIN PITCH TOLERANCE
I0.014(0.35)
R
D
5(5)
6(6)
