Composite
Junction
Boxes
Series 140-101

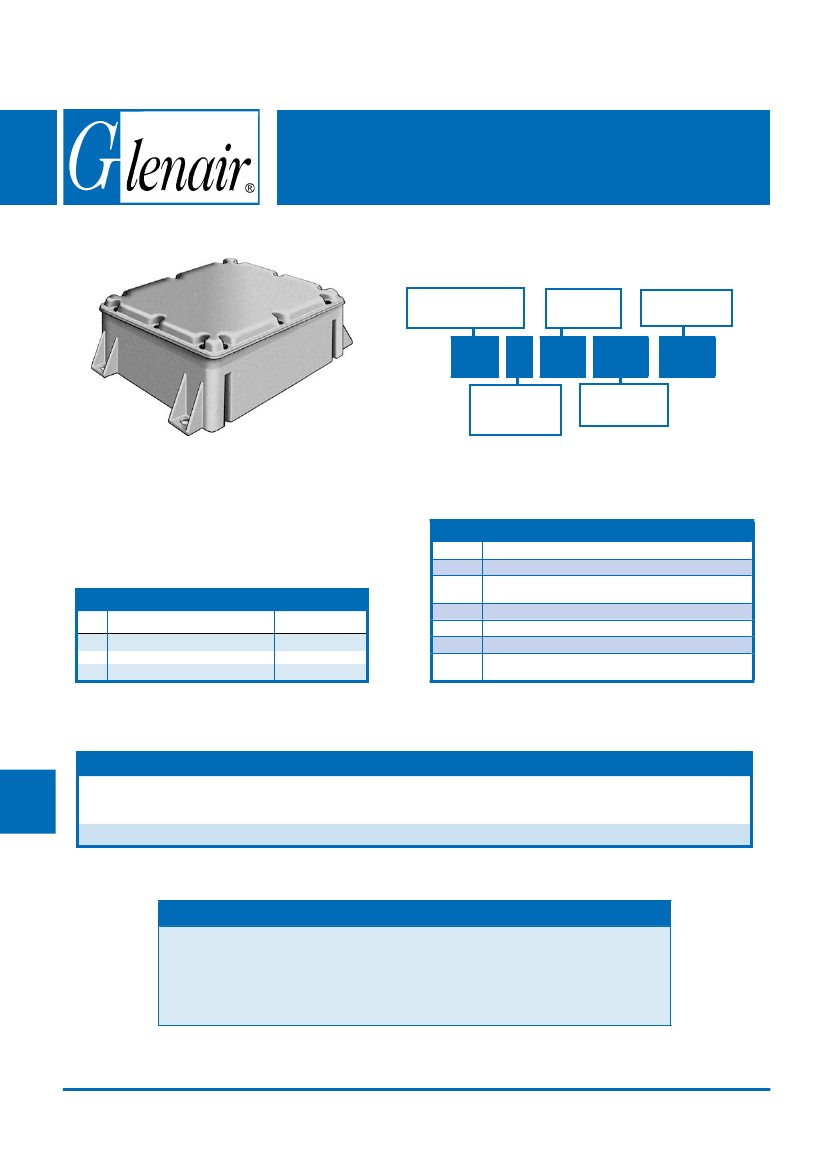

Small Junction Box
A
Product Series
140
- Composite Boxes
Basic Part
Number
Dash Number
140
G
101
XMS
-
0000
Finish Symbol
(See
Table I)
B
Small
Series 140-101
CostSaver Composite
Junction Box
TABLE II: MATERIAL COLOR & FINISH OPTIONS
Sym Material & Color
Finish Options
XO and XMS
XO and XMS
XM, XW and XZN
B
G
–
Thermoplastic / Black
Thermoplastic / Grey
Thermoplastic / NA
Material Color
Symbol
(See
Table II)
C
TABLE I: FINISHES
Symbol
XO
XMS
XM
XW
XZN
XMT
Finish Description
No Plating (Non-Conductive Finish)
Internal Surfaces - Electroless Nickel
External Surfaces - See Table II
All Surfaces – Electroless Nickel
All Surfaces – Cadmium Olive Drab over Electroless Nickel
All Surfaces – Zinc Nickel/Black
2000 Hour Corrosion Resistant Ni-PTFE, Nickel-
Fluorocarbon Polymer.
1000 Hour Grey
TM
D
TABLE III: KEY DIMENSIONS
E
Box Series Number
Small 140-101
External Dimensions
5.18 (132) x 6.00 (152) x 3.35 (85)
(with Aluminum Mounting
Plate Installed, if applicable)
Internal Dimensions
3.94 (100) x 4.72 (120) x 2.63 (67)
F
NOTES
1.
2.
3.
Use Dash Number 0000 for Basic Box with No Additional Options Beyond Your Specified Finish.
0000 Basic Box Includes #6-32 UNC Fasteners.
Box Series Numbers are for reference only. Please complete the worksheet on E-14 and call
the factory for part number assignment for your specific box configuration.
Metric dimensions (mm) are in parenthesis and for reference only
G
© 2009 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
E-20
Series 140-101
Small Junction Box

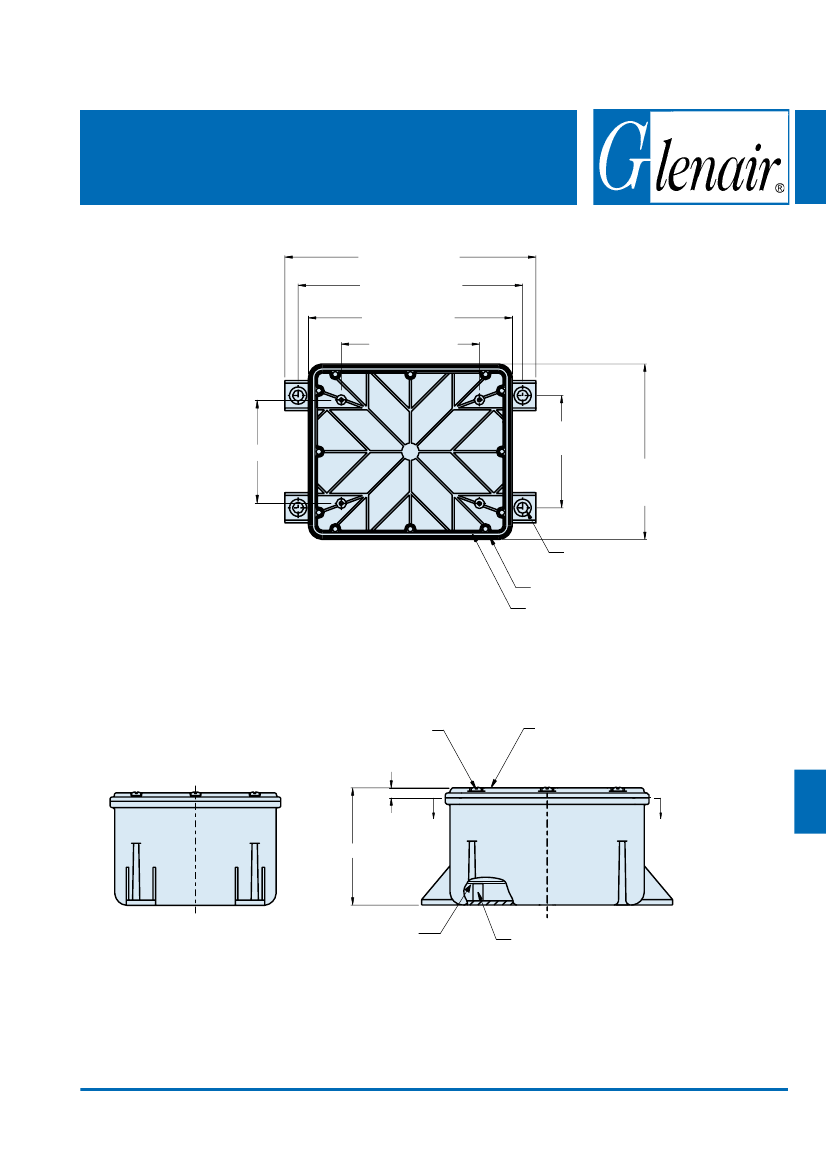

SIDE A
7.31 (185.7) Max
6.500 (165.1)
6.00 (152.4)
4.000 (101.6)
SIDE D
3.00 (76.2)
3.25
(82.6)
5.18
(131.6)
Max
SIDE B
SIDE C
Mounting Hole (4 Places)
accommodate 1/4-20 or 6mm Bolt
EMI/RFI Tongue and Groove
Environmental Seal
Standard #6-32 UNC Screws and Inserts
SIDES B & D
.25 (6.4)
Assembly Identified with
Manufacturer's Name and
Part Number on Cover
A
3.35 (85.1)
A
SIDES A & C
Mounting Plate (Optional)
Mounting Boss
