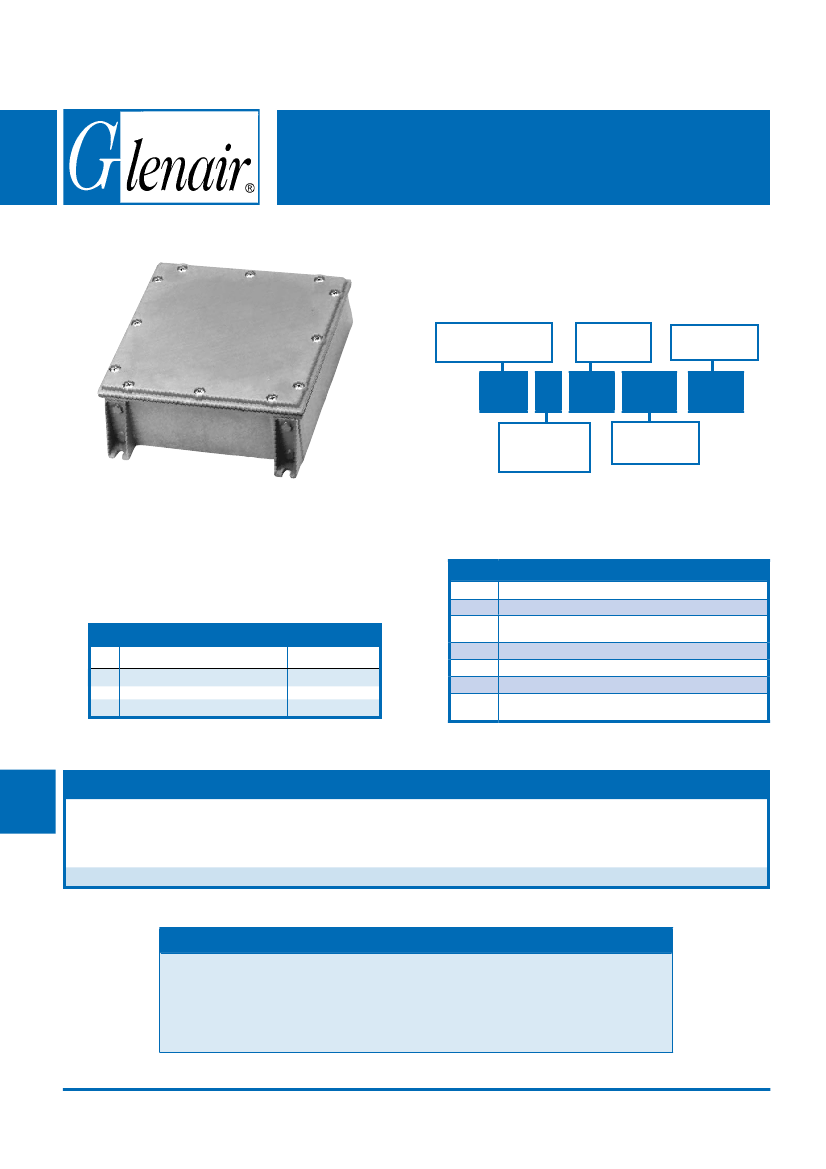

Composite
Junction
Boxes
Series 140-104
Small Low-Profile Box
A
Product Series
140
- Composite Boxes
Basic Part
Number
Dash Number
B
Small Low-Profile
Series 140-104
CostSaver Composite
Junction Box
TABLE II: MATERIAL COLOR & FINISH OPTIONS
140
G
104
XMS
-
0000
Finish Symbol
(See
Table I)
Material Color
Symbol
(See
Table II)
C
TABLE I: FINISHES
Symbol
XO
XMS
XM
XW
XZN
XMT
Finish Description
No Plating (Non-Conductive Finish)
Internal Surfaces - Electroless Nickel
External Surfaces - See Table II
All Surfaces – Electroless Nickel
All Surfaces – Cadmium Olive Drab over Electroless Nickel
All Surfaces – Zinc Nickel/Black
2000 Hour Corrosion Resistant Ni-PTFE, Nickel-
Fluorocarbon Polymer.
1000 Hour Grey
TM
D
Sym Material & Color
B
G
–
Thermoplastic / Black
Thermoplastic / Grey
Thermoplastic / NA
Finish Options
XO and XMS
XO and XMS
XM, XW and XZN
E
TABLE III: KEY DIMENSIONS
Box Series Number
Low-Profile 140-104
External Dimensions
5.86 (149) x 5.86 (149) x 2.13 (54)
Internal Dimensions
(with Aluminum Mounting
Plate Installed, if applicable)
4.90 (124) x 4.90 (124) x 1.53 (39)
F
1.
2.
3.
© 2009 Glenair, Inc.
NOTES
Use Dash Number 0000 for Basic Box with No Additional Options Beyond Your Specified Finish.
0000 Basic Box Includes #6-32 UNC Fasteners.
Box Series Numbers are for reference only. Please complete the worksheet on E-14 and call
the factory for part number assignment for your specific box configuration.
Metric dimensions (mm) are in parenthesis and for reference only
CAGE Code 06324
Printed in U.S.A.
G
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
E-26
Series 140-104
Small Low-Profile Box
SIDE A
6.68 (169.7)
Max
6.25 (158.8)
5.86 (148.8)
Max
3.75 (95.3)
SIDE D
3.75 (95.3)
4.75
(120.7)
5.86
(148.8)
Max
SIDE B
SIDE C
Mounting Hole (4 Places)
.190 (4.8) Diameter
EMI/RFI Tongue and Groove
Environmental Seal
.26 (6.6)
Assembly Identified with Manufacturer's
Name and Part Number
2.13
(54.1)
.52 (13.2) Ref
SIDES A & C
Mounting Boss accommodates
#6-32 Screw (4 Places)
Mounting Plate
(Optional)
SIDES B & D
© 2009 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
E-27
