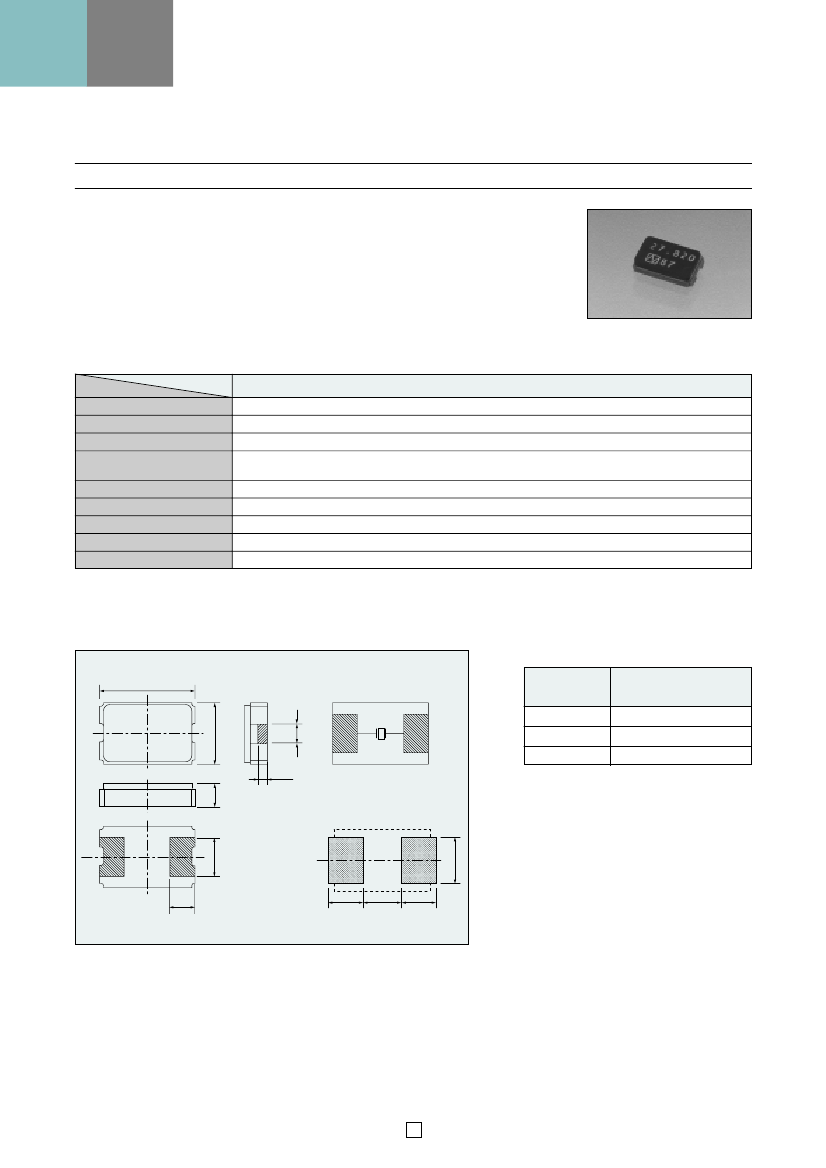

SURFACE MOUNT TYPE CRYSTAL UNITS / NX5032GA
This is ultra small surface mount type crystal unit.
s
Features
8
Ultra compact and thin (5.0×3.2×1.3 mm).
8
Excellent heat resistance and environmental characteristics.
8
Taping package is for customer automatic loading operation.
s
Specification
Item
Frequency Range
Overtone
Frequency Tolerance (25±3˚C)
Temperature Characteristics
(in reference to +25˚C)
Operating Temperature Range
Equivalent Series Resistance
Drive Level
Standard Load Capacitance
Operable Temperature Range
Type
NX5032GA
13.5 MHz ~ 50 MHz
Fundamental
± 50
×
10
-6
± 50
×
10
-6
–10 ~ +70˚C
4
See table 2
50 µW
8pF
–40 ~ +85˚C
s
Dimensions
(mm)
5.0±0.2
LEAD POSITION (TOP VIEW)
(0.1)
4
Table 2 Equivalent Series Resistance
Frequency
Range (MHz)
20 max
20 ~ 30
30 min
Equivalent Series Resistance
(Ω)
120 max
70 max
50 max
3.2±0.2
0.5±0.1
1.3±0.2
LAND PATTERN (TYPICAL)
2.0±0.2
1.3±0.2
1.8
2.0
1.8
42
2.4
CRYSTAL
UNITS

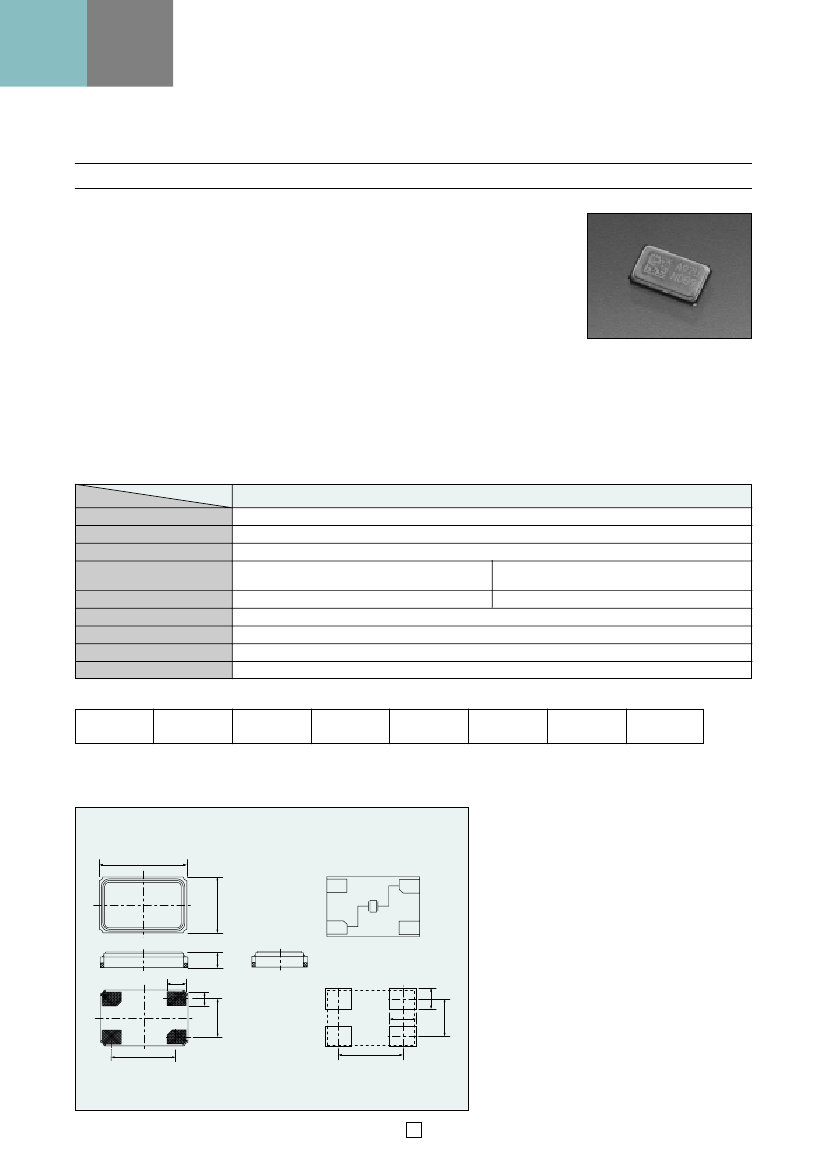

SURFACE MOUNT TYPE CRYSTAL UNITS / NX5032SA
Microminiature crystal unit developed for the PLL-based clock used in the mobile com-
munications industry.
Small and thin surface mount type crystal unit with the same levels of temperature char-
acteristics, environmental capability, and reliability as those of conventional surface
mount type crystal units.
s
Features
8
Standard Nominal Frequency for PLL-system are lined up (ex. GSM, PDC, CDMA,
PHS, etc.).
8
Ultra compact and thin.
8
It is applicable to IR Reflow.
8
Display of temperature characteristics is possible using a two-dimensional data code.
(refer page 43)
s
Specification
Item
Frequency Range
Overtone
Frequency Tolerance (25±3˚C)
Temperature Characteristics
(in reference to +25˚C)
Operating Temperature Range
Equivalent Series Resistance
Drive Level
Standard Load Capacitance
Operable Temperature Range
± 10
×
10
-6
–20 ~ +75˚C
60
Ω
max
10 µW (100 µW max)
10pF
–40 ~ +85˚C
Type
NX5032SA
12.0 MHz ~ 26 MHz
Fundamental
± 10
×
10
-6
± 15
×
10
-6
–30 ~ +85˚C
Standard Frequency (MHz)
12.6
13
14.4
19.2
19.44
19.68
19.8
26
s
Dimensions
(mm)
5.0 max
Internal connections
#4
3.2 max
#3
#1
0.85 max
#2
#2, #4 is connected with a cover
(Please connect with a GND or
a power supply)
LAND PATTERN (TYPICAL)
1.25
3.5
1.2
0.85mm
2.05
#1
#3
3.5
#2
#4
46
2.05
1.6
