5609A-12.6MHZ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> 5609A-12.6MHZ

5609A-12.6MHZ: DescriptionSine Output Oscillator, 12.6MHz Nom; CategoryPassive components oscillator; File Size140KB，1 Pages; ManufacturerNDK; Websitehttp://www.ndk.com/en/

Download Datasheet Parametric View All

5609A-12.6MHZ Overview

Sine Output Oscillator, 12.6MHz Nom

5609A-12.6MHZ Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Ageing	1 PPM/YEAR
Maximum control voltage	2.5 V
Minimum control voltage	0.5 V
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	12 ppm
frequency stability	2.5%
Manufacturer's serial number	5600
Installation features	SURFACE MOUNT
Nominal operating frequency	12.6 MHz
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Oscillator type	SINE
Output impedance	10000 Ω
Output level	0.8 V
physical size	9mm x 7mm x 1.8mm
Nominal supply voltage	3 V
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

CRYSTAL

OSCILLATORS

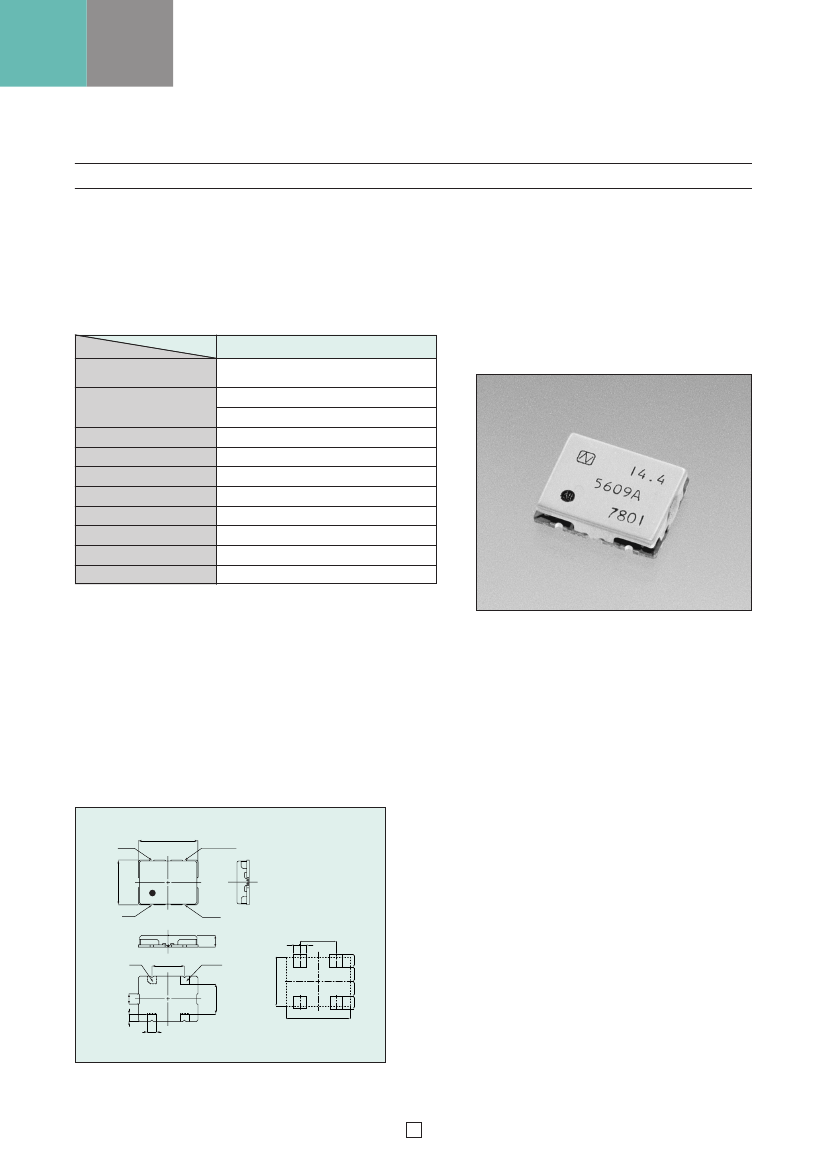

TEMPERATURE COMPENSATED CRYSTAL OSCILLATORS 5600 SERIES

Model 5609A

Main applications: Handheld-phone

Features

Height 2.0mm max, volume 0.11cc, weight

Specification

Item

Model

5609A

12.6 12.8 13.0 14.4 16.8 19.44

±2.5×10

–6

–20~+75°C

±0.3×10

–6

/+3V±5%

+3VDC

1.5mA max

0.8V (Peak to Peak) min

10kΩ//10pF

±1×10

–6

/year

±12.0×10

–6

±25%/+1.5V±1V

09A-1

Standard Frequency

(MHz)

Frequency Stability

Supply Volt Change

Supply Voltage

Current Consumption

Output Voltage

Load

Aging

AFC Charact.

Case Code

0.25g (light & small)

This is “with AFC” version

Surface mount type

(Both laser soldering and low temperature

reflow soldering, please contact us for tem-

perature profile)

Low power consumption (1.5mA max)

Note: Frequency adjustment condition

(1) Adjustment is conducted in room temperature (+25±2°C).

(2) For adjustment, oscillator is placed on the printed board which has

earth pattern.

If you need NON-standing spec. for frequency., Supply Voltage & AFC

charact etc, please contact us.

Dimension

09A-1

+DC

9.0

±0.4

OUTPUT

(mm)

7.0

±0.3

GND

1.8

±0.2

Recommended land pattern

0.9

5.08

0.9

1.8 2.1 2.1 1.8

5.08

±0.2

GND

4.6

±0.2

1.6

1.4

The rectangular marked by a broken line

indicates the mounted oscillator.
