SMD Molded Wire Wound Ferrite Chip Inductors—
1306F series
A. Electrical specifications:
Part
No.
1306F-10N
1306F-12N
1306F-15N
1306F-18N
1306F-22N
1306F-27N
1306F-33N
1306F-39N
1306F-47N
1306F-56N
1306F-68N
1306F-82N
1306F-R10
1306F-R12
1306F-R15
1306F-R18
1306F-R22
1306F-R27
1306F-R33
1306F-R39
1306F-R47
1306F-R56
1306F-R68
1306F-R82
1306F-1R0
1306F-1R2
1306F-1R5
1306F-1R8
1306F-2R2
1306F-2R7
1306F-3R3
1306F-3R9
1306F-4R7
1306F-5R6
1306F-6R8
1306F-8R2
1306F-100
1306F-120
1306F-150
1306F-180
1306F-220
L
(uH)
0.010
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.056
0.068
0.082
0.10
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.00
1.20
1.50
1.80
2.20
2.70
3.30
3.90
4.70
5.60
6.80
8.20
10.0
12.0
15.0
18.0
22.0
Q
Tolerance
(min.)
M, K
M, K
M, K
M, K
M, K
M, K
M, K
M, K
M, K
M, K
M, K
M, K
M, K
M, K
M, K
M, K
M, K
M, K
M, K
M, K
M, K
M, K
M, K
M, K
M, K
M, K
M, K
M, K
M, K
M, K
M, K
M, K
M, K
M, K
M, K
M, K
M, K
M, K
M, K
M, K
M, K
10
10
10
10
15
15
15
15
15
15
15
15
15
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
20
20
20
20
TEST
FREQ.
(MHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
2.52
2.52
2.52
2.52
Rev. A
SRF (min.)
(MHz)
2600
2400
2200
2000
1800
1600
1400
1300
1200
1100
1000
950
850
150
150
150
150
150
150
150
110
100
80
70
60
50
43
40
38
35
33
30
28
26
24
22
20
18
16
14
12
DCR
(Ω) Max.
0.154
0.168
0.196
0.224
0.252
0.280
0.308
0.336
0.364
0.392
0.420
0.434
0.462
0.160
0.170
0.190
0.200
0.230
0.250
0.270
0.310
0.340
0.370
0.410
0.450
0.500
0.560
0.620
0.680
0.760
0.860
1.450
1.600
1.750
2.350
2.600
2.900
3.500
3.750
5.300
6.000
I dc
(mA)
500
490
480
470
460
450
420
400
390
380
370
350
330
500
490
460
450
420
400
380
360
340
330
310
300
280
270
250
240
230
220
170
160
150
130
125
120
105
100
85
80
COLOR
CODE
Black
Brown
Red
Yellow
Green
Blue
Violet
Gray
White
Black
Brown
Red
Yellow
Green
Blue
Violet
Gray
White
Black
Brown
Red
Yellow
Green
Blue
Violet
Gray
White
Black
Brown
Red
Yellow
Green
Blue
Violet
Gray
White
Black
Brown
Red
Yellow
Green
SMD Wire Wound Ferrite Chip Inductor: P/N 1306F-series
Jan. 01, 2006. Page: 1 of 3
Frontier Electronics Corp.
667 E. COCHRAN STREET, SIMI VALLEY, CA 93065
TEL: (805) 522-9998 FAX: (805) 522-9989
E-mail: frontiersales@frontierusa.com
Web:
http://www.frontierusa.com
SMD Wire Wound Ferrite Chip Inductors—
1306F series
B. Dimensions: (Unit: mm)
SERIES
1306F
A (Max.)
3.60
B (Max.)
1.60
C (Max.)
1.60
D (Max.)
2.00
E
1.02
F
1.40

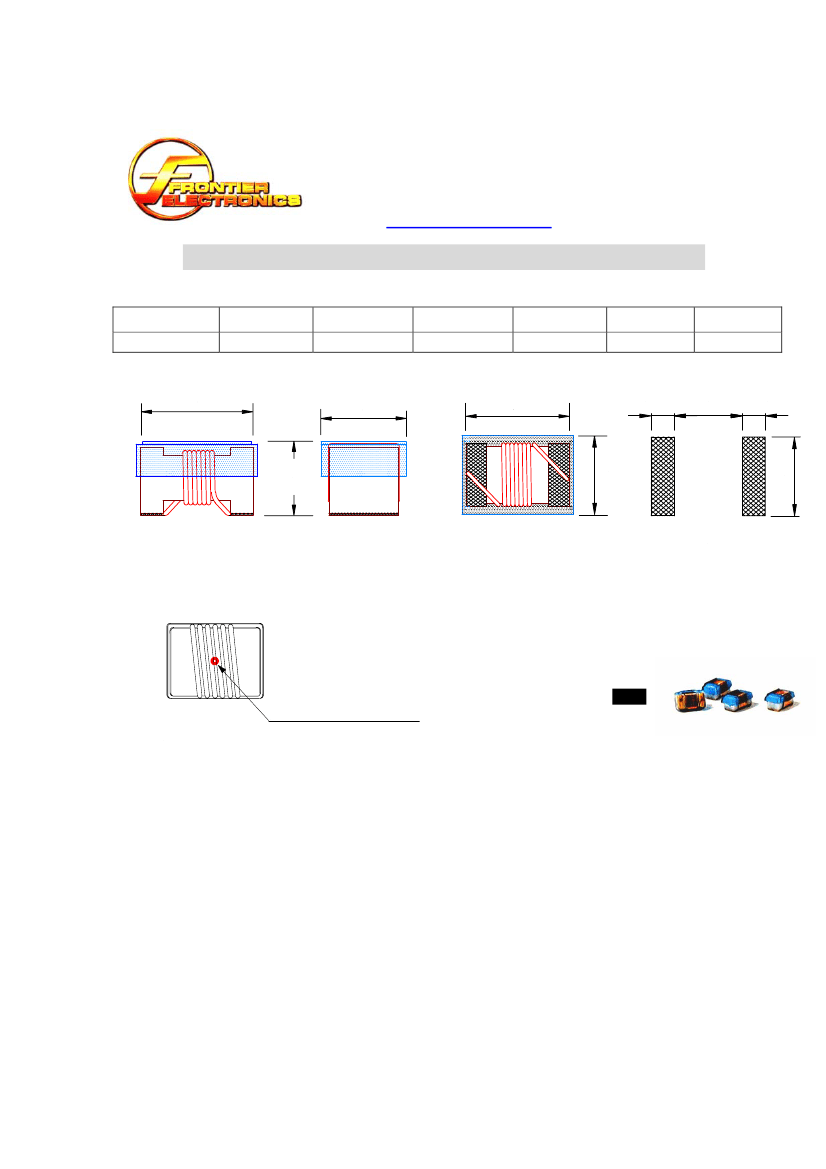

C. Mechanical Drawing:
A
B
3.70 Max.
E
1.60 Max.
D
E
C
Land Pattern
D. Color coding:
1. These parts are marked with single color dot.
2. The dot represented inductance value shows on the table.
0 = Black
1 =
Brown
2 =
Red
3 =
Orange
4 =
Yellow
5=Green
6=Blue
7 =
Violet
8 =
Gray
9 =
White
Identifier for 1306F series.
Color code table
Top view
E. General information:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
Tolerance: M: ± 20%, K: ± 10%, J: ± 5%.
Operating temperature: -40ºC TO +125ºC.
Electrical specifications at 25ºC.
For 15ºC Temperature Rise.
Small and light weight surface mounting type.
Coil body made of ferrite material in chip form.
High Q at high frequency.
High self-resonance frequency.
Inductance & Q measured using the HP4291B.
SRF measured using the HP8720D or HP8753E.
DCR measured using the 502BC.
Inductance & current Range: From 0.010uH (500mA) to 22uH (80mA).
RoHS
compliant.
F.
Applications:
Pagers.
Mobile communication units.
Portable telephone.
Hybrid.
Special specifications are available for customer’s requirement.
SMD Wire Wound Ferrite Chip Inductor: P/N 1306F-series
Rev. A
Jan. 01, 2006. Page: 2 of 3
F
Frontier Electronics Corp.
667 E. COCHRAN STREET, SIMI VALLEY, CA 93065
TEL: (805) 522-9998 FAX: (805) 522-9989
E-mail: frontiersales@frontierusa.com
Web:
http://www.frontierusa.com
SMD Wire Wound Ferrite Chip Inductors—
1306F series

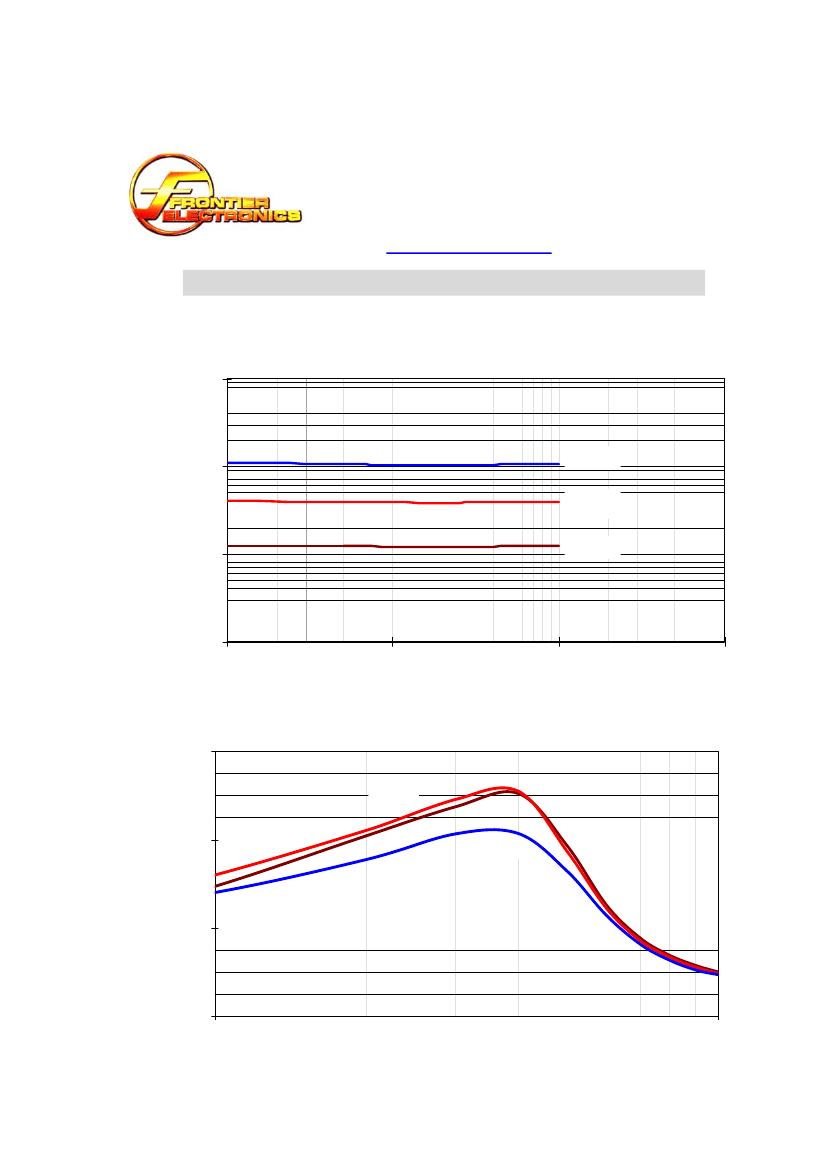

F. Characteristic curve:
1. L vs. Frequency:
10000
Inductance (nH)
1000
1R0K
R39K
R12K
100
10
1
2. Q vs. Frequency:
60
R39K
R12K
10
100
1000
Frequency (MHz)
40
1R0K
Q
20
0
10
Frequency (MHz)
100
SMD Wire Wound Ferrite Chip Inductor: P/N 1306F-series
Rev. A
Jan. 01, 2006. Page: 3 of 3
