B90-004-2842A: DescriptionTelecom and Datacom Connector, 4 Contact(s), Female, Right Angle, Solder Terminal, Socket; CategoryThe connector The connector; File Size79KB，2 Pages; ManufacturerMitsumi Electric Co., Ltd.

Download Datasheet Parametric Compare View All

B90-004-2842A Overview

Telecom and Datacom Connector, 4 Contact(s), Female, Right Angle, Solder Terminal, Socket

B90-004-2842A Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Body/casing type	SOCKET
Connector type	USB CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN LEAD
Shell material	COPPER ALLOY
Termination type	SOLDER
Total number of contacts	4
Base Number Matches	1

Preview

Download Datasheet

View All

MITSUMI

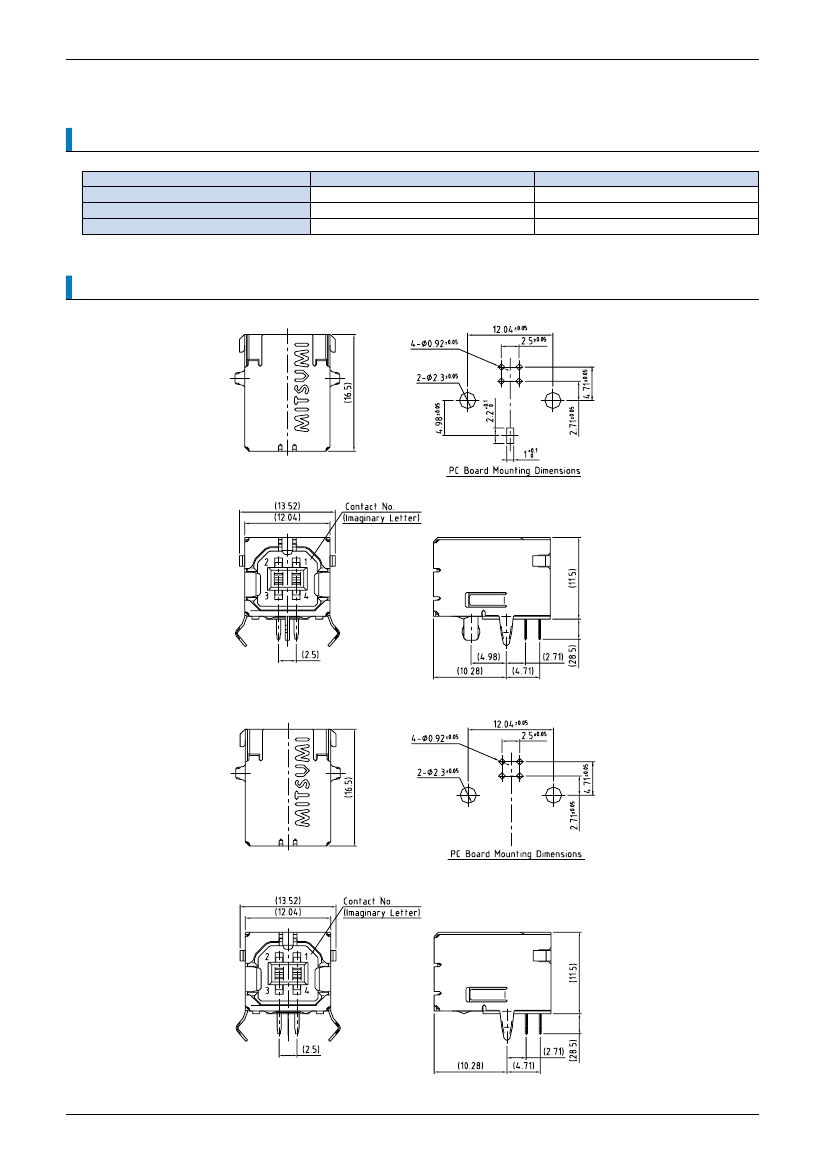

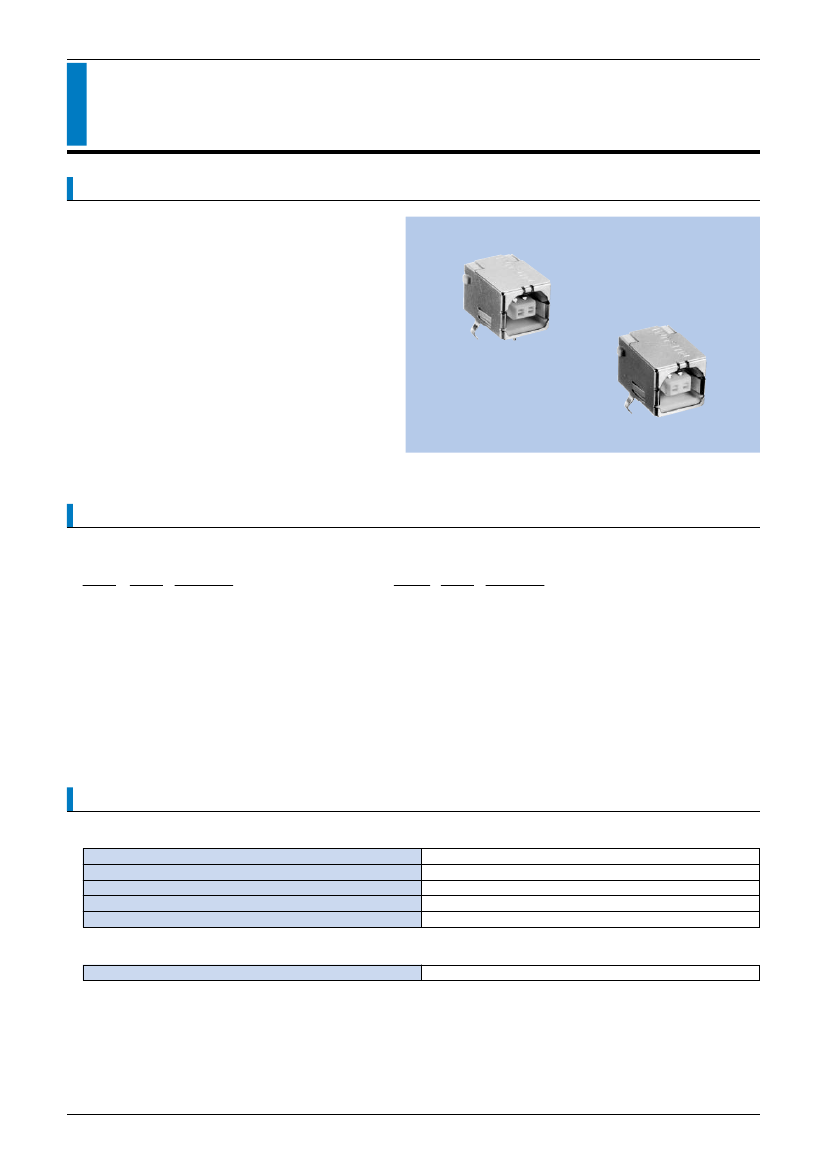

USB Series "B" Connectors

CAM-B89 · B90

Connectors

FEATURES

1. Connector conforming to the USB interface.

2. Socket type CAM-B89, B90 being interfit with

IAM-B88.

3. Supports a strong mechanical load to prevent

terminal damage or bad contacts. (CAM-B89)

HOW TO ORDER

1.CAM-B89

2.CAM-B90

B89-004-2502A

1 Series No.

2 No. of contacts (004 : 4pins)

3 Running No. assigned by us

B90-004-2842A

1 Series No.

2 No. of contacts (004 : 4pins)

3 Running No. assigned by us

SPECIFICATIONS

ELECTRICAL CHARACTERISTICS

Rated Voltage

Rated Current

Withstanding Voltage

Insulation Resistance

Contact Resistance

30V AC (rms)

1A max. /1terminal (Signal only)

750V AC (rms) 1minute

1000MΩ min. (at 500V DC)

30mΩ max.

MECHANICAL CHARACTERISTICS

Life (Matching Cycle)

1,500 times

B90-004-2842A Related Products

	B90-004-2842A	B89-004-2502A
Description	Telecom and Datacom Connector, 4 Contact(s), Female, Right Angle, Solder Terminal, Socket	Telecom and Datacom Connector, 4 Contact(s), Female, Right Angle, Solder Terminal, Socket
Reach Compliance Code	unknown	unknown
Body/casing type	SOCKET	SOCKET
Connector type	USB CONNECTOR	USB CONNECTOR
Contact point gender	FEMALE	FEMALE
DIN compliance	NO	NO
empty shell	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO	NO
Mixed contacts	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN LEAD	TIN LEAD
Shell material	COPPER ALLOY	COPPER ALLOY
Termination type	SOLDER	SOLDER
Total number of contacts	4	4
Base Number Matches	1	1
