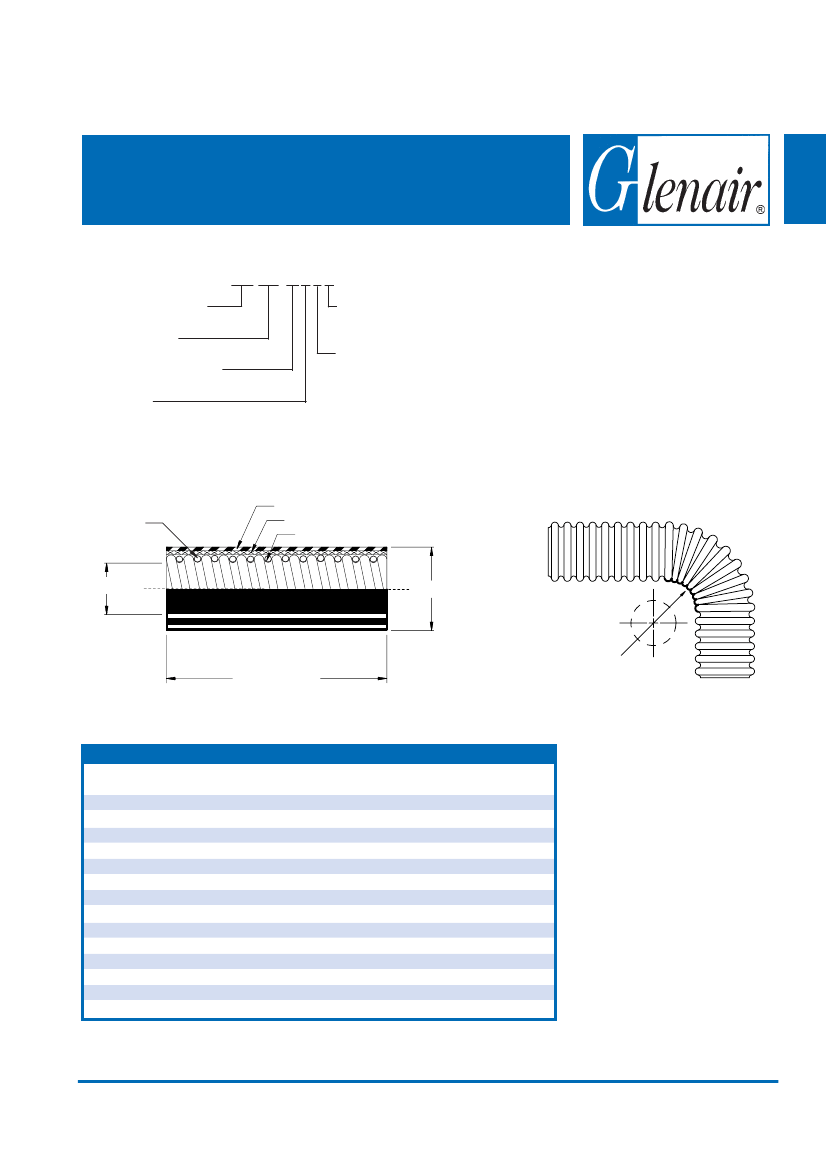

Series 74 Reinforced Helical Convoluted Tubing
No-Hal (PEEK)
with Shielding and Jacketing
127-130-16 B T S
Product Series
Basic No.
Dash No. (Table I)
Color
B = Black
Braided Shield
S = SnCuFe
N = Nickel/Copper
T = Tin/Copper
B = Bronze
S = Stainless Reinforcement Wire
(Omit for None)
NO-HAL
TUBING
EXTERNAL
SHIELD,
JACKET
AND
REINFORCEMENT
WIRE
REINFORCEMENT
WIRE
JACKET
SHIELD
TUBING
A DIA
B DIA
LENGTH
(AS SPECIFIED IN FEET)
MINIMUM
BEND RADIUS
DASH FRACTIONAL
NO.
SIZE REF
06
3/16
09
9/32
10
5/16
12
3/8
14
7/16
16
1/2
20
5/8
24
3/4
28
7/8
32
1
40
1 1/4
48
1 1/2
56
1 3/4
64
2
TABLE I: DASH NUMBER
A INSIDE
B DIA
DIA MIN
MAX
.181
(4.6)
.490 (12.4)
.273
(6.9)
.584 (14.8)
.306
(7.8)
.620 (15.7)
.359
(9.1)
.680 (17.3)
.427 (10.8)
.741 (18.8)
.480 (12.2)
.820 (20.8)
.603 (15.3)
.940 (23.9)
.725 (18.4)
1.100 (27.9)
.860 (21.8)
1.243 (31.6)
.970 (24.6)
1.396 (35.5)
1.205 (30.6)
1.709 (43.4)
1.437 (36.5)
2.002 (50.9)
1.688 (42.9)
2.327 (59.1)
1.937 (49.2)
2.502 (63.6)
MINIMUM
BEND RADIUS
.50 (12.7)
.75 (19.1)
.75 (19.1)
.88 (22.4)
1.00 (25.4)
1.25 (31.8)
1.50 (38.1)
1.75 (44.5)
1.88 (47.8)
2.25 (57.2)
2.75 (69.9)
3.25 (82.6)
3.63 (92.2)
4.25 (108.0)
1. Packages and Spools identified with
manufacturer's name and part number.
2. Unless otherwise specified, conduit
will be shipped per standard package.
Min. length supplied will be 10 ft. with
a max of 4 lengths per package.
3. Material/Finish:
Convoluted Tubing - PEEK,
Halogen Free, Black
Braided Shield - See Part Number
Development.
Jacket - Silicone, Halogen Free, Grey
.080 Wall Thickness.
Reinforcement Wire - 302 Cres I.A.W.
ASTM A 313/N.A.
Metric dimensions (mm) are in parentheses.
© 2004 Glenair, Inc.
CAGE Codes 06324
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
No-Hal
Tubing
127-130
