UMC4N-TP-HF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> UMC4N-TP-HF

UMC4N-TP-HF: DescriptionSmall Signal Bipolar Transistor, 0.1A I(C), 2-Element, NPN and PNP, Silicon,; CategoryDiscrete semiconductor The transistor; File Size454KB，3 Pages; ManufacturerMicro Commercial Components (MCC); Environmental Compliance

Download Datasheet Parametric Compare View All

UMC4N-TP-HF Overview

Small Signal Bipolar Transistor, 0.1A I(C), 2-Element, NPN and PNP, Silicon,

UMC4N-TP-HF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum collector current (IC)	0.1 A
Minimum DC current gain (hFE)	68
Humidity sensitivity level	1
Number of components	2
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	NPN/PNP
Maximum power dissipation(Abs)	0.15 W
surface mount	YES
Maximum time at peak reflow temperature	10
Transistor component materials	SILICON
Base Number Matches	1

Preview

Download Datasheet

View All

MCC

Micro Commercial Components

omponents

20736 Marilla

Street Chatsworth

!"#

$ % !"#

UMC4N

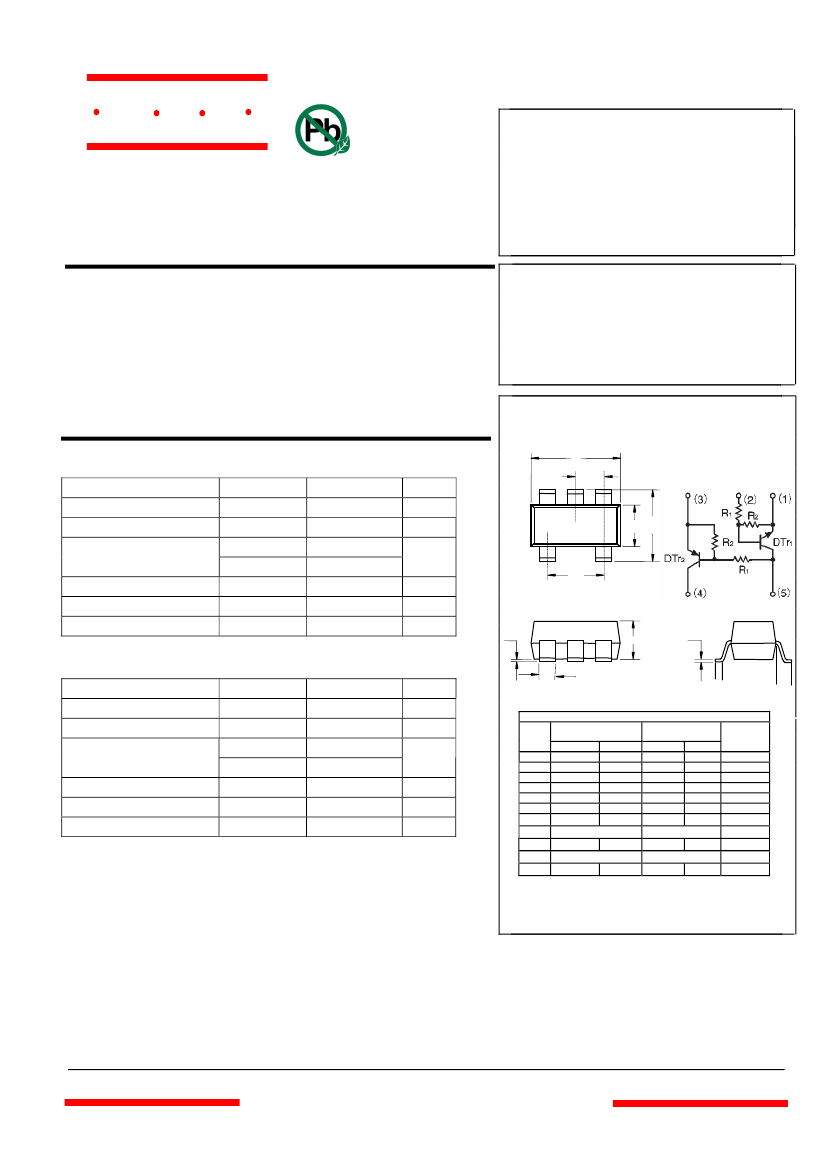

Features

•

DTC144E and DTA114Y transistors are built-in a package

Lead Free Finish/RoHS Compliant ("P" Suffix designates

RoHS Compliant. See ordering information)

Epoxy meets UL 94 V-0 flammability rating

Moisure Sensitivity Level 1

Halogen

free available upon request by adding suffix "-HF"

DIGITAL TRANSISTOR

MARKING:C4

NPN DTC144E Absolute maximum ratings (T

=25

C(MAX)

Tstg

SOT-353

-10~40

100

150

-55~150

C(MAX)

Tstg

-50

-40~ +6

-70

-100

150

-55~150

DIM

.010

.047

DIMENSIONS

INCHES

MIN

MAX

---

.004

.035

.039

.006

.014

.003

.006

0.79

.087

.045

.053

.085

.096

.026TYP

.055

.021REF

.018

MIN

---

0.900

0.150

0.080

2.000

1.150

2.150

1.200

0.260

MAX

0.100

1.000

0.350

0.150

2.200

1.350

2.450

1.400

0.460

NOTE

0.650TYP

0.525REF

Revision:

www.mccsemi.com

2013/01/01

UMC4N-TP-HF Related Products

	UMC4N-TP-HF	UMC4N-TP
Description	Small Signal Bipolar Transistor, 0.1A I(C), 2-Element, NPN and PNP, Silicon,	Small Signal Bipolar Transistor, 0.1A I(C), 2-Element, NPN and PNP, Silicon,
Is it Rohs certified?	conform to	conform to
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Maximum collector current (IC)	0.1 A	0.1 A
Minimum DC current gain (hFE)	68	68
Humidity sensitivity level	1	1
Number of components	2	2
Peak Reflow Temperature (Celsius)	260	260
Polarity/channel type	NPN/PNP	NPN/PNP
Maximum power dissipation(Abs)	0.15 W	0.15 W
surface mount	YES	YES
Maximum time at peak reflow temperature	10	10
Transistor component materials	SILICON	SILICON
Base Number Matches	1	1
