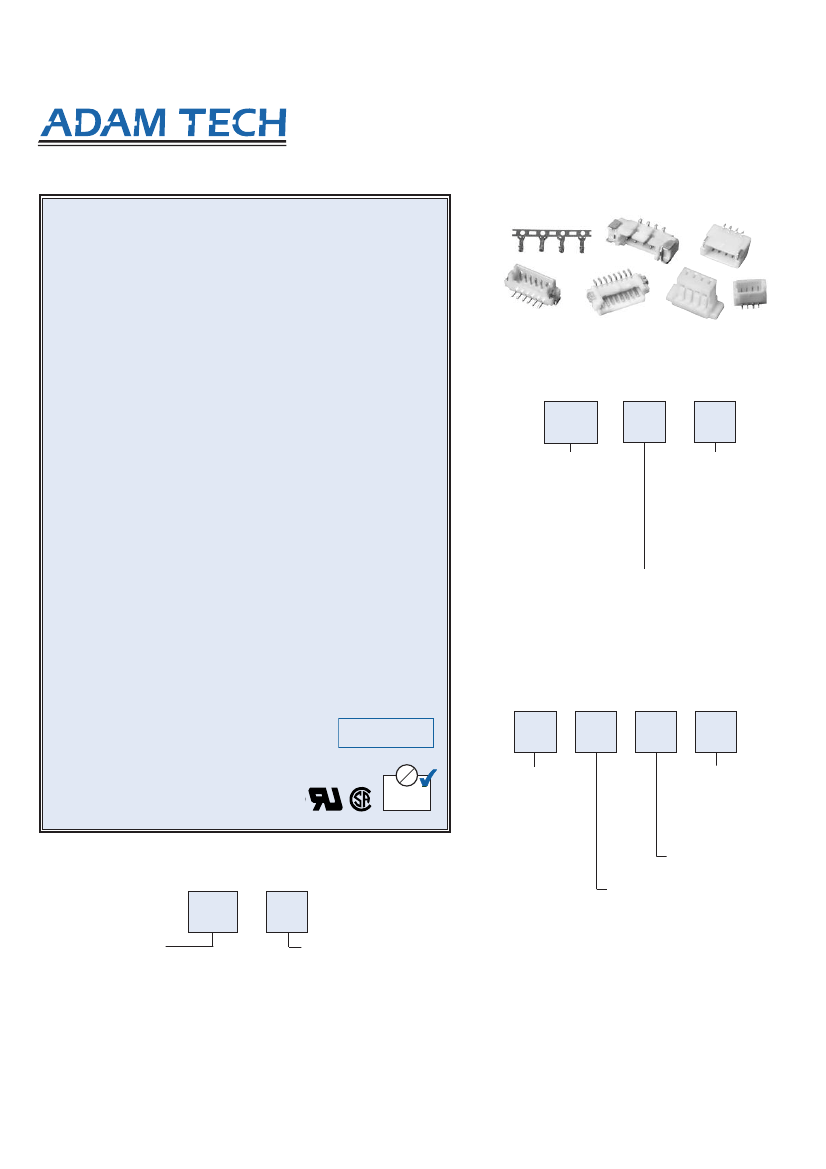

HEADER & HOUSING SYSTEMS
Adam Technologies, Inc.
.8mm, 1mm, 1.25mm, 1.5mm, 2mm & 2.5mm
2CH & 2SH SERIES
INTRODUCTION:
Adam Tech 2CH & 2SH Series of multiple pitch Headers and
Housings are a matched set of Crimp Wire Housings and PCB
mounted Shrouded Headers available in Straight, Right Angle or
SMT orientation. Offered in three popular industry standard styles
they provide a lightweight, fine pitched, polarized, high reliability
connection system.
FEATURES:
Multiple pitches and configurations
Matched Housing & Header system
Straight, Right Angle or SMT Headers
Sure fit, Fine Pitched & Polarized
MATING CONNECTORS:
Each set has male and female mate
SPECIFICATIONS:
Material:
Insulator: PBT, glass reinforced, rated UL94V-0
Nylon 66, rated UL94V-0
Contacts: Brass
Plating:
Tin over copper underplate overall
Electrical:
Operating voltage: 100V AC max.
Current rating: 0.5 - 3 Amps max.
Insulation resistance: 1000 MΩ min.
Dielectric withstanding voltage: 800V AC for 1 minute
Mechanical:
Insertion force: 1.28 lbs max
Withdrawal force: 0.180 lbs min.
Temperature Rating:
HI-TEMP
Operating temperature: -55°C to +125°C
INSULATOR
AVA I L A B L E
ORDERING INFORMATION
CRIMP HOUSING
2CH
SERIES INDICATOR
1
CH
= 1.00mm Single Row
125
CH
= 1.25mm Single Row
15
CH
= 1.50mm Single Row
2
CH
= 2.00mm Single Row
2
CH2
= 2.0mm Dual Row
25
CH
= 2.50mm Single Row
B
04
TOTAL NO. OF POSITIONS
02 thru 25 (Body style A1)
04 thru 50 (Body style A2)
02 thru 15(Body styles A,
B & C)
BODY STYLE
A
= Body Style "A"
B
= Body Style "B"
C
= Body Style "C"
ORDERING INFORMATION
SHROUDED HEADER
2SH
SERIES INDICATOR
08
SH
= 0.80mm
Single Row
1S
H
= 1.00mm
Single Row
125
SH
= 1.25mm
Single Row
15
SH
= 1.50mm
Single Row
2
SH
= 2.0mm
Single Row
25
SH
= 2.50mm
Single Row
B
04
TS
PIN ANGLE
IDC
= Pre-installed
crimp contacts
(08SH Type only)
TS
= Straight PCB
TR
= Right Angle PCB
POSITIONS
02 thru 25
SAFETY AGENCY APPROVALS:
UL Recognized File No. E224053
CSA Certified File No. LR1578596
Pb
UL
®
®
®
E
D
COMPLIANT
2002
/ 95
/ EC
RoHS
V
ORDERING INFORMATION
CRIMP CONTACT
2CTA
SERIES INDICATOR
1CTA
= 1.00mm Body Style "A" Contact
125CTA
= 1.25mm Body Style "A" Contact
125CTB
= 1.25mm Body Style "B" Contact
125CTC
= 1.25mm Body Style "C" Contact
15CTA
= 1.50mm Body Style "A" Contact
15CTB
= 1.50mm Body Style "B" Contact
2CTB
= 2.00mm Body Style "B" Contact
2CTC
= 2.00mm Body Style "C" Contact
25CTB
= 2.50mm Body Style "B" Contact
25CTC
= 2.50mm Body Style "C" Contact
RoHS
COMPLIANT
R
PACKAGING
R
= 10,000 Piece Reel
B
= 1,000 Piece Loose Cut
BODY STYLE
A
= Body Style "A"
B
= Body Style "B"
C
= Body Style "C"
OPTIONS:
Add designator(s) to end of part number
SMT
= Surface mount leads with Hi-Temp insolator
268
909 Rahway Avenue
•
Union, New Jersey 07083
•
T: 908-687-5000
•
F: 908-687-5710
•
WWW.ADAM-TECH.COM
