BZH09/A0120/74

Description
Mains Power Connector, 1A, 250VAC, Female and Male, Solder Terminal
CategoryThe connector    The connector
File Size61KB,1 Pages
ManufacturerBULGIN
Websitehttp://www.bulgin.co.uk/
Environmental Compliance
Download Datasheet Parametric View All

BZH09/A0120/74 Overview

Mains Power Connector, 1A, 250VAC, Female and Male, Solder Terminal

BZH09/A0120/74 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompliant
Other featuresPOLYSNAP
Connector typeMAINS POWER CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE AND MALE
Contact materialNOT SPECIFIED
Coupling typeSNAP
DIN complianceNO
IEC complianceNO
MIL complianceNO
Power Connector Ratings1A, 250VAC
Manufacturer's serial numberBZH09
Installation typePANEL
OptionsGENERAL PURPOSE
Termination typeSOLDER
Total number of contacts6
Base Number Matches1

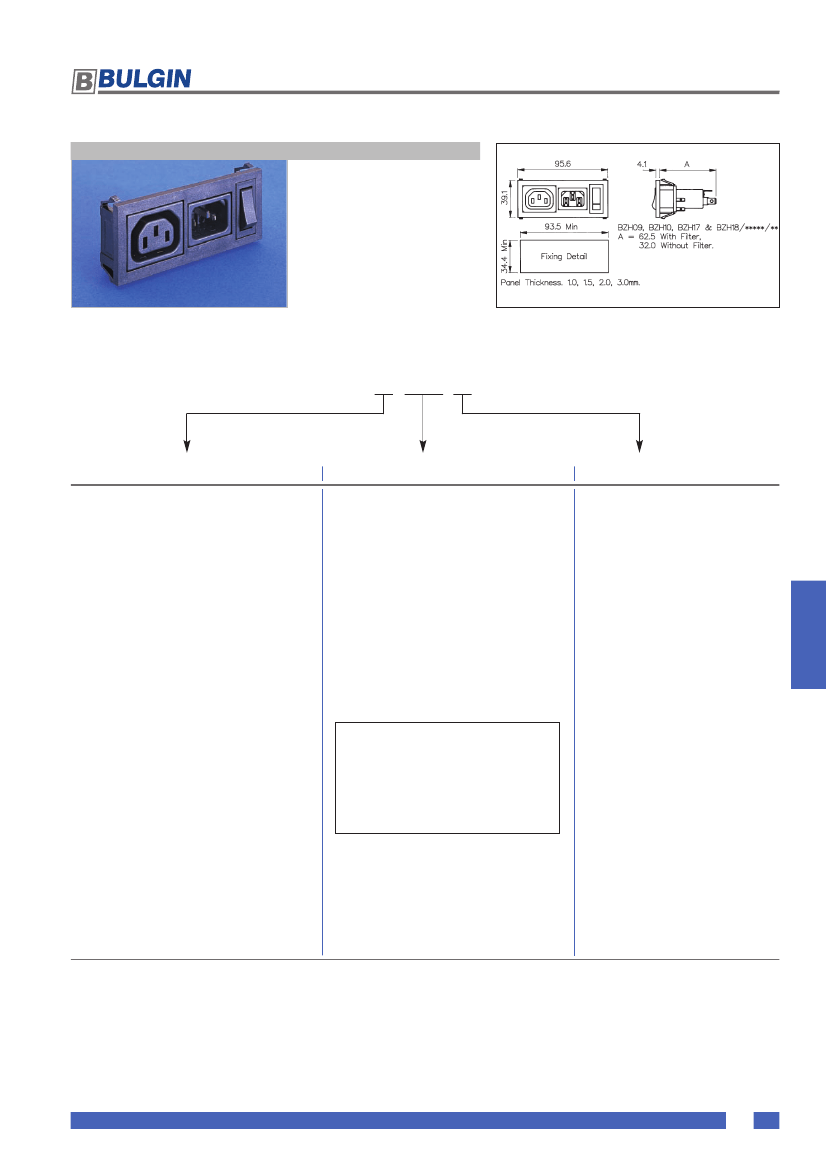

POLYSNAP
®
POWER INLET MODULES
C14 IEC Inlet/Sheet F IEC Outlet - Horizontal
HORIZONTAL MODULE ARRANGEMENT
Inlet/Outlet Combination
with 2.8mm or 6.3mm tags
Shuttered or Non-Shuttered
Outlet
Single Pole Switch Variations
Filtered Inlet Option
Options of I/O marked
switches
BZH09/Z0000/01
How to Order
BZH xx / xxxxx / xx
Type of Inlet / Outlet
C14 Power Inlet (cold condition) and Sheet F
Non-shuttered Power Outlet, 2.8 or 6.3mm tabs:
09
= PX0575/63 + PX0695/63
10
= PX0575/28 + PX0695/28
C14 Power Inlet (cold condition) and Sheet F
Shuttered Power Outlet , 2.8 or 6.3mm tabs:
17
= PX0575/63 + PX0783/63
18
= PX0575/28 + PX0783/28
Filtered or Non Filtered Inlet
Z0000 = Non Filtered
Axxxx = Standard
Bxxxx = Medical
Combination of Other Components
Single Pole Switch:
01
= S.P Switch
.
Single Pole Neon Switch:
Neon Indicator:
03
= Red Neon Indicator
Single Pole High Inrush Switch:
46
= S.P High Inrush Switch
.
For Filtered inlet use 6th to 9th characters from
filter ordering code see pages 125-126.
E.g. BZH09/A0120/01
Single Pole Switch Marked I/O:
69
= S.P Switch (I/O)
.
Single Pole Neon Switch Marked (I/O):
71
= S.P Red Neon Switch (I/O)
.
74
= S.P Green Neon Switch (I/O)
.
Single Pole High Inrush Switch Marked
(I/O):
98
= S.P High Inrush Switch (I/O)
.
Note: For technical details of individual components please see page 106
www.elektron-bulgin.com
119
IEC CONNECTORS
02
= S.P Red Neon Switch
.
08
= S.P Green Neon Switch
.
