D2523B6PA00LFTRUE datasheet, PDF

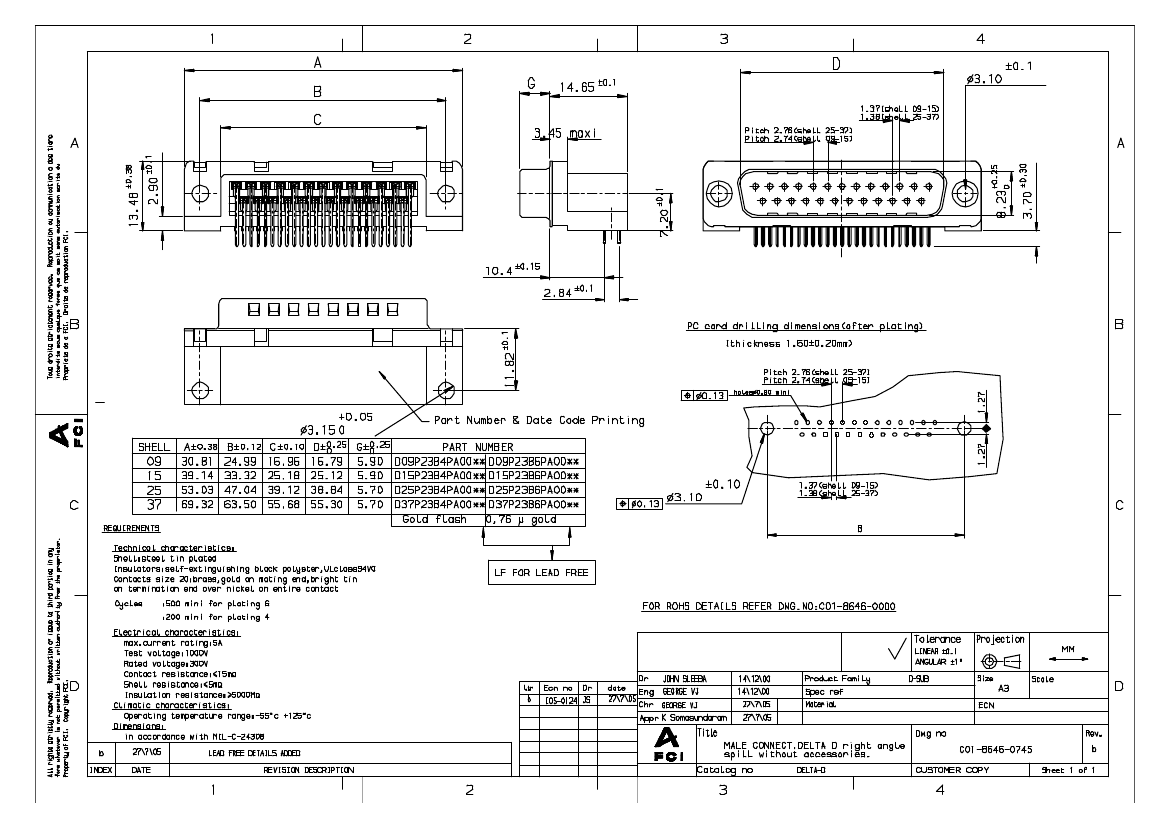

D2523B6PA00LFTRUE: DescriptionD Subminiature Connector, 25 Contact(s), Male, Solder Terminal, LEAD FREE; CategoryThe connector The connector; File Size89KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

D2523B6PA00LFTRUE Overview

D Subminiature Connector, 25 Contact(s), Male, Solder Terminal, LEAD FREE

Parameter Name	Attribute value
package instruction	LEAD FREE
Reach Compliance Code	compliant
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYESTER
MIL compliance	NO
Manufacturer's serial number	D2523B6PA00LF
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	3/B
Termination type	SOLDER
Total number of contacts	25
UL Flammability Code	94V-0
Base Number Matches	1

PDM: Rev:B

STATUS:

Released

Printed: Nov 25, 2005

.

	D2523B6PA00LFTRUE	D1523B4PA00LFTRUE	D1523B6PA00LFTRUE	D2523B4PA00LFTRUE
Description	D Subminiature Connector, 25 Contact(s), Male, Solder Terminal, LEAD FREE	D Subminiature Connector, 15 Contact(s), Male, Solder Terminal, LEAD FREE	D Subminiature Connector, 15 Contact(s), Male, Solder Terminal, LEAD FREE	D Subminiature Connector, 25 Contact(s), Male, Solder Terminal, LEAD FREE
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	compliant	compliant	compliant	compliant
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO
empty shell	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
insulator material	POLYESTER	POLYESTER	POLYESTER	POLYESTER
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	D2523B6PA00LF	D1523B4PA00LF	D1523B6PA00LF	D2523B4PA00LF
Mixed contacts	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL
Housing size	3/B	2/A	2/A	3/B
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	25	15	15	25
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1
