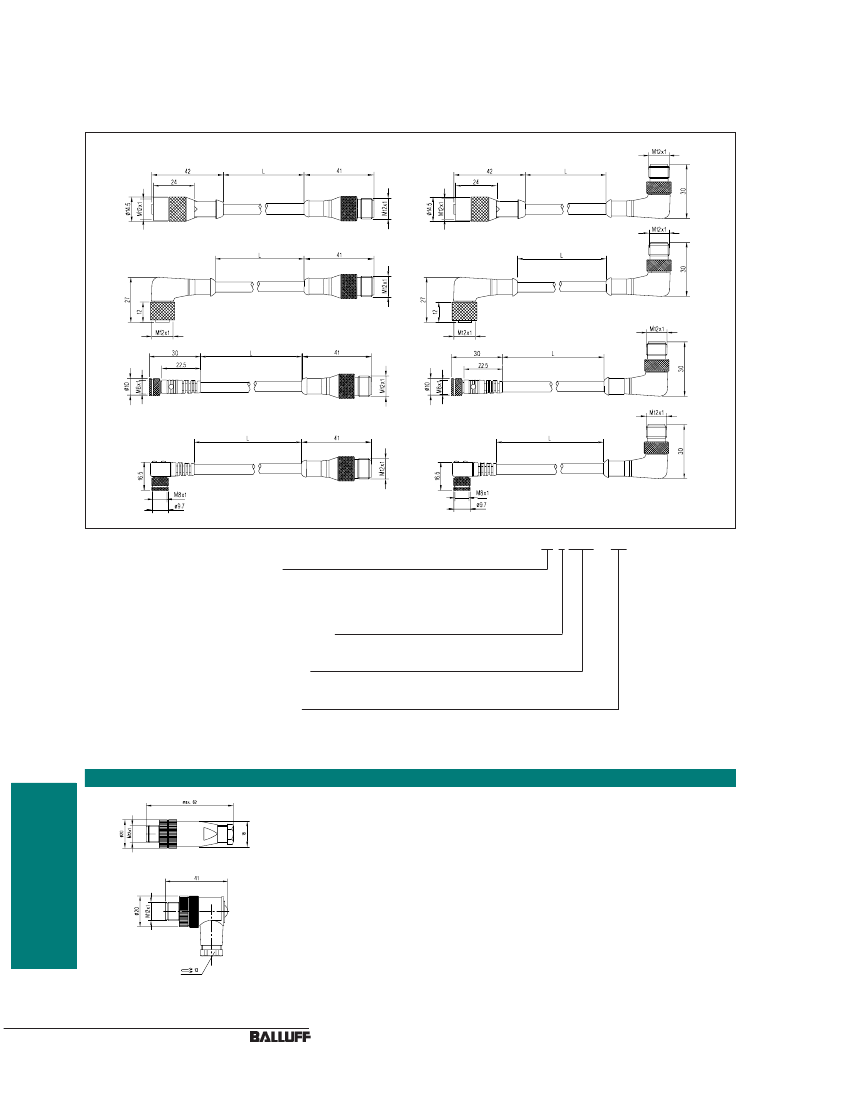

DC Micro Style
Interface Block Cordsets
BKS-S19-1-S19M-PU
BKS-S19-1-S20M-PU
BKS-S20-4-S19M-PU
BKS-S20-4-S20M-PU
BKS-S48-1-S19M-PU
BKS-S48-1-S20M-PU
BKS-S49-4-S19M-PU
BKS-S49-4-S20M-PU
BKS-S19-1-S19M-PU-00.3
Sensor connector
S19 = 4-pin "micro" straight
S20 = 4-pin "micro" right angle
S48 = 3-pin straight
S49 = 3-pin right angle
Sensor connector configuration
1=3 pin N/O; PNP or NPN (No LED's)
4=3 pin N/O; PNP; LED's
Interface block connector
S19M - STRAIGHT
S20M - RIGHT ANGLE
Cable length in meters
Standard lengths: 0.3, 0.6, 1.0, 1.5, 2.0
Custom length cordsets can be made by attaching a male in-line connector to a standard DC connector.
Sensor Interface Block Connector
BKS-S19M-IN-LINE
Materials
Molded body.................................. PA 6.6 GV, VO acc. to UL 94, black
Contact........................................... CuZn, brass, pre-nickeled
and 5 microns tin plated
Locking nut..................................... CuZn, brass, 2.0 microns nickeled
Mechanical Data
Protection....................................... IP 67-NEMA 4, 4x, 6, 12, 13
Mode of connection........................ Screw clamps
Cable diameter............................... 4...6mm
Electrical Data
Nominal current.............................. 4A
Nominal voltage............................. 125 V AC/150 V DC
Connectors
BKS-S20M-IN-LINE
E22
1-800-543-8390
www.balluff.com
