SMD Wire Wound Ferrite Chip Inductors—
1210F series
A. Electrical specifications:
Part
No.
1210F-10N
1210F-12N
1210F-15N
1210F-18N
1210F-22N
1210F-27N
1210F-33N
1210F-39N
1210F-47N
1210F-56N
1210F-68N
1210F-82N
1210F-R10
1210F-R12
1210F-R15
1210F-R18
1210F-R22
1210F-R27
1210F-R33
1210F-R39
1210F-R47
1210F-R56
1210F-R68
1210F-R82
1210F-1R0
1210F-1R2
1210F-1R5
1210F-1R8
1210F-2R2
1210F-2R7
1210F-3R3
1210F-3R9
1210F-4R7
1210F-5R6
1210F-6R8
1210F-8R2
1210F-100
1210F-120
1210F-150
1210F-180
1210F-220
1210F-270
1210F-330
1210F-390
1210F-470
1210F-560
1210F-680
1210F-820
1210F-101
1210F-121
1210F-151
1210F-181
1210F-221
1210F-271
1210F-331
1210F-391
1210F-471
L
(uH)
0.010
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.056
0.068
0.082
0.10
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.00
1.20
1.50
1.80
2.20
2.70
3.30
3.90
4.70
5.60
6.80
8.20
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
Tolerance
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
Q
(Min.)
15
17
19
21
23
23
25
25
26
26
27
27
28
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
20
20
20
20
20
20
20
20
20
TEST FREQ.
(MHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.796
SRF (min.)
(MHz)
2500
2300
2100
1900
1700
1500
1400
1300
1200
1100
1000
900
700
500
450
400
350
320
300
250
220
180
160
140
120
100
85
80
75
70
60
55
50
45
40
35
30
20
20
20
20
20
17
16
15
13
12
11
10
10
8
7
7
6
5
5
4
DCR
Ω
(Max)
0.13
0.14
0.16
0.18
0.20
0.22
0.24
0.27
0.30
0.33
0.36
0.40
0.44
0.22
0.25
0.28
0.32
0.36
0.40
0.45
0.50
0.55
0.60
0.65
0.70
0.75
0.85
0.90
1.00
1.10
1.20
1.30
1.50
1.60
1.80
2.00
2.10
2.50
2.80
3.30
3.70
5.00
5.60
6.40
7.00
8.00
9.00
10.0
10.0
11.0
15.0
17.0
21.0
28.0
34.0
42.0
40.0
I dc
(mA)
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
400
390
370
350
320
290
260
250
220
200
180
170
150
140
130
120
110
80
70
65
60
55
50
45
40
70
65
60
50
45
40
35
25
COLOR CODE
1st
1st
1st
Brown
Brown
Brown
Brown
Red
Red
Orange
Orange
Yellow
Green
Blue
Gray
Brown
Brown
Brown
Brown
Red
Red
Orange
Orange
Yellow
Green
Blue
Gray
Brown
Brown
Brown
Brown
Red
Red
Orange
Orange
Yellow
Green
Blue
Gray
Brown
Brown
Brown
Brown
Red
Red
Orange
Orange
Yellow
Green
Blue
Gray
Brown
Brown
Brown
Brown
Red
Red
Orange
Orange
Yellow
Black
Red
Green
Gray
Red
Violet
Orange
White
Violet
Blue
Gray
Red
Black
Red
Green
Gray
Red
Violet
Orange
White
Violet
Blue
Gray
Red
Black
Red
Green
Gray
Red
Violet
Orange
White
Violet
Blue
Gray
Red
Black
Red
Green
Gray
Red
Violet
Orange
White
Violet
Blue
Gray
Red
Black
Red
Green
Gray
Red
Violet
Orange
White
Violet
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
Brown
Brown
Brown
Brown
Brown
Brown
Brown
Brown
Brown
Brown
Brown
Brown
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Orange
Orange
Orange
Orange
Orange
Orange
Orange
Orange
Orange
Orange
Orange
Orange
Yellow
Yellow
Yellow
Yellow
Yellow
Yellow
Yellow
Yellow
Yellow
SMD Wire Wound Ferrite Chip Inductor: P/N 1210F-series
Rev. A
Jan. 01, 2006. Page: 1 of 3
Frontier Electronics Corp.
667 E. COCHRAN STREET, SIMI VALLEY, CA 93065
TEL: (805) 522-9998 FAX: (805) 522-9989
E-mail: frontiersales@frontierusa.com
Web:
http://www.frontierusa.com
SMD Wire Wound Ferrite Chip Inductors—
1210F series
B. Dimensions: (Unit: mm.)
SERIES
1210F
A (Max.)
3.70
B (Max.)
2.50
C (Max.)
2.10
D (Max.)
2.30
E
1.14
F
2.20

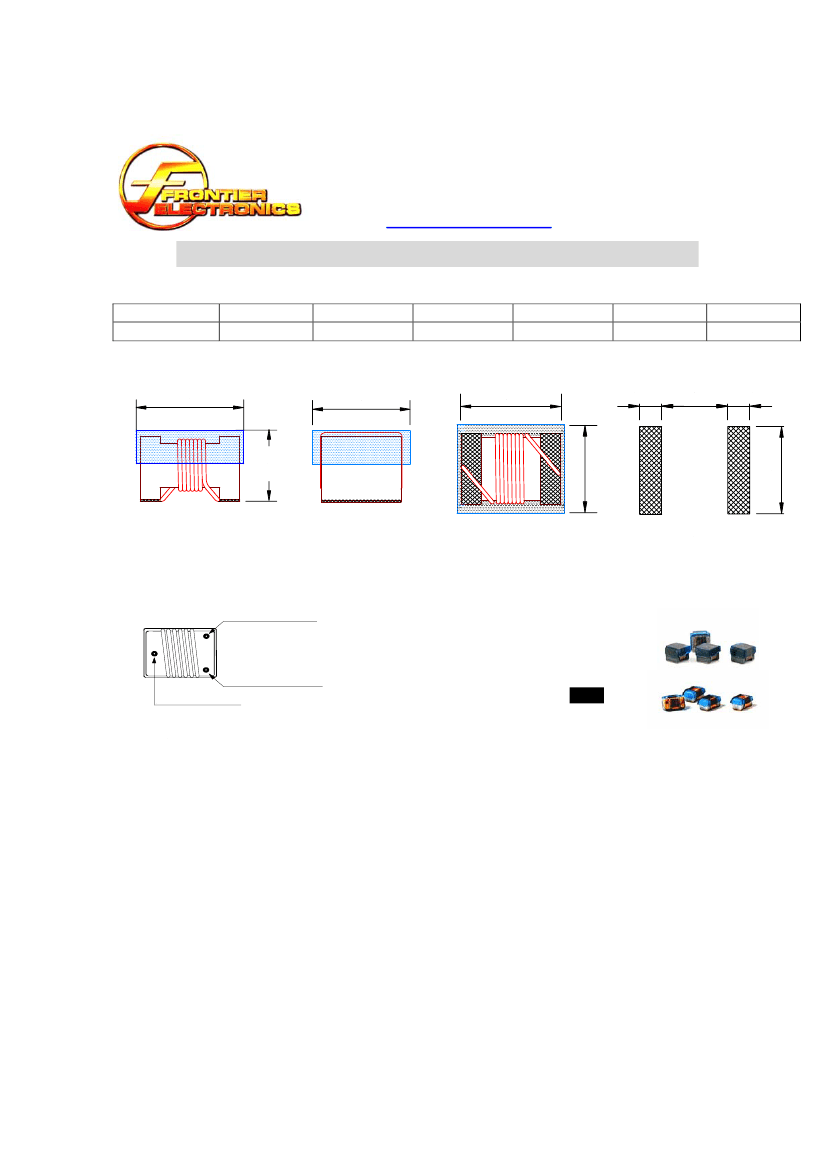

C. Mechanical drawing:
A
B
3.70 Max.
E
D
E
D. General information:
1.
2.
3.
Land Pattern
These parts are marked with 3 color dots. The table at below shows the significance of each color.
Dots 1 and 2 indicate the inductance in nano-Henries.
Dots 3 indicate number of zeroes to be added.
2nd: inductance
1st : Inductance
3rd Multiplier
0 = Black
1 =
Brown
2 =
Red
3 =
Orange
4 =
Yellow
5=Green
6=Blue
7 =
Violet
8 =
Gray
9 =
White
Color code table
Top view
E. General information:
Tolerance: K: ± 10%, J: ± 5%.
Operating temperature: -40ºC TO +125ºC.
Electrical specifications at 25ºC.
For 15ºC Temperature Rise.
Small and light weight surface mounting type.
Coil body made of ferrite material in chip form.
Inductance & Q measured using the HP4291B.
SRF measured using the HP8720D or HP8753E.
Rdc measured using the 502BC.
Inductance & current Range:
From 0.010 uH (450 mA) to 470 uH (25 mA).
11.
RoHS
compliant.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
F.
Applications:
Pagers.
Mobile communication units.
Portable telephone.
Hybrid.
Special specifications are available for customer’s requirement.
SMD Wire Wound Ferrite Chip Inductor: P/N 1210F-series
Rev. A
Jan. 01, 2006. Page: 2 of 3
F
C
2.50 Max.
Frontier Electronics Corp.
667 E. COCHRAN STREET, SIMI VALLEY, CA 93065
TEL: (805) 522-9998 FAX: (805) 522-9989
E-mail: frontiersales@frontierusa.com
Web:
http://www.frontierusa.com
SMD Wire Wound Ferrite Chip Inductors—
1210F series

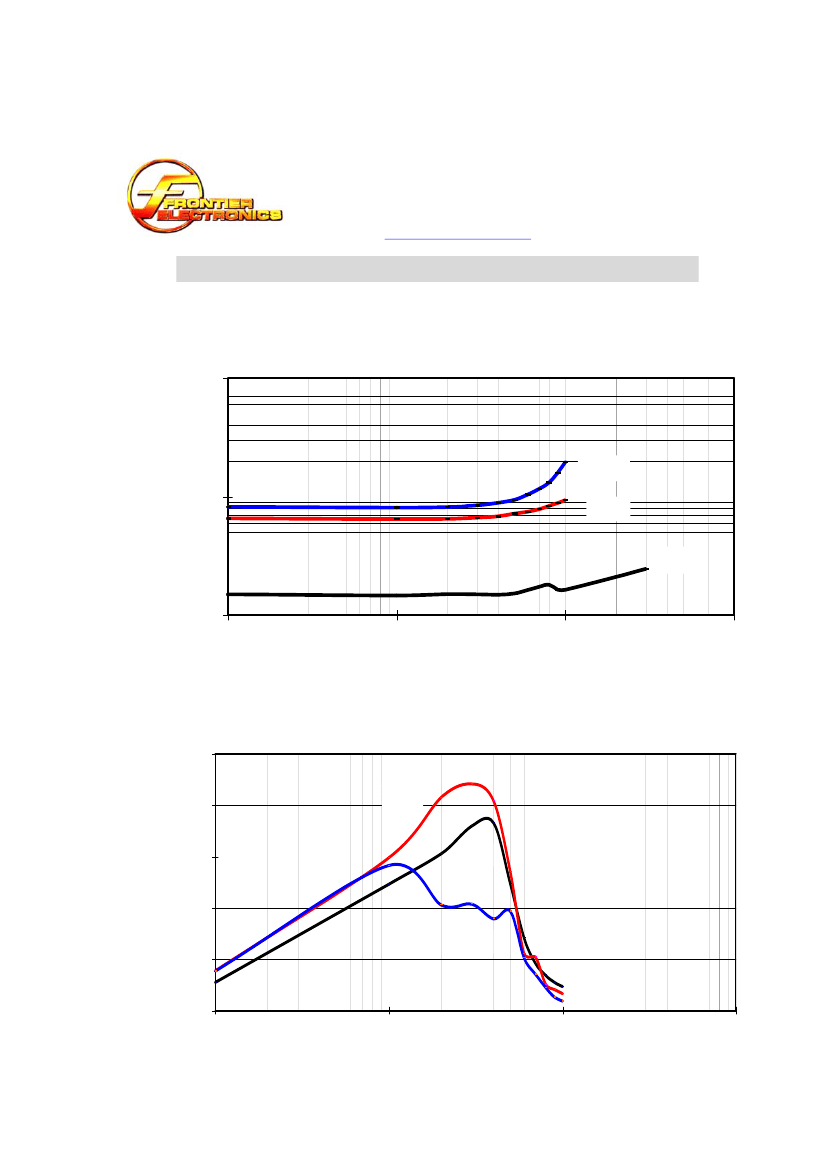

F. Characteristic curve:
