1/4" x 1-1/4" Fuses
ABC Series, Fast Acting, Ceramic Tube
Description
• Fast-acting, ceramic tube
• Optional axial leads available
• 1/4 x 1-1/4 (6.3mm x 32mm) physical size
• Ceramic tube, nickel-plated brass endcap construction
• UL Listed product meets standard 248-14
ELECTRICAL CHARACTERISTICS
% of Amp Rating
Opening Time
100%
4 Hours Minimum
135%
60 Minutes maximum
200%
120 Seconds Maximum
RoHS
2002/95/EC
Agency Information
• UL Listed Guide & File numbers (ABC 1/4 - 15A):
JDYX & E19180.
• UL Recognition Guide & File numbers (ABC 18 - 30A):
JDYX2 & E19180.
• CSA Certification Record No: 053787 C 000 &
Class No: 1422 01 & 1422 30.
Environmental Data
• Shock: 1/4A and 1/2A – MIL-STD-202,
Method 213, Test Condition I;
1A thru 30A – MIL-STD-202, Method 207,
(HI Shock)
• Vibration: 1/4A thru 30A – MIL-STD-202,
Method 204, Test Condition C (Except 5g, 500HZ)
Ordering
• Specify packaging, product, and option code

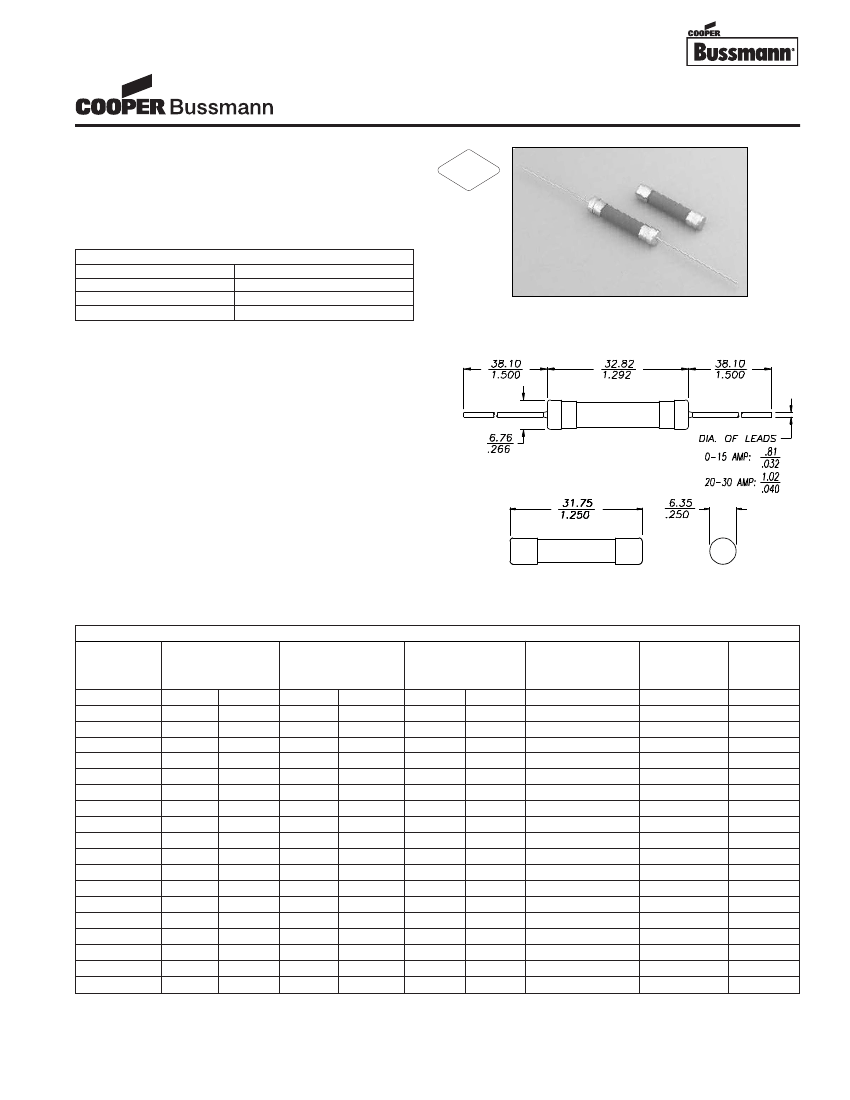

Dimensions
(
mm
⁄
in
)
Drawing Not to Scale
SPECIFICATIONS
Product
Code
ABC-1/4
ABC-1/2
ABC-3/4
ABC-1
ABC-1-1/2
ABC-2
ABC-2-1/2
ABC-3
ABC-4
ABC-5
ABC-6
ABC-7
ABC-8
ABC-10
ABC-12
ABC-15
ABC-20
ABC-25
ABC-30
Voltage
Rating
AC
DC
125V
250V
250V
125V
250V
125V
250V
125V
250V
125V
125V
250V
250V
125V
250V
125V
250V
125V
250V
125V
250V
125V
250V
125V
250V
125V
250V
125V
250V
125V
250V
125V
250V
125V
125V
125V
125V
125V
AC Interrupting
Rating
250V
125V
10000A
35A
35A
10000A
35A
10000A
35A
10000A
100A
10000A
10000A
100A
100A
10000A
100A
10000A
200A
10000A
200A
10000A
200A
10000A
200A
10000A
200A
10000A
200A
10000A
750A
10000A
750A
10000A
400A
1000A
1000A
-
-
1000A
DC Interrupting
Rating
125V
75V
10000A
-
10000A
-
10000A
-
10000A
-
10000A
-
10000A
-
10000A
-
10000A
-
10000A
-
10000A
-
10000A
-
10000A
-
10000A
-
10000A
-
10000A
-
10000A
-
10000A
-
1000A
400A
400A
1000A
Typical DC Cold
Resistance**
(ohms)
3.000
0.788
0.303
0.197
0.1175
0.0755
0.05875
0.0435
0.02975
0.0286
0.02315
0.0183
0.0146
0.01205
0.0068
0.005425
0.00366
0.00263
0.002225
Typical
Melting I
2
t†
AC
0.02
0.19
0.8
1.4
2.9
4.2
8.53
19.5
29.1
16.4
31.6
73.2
111.9
215.6
129.6
200.2
550.8
839.3
1,429
Typical
Voltage
Drop‡
3.25
0.51
0.42
0.35
0.35
0.25
0.26
0.25
0.25
0.23
0.24
0.20
0.17
0.15
0.11
0.12
0.13
0.12
0.14
** DC Cold Resistance (Measured at
≤10%
of rated current)
† Typical Melting I
2
t (A
2
Sec) (I
2
t was measured at listed interrupting rating and rated voltage. Measured at 70% to 80% power factor on AC)
‡ Typical Voltage Drop (Voltage drop was measured at 25°C±3°C ambient temperature at rated current)
1/4" x 1-1/4" Fuses
ABC Series, Fast Acting, Ceramic Tube

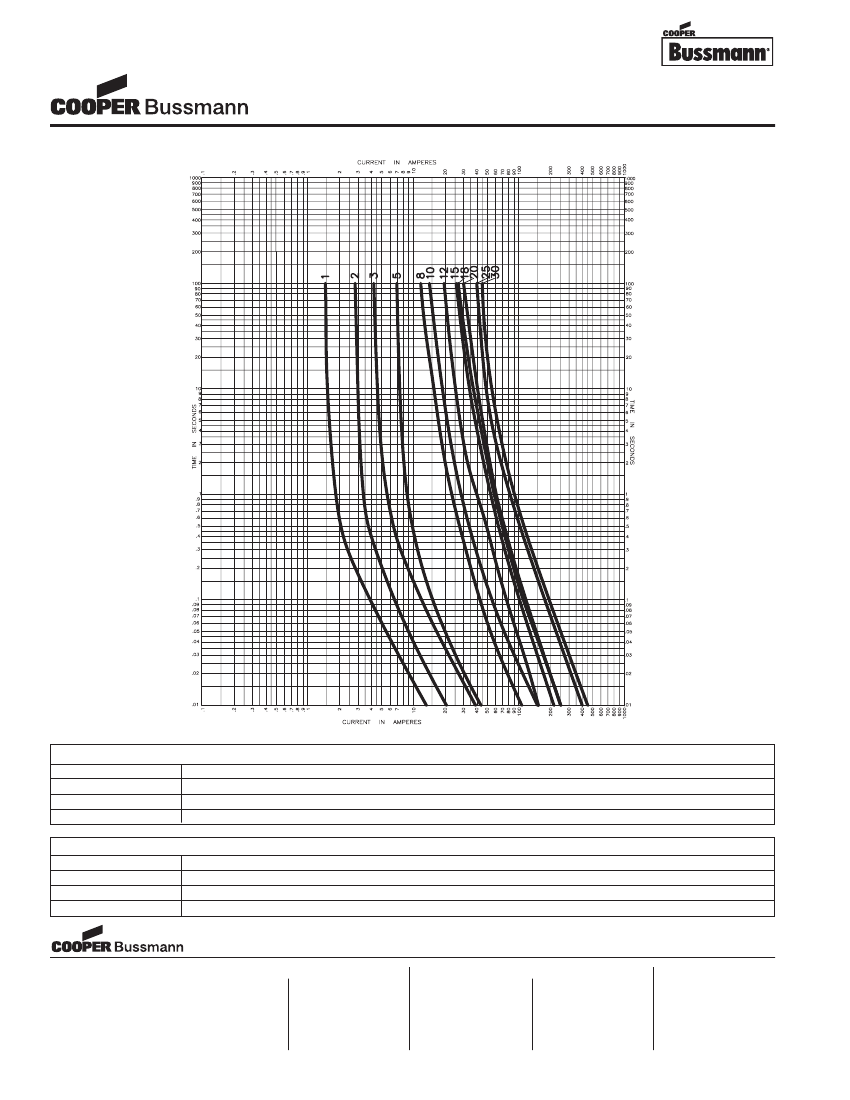

TIME CURRENT CURVE
PACKAGING CODE
Packaging Code
BK
BK1
BK8
Description
100 pieces of fuses packed into a cardboard carton
1,000 pieces of fuses packed into a cardboard carton
8,000 pieces of fuses packed into a cardboard carton
OPTION CODE
Option Code
B
V
-R
Description
Board Washable - Hermetically sealed to withstand aqueous cleaning
Axial leads - copper tinned wire with nickel plated brass overcaps
RoHS compliant version
Visit us on the web at:
www.cooperbussmann.com
OC-2542 11/06
© Cooper Electronic
Technologies 2006
