PI74FCT2240TL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> PI74FCT2240TL

PI74FCT2240TL: DescriptionBus Driver, FCT Series, 2-Func, 4-Bit, Inverted Output, CMOS, PDSO20, 0.173 INCH, PLASTIC, TSSOP-20; Categorylogic logic; File Size132KB，6 Pages; ManufacturerPericom Semiconductor Corporation (Diodes Incorporated); Websitehttps://www.diodes.com/

Download Datasheet Parametric View All

PI74FCT2240TL Overview

Bus Driver, FCT Series, 2-Func, 4-Bit, Inverted Output, CMOS, PDSO20, 0.173 INCH, PLASTIC, TSSOP-20

PI74FCT2240TL Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)
Parts packaging code	TSSOP
package instruction	TSSOP, TSSOP20,.25
Contacts	20
Reach Compliance Code	compliant
ECCN code	EAR99
Control type	ENABLE LOW
series	FCT
JESD-30 code	R-PDSO-G20
JESD-609 code	e0
length	6.5 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.012 A
Number of digits	4
Number of functions	2
Number of ports	2
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE WITH SERIES RESISTOR
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP20,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	240
power supply	5 V
Prop。Delay @ Nom-Sup	8 ns
propagation delay (tpd)	8 ns
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	4.4 mm
Base Number Matches	1

Preview

Download Datasheet

View All

PI74FCT240T/241T/

244T/540T/541T (25 ohmSeries)

PI74FCT2240T/2241T/2244T/2541T

21098765432121098765432109876543210987654321210987654321098765432109876543212109876543210987654321098765432121098765432109876543210987654321

Fast CMOS Octal

Buffer/Line Drivers

Product Features

•

PI74FCT240/241/244/540/541T and PI74FCT2240/2241/2244/

2541T are pin compatible with bipolar FAST™ Series at a

higher speed and lower power consumption

25Ω series resistor on all outputs (FCT2XXX only)

•

TTL input and output levels

•

Low ground bounce outputs

•

Extremely low static power

•

Hysteresis on all inputs

•

Industrial operating temperature range:

40°C to +85°C

Packages available:

– 20-pin 173 mil wide plastic TSSOP (L)

– 20-pin 209 mil wide plastic SSOP (H)

– 20-pin 300 mil wide plastic DIP (P)

– 20-pin 150 mil wide plastic QSOP (Q)

– 20-pin 150 mil wide plastic TQSOP (R)

– 20-pin 300 mil wide plastic SOIC (S)

•

Device models available upon request

Product Description

Pericom Semiconductor’s PI74FCT series of logic circuits are

produced in the Company’s advanced 0.6/0.8 micron CMOS

technology, achieving industry leading speed grades. All

PI74FCT2XXX devices have a built-in 25 ohm series resistor on

all outputs to reduce noise because of reflections, thus eliminating

the need for an external terminating resistor.

The PI74FCT240T/241T/244T/540T/541T and P174FCT2240T/

2241T/2244/2541T are 8-bit wide driver circuits, designed to be

used in applications requiring high-speed and high-output drive.

Ideal applications would include bus drivers, memory drivers,

address drivers, and system clock drivers.

The PI74FCT540T and PI74FCT541/2541T provide similar driver

capabilities, but have their pins physically grouped by function.

All inputs are located on one side of the package, while outputs are

on the opposite side, allowing for a much simpler and denser board

layout.

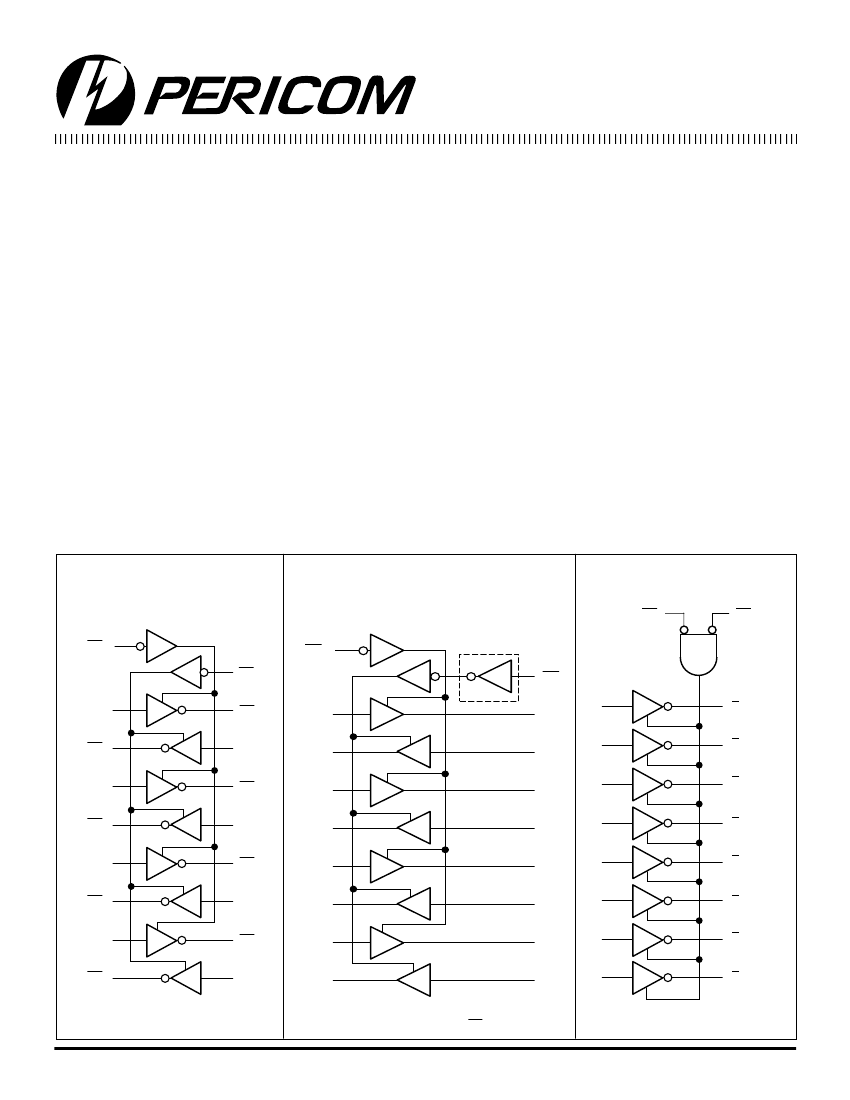

Logic Block Diagrams

PI74FCT240/2240T

PI74FCT241/2241T

PI74FCT244/2244T

241 Only

PI74FCT540T

PI74FCT541/2541T

for 241T,

for 244T,

*Logic diagram shown for 540T.

541/2541T is the non-inverting option.

PS2011B

12/11/00
