SS-6888-FLS-RMK datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> SS-6888-FLS-RMK

Preview

SS-6888-FLS-RMK: DescriptionTelecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size43KB，2 Pages; ManufacturerBel Fuse

Download Datasheet Parametric Compare View All

SS-6888-FLS-RMK Overview

Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Receptacle

SS-6888-FLS-RMK Parametric

Parameter Name	Attribute value
Maker	Bel Fuse
Reach Compliance Code	compliant
Other features	WITH KEYWAY
Board mount options	SPLIT BOARD LOCK
body width	0.505 inch
subject depth	0.725 inch
body length	0.71 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	15 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	1000VAC V
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
Installation option 1	LOCKING
Installation option 2	MOUNTING FLANGE
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
Rated current (signal)	1.5 A
Guideline	CSA, UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	1.016 mm
Termination type	SURFACE MOUNT
Total number of contacts	8
Base Number Matches	1

Preview

Download Datasheet

View All

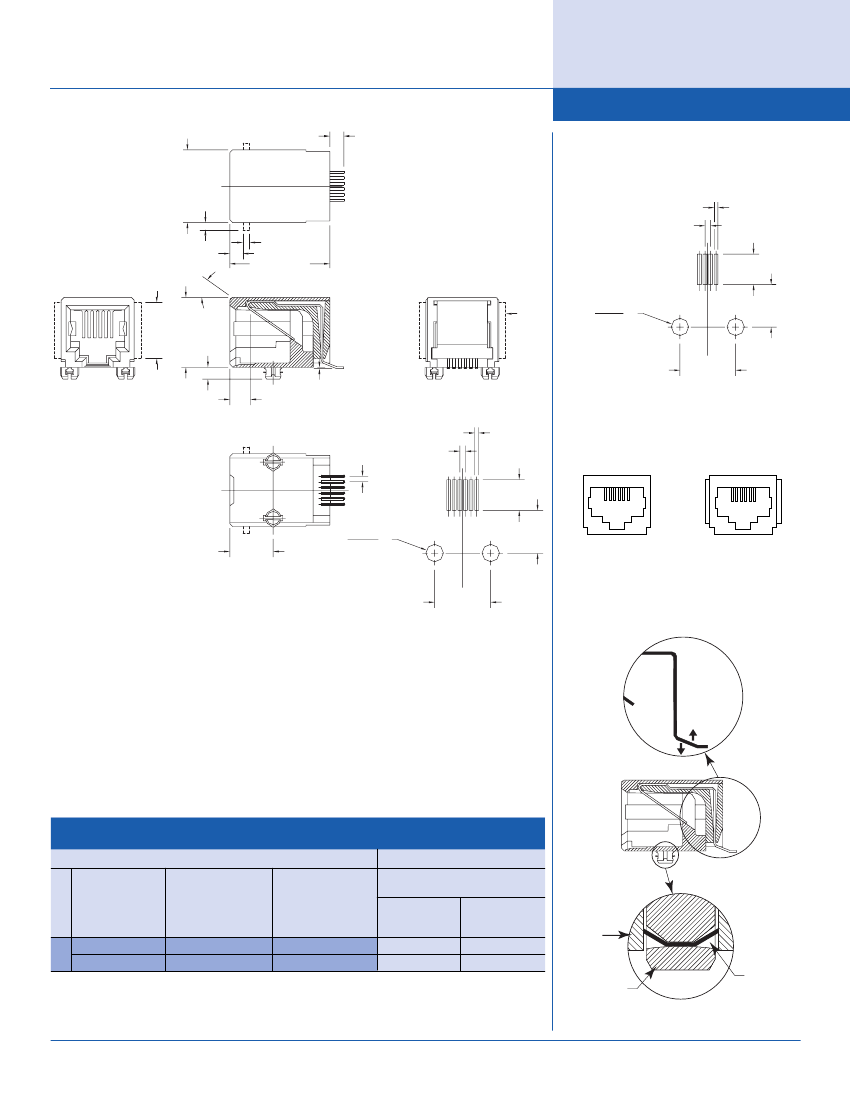

Surface-Mount, Modular Jacks

• Unshielded

68 Series

Variations

*.525 [13.34] MAX

.050 [1.27]

Six-Contact,

Six-Position

Unshielded

.100 [2.53]±.010 [0.25]

Footprint Configuration

Four-Contact,

Six-Position

Unshielded

.028 [0.71] (4)

.040 [1.02] TYP

.050 [1.27]

.093 [2.36]

.725 [18.42] MAX

35°±3°

.505 [12.83] MAX

FLANGE

OPTION

Ø

.128 [3.25]

(2)

.125 [3.18]

.220 [5.59]

STEWART

PATENTED

.400 [10.16]

*.400 [10.16]

.005 [0.13]

.085 [2.16]

.118 [3.00] MIN

Flange Options

.040 [1.02]

.040 [1.02] TYP

.220 [5.59]

.028 [0.71] (6)

No Flange

(NF)

Panel Stop

(FLS)

Ø

.310 [7.87]

.128 [3.25]

(2)

.125 [3.18]

*.400 [10.16]

.305 [7.75]

Pogo-Action Contact

Quick Reference Chart

Description

Series

Contacts

Inserted

Contact

Positions

Options

Flange Options

FLS

68

4

6

NF

SOF-LOK

Post

PC Board

TM

•

RJ-11*

Locking Tab

SOF-LOK™ Post

*Typical applications.

Note: Configurations shown are the most common for typical applications.

For availability of other configurations not listed, consult Stewart.

All dimensions are in inches with metric values in brackets.

Information subject to change without notice. To obtain drawings and current specifications, contact Stewart Connector Systems, Inc.

11118 Susquehanna Trail South, Glen Rock, PA 17327-9199. Telephone: 717-235-7512. FAX: 717-235-7954. http://www.stewartconnector.com

.305 [7.75]

43

SS-6888-FLS-RMK Related Products

	SS-6888-FLS-RMK	SS-6888-NF-RMK-50	SS-6888-FLS-RMK-50	SS-6866-NF-RMK	SS-6888-NF-RMK	SS-6866-FLS-RMK	SS-6866-NF-RMK-50
Description	Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Receptacle	Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Receptacle	Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Receptacle	Telecom and Datacom Connector, 6 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Receptacle	Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Receptacle	Telecom and Datacom Connector, 6 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Receptacle	Telecom and Datacom Connector, 6 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Receptacle
Maker	Bel Fuse	Bel Fuse	Bel Fuse	Bel Fuse	Bel Fuse	Bel Fuse	Bel Fuse
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	WITH KEYWAY	WITH KEYWAY	WITH KEYWAY	WITH KEYWAY	WITH KEYWAY	WITH KEYWAY	WITH KEYWAY
Board mount options	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK
body width	0.505 inch	0.505 inch	0.505 inch	0.505 inch	0.505 inch	0.505 inch	0.505 inch
subject depth	0.725 inch	0.725 inch	0.725 inch	0.725 inch	0.725 inch	0.725 inch	0.725 inch
body length	0.71 inch	0.61 inch	0.71 inch	0.525 inch	0.61 inch	0.625 inch	0.525 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU	AU	AU	AU	AU	AU	AU
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	15 mΩ	15 mΩ	15 mΩ	15 mΩ	15 mΩ	15 mΩ	15 mΩ
Contact style	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation option 2	MOUNTING FLANGE	FLANGELESS	MOUNTING FLANGE	FLANGELESS	FLANGELESS	MOUNTING FLANGE	FLANGELESS
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of ports	1	1	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	30u inch	50u inch	50u inch	30u inch	30u inch	30u inch	50u inch
Rated current (signal)	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
Guideline	CSA, UL	CSA, UL	CSA, UL	CSA, UL	CSA, UL	CSA, UL	CSA, UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	1.016 mm	1.016 mm	1.016 mm	1.016 mm	1.016 mm	1.016 mm	1.016 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	8	8	8	6	8	6	6
Base Number Matches	1	1	1	1	1	1	1
