Z86C0808PEC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> Z86C0808PEC

Z86C0808PEC: DescriptionMicrocontroller, 8-Bit, MROM, Z8 CPU, 8MHz, CMOS, PDIP18, PLASTIC, DIP-18; CategoryThe embedded processor and controller Microcontrollers and processors; File Size687KB，33 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric Compare View All

Z86C0808PEC Overview

Microcontroller, 8-Bit, MROM, Z8 CPU, 8MHz, CMOS, PDIP18, PLASTIC, DIP-18

Z86C0808PEC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Zilog, Inc.
Parts packaging code	DIP
package instruction	DIP, DIP18,.3
Contacts	18
Reach Compliance Code	unknown
Has ADC	NO
Other features	OPTIONAL LOW EMI MODE; 2 STANDBY MODES; BROWN-OUT PROTECTION
Address bus width
bit size	8
boundary scan	NO
CPU series	Z8
maximum clock frequency	8 MHz
DAC channel	NO
DMA channel	NO
External data bus width
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-PDIP-T18
JESD-609 code	e0
low power mode	YES
Number of DMA channels
Number of external interrupt devices	3
Number of I/O lines	14
Number of serial I/Os
Number of terminals	18
Number of timers	2
On-chip data RAM width	8
On-chip program ROM width	8
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP18,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	3.3/5 V
Certification status	Not Qualified
RAM (bytes)	124
RAM (number of words)	124
rom(word)	2000
ROM programmability	MROM
speed	8 MHz
Maximum slew rate	11 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	3 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

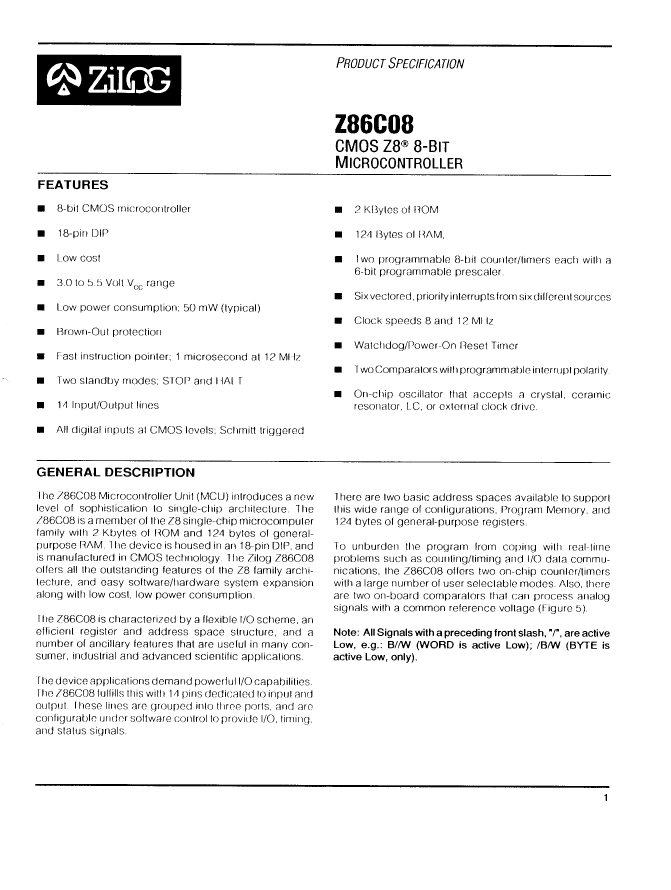

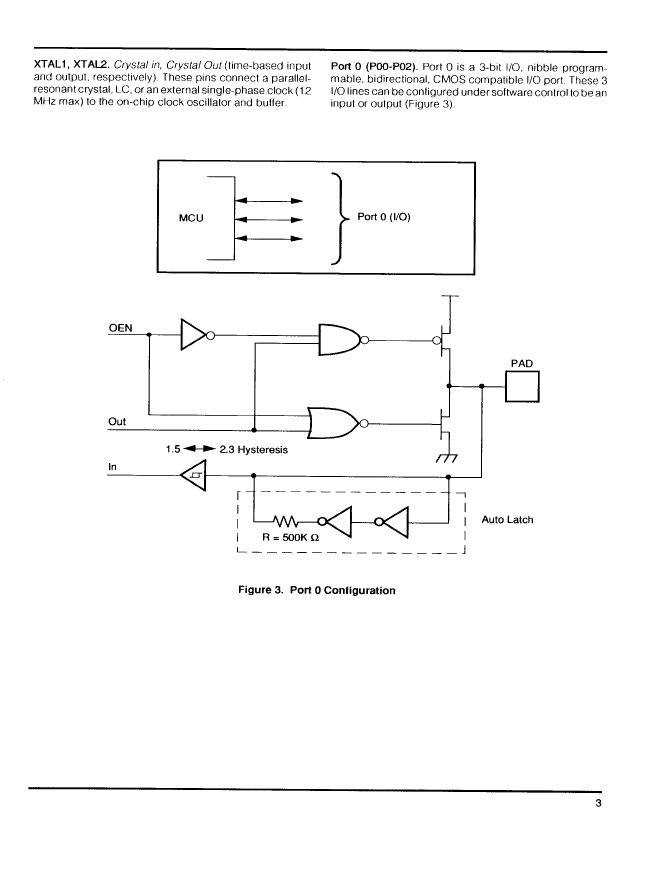

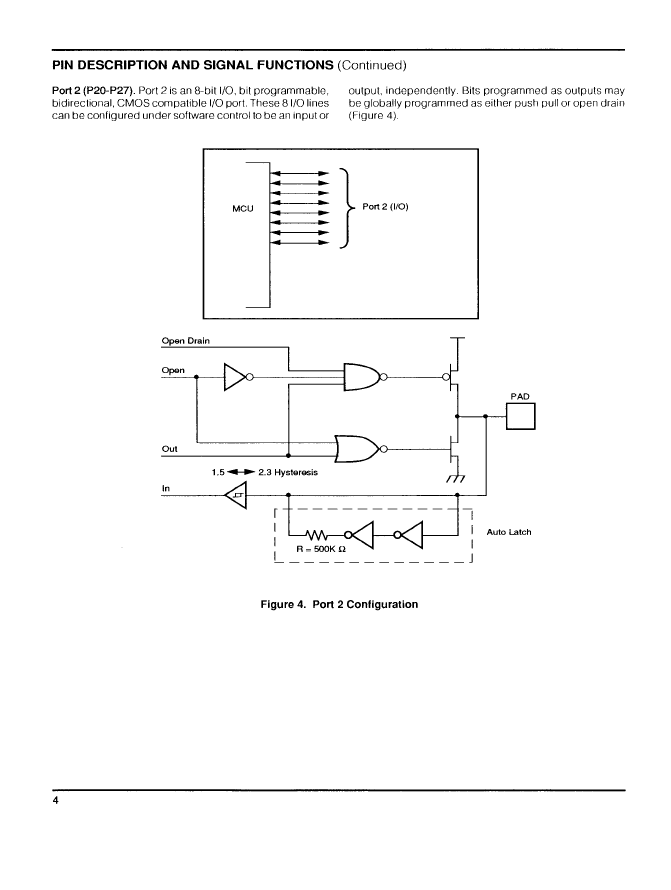

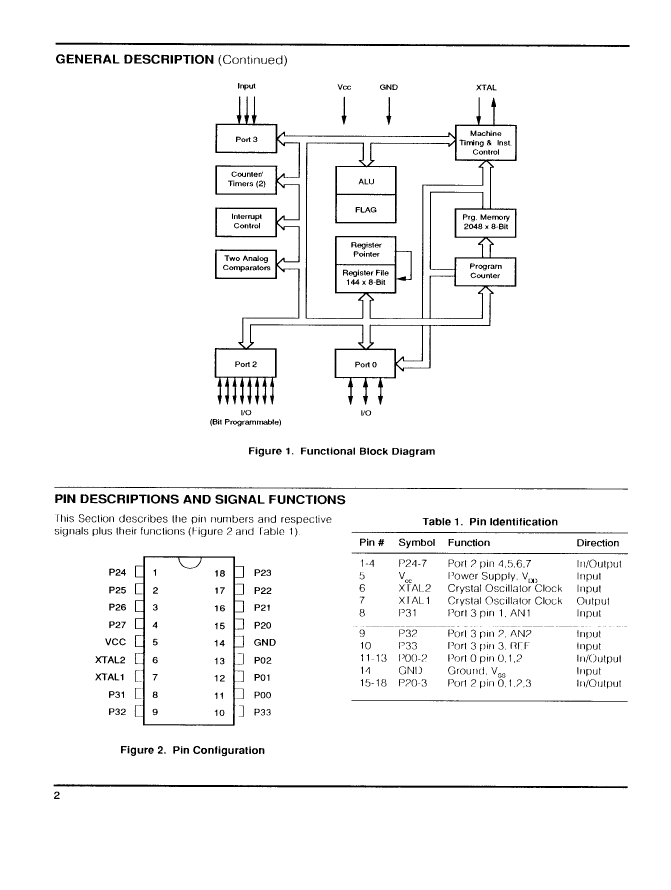

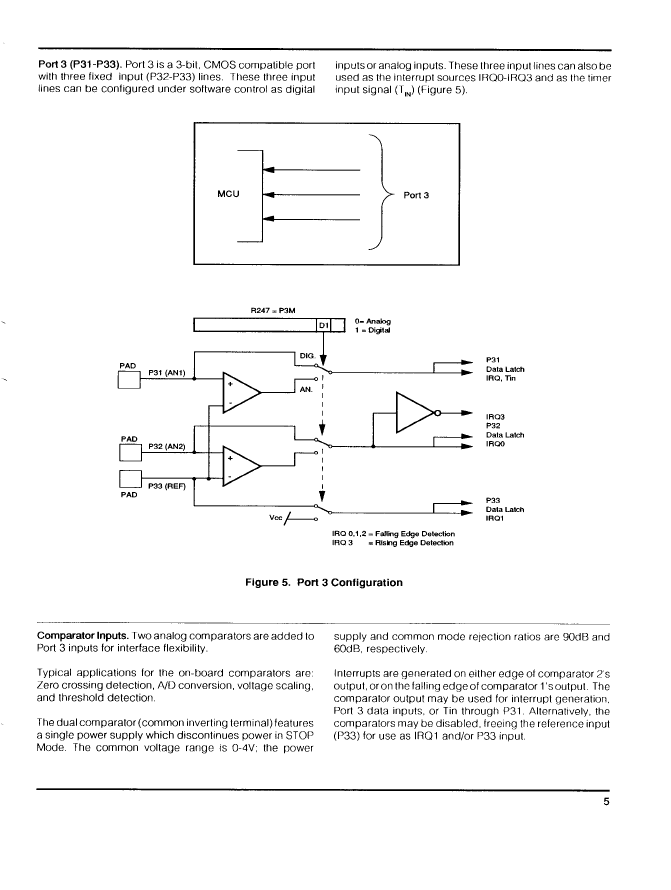

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

Z86C0808PEC Related Products

	Z86C0808PEC	Z86C0808PSC
Description	Microcontroller, 8-Bit, MROM, Z8 CPU, 8MHz, CMOS, PDIP18, PLASTIC, DIP-18	Microcontroller, 8-Bit, MROM, Z8 CPU, 8MHz, CMOS, PDIP18, PLASTIC, DIP-18
Is it Rohs certified?	incompatible	incompatible
Maker	Zilog, Inc.	Zilog, Inc.
Parts packaging code	DIP	DIP
package instruction	DIP, DIP18,.3	DIP, DIP18,.3
Contacts	18	18
Reach Compliance Code	unknown	unknown
Has ADC	NO	NO
Other features	OPTIONAL LOW EMI MODE; 2 STANDBY MODES; BROWN-OUT PROTECTION	OPTIONAL LOW EMI MODE; 2 STANDBY MODES; BROWN-OUT PROTECTION
bit size	8	8
boundary scan	NO	NO
CPU series	Z8	Z8
maximum clock frequency	8 MHz	8 MHz
DAC channel	NO	NO
DMA channel	NO	NO
Format	FIXED POINT	FIXED POINT
Integrated cache	NO	NO
JESD-30 code	R-PDIP-T18	R-PDIP-T18
JESD-609 code	e0	e0
low power mode	YES	YES
Number of external interrupt devices	3	3
Number of I/O lines	14	14
Number of terminals	18	18
Number of timers	2	2
On-chip data RAM width	8	8
On-chip program ROM width	8	8
Maximum operating temperature	105 °C	70 °C
PWM channel	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP18,.3	DIP18,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
power supply	3.3/5 V	3.3/5 V
Certification status	Not Qualified	Not Qualified
RAM (bytes)	124	124
RAM (number of words)	124	124
rom(word)	2000	2000
ROM programmability	MROM	MROM
speed	8 MHz	8 MHz
Maximum slew rate	11 mA	11 mA
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	3 V	3 V
Nominal supply voltage	5 V	5 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER
