PGA205AD datasheet, PDF - EEWORLD Datasheet

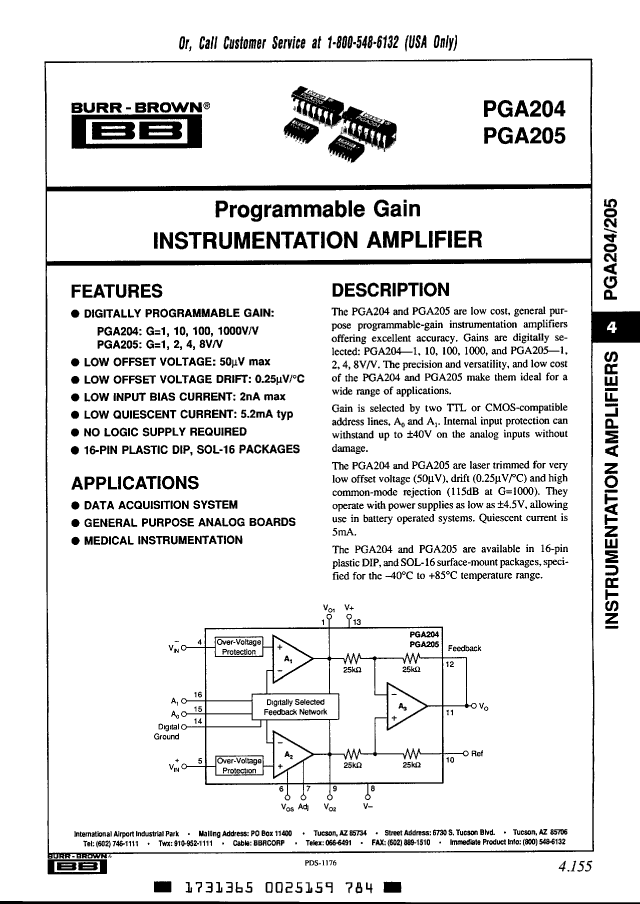

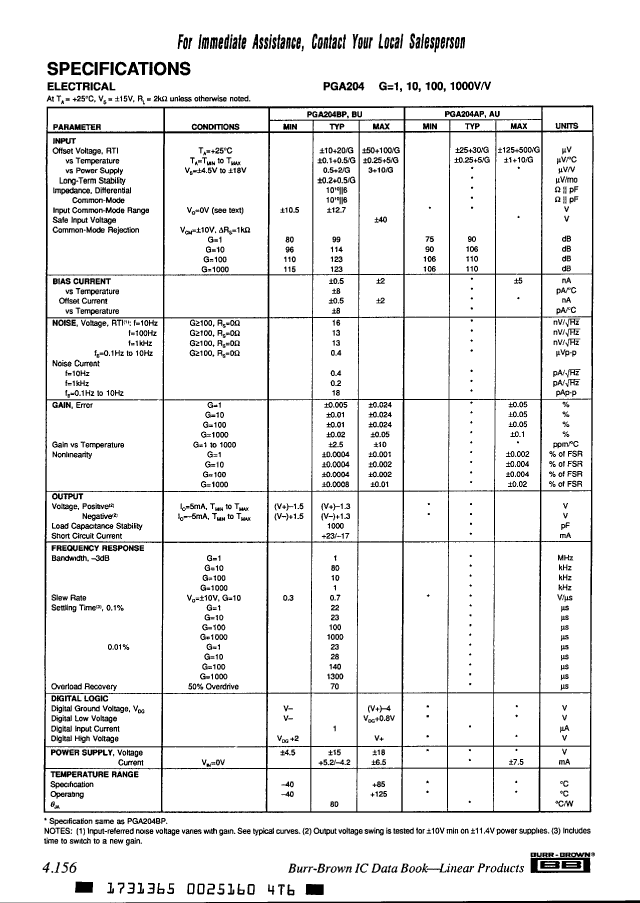

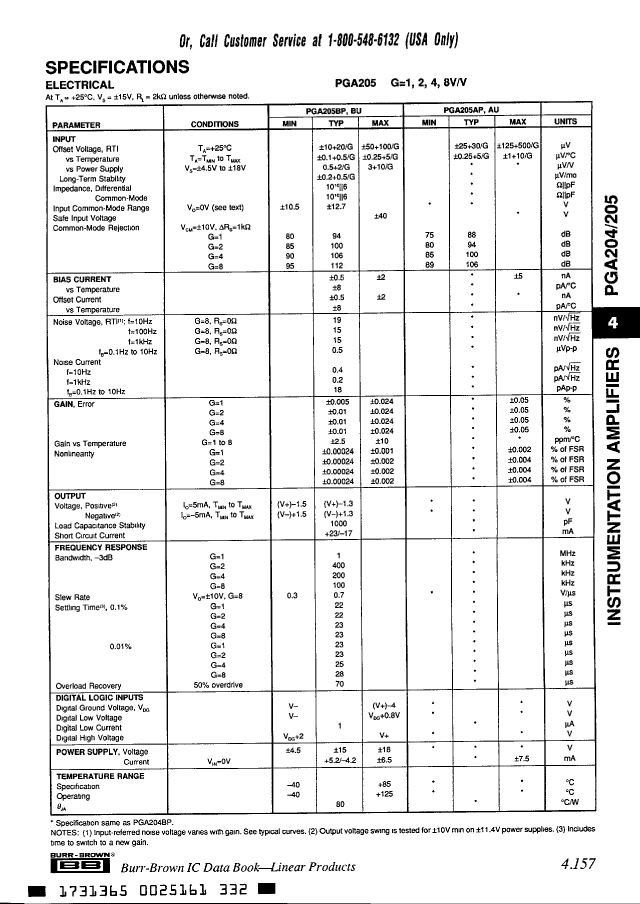

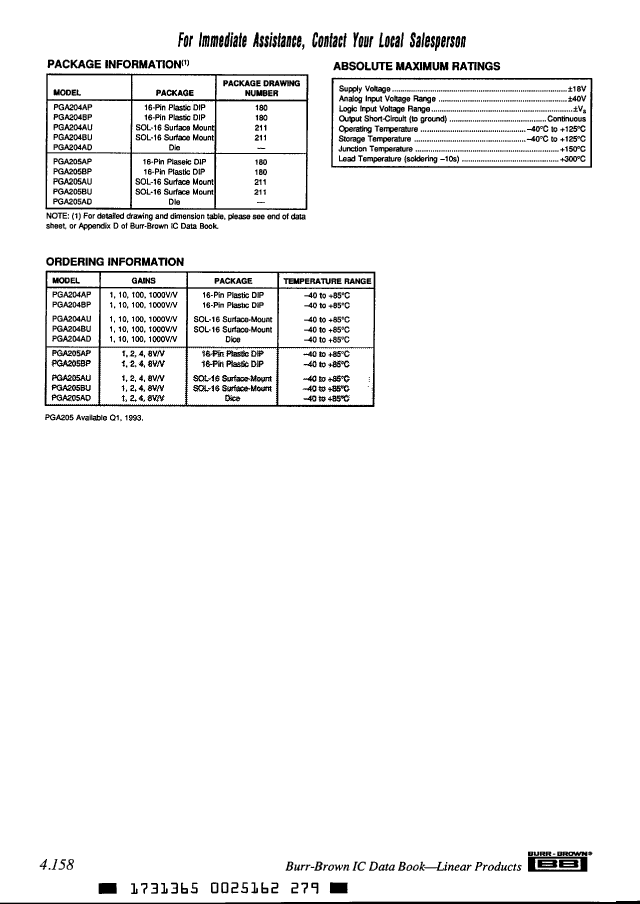

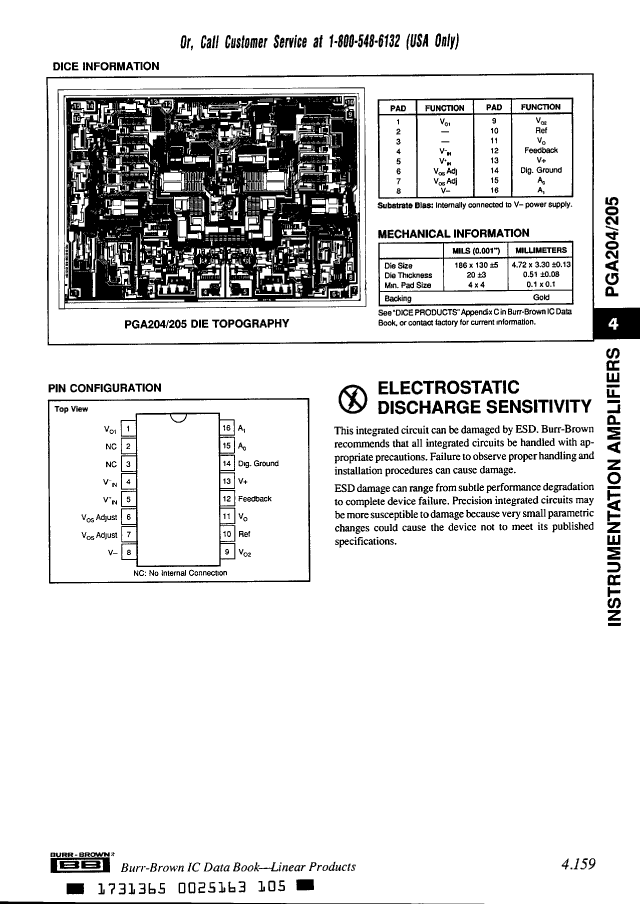

PGA205AD: DescriptionInstrumentation Amplifier, 1 Func, BIPolar,; CategoryAnalog mixed-signal IC Amplifier circuit; File Size894KB，14 Pages; ManufacturerBurr-Brown; Websitehttp://www.burr-brown.com/

Download Datasheet Parametric Compare View All

PGA205AD Overview

Instrumentation Amplifier, 1 Func, BIPolar,

Parameter Name	Attribute value
Maker	Burr-Brown
Reach Compliance Code	unknown
Amplifier type	INSTRUMENTATION AMPLIFIER
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Encapsulate equivalent code	DIE OR CHIP
power supply	+-15 V
Certification status	Not Qualified
Maximum slew rate	7.5 mA
Nominal supply voltage (Vsup)	15 V
technology	BIPOLAR
Temperature level	INDUSTRIAL
Base Number Matches	1

	PGA205AD	PGA204AD
Description	Instrumentation Amplifier, 1 Func, BIPolar,	Instrumentation Amplifier, 1 Func, BIPolar,
Maker	Burr-Brown	Burr-Brown
Reach Compliance Code	unknown	unknown
Amplifier type	INSTRUMENTATION AMPLIFIER	INSTRUMENTATION AMPLIFIER
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V
Number of functions	1	1
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Encapsulate equivalent code	DIE OR CHIP	DIE OR CHIP
power supply	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified
Maximum slew rate	7.5 mA	7.5 mA
Nominal supply voltage (Vsup)	15 V	15 V
technology	BIPOLAR	BIPOLAR
Temperature level	INDUSTRIAL	INDUSTRIAL
Base Number Matches	1	1
